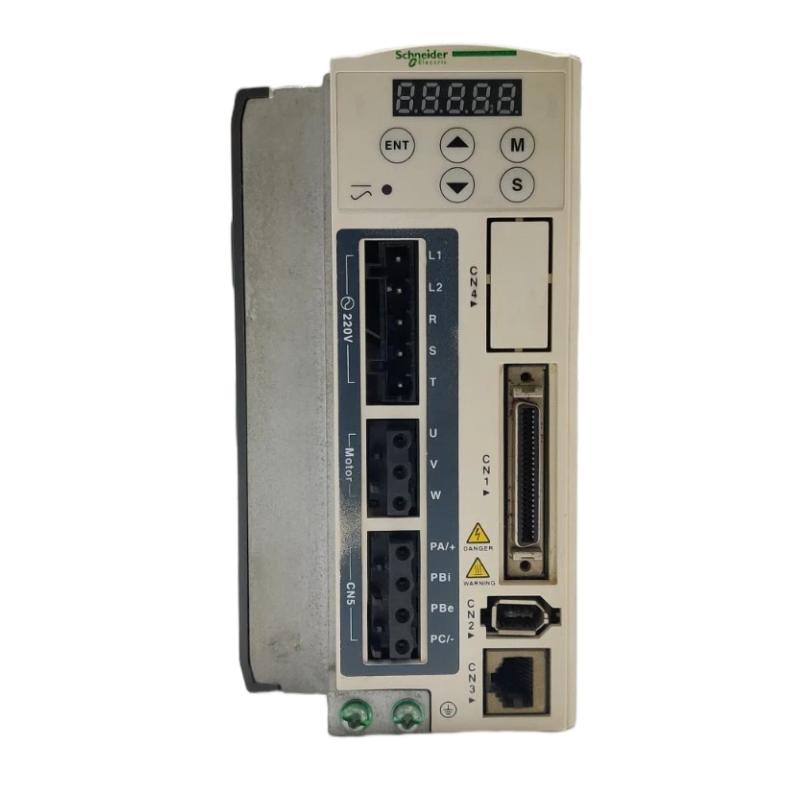

Schneider LXM23AU10M3X Motion Servo Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model | LXM23AU10M3X |
| Product Type | Motion Servo Drive |
| Product Series | Lexium 23 Plus |
| Main Function | Controls servo motor speed, torque, and position for industrial motion-control applications |
| Rated Power | 1 kW (1000 W) |
| Rated Supply Voltage | 220 V AC |
| Input Voltage Range | 200–255 V AC single-phase; 170–255 V AC three-phase |
| Supported Supply Phases | Single-phase or three-phase |
| Supply Frequency | 50/60 Hz |
| Network Frequency Range | 47.5–63 Hz |
| Continuous Output Current | 7.3 A |
| Output Voltage | Up to the supply voltage |
| Communication Interfaces | Integrated CANopen and CANmotion; two-wire RS-485 Modbus |
| CANopen Node Address | 1–127 |
| CANopen Communication Speed | Up to 1 Mbps, depending on bus length and network configuration |
| Digital Inputs | 8 programmable inputs |
| Digital Input Voltage | 12–24 V DC |
| Digital Outputs | 5 logic outputs |
| Analog Inputs | 2 voltage inputs: V_REF and T_REF |
| Analog Input Range | -10 to +10 V |
| Motor Feedback | Servo motor encoder feedback |
| Cooling Method | Integrated fan cooling |
| Mounting Orientation | Vertical mounting |
| Protection Functions | Overcurrent, overvoltage, undervoltage, overheating, overload, overspeed, and output short-circuit protection |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C, subject to installation and derating requirements |
| Electrical Connection | Screw-clamp terminals |
| Dimensions | 85 × 162 × 180 mm |
| Weight | 2.2 kg |
| Product Status | Discontinued in some markets; verify regional availability and replacement options |
FAQ
Q1: What is the main function of the Schneider LXM23AU10M3X servo drive?
The LXM23AU10M3X is a 1 kW AC servo drive in the Lexium 23 Plus series. It regulates the speed, torque, and position of a compatible servo motor based on commands from a PLC, motion controller, or other supported control interface. Typical applications include packaging equipment, material handling, positioning systems, and automated machinery.
Q2: Which servo motors are compatible with the LXM23AU10M3X?
The drive must be matched with a compatible Schneider Electric servo motor, taking into account rated power, voltage, current, encoder feedback, and braking requirements. The Lexium 23 Plus range is commonly paired with compatible BCH-series servo motors. Confirm the exact motor-drive combination against the manufacturer’s selection documentation before installation.
Q3: What power supply does the LXM23AU10M3X require?
The drive has a nominal supply voltage of 220 V AC. The specified input range is 200–255 V AC for single-phase supply and 170–255 V AC for three-phase supply. Verify the actual supply arrangement, protective devices, grounding, and wiring requirements before commissioning.
Q4: Which communication protocols does the LXM23AU10M3X support?
The drive supports integrated CANopen and CANmotion communication, as well as a two-wire RS-485 Modbus interface. For network control, configure the node address, communication speed, and relevant controller parameters to match the network design. Supported functions depend on the selected communication method and application configuration.
Q5: Why might the servo motor fail to start when the drive is powered on?
Possible causes include an inactive servo-enable signal, an active alarm, incorrect control wiring, unsuitable parameter settings, or a problem with the motor or encoder connection. Check the drive display and alarm codes, confirm the supply voltage, and verify the command source and operating mode before restarting the system.
Q6: What causes overheating or frequent alarms on the LXM23AU10M3X?
Overheating and recurring alarms may result from excessive mechanical load, restricted airflow, high ambient temperature, incorrect acceleration settings, or electrical supply problems. Inspect the cooling fan and cabinet ventilation, review the alarm history, and confirm that the motor and drive are appropriately sized for the application.
Q7: How should the LXM23AU10M3X be installed in an electrical cabinet?
Install the drive vertically in a suitable cabinet and provide sufficient clearance for airflow. Keep the fan and ventilation paths unobstructed, separate power cables from sensitive signal cables where practical, and follow the manufacturer’s grounding and EMC wiring instructions. The installation must also comply with the specified ambient-temperature and electrical-protection requirements.
Q8: What should be considered when replacing the LXM23AU10M3X?
Schneider Electric lists the Lexium 28 LXM28AU10M3X as a recommended replacement for the LXM23AU10M3X in applicable markets. Before replacement, verify motor compatibility, supply voltage, communication interfaces, wiring, mounting, parameter migration, and machine safety requirements. Do not assume the replacement is directly interchangeable without checking the relevant technical documentation.
Schneider LXM23AU10M3X Motion Servo Drive is in stock. Please contact us for a quick quote and competitive pricing.
