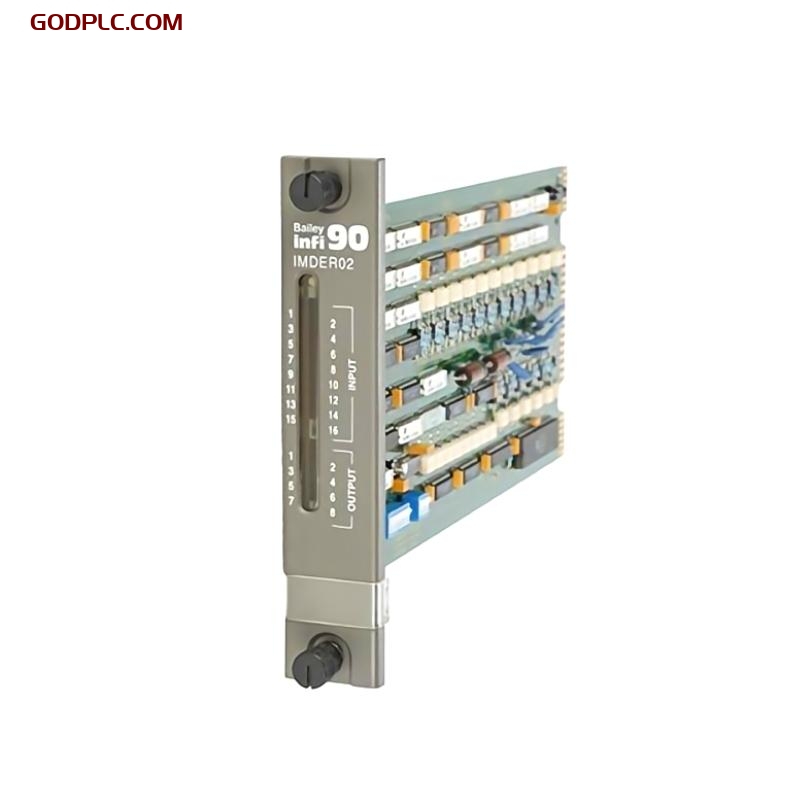

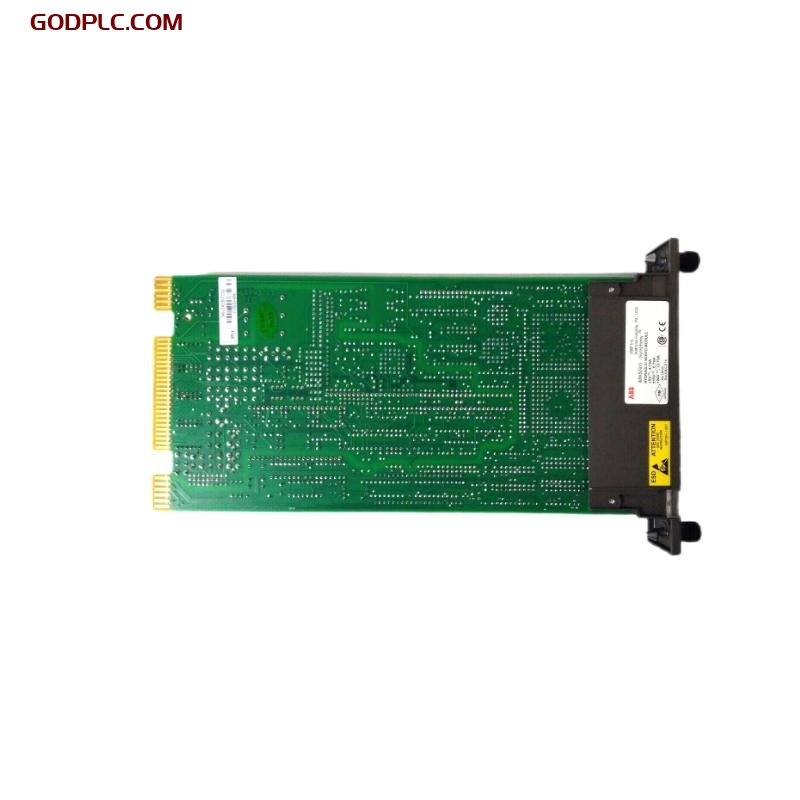

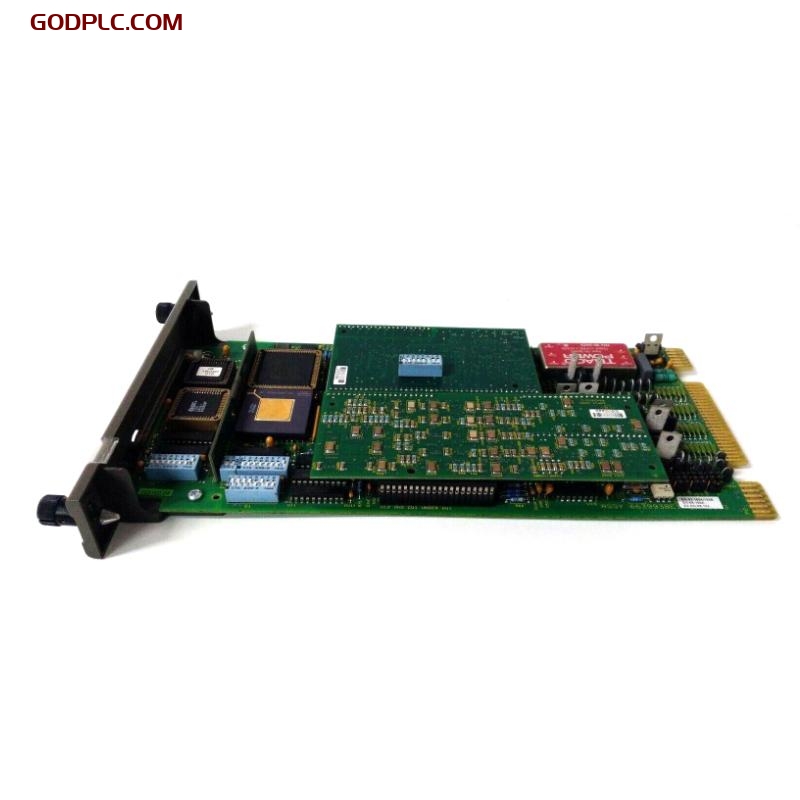

ABB Bailey IMDER02 Digital Output Module
__________________________________________________________________________________________
Product Overview
The ABB Bailey IMDER02 Digital Output Module is a robust and reliable output interface module designed for ABB’s INFI 90® distributed control system (DCS). It provides discrete (on/off) digital output signals for operating field devices such as relays, solenoids, and indicator lamps. Engineered for demanding industrial applications, the IMDER02 ensures accurate command signal transmission and reliable field control, making it a key component in process automation and utility systems.
Key Features
-
Discrete Output Control: Provides multiple digital output channels for switching field devices.
-
Redundant System Support: Can be configured within redundant control architectures for enhanced system reliability.
-
High Noise Immunity: Designed to operate reliably in electrically noisy environments common in industrial settings.
-
Diagnostic Indicators: Includes onboard status LEDs for real-time monitoring and easy fault diagnosis.
-
INFI 90 DCS Integration: Seamlessly integrates into ABB’s INFI 90 series for comprehensive process control.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 178 x 51 x 330mm |
| Weight | 0.227 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | IMDER02 |
| Module Type | Digital Output Module |
| System Type | ABB Bailey INFI 90 DCS |
| Mounting Style | Card rack module |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Output Channels | Typically 16 discrete outputs |
| Output Voltage | 24 VDC or 48 VDC (field selectable) |
| Output Type | Sourcing (positive logic) |
| Output Current | Up to 0.5 A per channel |
| Isolation | Channel-to-channel and system isolation |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Environmental Rating | IP20 (with proper installation) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Bailey INFI 90 DCS, Symphony Harmony |
| Configuration Tool | ABB Composer, Bailey configuration tools |
Industry Applications
-
Power Generation: Controls circuit breakers, relays, and signal indicators in thermal and hydro power plants.
-
Oil & Gas: Switches valves, safety relays, and actuators in upstream and downstream applications.
-
Chemical Processing: Provides discrete control in batch and continuous chemical plant operations.
-
Water & Wastewater: Activates pumps, motors, and alarms in water treatment facilities.
-
Metals and Mining: Used to control heavy-duty field equipment and safety interlocks in harsh environments.
The ABB Bailey IMDER02 Digital Output Module is a dependable and field-proven solution for discrete control in complex industrial environments. With its seamless integration into the INFI 90 DCS and rugged design, it supports the safe and efficient operation of essential process equipment.
ABB Bailey IMDER02 Digital Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
