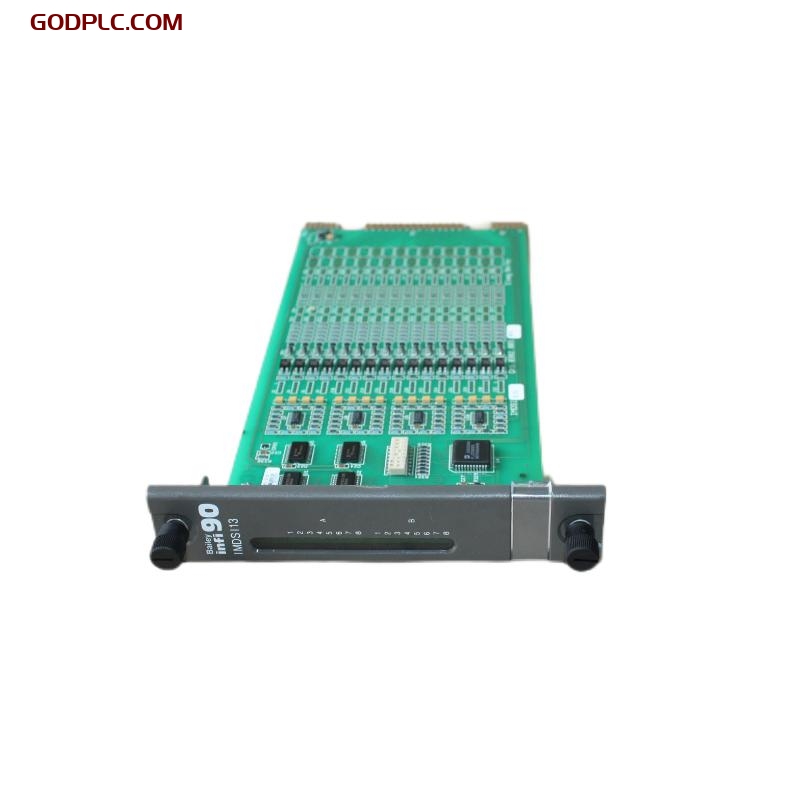

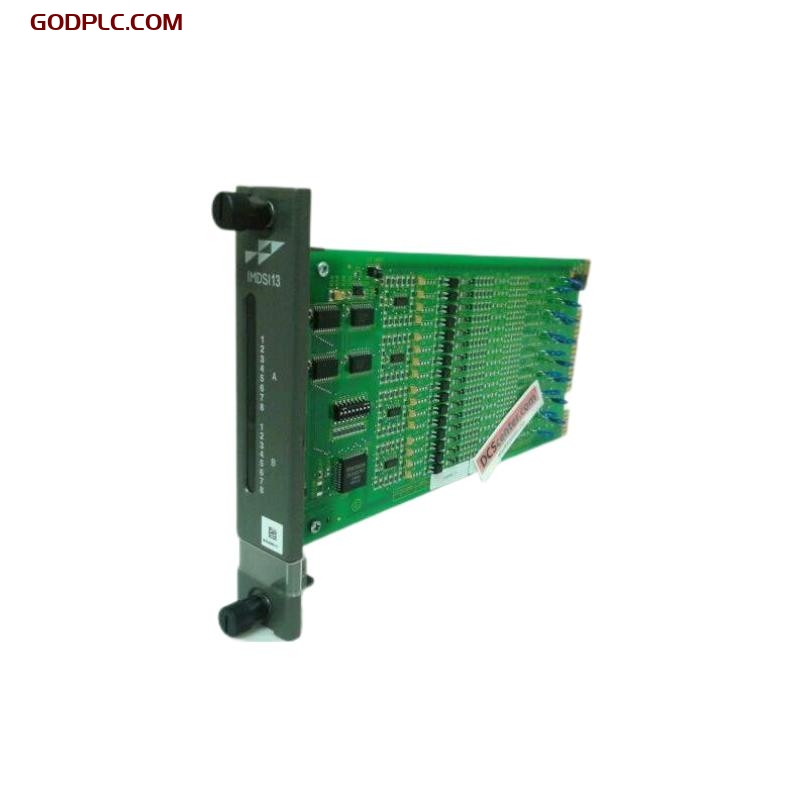

ABB Bailey IMDSI13 PTJDC95205 Digital Input Slave Module
Product Overview
The ABB Bailey IMDSI13 PTJDC95205 Digital Input Slave Module is a robust and high-performance component used in ABB’s INFI 90 Distributed Control System (DCS). Designed to handle digital input signals from field devices, this module provides reliable signal acquisition, processing, and transmission to the control processor. Its durable design and precise functionality make it a preferred choice for demanding industrial automation environments, where dependable digital signal monitoring is crucial for operational safety and efficiency.
Key Features
-
Multi-Channel Input Handling: Capable of processing multiple digital input signals simultaneously, increasing efficiency and reducing hardware footprint.
-
Reliable Signal Acquisition: Ensures accurate and dependable monitoring of binary signals from field devices such as switches, relays, and sensors.
-
INFI 90 Compatibility: Fully integrates with ABB’s INFI 90 DCS, facilitating seamless installation and operation within established system architectures.
-
High Noise Immunity: Engineered to operate reliably in environments with high electrical noise, ensuring signal integrity and system stability.
-
Hot Swappable Design: Supports online replacement without shutting down the system, reducing maintenance time and avoiding process interruptions.
-
Diagnostic LEDs: Provides onboard status indicators for quick diagnostics and maintenance.
-
Compact Form Factor: Space-saving design allows efficient use of cabinet space in control rooms and panels.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 73.66 × 360.68 × 269.24 mm |
| Weight | 0.68 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | IMDSI13 PTJDC95205 |
| Module Type | Digital Input Slave Module |
| Mounting | Standard rack-mounted |
| Material | Industrial-grade construction |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Type | 24 V DC Digital Inputs |
| Input Channels | 32 channels |
| Isolation Voltage | ≥ 1500 V AC (channel to logic) |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | ABB INFI 90 DCS |
| Communication Interface | Redundant Module Bus (RMB) |
| Software Configuration | INFI 90 Engineering Tools |
Industry Applications
-
Power Generation: Used to monitor critical switch and relay positions in power plants, enabling reliable system feedback and protection.
-
Oil & Gas: Deployed in upstream and downstream applications to capture binary signals from field equipment in hazardous environments.
-
Chemical Processing: Ensures accurate input data from field sensors and safety systems, enhancing process reliability.
-
Manufacturing Plants: Enables robust digital signal collection in discrete and process manufacturing setups.
-
Water and Wastewater Treatment: Monitors pump and valve states, contributing to effective automation and safety compliance.
The ABB Bailey IMDSI13 PTJDC95205 Digital Input Slave Module delivers dependable digital input functionality, perfectly suited for mission-critical industrial applications. Its rugged design, wide system compatibility, and efficient performance help maintain smooth operations across diverse automation environments.
ABB Bailey IMDSI13 PTJDC95205 Digital Input Slave Module is in stock. Please contact us for a quick quote and competitive pricing.
