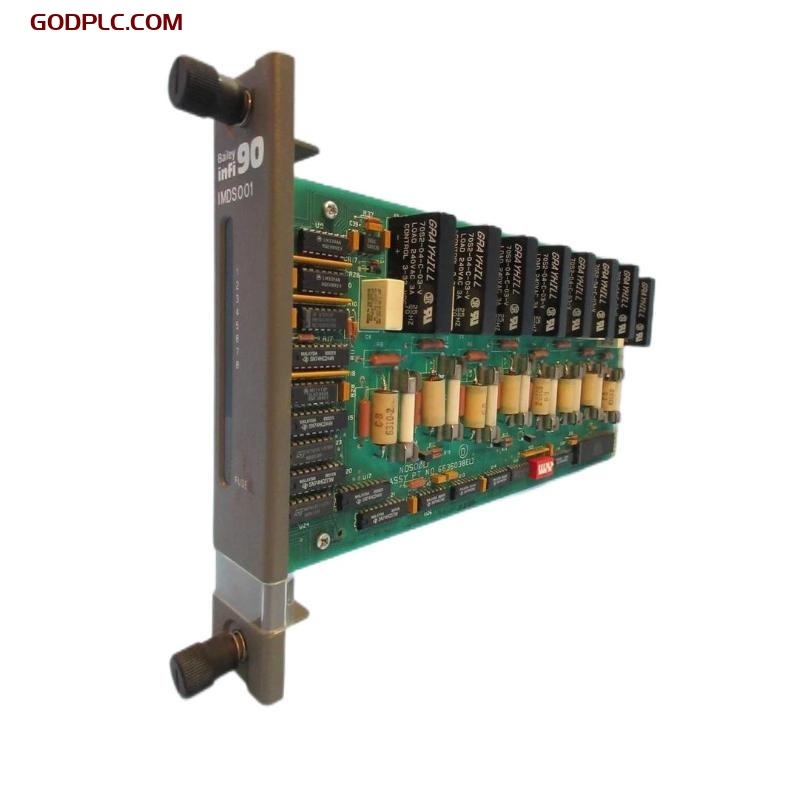

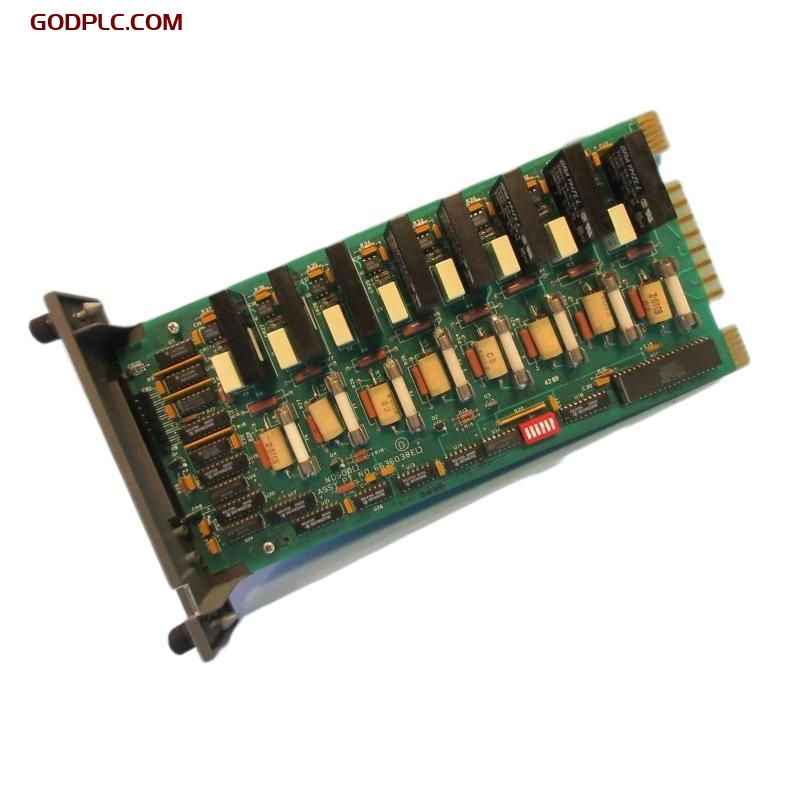

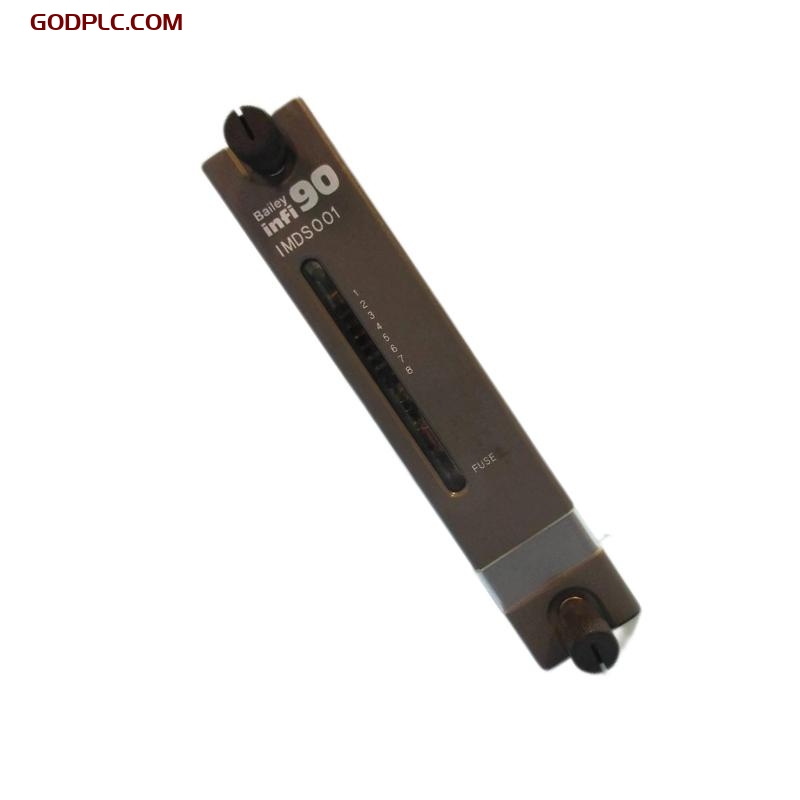

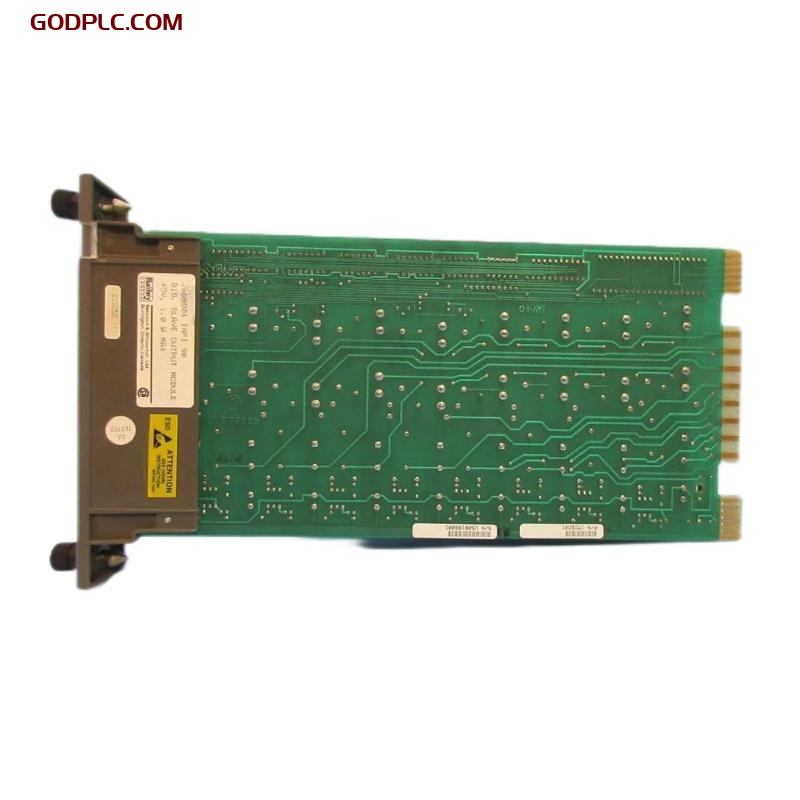

ABB Bailey IMDSO01 6636038E1 Digital Output Slave Modules
Product Overview
The ABB Bailey IMDSO01 6636038E1 Digital Output Slave Module is designed to provide reliable digital output control in industrial automation systems. This module is a part of ABB’s distributed control system (DCS) and is specifically engineered to interface seamlessly with various control processors and I/O modules. With a robust construction and advanced diagnostics, the IMDSO01 module ensures high availability and reliability in mission-critical applications.
It supports the precise control of industrial devices such as actuators, relays, and other output equipment. The module is optimized for environments where real-time control and high system uptime are crucial, including industries such as power generation, chemical processing, and manufacturing automation.
Key Features
-
16 Discrete Outputs: Provides 16 individual output channels, offering versatile control for a range of industrial devices.
-
High Reliability: Designed for use in high-demand environments, ensuring continuous and stable operation.
-
Built-in Diagnostics: Equipped with LED indicators for real-time status and fault detection, facilitating quick troubleshooting.
-
Compact Design: Space-efficient, making it ideal for panel-mounted installations in control systems.
-
Hot Swappable: Allows for module replacement without system downtime, reducing maintenance efforts and improving system uptime.
-
Wide Operating Temperature Range: Operates in challenging conditions with a temperature range from -20°C to +60°C.
-
High Shock and Vibration Resistance: Suitable for harsh industrial environments where equipment is exposed to mechanical stresses.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 140 x 100 mm |
| Weight | 0.454 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | IMDSO01 |
| Manufacturer | ABB |
| Installation | Panel Mount / DIN Rail Mount |
| Power Supply | 24 V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Output Performance
| Item | Specification |
|---|---|
| Output Channels | 16 discrete outputs |
| Output Voltage | 24 V DC |
| Output Current | Max 0.5 A per channel |
| Switching Frequency | Up to 10 Hz |
| Protection | Short-circuit and overcurrent |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Consumption | Max 5 W |
| Current Draw | Max 0.3 A |
| Status Indicators | LEDs for output status |
Industry Applications
-
Power Generation: Provides control and monitoring of output devices in power plants, including turbines, breakers, and other control equipment.
-
Chemical Processing: Used for controlling actuators and other devices in chemical production environments where precision and safety are crucial.
-
Manufacturing Automation: Enables efficient operation of automated machinery, robots, and production lines with high output control.
-
Oil & Gas: Facilitates control in exploration and production systems, including valve actuation and control systems.
-
Water Treatment: Controls valves, pumps, and other devices in water and wastewater management systems to ensure smooth operation.
-
Building Automation: Ideal for controlling HVAC systems, lighting, and other devices in commercial and residential buildings.
The ABB Bailey IMDSO01 6636038E1 Digital Output Slave Module is an essential component in a wide variety of industrial automation and control systems. Its high reliability, compact design, and advanced diagnostics make it ideal for ensuring uninterrupted operation in mission-critical applications.
ABB Bailey IMDSO01 6636038E1 Digital Output Slave Modules is in stock. Please contact us for a quick quote and competitive pricing.
