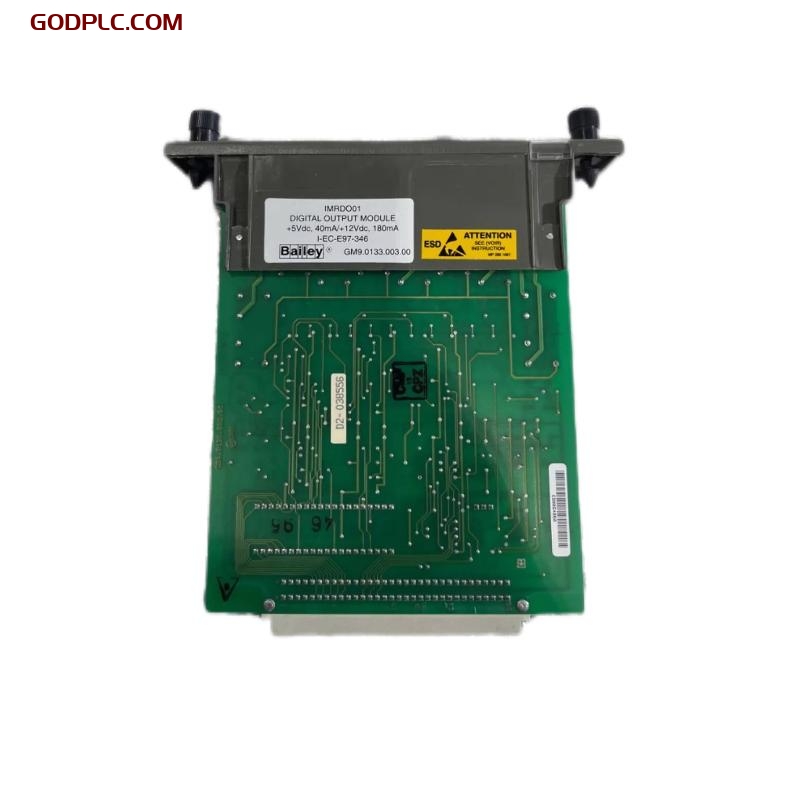

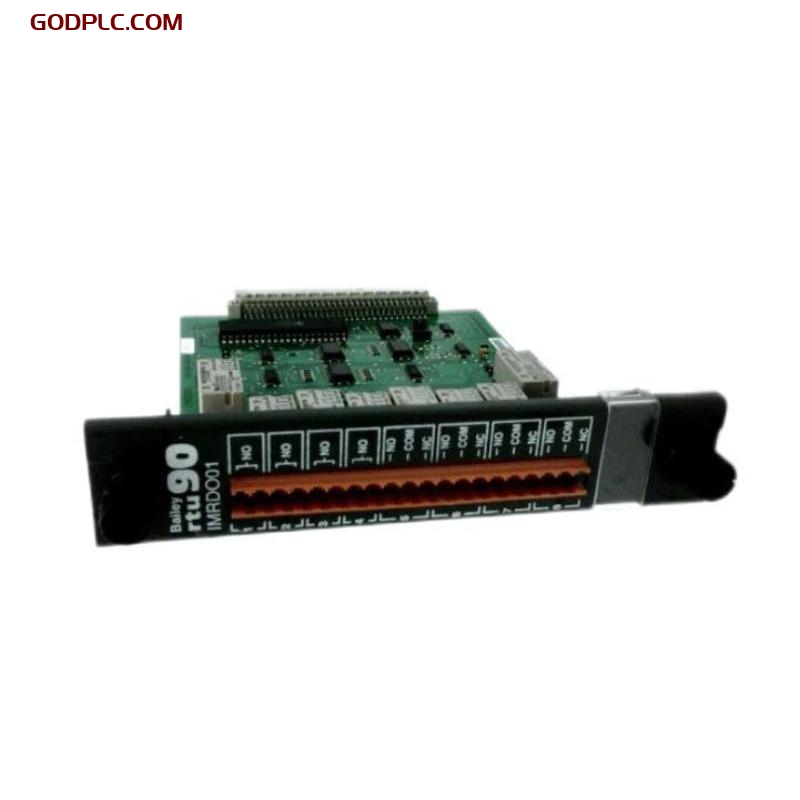

ABB Bailey IMRDO01 Digital Output Module
___________________________________________________________________________________________________
Product Overview
The ABB Bailey IMRDO01 Digital Output Module is a key component in the INFI 90 and Symphony DCS systems, providing robust and reliable digital signal control for industrial automation and process control applications. This module is responsible for transmitting ON/OFF control signals to field devices such as relays, solenoids, and indicator lights. With its proven durability and high signal integrity, the IMRDO01 is an essential element in distributed control systems requiring dependable digital output performance.
Key Features
-
Discrete Output Control: Offers reliable digital ON/OFF output functionality for controlling a wide variety of field devices.
-
INFI 90 Compatibility: Designed specifically for seamless integration with ABB Bailey’s INFI 90 and Symphony control systems.
-
Channel Isolation: Each output channel is electrically isolated for enhanced safety and signal clarity.
-
Robust Industrial Design: Built to perform in demanding process environments with high electrical noise and mechanical stress.
-
Hot-Swappable: Can be replaced without powering down the system, minimizing operational disruptions.
-
Easy Diagnostics: Features onboard indicators for output status and fault identification, aiding quick maintenance.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 178 x 51 x 330mm |
| Weight | 0.227 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | IMRDO01 |
| Module Type | Digital Output Module |
| Output Channels | 16 discrete outputs |
| Mounting | Mounted in INFI 90 rack |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Output Type | Digital (24 V DC) |
| Output Voltage | 18–32 V DC |
| Output Current | Up to 0.5 A per channel |
| Isolation | Channel-to-channel and channel-to-ground |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Bailey INFI 90, Symphony, Symphony Plus |
| Configuration Software | Composer, INFI 90 Configuration Tools |
| Communication Protocol | INFI-NET or Harmony system protocols |
Industry Applications
-
Oil & Gas: Controls emergency shutdown systems, valve actuators, and process alarms in upstream and downstream operations.
-
Power Generation: Interfaces with breakers, control relays, and annunciation systems in turbine and boiler automation.
-
Chemical and Petrochemical: Supports safe control of chemical dosing, interlocks, and process sequences.
-
Pulp and Paper: Manages field equipment in batch and continuous paper processing systems.
-
Water & Wastewater Treatment: Controls pumps, valves, and automated control elements in treatment and distribution facilities.
The ABB Bailey IMRDO01 Digital Output Module provides a reliable and proven solution for industrial control systems requiring precise and durable digital output functionality. Designed for integration with the INFI 90 and Symphony platforms, it ensures high system availability, easy maintenance, and robust operation in mission-critical applications.
ABB Bailey IMRDO01 Digital Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
