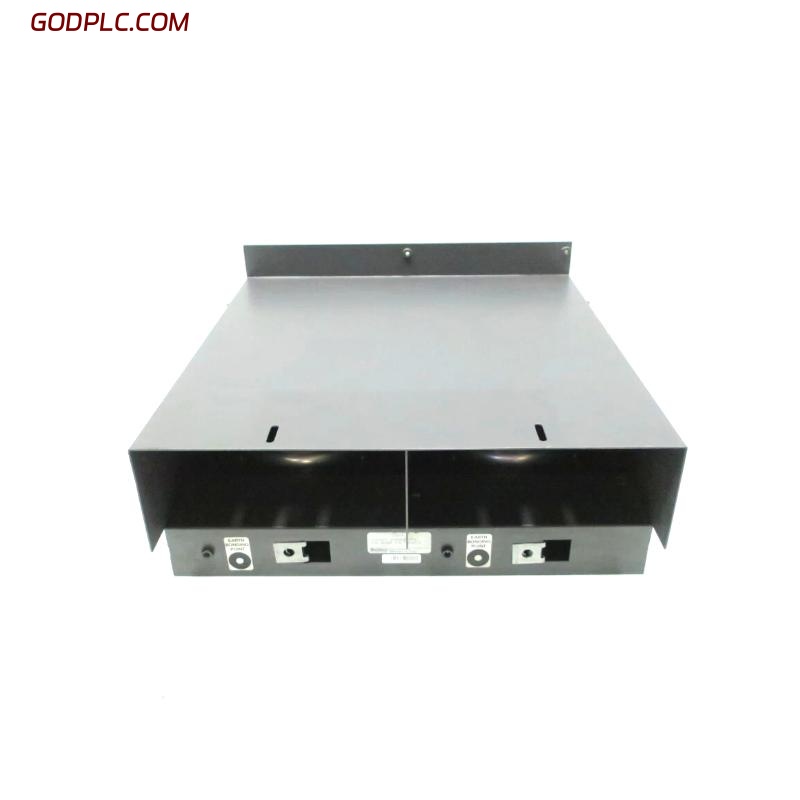

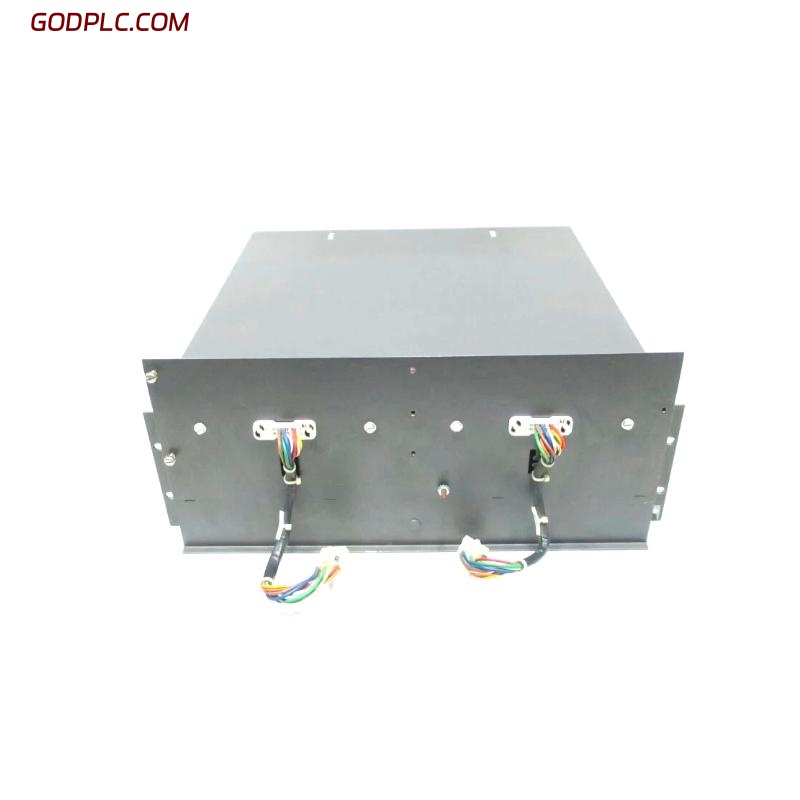

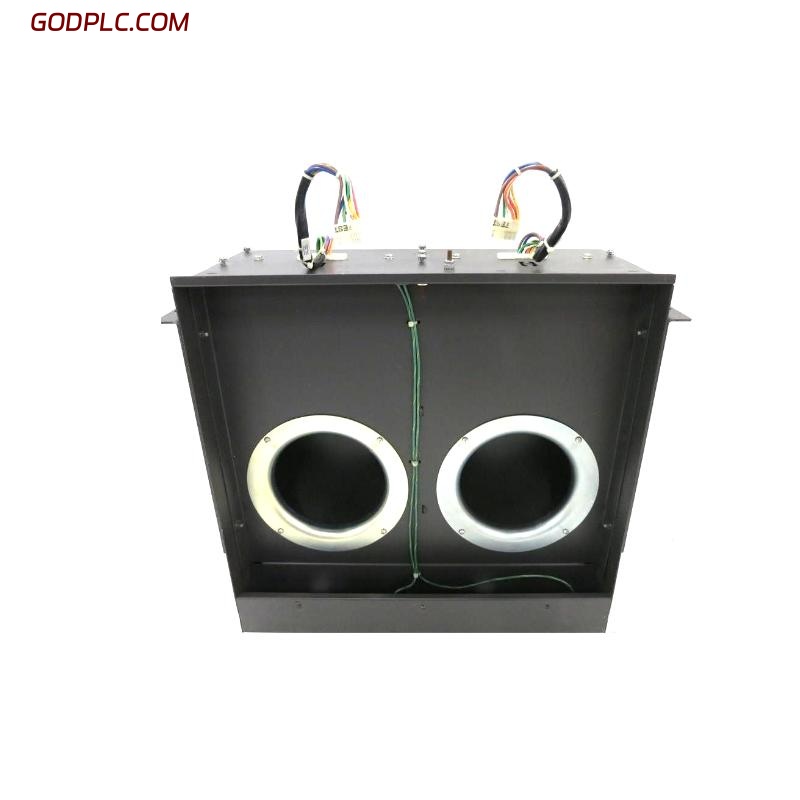

ABB Bailey IPFCH01 Power Fan Chassis
Product Overview
The ABB Bailey IPFCH01 is a Power Fan Chassis designed for use within ABB’s Infi 90 process control systems. It combines power distribution and high-efficiency cooling functions in a single, compact unit to support the reliable operation of system modules housed within the Infi 90 rack.
This chassis serves as a critical infrastructure component by distributing DC power to system modules and housing the cooling fans necessary to maintain appropriate operating temperatures. The IPFCH01 is engineered to provide stable electrical performance and efficient thermal management for continuous, mission-critical industrial applications.
Key Features
-
Integrated Power and Cooling – Combines power distribution and fan cooling in one chassis
-
High Availability Design – Supports uninterrupted operation of control modules in demanding environments
-
Efficient Airflow Management – Provides optimized airflow to prevent overheating of system components
-
Compatible with Infi 90 System – Designed specifically for ABB Bailey’s Infi 90 series racks and modules
-
Robust Construction – Durable metal chassis with industrial-grade connectors and cooling fans
-
Ease of Maintenance – Supports quick access for fan replacement and system service
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 482.6 × 133.4 × 152.4 mm |
| Weight | 9.98 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC (nominal), distributed via backplane |
| Power Distribution | Supports multiple control modules via system backplane |
| Power Capacity | Designed for standard Infi 90 module power requirements |
Cooling Characteristics
| Item | Specification |
|---|---|
| Fan Type | Dual high-speed brushless DC fans |
| Airflow Rate | Typically 80–120 CFM combined |
| Cooling Mode | Forced-air ventilation |
| Fan Redundancy | May include redundant fan configuration depending on variant |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 (standard control room use) |
System Compatibility
| Item | Specification |
|---|---|
| Platform Integration | ABB Bailey Infi 90 system racks |
| Functionality | Power delivery and system cooling |
| Maintenance | Front-access fan modules for easy replacement |
Industry Applications
-
Power and Utilities – Essential in DCS environments for power plants and substations
-
Oil & Gas – Provides reliable support for automation systems in upstream and downstream operations
-
Chemical and Petrochemical – Ensures safe and efficient cooling and power distribution in SIS and control applications
-
Water Treatment Facilities – Supports rugged control systems operating in high-moisture and dusty environments
-
Industrial Manufacturing – Integral to automation chassis powering and cooling in heavy-duty processing environments
The ABB Bailey IPFCH01 Power Fan Chassis delivers reliable, integrated power and thermal management for Infi 90 systems. Engineered for durability and ease of service, it is a foundational component that ensures safe, continuous operation in critical industrial control environments.
ABB Bailey IPFCH01 Power Fan Chassis is in stock. Please contact us for a quick quote and competitive pricing.
