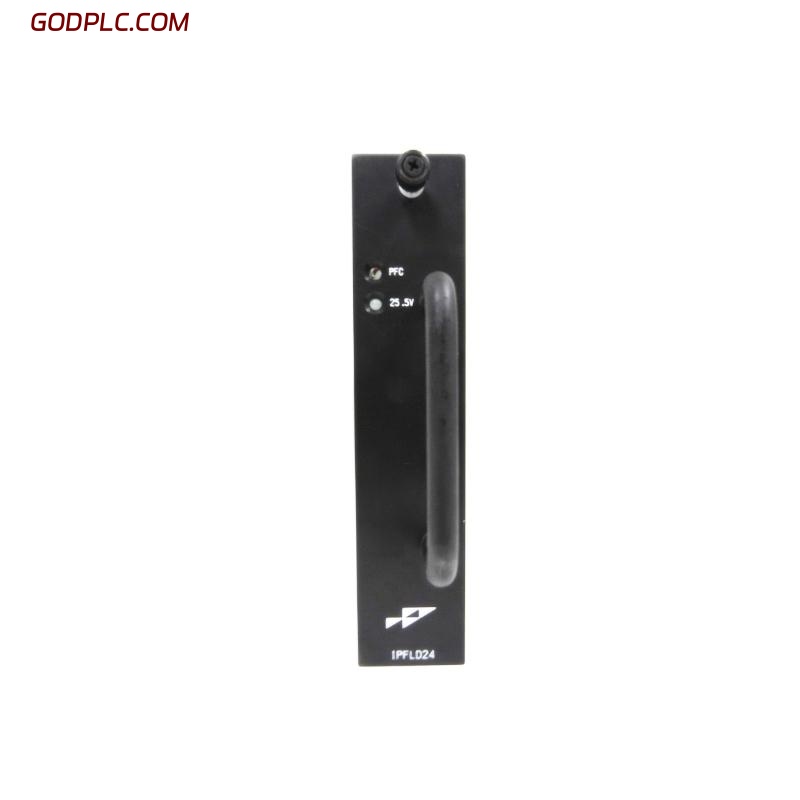

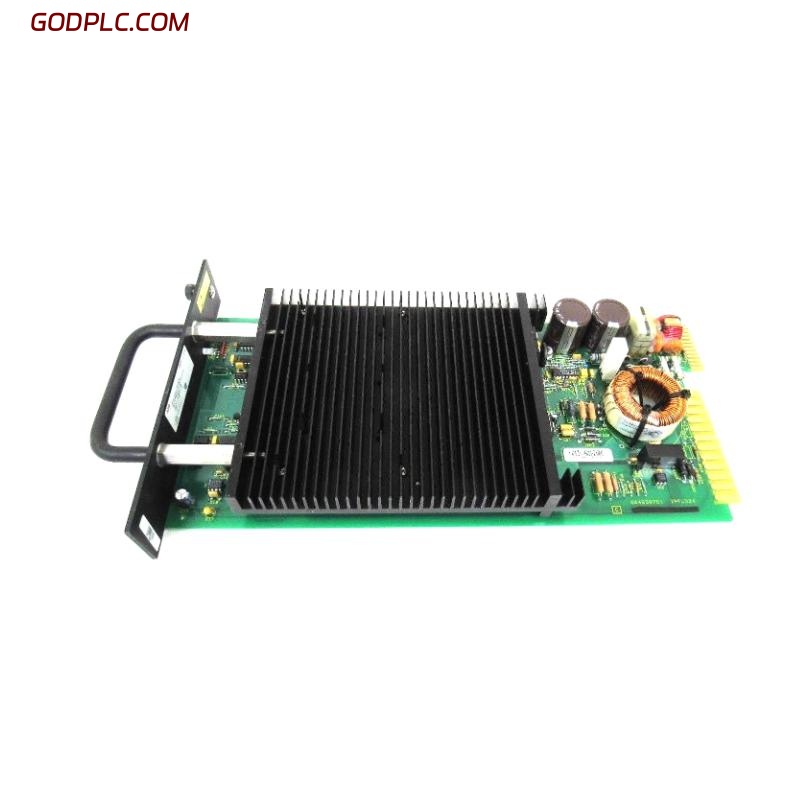

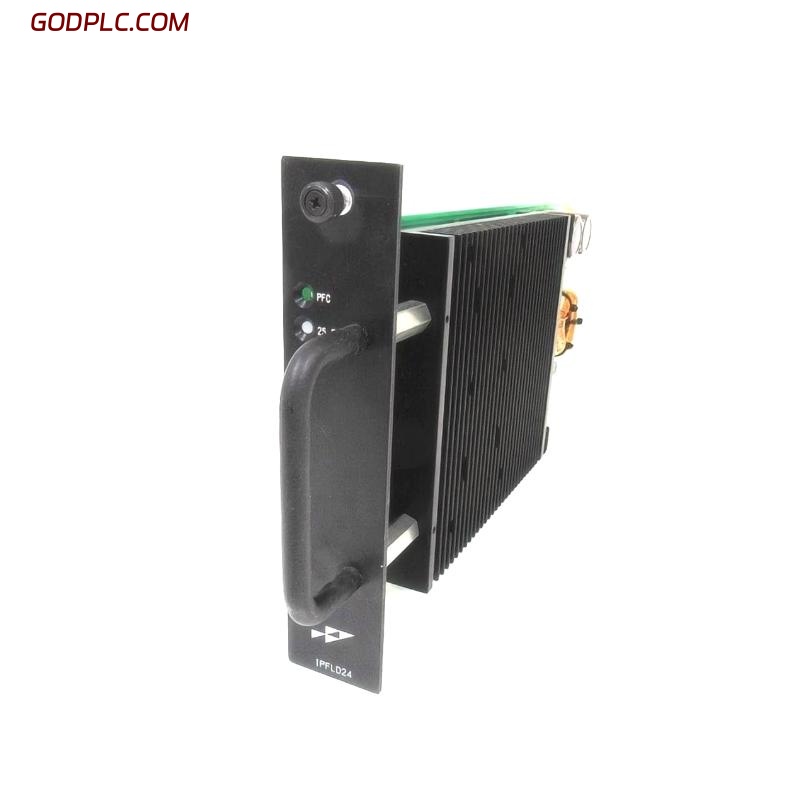

ABB Bailey IPFLD24 Field Power Supply Module

Product Overview

The ABB Bailey IPFLD24 Field Power Supply Module is a highly reliable and efficient solution designed to provide stable and consistent power to field instruments and devices within process control systems. This module ensures that all connected field devices, such as sensors, transmitters, and actuators, receive the necessary power for accurate data acquisition and control in industrial processes. With its robust design and easy integration, the IPFLD24 is an essential component for industries that require high-performance control systems, such as power generation, chemical processing, and manufacturing.

The IPFLD24 module is built to operate efficiently in demanding industrial environments, offering excellent protection against electrical surges, noise, and other environmental challenges. Its compact design and flexible configuration options make it an ideal choice for a wide range of applications, from small-scale systems to large-scale process control solutions.

Key Features

• Stable and Reliable Power – Provides a consistent DC power output for field instruments, ensuring that connected devices operate efficiently and accurately under varying load conditions.

• Wide Input Voltage Range – Accepts a wide range of input voltages, allowing the module to be used in diverse power environments.

• High Efficiency – Designed to minimize energy consumption, reducing operational costs and enhancing system efficiency.

• Compact Design – Space-efficient, making it ideal for installation in control panels or enclosures where space is limited.

• Overload Protection – Equipped with built-in protection mechanisms to prevent damage from power surges or overloads, enhancing system reliability.

• Modular Construction – Can be easily integrated into existing systems, with flexible mounting options to fit various configurations.

• Diagnostic Features – Includes diagnostic LEDs and other indicators to monitor the operational status, ensuring timely detection of faults and minimizing downtime.

• Environmental Protection – Designed to withstand harsh industrial environments, with a rugged enclosure that offers resistance to vibration, temperature fluctuations, and electrical interference.

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Power Generation – Provides stable power to field devices in power plants, ensuring reliable operation of monitoring and control systems for turbines, generators, and other critical equipment.

• Chemical and Petrochemical – Powers sensors, actuators, and transmitters used in chemical processing, contributing to process control and safety monitoring.

• Manufacturing – Powers industrial automation devices in production lines, ensuring seamless operation and accurate control.

• Oil & Gas – Supplies power to field devices in offshore platforms, refineries, and pipelines, ensuring the safe and reliable operation of control systems.

• Water Treatment – Powers devices in water and wastewater treatment plants, supporting monitoring and control systems for pumps, valves, and sensors.

The ABB Bailey IPFLD24 Field Power Supply Module provides a stable, efficient, and rugged power solution for field instruments in industrial control systems. Its wide input range, high efficiency, and robust design make it an essential component in applications where reliable power is critical for ensuring system performance and safety.
