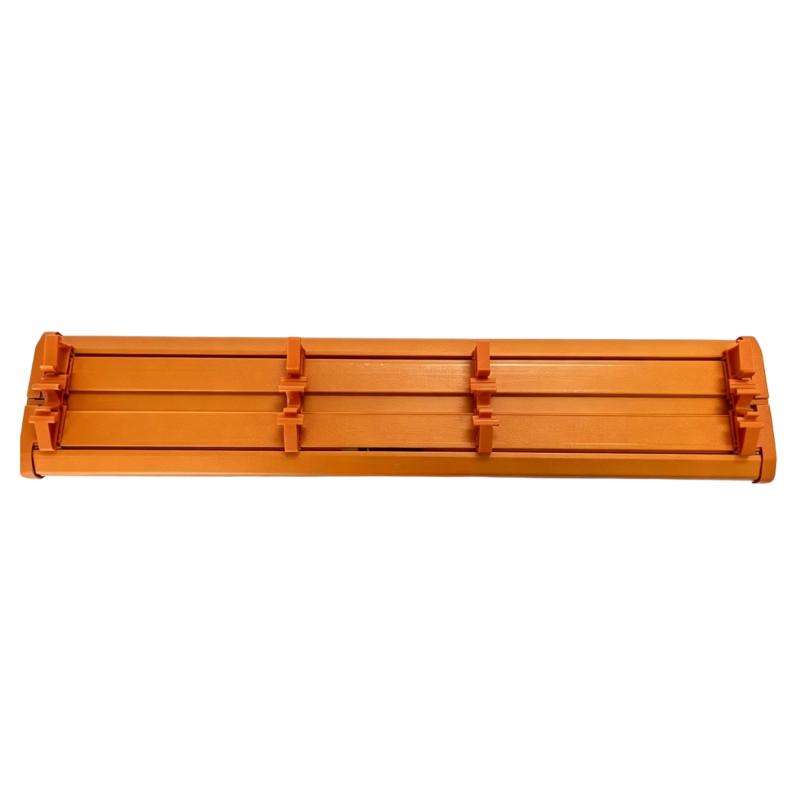

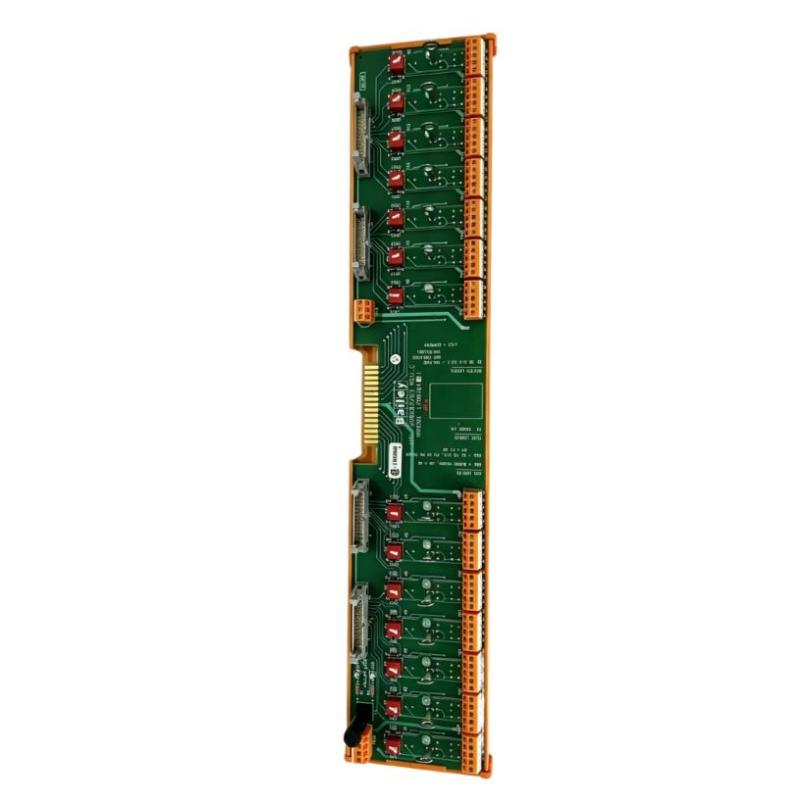

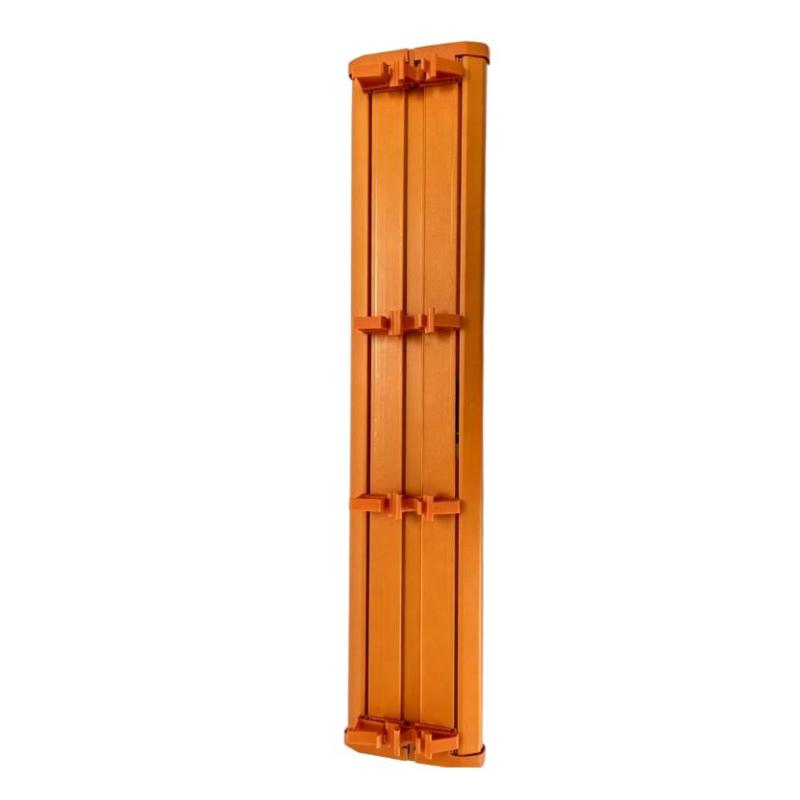

ABB Bailey NRAO01 Analog Output Terminal Assembly
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Product Name | Analog Output Terminal Assembly |
| Model | NRAO01 |
| Product Type | Analog Output Termination Assembly |
| System Platform | ABB Bailey INFI 90 / Harmony |
| Main Function | Analog output signal termination and field-device interface |
| Signal Type | Analog Output |
| Application | Industrial process control and automation |
| Output Interface | Provides termination and connection between analog output circuitry and field devices |
| Typical Applications | Control valves, positioners, actuators, indicators and other analog-controlled equipment |
| Wiring Function | Field signal termination, routing and organized connection |
| System Integration | Used with compatible ABB Bailey analog output modules |
| Field Connection | Provides dedicated terminal connections for analog output circuits |
| Maintenance | Facilitates field wiring inspection, signal measurement and troubleshooting |
| Installation | ABB Bailey control-system cabinet / termination assembly |
| Operating Environment | Industrial control-system environment |
| Dimensions | 300 × 35 × 120 mm |
| Weight | 0.82 kg |
FAQ
1. What is the main function of the ABB Bailey NRAO01?
The NRAO01 is an analog output terminal assembly used to provide an organized interface between the analog output circuitry of an ABB Bailey control system and external field devices. It mainly handles signal termination and routing rather than performing the complete analog output conversion itself.
2. What type of signals does the NRAO01 handle?
The NRAO01 is intended for analog output circuits within compatible ABB Bailey control-system configurations. The actual output signal range and electrical characteristics depend on the analog output module connected to the termination assembly and the system configuration.
3. Is the NRAO01 an independent analog output module?
No. The NRAO01 is primarily a termination and interface assembly. The associated analog output module performs the digital-to-analog conversion and output control functions, while the NRAO01 provides the physical field connection and signal termination required by the system architecture.
4. What field devices can be connected through the NRAO01?
Depending on the connected analog output module and configured signal type, the NRAO01 can be used with compatible control valves, valve positioners, actuators, process indicators, recorders and other field equipment that accepts analog control signals.
5. How should an analog output fault be diagnosed?
First verify the output value generated by the control system and check the diagnostic status of the associated analog output module. Then measure the signal at the NRAO01 terminals and compare it with the expected value. If the signal is correct at the terminal assembly but incorrect at the field device, inspect the field cable, polarity, load and receiving device.
6. Can a loose terminal connection affect the analog output signal?
Yes. A loose or oxidized terminal can introduce additional resistance, intermittent contact or signal instability. This may cause a control valve or actuator to respond incorrectly. Terminal tightness, wiring condition and signal continuity should therefore be checked before replacing the analog output module.
7. What is the recommended troubleshooting sequence for the NRAO01?
A practical sequence is to check the DCS output command first, followed by the analog output module status, the connection between the output module and NRAO01, the NRAO01 terminal wiring, and finally the field device. Measuring the analog signal at several points in the signal path helps identify whether the problem is related to configuration, I/O electronics, termination wiring or the field load.
8. What precautions should be taken when replacing or rewiring the NRAO01?
Before maintenance, identify and document each analog output channel and its corresponding field device. Follow the site’s electrical isolation procedures and verify the external power conditions of the connected equipment. After rewiring, check signal polarity, terminal assignments and output range, then test each channel from the DCS to the field device before returning the control loop to normal operation.
ABB Bailey NRAO01 Analog Output Terminal Assembly is in stock. Please contact us for a quick quote and competitive pricing.
