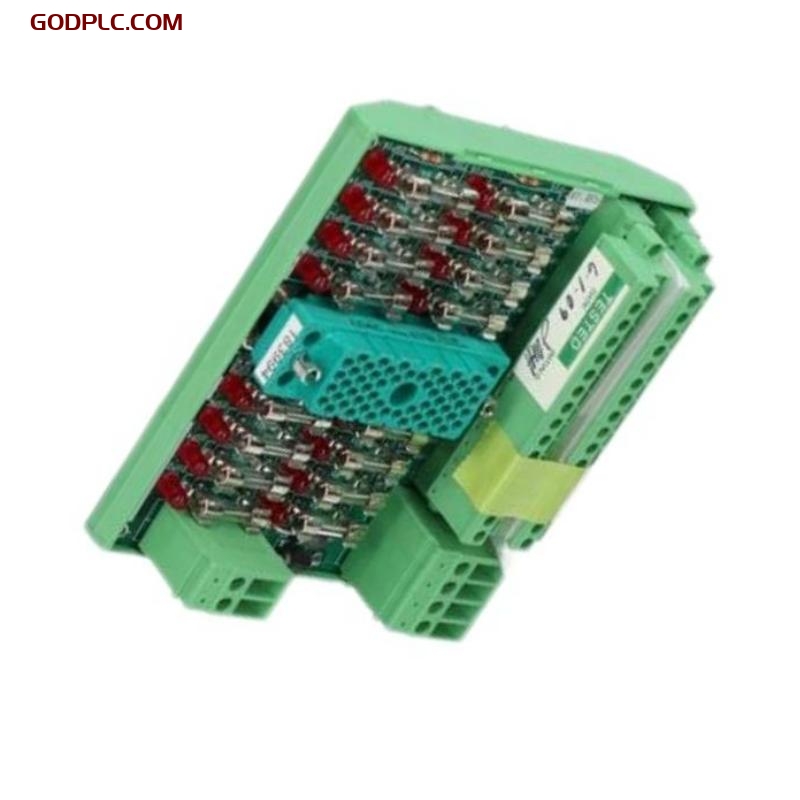

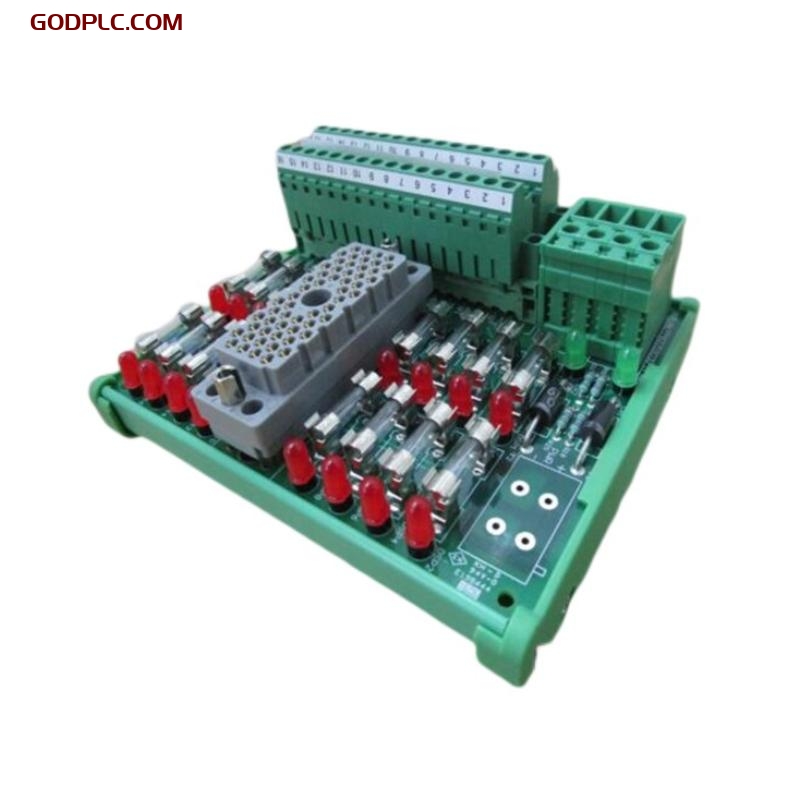

Triconex 9563-810NJ Digital Input Terminal Panel
Product Overview
The Triconex 9563-810NJ Digital Input Terminal Panel is designed to provide reliable and precise digital input capabilities for Triconex’s high-performance safety and control systems. This module ensures smooth and safe data transmission between field devices and control systems, offering robust protection for critical industrial processes. Optimized for harsh and hazardous environments, the 9563-810NJ is integral to ensuring continuous and accurate monitoring and control, particularly in industries like oil & gas, chemical processing, and power generation.
The module’s compact design, combined with built-in diagnostic features, facilitates easy integration and operation. With high availability, low maintenance needs, and seamless compatibility with other Triconex systems, the 9563-810NJ is an excellent choice for safety-critical applications that require real-time monitoring and control.
Key Features
-
High Availability: Provides reliable digital input handling for continuous monitoring and control of industrial processes.
-
Integrated Diagnostics: Equipped with LED indicators and fault diagnostics to simplify maintenance and troubleshooting.
-
Real-Time Performance: Optimized for applications requiring precise timing and synchronization in safety-critical environments.
-
Flexible Integration: Compatible with various Triconex and third-party control systems, enabling easy system upgrades and expansions.
-
Harsh Environment Compatibility: Designed for use in rugged industrial environments with high vibration, extreme temperatures, and hazardous conditions.
-
Hot Swappable: Allows replacement during operation without interrupting system function, improving system uptime.
-
Built-In Protection: Features overvoltage, overcurrent, and other protective mechanisms to safeguard connected devices and systems.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 114.3 ×127 × 107.95 mm |
| Weight | 0.38 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | 9563-810NJ |
| Manufacturer | Triconex |
| Installation | Panel Mount / DIN Rail Mount |
| Power Supply | 24 V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Communication & Performance
| Item | Specification |
|---|---|
| Communication Protocol | Triconex proprietary protocol |
| Max. Digital Inputs | Up to 32 channels per module |
| LED Indicators | Power, Status, Error |
| MTBF | > 200,000 hours |
| EMC Compliance | IEC 61000 series |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Consumption | Max 5 W |
| Current Draw | Max 0.3 A |
| Status Indicators | LEDs for power, communication, fault |
Industry Applications
-
Oil & Gas: Provides reliable monitoring and control for critical safety systems in drilling, refining, and offshore platforms.
-
Chemical Processing: Facilitates accurate data handling and control for chemical production processes.
-
Power Generation: Ensures dependable input handling for plant monitoring and control systems.
-
Industrial Automation: Offers seamless integration in manufacturing automation systems, enhancing process efficiency and reliability.
-
Water Treatment: Provides vital control and monitoring capabilities for water and wastewater management systems.
-
Safety Systems: Used in emergency shutdown systems, alarm systems, and fire detection systems for safety-critical applications.
The Triconex 9563-810NJ Digital Input Terminal Panel is a robust, reliable, and versatile solution for demanding industrial environments. Its high availability, diagnostic features, and seamless integration with Triconex control systems make it a key component in safety-critical applications across various industries.
Triconex 9563-810NJ Digital Input Terminal Panel is in stock. Please contact us for a quick quote and competitive pricing.
