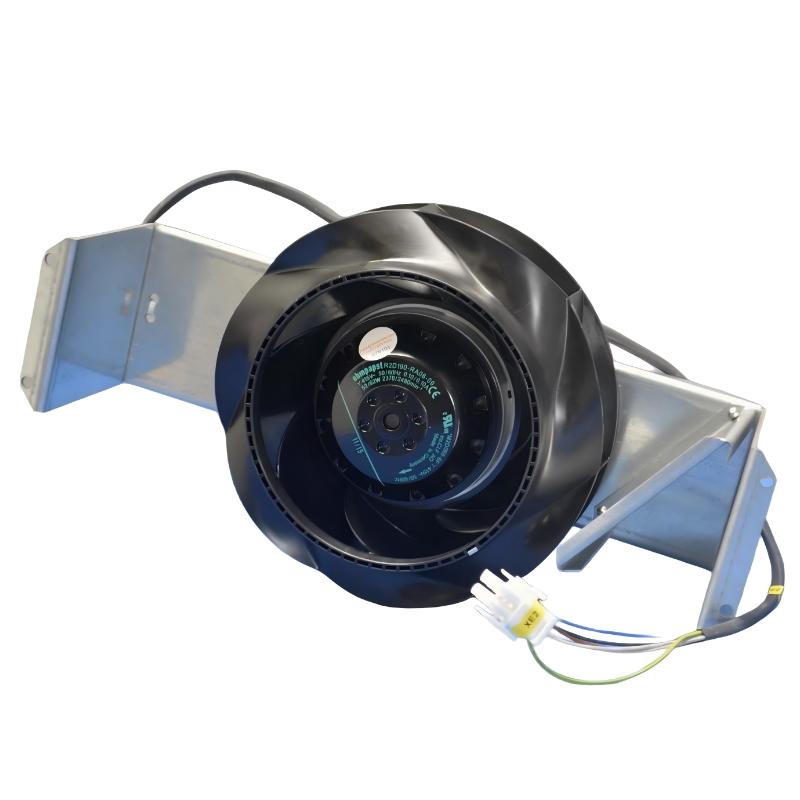

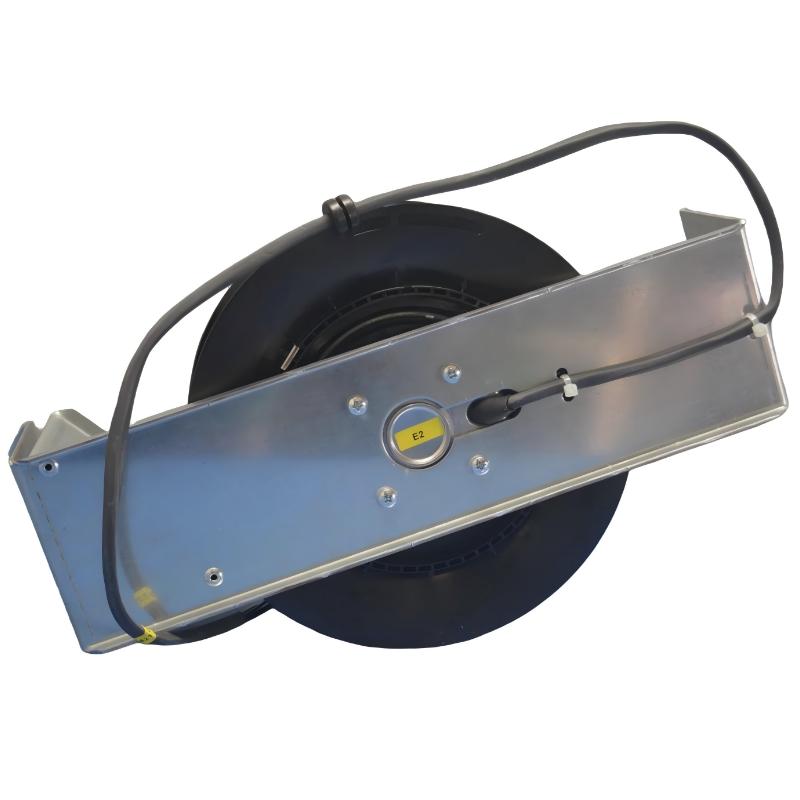

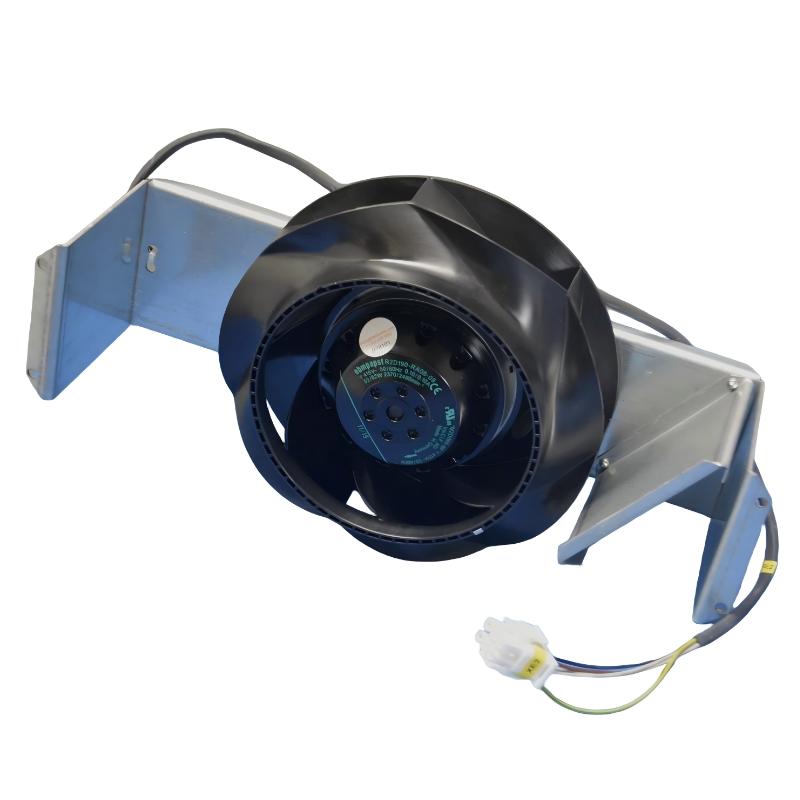

ABB（KUKA） R2D190-RA08-09 M2D068-BF 00-113-405 Cooling Fan
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ebm-papst |
| Application Brand | KUKA Industrial Robotics |
| Model Number | R2D190-RA08-09 / M2D068-BF |
| Ordering Number | 00-113-405 |
| Product Type | Cooling Fan / Outer Fan |
| Application | Industrial Robot Cooling and Thermal Management |
| Fan Manufacturer | ebm-papst |
| Rated Voltage | 415 V AC |
| Frequency | 50–60 Hz |
| Operating Type | AC Fan |
| Main Function | Provides airflow to help dissipate heat from compatible robot drive and electrical assemblies |
| Installation Location | Compatible KUKA equipment cooling assembly |
| Maintenance Requirement | Periodic inspection of fan blades, wiring, mounting, and airflow |
| Dimensions | 240 × 120 × 80 mm |
| Weight | 1.9 kg |
FAQ
Q1: What is the main function of the KUKA R2D190-RA08-09 Cooling Fan?
The R2D190-RA08-09, associated with model M2D068-BF and ordering number 00-113-405, is an AC cooling fan used in compatible industrial equipment. Its primary function is to maintain airflow around heat-generating components, helping prevent excessive temperatures during continuous operation.
Q2: What power supply does this cooling fan use?
The identified fan listing specifies a rated supply of 415 V AC at 50–60 Hz. Before installation, check the fan nameplate and the equipment wiring diagram to confirm the voltage, frequency, phase arrangement, and connection terminals. Do not energize the fan until these details have been verified.
Q3: How can I tell if the cooling fan is failing?
Common symptoms include the fan failing to start, unusual vibration, abnormal noise, reduced airflow, or repeated thermal alarms from the associated equipment. Check the supply voltage and wiring first, then inspect the fan blades and mounting. Disconnect power before inspecting or handling the fan.
Q4: What can cause the R2D190-RA08-09 fan to stop running?
Possible causes include a loss of supply power, loose electrical connections, damaged wiring, mechanical obstruction, worn bearings, or internal motor failure. Check for obstructions and inspect the electrical supply against the nameplate. If the fan still does not operate correctly, replacement or specialist testing may be required.
Q5: How does insufficient cooling affect a KUKA robot system?
Insufficient airflow can cause drive assemblies and other electrical components to operate at elevated temperatures. Depending on the equipment, this may result in thermal warnings, protective shutdowns, reduced availability, or accelerated component wear. Investigate cooling problems promptly rather than repeatedly resetting temperature-related alarms.
Q6: What maintenance is recommended for this cooling fan?
Inspect the fan periodically for dust buildup, blocked air passages, loose mounting hardware, damaged wiring, and unusual noise or vibration. Clean the fan and surrounding ventilation path according to the equipment maintenance procedure. If the fan shows bearing wear or inconsistent operation, replace it with a verified compatible unit.
Q7: Can the R2D190-RA08-09 be replaced with another AC cooling fan?
Replacement should be based on electrical ratings, airflow performance, pressure characteristics, mounting arrangement, rotation direction, and connector compatibility. A fan with the same voltage rating may still provide insufficient cooling or be mechanically incompatible. Confirm the replacement against ordering number 00-113-405 and the equipment documentation.
Q8: What should be checked after installing a replacement fan?
Confirm that the replacement model and electrical ratings match the required specification. Check the mounting, wiring, airflow direction, and clearance from surrounding components. After restoring power, verify that the fan starts normally, runs without excessive noise or vibration, and provides adequate airflow. Monitor the equipment for recurring thermal alarms during operation.
ABB（KUKA） R2D190-RA08-09 M2D068-BF 00-113-405 Cooling Fan is in stock. Please contact us for a quick quote and competitive pricing.
