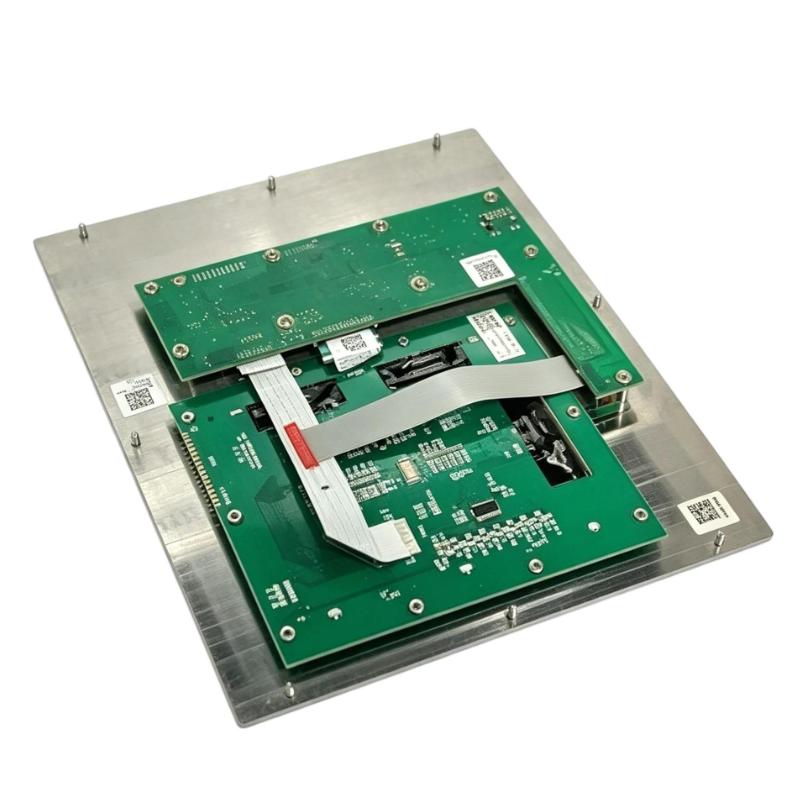

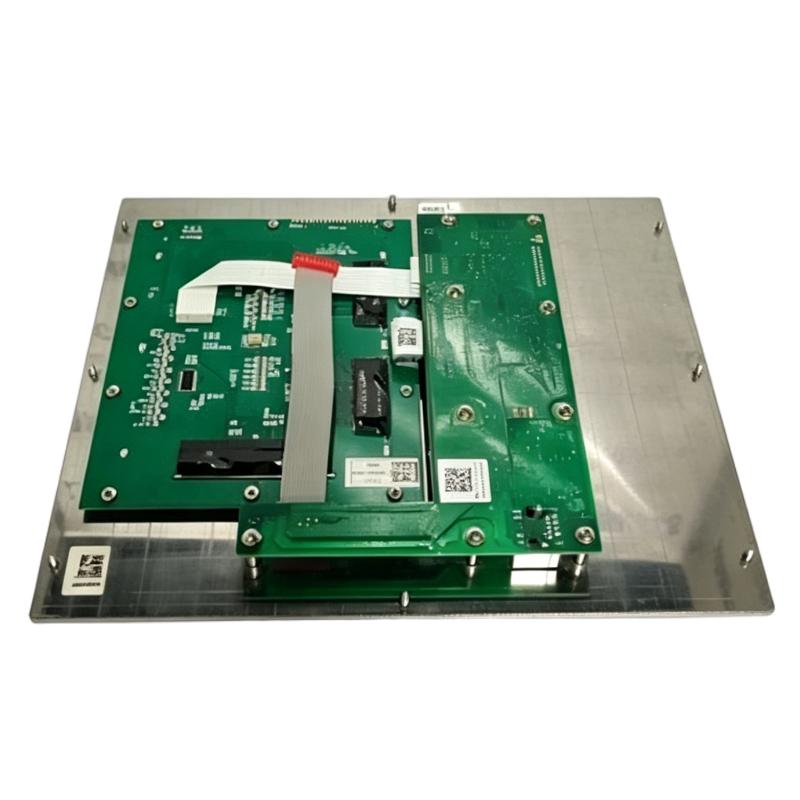

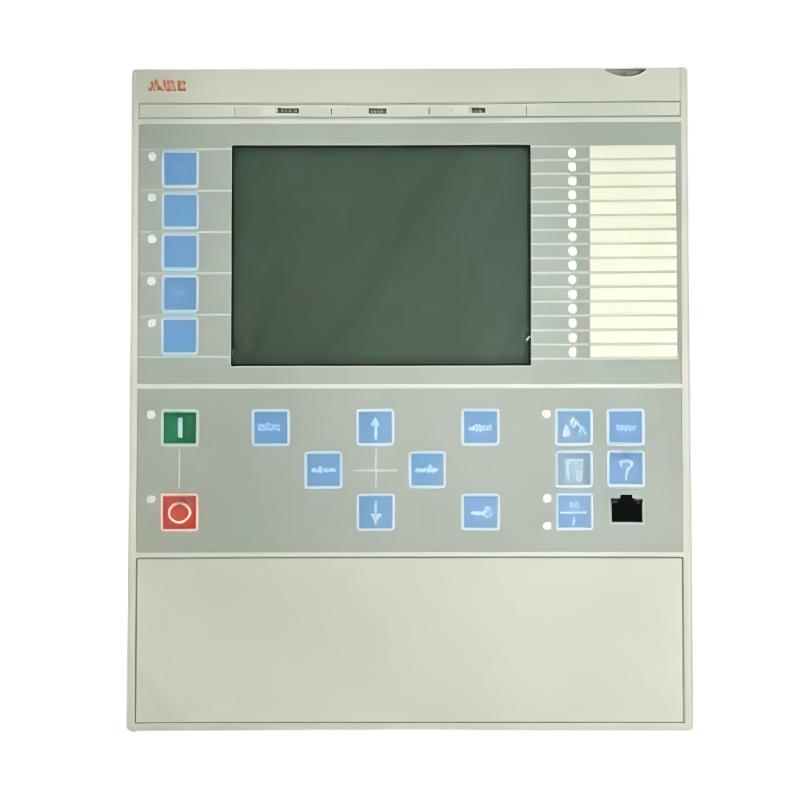

ABB 1MRK000028-AA Protection Relay Display
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Protection Relay Display |
| Manufacturer | ABB |
| Ordering Number | 1MRK000028-AA |
| Display Type | Protection Relay Display Module |
| Main Function | Local monitoring, status indication, and relay operation interface |
| Application | Protection relay and substation automation systems |
| System Compatibility | Compatible ABB protection relay systems |
| User Interface | Local front-panel display interface |
| Display Function | Protection status, alarms, measurements, and system information |
| Operation Function | Local access to relay operation and configuration functions |
| System Integration | Integrated with the host protection relay |
| Installation | Installed in the designated display or interface position of the compatible relay |
| Typical Application | Local operation, monitoring, and maintenance of electrical protection equipment |
| Dimensions | 320 × 35 × 280 mm |
| Weight | 0.5 kg |
FAQ
1. What is the ABB 1MRK000028-AA Protection Relay Display used for?
The ABB 1MRK000028-AA is a protection relay display component designed to provide a local interface for compatible ABB protection equipment. It allows operators and maintenance personnel to view relay operating status, alarms, measurements, protection indications, and diagnostic information directly at the relay. Depending on the host protection relay and its configuration, the display can also provide access to local operation and configuration functions.
2. What information can be viewed through the 1MRK000028-AA display?
The display is intended to present information generated by the connected protection relay. Typical information can include operating status, measured electrical values, active alarms, protection indications, event information, and diagnostic messages. The exact information available depends on the host relay model, installed software, enabled protection functions, and configured user interface. This makes the display useful for both routine operation and on-site troubleshooting.
3. Can the 1MRK000028-AA be used for local operation of a protection relay?
When the host ABB protection relay supports local operation, the display can provide access to the corresponding user interface and permitted control functions. Operators may be able to navigate through menus, review measurements and events, inspect protection settings, and perform authorized local commands. The available functions depend on the specific relay configuration, access permissions, and local or remote control settings.
4. How does the 1MRK000028-AA work with the protection relay?
The 1MRK000028-AA functions as part of the protection relay’s local interface rather than as an independent monitoring device. It receives status, measurement, alarm, and diagnostic information from the host relay’s internal electronics and presents the information to the operator. Proper connection between the display and the host protection relay is therefore essential for correct indication and local operation.
5. What should be checked if the 1MRK000028-AA display is blank or does not respond?
Start by checking the installation and all associated electrical or interface connections. Confirm that the host protection relay has a stable power supply and completes its normal startup process. The relay’s diagnostic indicators, fault messages, and event records should then be checked for internal communication or hardware problems. If the relay itself is operating normally but the display remains blank or unresponsive, inspect the display connection and related interface hardware before considering replacement.
6. What are common symptoms of a faulty 1MRK000028-AA Protection Relay Display?
Possible symptoms include a blank display, missing measurement information, incorrect status indications, unresponsive menu navigation, intermittent operation, or failure of available local control functions. These symptoms may be caused by the display component, its connection to the relay, the relay’s internal power supply, or an internal communication problem. A complete diagnostic check should be performed to identify the actual cause before replacing the display.
7. What should be verified before replacing the 1MRK000028-AA?
Before replacement, verify the complete ordering number 1MRK000028-AA and confirm compatibility with the host ABB protection relay. The relay model, hardware version, interface connections, mounting arrangement, and applicable maintenance requirements should all be checked. Power should be isolated according to the equipment maintenance procedure, and appropriate electrostatic discharge protection should be used when handling the electronic assembly. After installation, the display should be tested together with the host relay.
8. What should be checked when commissioning the ABB 1MRK000028-AA?
Before commissioning, confirm that the display is correctly installed and that all connections are secure. After powering the protection relay, verify that the display initializes normally and that relay status, measurements, alarms, event information, and diagnostic messages are correctly presented. If local operation is supported, test the permitted menu and control functions while observing the configured access permissions. Any abnormal indication should be investigated before the protection system is returned to normal service.
ABB 1MRK000028-AA Protection Relay Display is in stock. Please contact us for a quick quote and competitive pricing.
