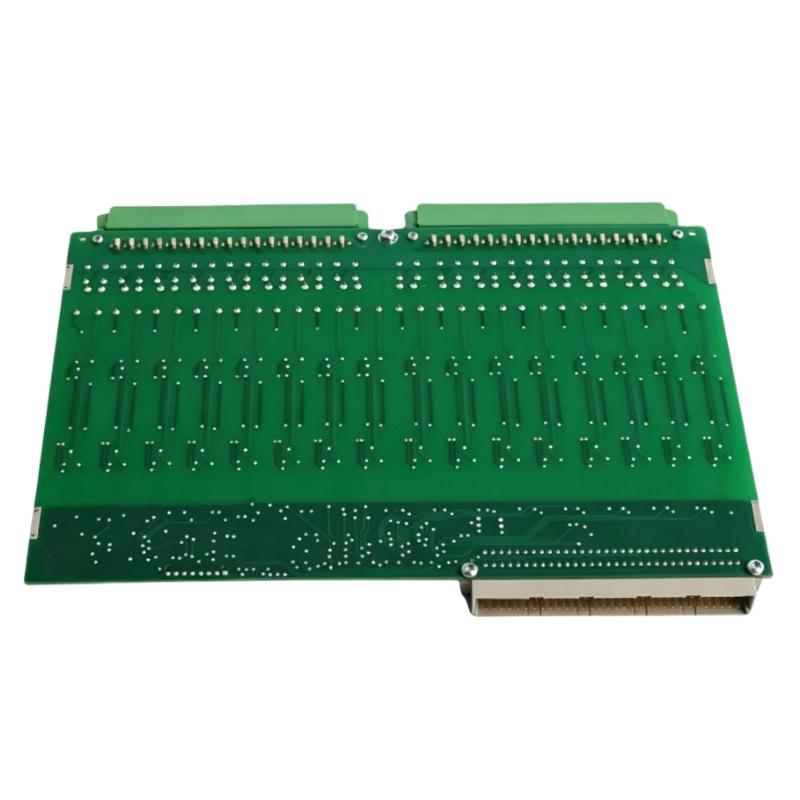

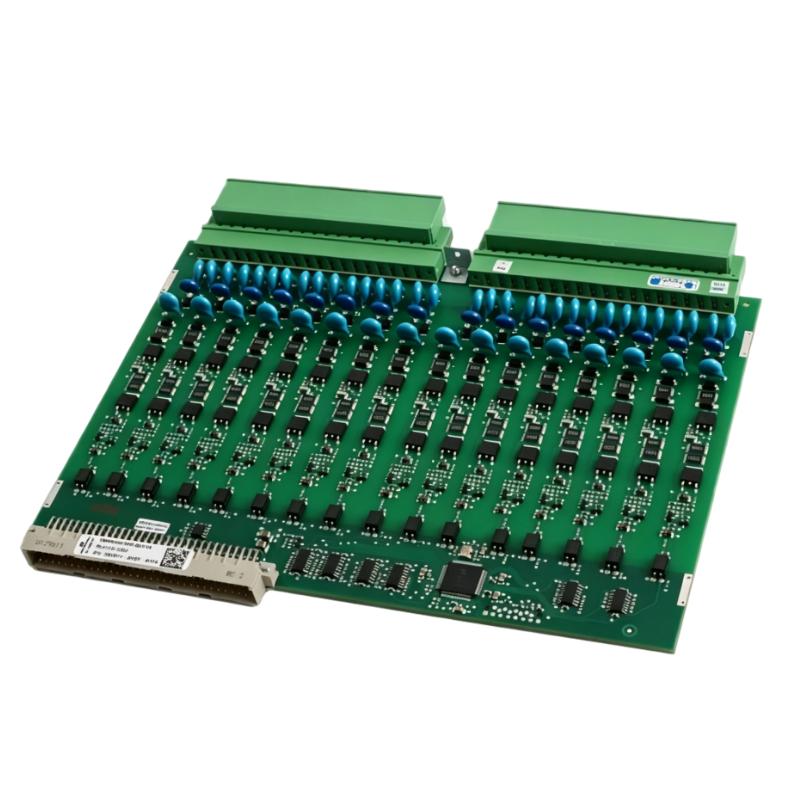

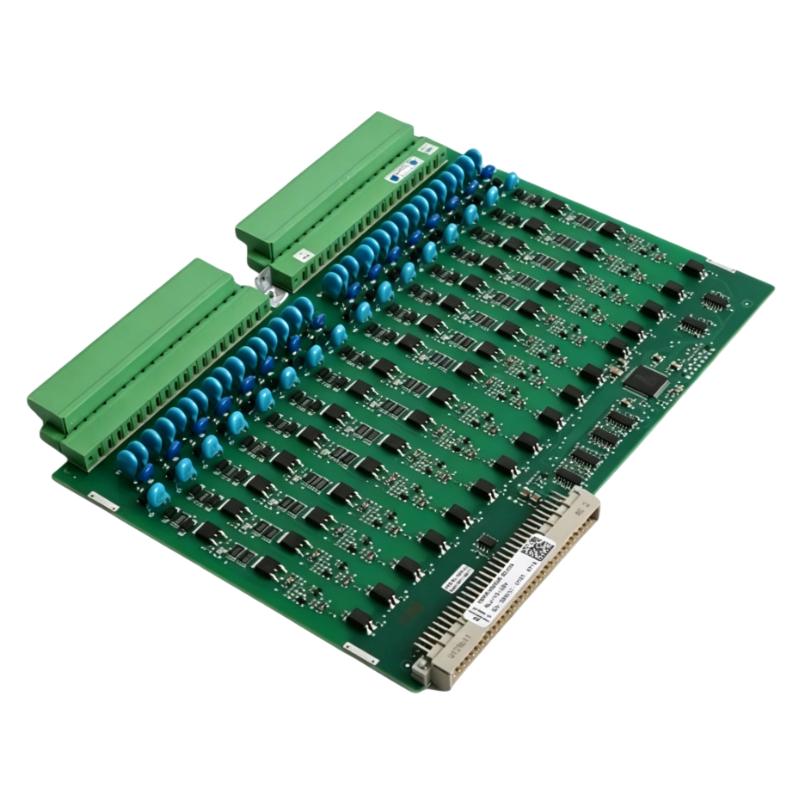

ABB 1MRK000508-BD Binary Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Ordering Number | 1MRK000508-BD |
| Product Type | Binary Input Module |
| Global Commercial Alias | BIM |
| Module Designation | RL110 |
| Number of Inputs | 16 Binary Inputs |
| Input Type | DC Binary Input |
| Rated Input Voltage | 110–125 VDC |
| Input Current | 50 mA per input |
| Main Function | Binary Signal Acquisition |
| Typical Applications | Protection Systems, Substation Automation and Industrial Control |
| Typical Signals | Circuit Breaker Status, Switch Position, Alarm and Interlock Signals |
| Installation | Control Cabinet / Protection and Automation Rack |
| System Function | Field Status Monitoring and Digital Signal Processing |
| Application Environment | Industrial and Electrical Automation |
| Maintenance Use | Module Replacement, Signal Monitoring and System Maintenance |
| Dimensions | 225 × 25 × 187 mm |
| Weight | 0.245 kg |
FAQ
1. What is the ABB 1MRK000508-BD Binary Input Module?
The ABB 1MRK000508-BD is a BIM binary input module designed for acquiring discrete field signals in protection, control and automation systems. It provides 16 binary input channels and is designed for 110–125 VDC input signals.
2. How many input channels does the 1MRK000508-BD provide?
The module provides 16 independent binary input channels. These channels can be used to monitor multiple field devices and status contacts, allowing the associated protection or automation system to receive several discrete signals through a single module.
3. What is the input voltage of the 1MRK000508-BD?
The 1MRK000508-BD is designed for 110–125 VDC binary input signals, with an input current specification of 50 mA per channel. The actual field circuit should be checked before installation to ensure that the applied voltage is within the specified range.
4. What applications is the 1MRK000508-BD suitable for?
The module is suitable for electrical protection and automation applications where discrete field status information must be collected. Typical signals include circuit breaker positions, switch states, alarm contacts, interlocks and other binary operating conditions.
5. What should be checked before installing the 1MRK000508-BD?
Verify the complete ordering number, input voltage, channel assignment and system compatibility before installation. The field wiring should also be inspected for correct polarity, secure connections and proper insulation. The associated equipment should be safely isolated before connecting or replacing the module.
6. How should a faulty binary input channel be diagnosed?
First check whether the external device is producing the expected 110–125 VDC signal. Then measure the voltage at the corresponding input terminal and inspect the wiring and connectors. If the field signal is correct but the corresponding status is not detected, compare the affected channel with another known-good channel and check system diagnostics.
7. What can cause an incorrect input status on the 1MRK000508-BD?
Common causes include incorrect field voltage, wiring errors, loose terminals, damaged contacts, poor connections or problems with the external DC supply. If several input channels fail simultaneously, the common supply circuit and module connections should be checked before assuming that individual input channels have failed.
8. What tests should be performed after replacing the 1MRK000508-BD?
After replacement, inspect all connections and verify that the correct DC signal is present at the input terminals. Operate the associated field contacts individually and confirm that the corresponding binary states are correctly detected by the protection or automation system. Any remaining alarms should be investigated through the field circuit, wiring and system diagnostics.
ABB 1MRK000508-BD Binary Input Module is in stock. Please contact us for a quick quote and competitive pricing.
