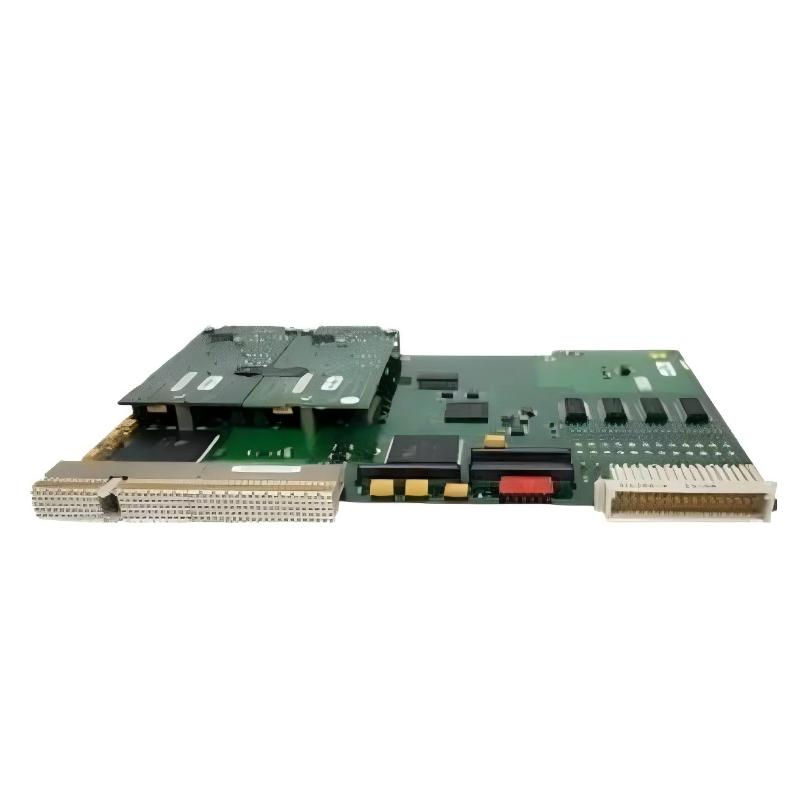

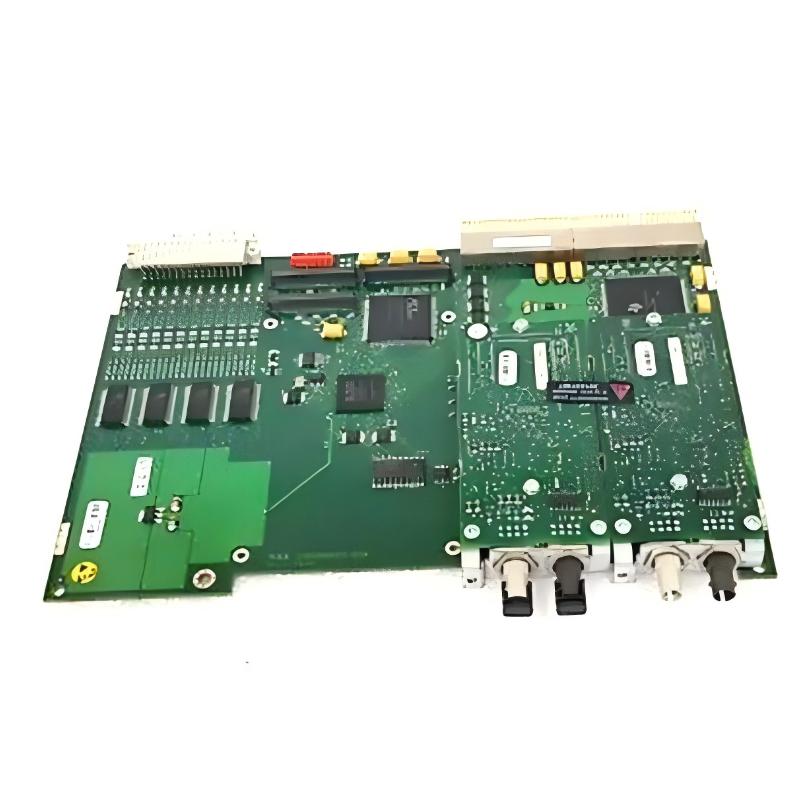

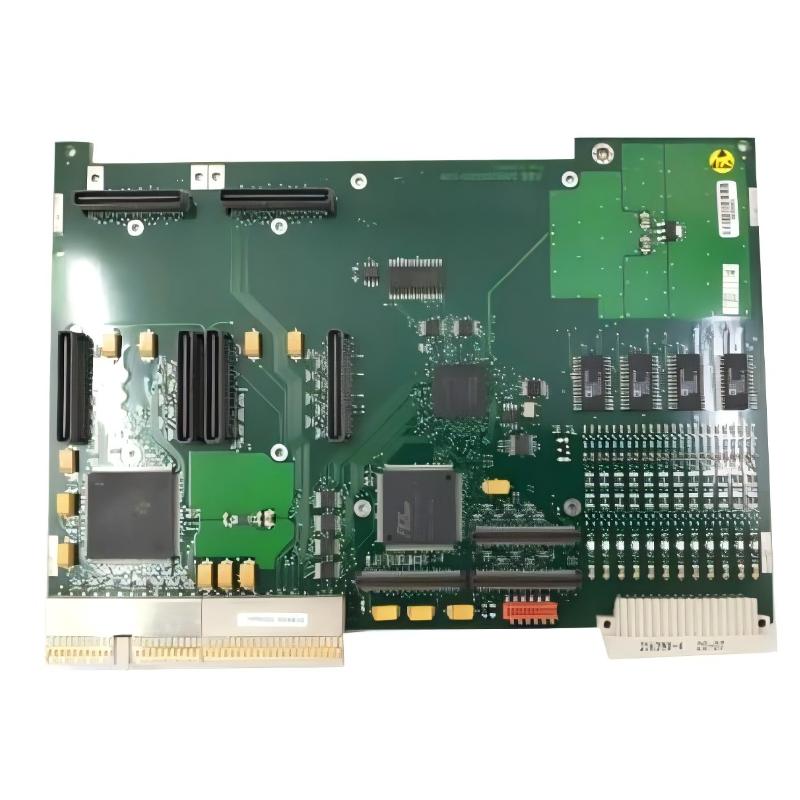

ABB 1MRK002133-ACr06 Binary Input/Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Ordering Number | 1MRK002133-ACr06 |
| Manufacturer | ABB |
| Product Type | Binary Input/Output Module |
| Module Type | Binary I/O Module |
| Main Function | Processing of binary input and output signals for monitoring and control |
| Signal Type | Digital / Binary Signals |
| Typical Application | Protection, control, monitoring, and substation automation |
| System Integration | ABB protection and control systems |
| Typical Functions | Status monitoring, alarms, interlocking, and control signal processing |
| Input Interface | Binary field signal interface |
| Output Interface | Binary control signal interface |
| Time Synchronization | Supported in the associated module configuration |
| Installation | ABB protection and control equipment |
| Maintenance | Connection inspection, signal testing, diagnostics, and module replacement |
| Operating Environment | Industrial power and automation applications |
| Dimensions | 160 × 120 × 45 mm |
| Weight | 0.6 kg |
FAQ
1. What is the main function of the ABB 1MRK002133-ACr06 Binary Input/Output Module?
The ABB 1MRK002133-ACr06 is used to interface binary field signals with ABB protection and control equipment. It processes discrete input and output signals for functions such as equipment status monitoring, alarms, interlocking, and control commands. It provides a practical interface between external field circuits and the protection or automation system.
2. What types of signals can the 1MRK002133-ACr06 process?
The module is designed for binary or digital signals. Binary inputs can be used to monitor switch positions, circuit-breaker status, alarm contacts, and other discrete field conditions. Binary outputs can be used to transmit control commands or switching signals to external equipment. The actual signal assignment depends on the host system configuration.
3. Where is the 1MRK002133-ACr06 typically used?
Typical applications include substation automation, electrical protection systems, equipment monitoring, alarm processing, interlocking, and discrete control. It can be integrated into ABB protection and control architectures where reliable binary signal exchange between field equipment and the control system is required.
4. What should be checked if a binary input is not detected?
First check the external contact or signal source, field wiring, terminal connections, and signal voltage. Next, verify that the corresponding input is correctly configured in the host protection or control system. System diagnostics and event records should also be reviewed. If the external circuit is confirmed to be normal but the input remains inactive, the module and its associated hardware should be investigated.
5. What can cause a binary output to fail to operate?
A binary output may fail because of an incorrect control command, configuration error, wiring problem, loose terminal, abnormal external supply, or a fault in the connected field device. The first step is to confirm that the host system is actually generating the required output command. If the command is present but the field device does not respond, the complete output circuit should be checked.
6. Can the 1MRK002133-ACr06 be used as a replacement module?
It can be used as a replacement when the ordering number and hardware configuration are confirmed to be compatible with the host ABB equipment. Before replacement, verify the complete device type, module revision, system configuration, and applicable firmware requirements. The original wiring and channel assignments should also be documented before removing the existing module.
7. What precautions are required when replacing the 1MRK002133-ACr06?
The associated protection or control equipment should be placed in the appropriate maintenance state before the module is removed. Follow site electrical safety procedures and use suitable ESD protection when handling the electronic module. Check connectors and terminals before installation, restore the wiring correctly, and perform diagnostic and functional tests after installation.
8. How should the ABB 1MRK002133-ACr06 be maintained?
Routine maintenance should include checking module connections, field wiring, binary signal status, system diagnostics, and event records. Functional testing of important input and output channels should be performed according to the maintenance schedule. If intermittent faults occur, inspect connectors, wiring, external signal sources, configuration, and connected equipment before replacing the module.
ABB 1MRK002133-ACr06 Binary Input/Output Module is in stock. Please contact us for a quick quote and competitive pricing.
