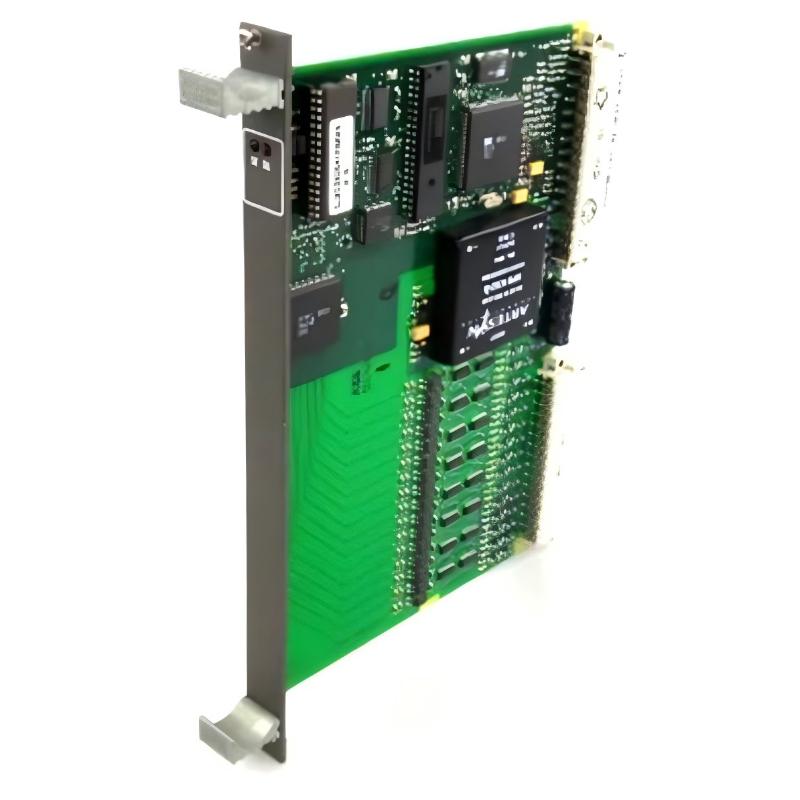

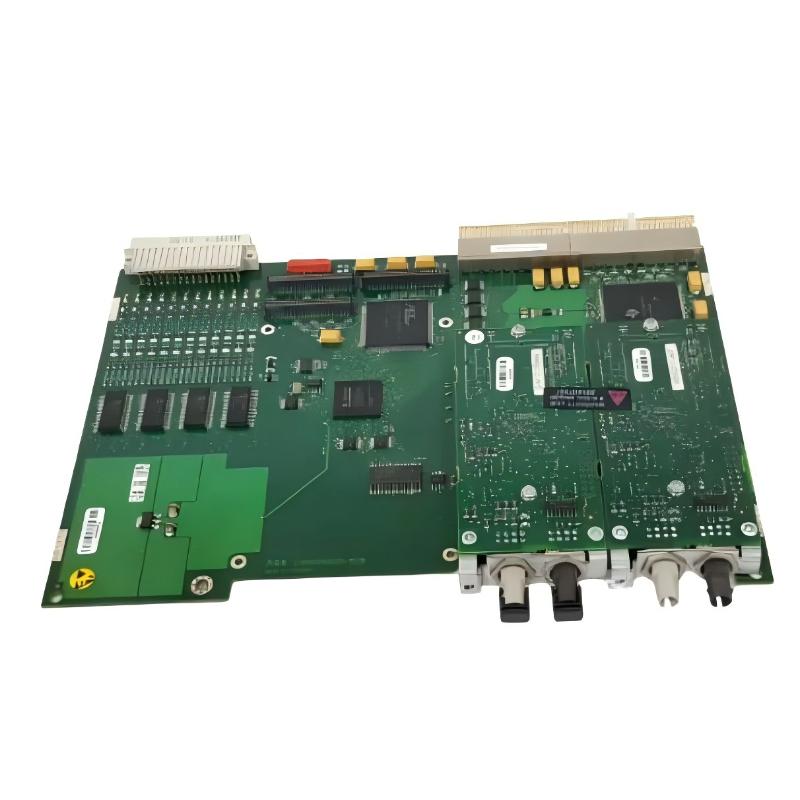

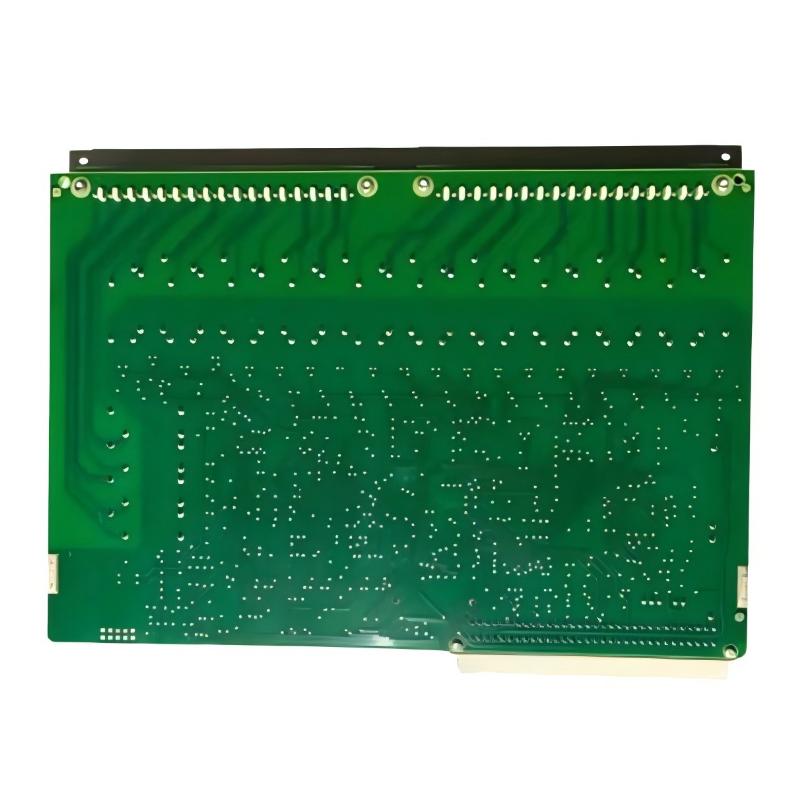

1. What is the main function of the ABB 1MRK002246-BDr02 Binary Input/Output Module?
The ABB 1MRK002246-BDr02 is used for binary input and output signal processing within ABB protection and control systems. It receives ON/OFF status information from field equipment such as circuit breakers, disconnectors, auxiliary contacts, alarms, and interlocking circuits. Based on the configured system logic, its output functions can be used for control commands, alarms, status indications, and protection-related signal transmission.

2. What types of signals can the 1MRK002246-BDr02 process?
The module is intended for digital binary signals representing discrete equipment states. Typical input applications include circuit breaker open/closed status, switch position, equipment running feedback, alarm contacts, interlocking signals, and protection status indications. Output functions can be assigned to control commands, alarms, status indications, and other configured control or protection functions. The exact use of each channel depends on the system configuration and I/O assignment.

3. Can the 1MRK002246-BDr02 be used in protection and control applications?
Yes. The module can form part of an ABB protection and control system by transferring binary status and command signals between the control system and field equipment. For example, binary inputs can provide breaker or switchgear status to the control logic, while outputs can be used for control, alarm, or interlocking functions. For critical protection or trip circuits, the actual signal path should always be verified against the approved protection scheme and electrical drawings.

4. How should I troubleshoot a binary input that remains ON or OFF?
Start by checking the actual condition of the connected field device and its auxiliary contact. Then inspect the field wiring, terminals, connectors, and signal circuit for loose connections, open circuits, or short circuits. If the field circuit is normal, check whether the corresponding I/O channel is correctly configured in the ABB system. Module diagnostics, event logs, and I/O status information can help determine whether the problem originates from the field device, wiring, configuration, or module.

5. What should I check if a binary output does not operate?
First verify that the control logic has actually issued the required output command. Check related interlocks, permissives, blocking conditions, and configured logic that could prevent the output from being activated. Then inspect the output wiring, terminals, external power supply, relay, actuator, or other connected equipment. If the internal command is present but the field device does not respond, inspect the external control circuit and connected equipment for an open circuit or other fault.

6. What can happen if the 1MRK002246-BDr02 develops a fault?
The effect depends on which I/O channels and system functions are assigned to the module. A failed binary input could result in the control system losing an important equipment status or feedback signal. A failed output could affect a configured control, alarm, or interlocking function. The actual impact should therefore be determined from the system I/O list and diagnostic information rather than assuming that every protection or control function will be affected.

7. What precautions should be taken when replacing the 1MRK002246-BDr02?
Before replacement, place the relevant equipment in the appropriate maintenance condition and perform the required electrical isolation according to site procedures. Use suitable ESD protection when handling the electronic module. Confirm that the replacement ordering number is 1MRK002246-BDr02 and that it is compatible with the existing ABB system configuration. Inspect the rack, backplane, connectors, and mounting interface before installation, and make sure the module is correctly seated and secured.

8. How can I verify the system after replacing the module?
After installation, verify that the ABB system correctly recognizes the module and that no module or communication diagnostics are active. Check the configured binary inputs against the actual field conditions, including breaker status, equipment feedback, alarms, and interlocking signals. Where permitted by the site commissioning procedure, test the required output functions as well. Finally, review system alarms and event records to confirm that the affected I/O functions are operating correctly before returning the equipment to normal service.
