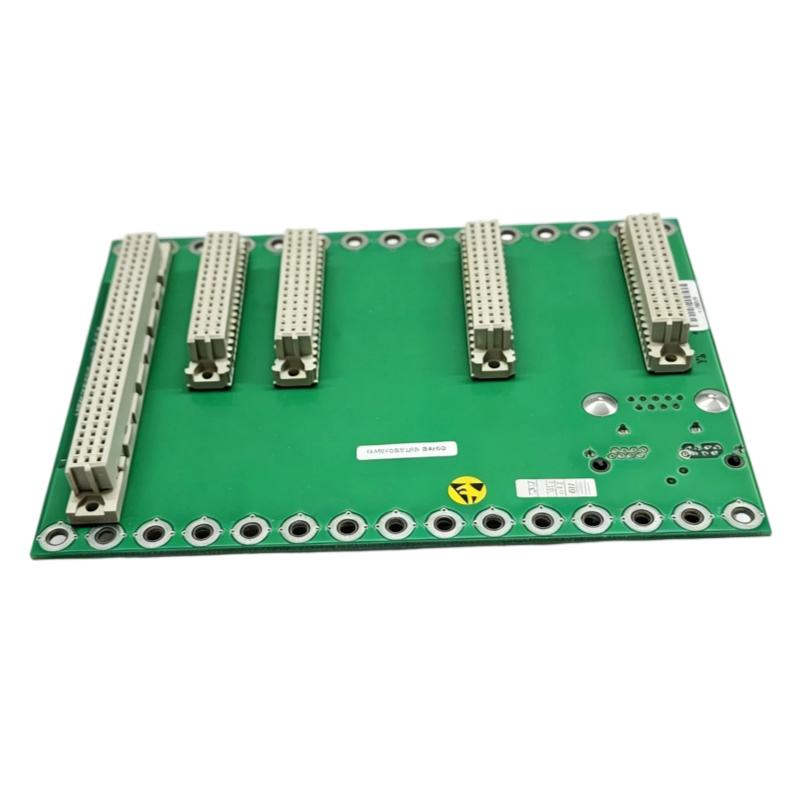

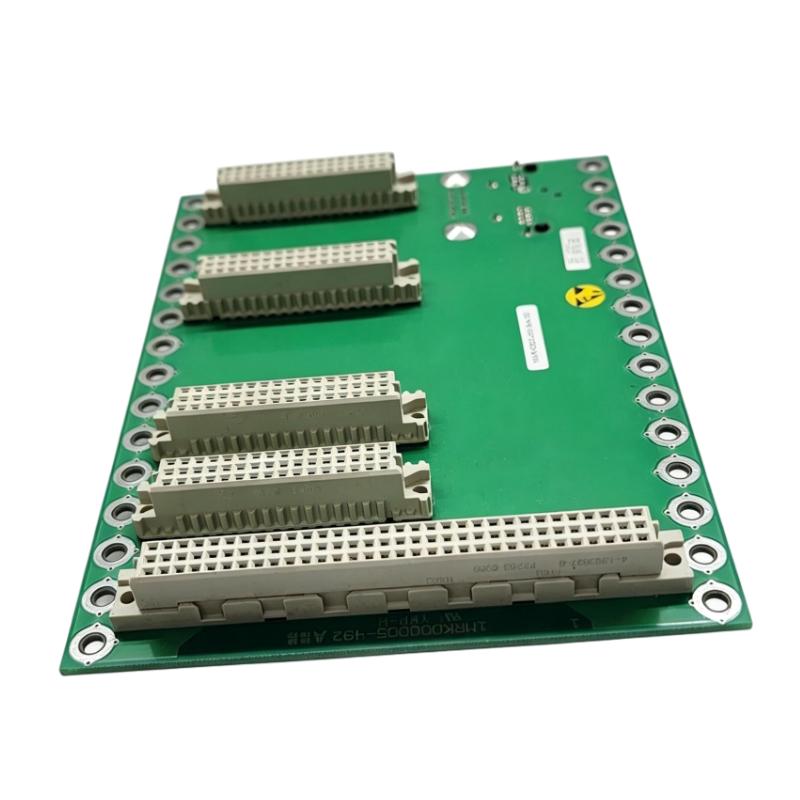

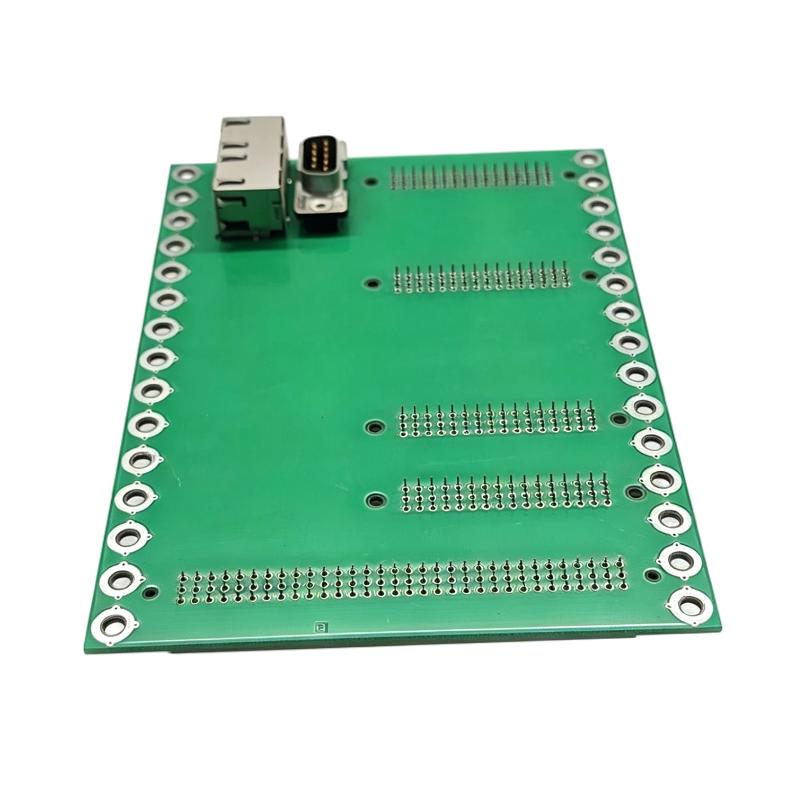

ABB 1MRK002252-DA Control Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Control Board |
| Manufacturer | ABB |
| Ordering Number | 1MRK002252-DA |
| Board Type | Industrial Control Board |
| Main Function | System control and internal hardware coordination |
| Application | Protection, control, monitoring, and substation automation |
| System Integration | Integrated into compatible ABB control and protection equipment |
| Control Function | Processing and coordination of control-related signals |
| Signal Processing | Digital control signal processing |
| Internal Communication | Communication with compatible system modules through the host equipment |
| Installation | Installed in the designated board or module position |
| Typical Application | Electrical control, protection systems, monitoring, and industrial automation |
| Maintenance | Suitable for board-level replacement and equipment maintenance |
| Dimensions | 155 × 25 × 100 mm |
| Weight | 0.22 kg |
FAQ
1. What is the ABB 1MRK002252-DA Control Board used for?
The ABB 1MRK002252-DA is a dedicated control board designed for use in compatible ABB control and protection equipment. It handles control-related signal processing, internal hardware coordination, and data exchange between system components. The board can be used in applications involving electrical protection, equipment control, monitoring, and substation automation, where dedicated control electronics are required.
2. What is the main function of the 1MRK002252-DA in an ABB control system?
The 1MRK002252-DA processes control-related signals and works with other internal system modules to support the required control functions of the host equipment. Its exact role depends on the ABB device in which it is installed, including the hardware configuration, firmware, I/O arrangement, and application software. It should therefore be considered as part of the complete control architecture rather than as a standalone controller.
3. Can the 1MRK002252-DA be used as a standalone PLC?
The 1MRK002252-DA should not be treated as a general-purpose standalone PLC. It is designed to operate as a dedicated board within a compatible ABB system and relies on the host equipment for power, backplane connections, communication, software, and overall control functions. When selecting or replacing this board, the complete host equipment configuration should be checked to ensure compatibility.
4. What types of automation systems can use the 1MRK002252-DA?
The board is intended for compatible ABB industrial control, protection, monitoring, and automation equipment. Typical applications can include electrical protection systems, substation automation, equipment monitoring, and control systems that require dedicated electronic processing hardware. The exact application depends on the host equipment model, board revision, firmware, and system configuration.
5. What should be checked when replacing an ABB 1MRK002252-DA Control Board?
Before replacement, verify the complete ordering number, hardware version, connectors, and installation position of the original board. The replacement unit should match the required hardware configuration of the host ABB equipment. Power should be isolated according to the applicable maintenance procedure, and appropriate electrostatic discharge protection should be used when handling the board. After installation, all connectors should be checked before performing system startup and functional testing.
6. What are common symptoms of a faulty 1MRK002252-DA?
A faulty control board may result in abnormal control functions, internal communication errors, diagnostic alarms, unsuccessful equipment initialization, or failure of associated automation functions. However, these symptoms do not necessarily indicate that the control board itself has failed. Power-supply problems, loose connectors, communication faults, incorrect configuration, or failures in related modules can produce similar symptoms. System diagnostics should therefore be reviewed before replacing the board.
7. How can control or communication faults related to the 1MRK002252-DA be diagnosed?
Begin by checking the board installation, power supply, connectors, and internal communication interfaces. Then review the host ABB equipment’s diagnostic messages, fault codes, and event records to identify the affected function. Related modules, wiring, and system configuration should also be inspected. If the external connections, power supply, and configuration are confirmed to be correct, the control board can then be investigated further as a possible source of the problem.
8. What should be checked before commissioning the 1MRK002252-DA?
Before commissioning, confirm that the 1MRK002252-DA is compatible with the host ABB equipment and installed in the correct board position. Check the power connections, grounding, connectors, and internal communication interfaces before energizing the system. After startup, review the board and system diagnostic status, verify internal communication, and test the relevant control functions. The equipment should only be returned to normal service after the required functional checks have been completed successfully.
ABB 1MRK002252-DA Control Board is in stock. Please contact us for a quick quote and competitive pricing.
