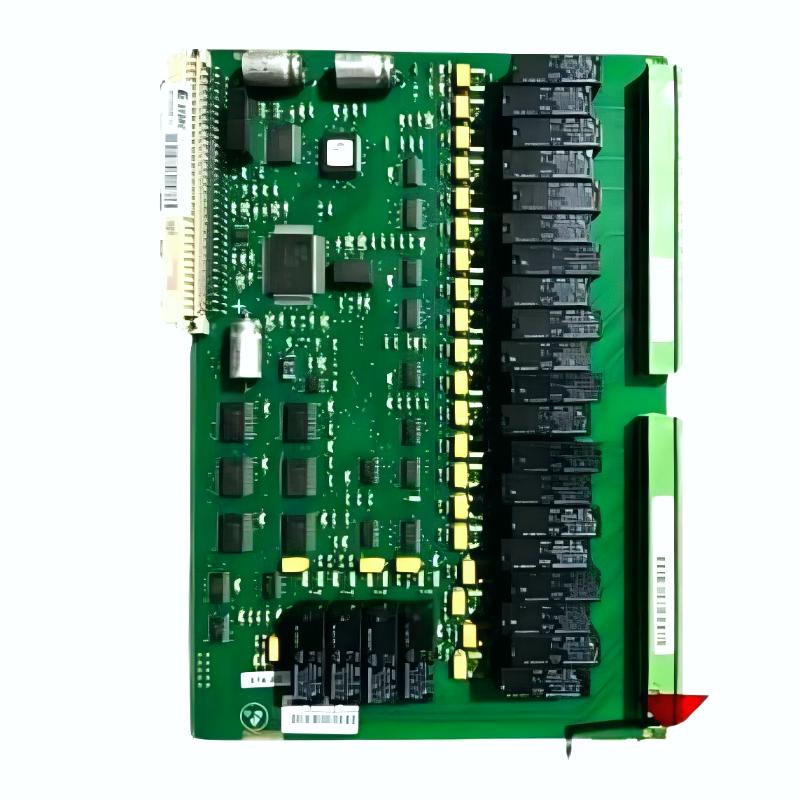

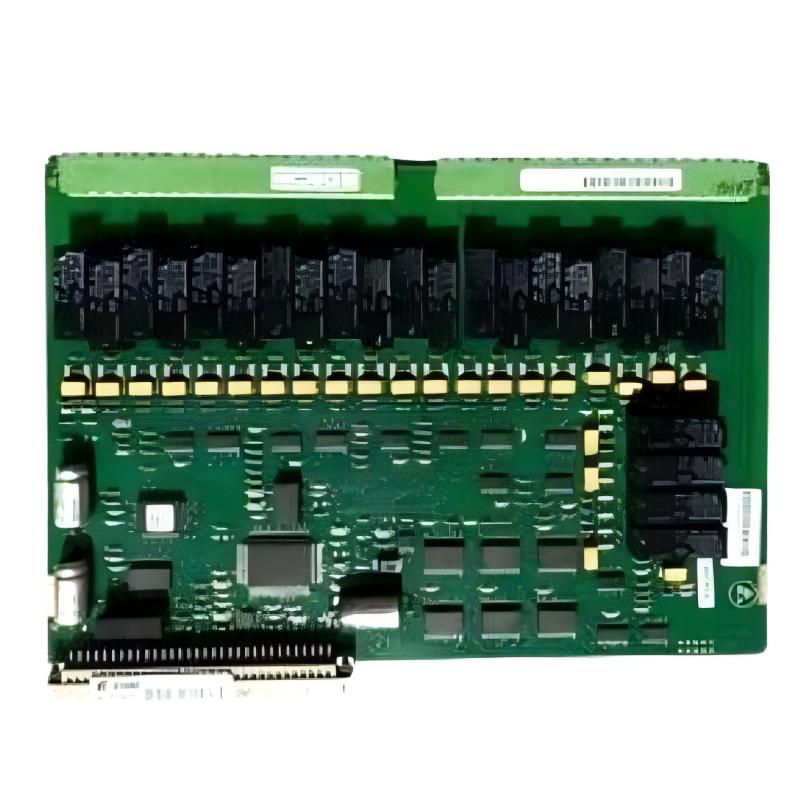

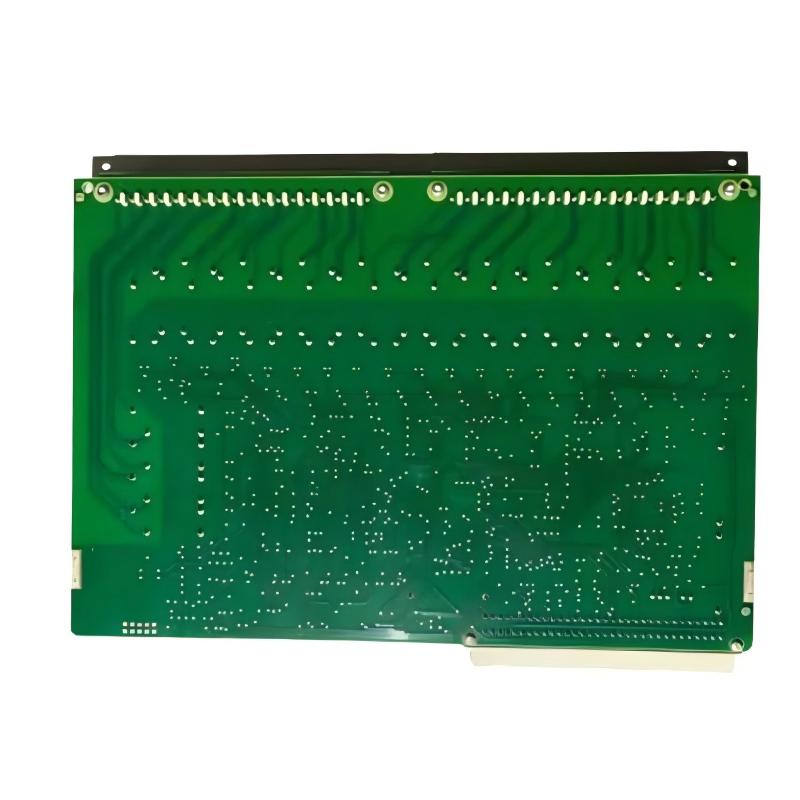

1. What is the main function of the ABB 1MRK002305-AAr00 Time Synchronization Module?
The ABB 1MRK002305-AAr00 is an IRIG-B time synchronization module designed to provide an accurate external time reference to compatible protection and control equipment. It receives the IRIG-B time signal, processes the time information, and synchronizes the internal clock of the associated system. Accurate system time is important for event records, protection operation analysis, disturbance recording, and coordination between multiple devices.

2. What is IRIG-B and why is it used in power system applications?
IRIG-B is a standardized time-code format widely used for distributing precise timing information to protection, control, monitoring, and automation equipment. In substations, a common time reference allows different intelligent electronic devices to assign consistent timestamps to events. This makes it easier to correlate circuit-breaker operations, protection alarms, trips, and other system events during fault analysis.

3. How does the 1MRK002305-AAr00 synchronize the system clock?
The module receives an external IRIG-B time reference and decodes the timing information contained in the signal. The resulting time information is then used by the compatible ABB system to align its internal clock with the external reference. The exact synchronization architecture depends on the host equipment and the way the timing system is configured.

4. What problems can occur if the time synchronization signal is lost?
If the external IRIG-B reference is lost, the associated system may no longer be synchronized to the common station time reference. The internal clock may continue operating, but its accuracy relative to other synchronized devices can gradually become unsuitable for applications requiring precise event correlation. A lost synchronization condition should therefore be investigated through system diagnostics and timing-status indications.

5. How should an IRIG-B synchronization fault be diagnosed?
First check the synchronization status reported by the ABB host system. Then inspect the external time source, IRIG-B signal path, wiring, connectors, and module installation. Confirm that the time source is operating correctly and that the signal reaches the module without interruption. If the external signal is confirmed to be healthy, check the module seating, system configuration, diagnostic messages, and event logs to determine whether the problem is related to the module or the host system.

6. What can cause unstable or intermittent time synchronization?
Intermittent synchronization can be caused by an unstable external time source, damaged or loose IRIG-B wiring, poor connector contact, electrical interference, incorrect configuration, or an intermittent module connection. The best troubleshooting approach is to compare the synchronization status with the external timing source and inspect the complete signal path. Event logs can also help identify when synchronization is being lost and restored.

7. What precautions should be taken when replacing the 1MRK002305-AAr00?
Before replacement, place the associated protection or control equipment in the required maintenance condition and follow the site’s electrical isolation and ESD procedures. Verify that the replacement module has the correct ordering number 1MRK002305-AAr00 and is compatible with the existing ABB system configuration. Check the IRIG-B connection carefully during installation and ensure that all module and system connections are properly seated before restoring operation.

8. What should be verified after installing a replacement time synchronization module?
After installation, confirm that the ABB system recognizes the module and that no synchronization or module alarms remain active. Check that the external IRIG-B reference is being received correctly and that the system reports a valid synchronization status. It is also advisable to verify the system clock against the station time reference and review event timestamps after synchronization has been restored. For protection systems, the final verification should confirm that event recording and other time-dependent functions are operating normally.
