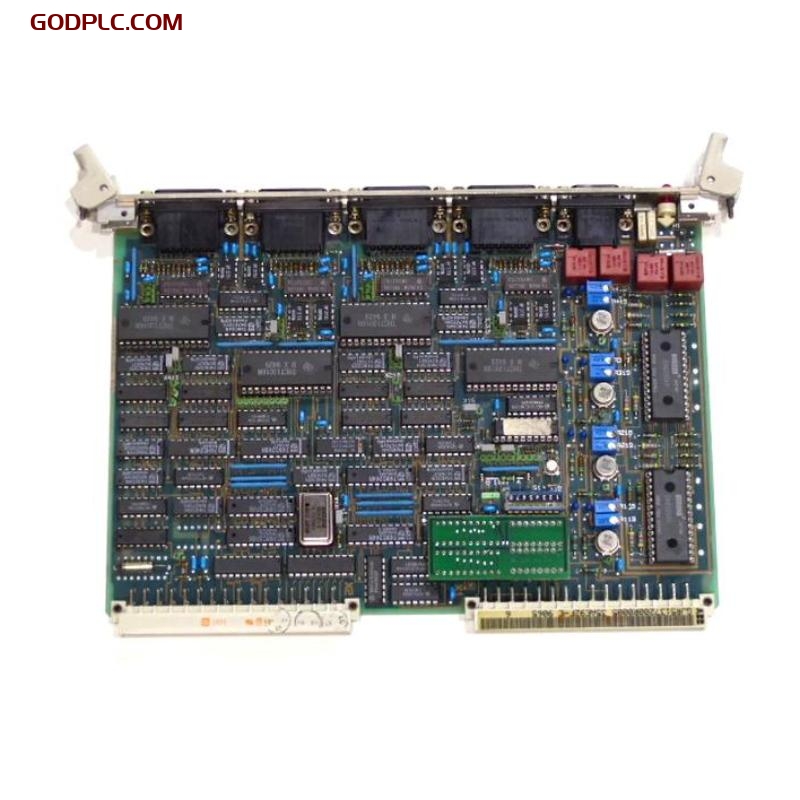

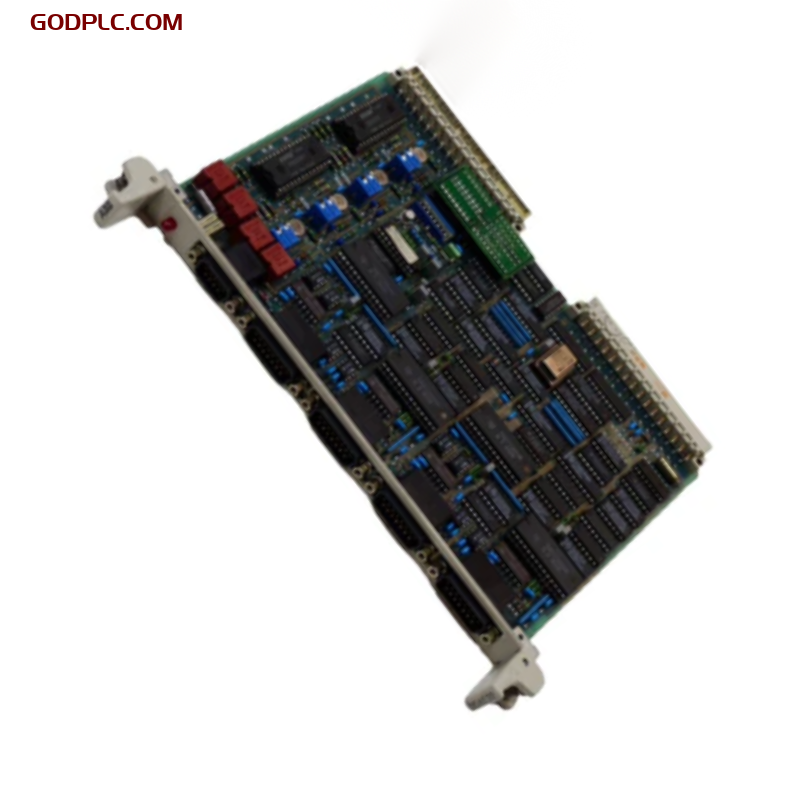

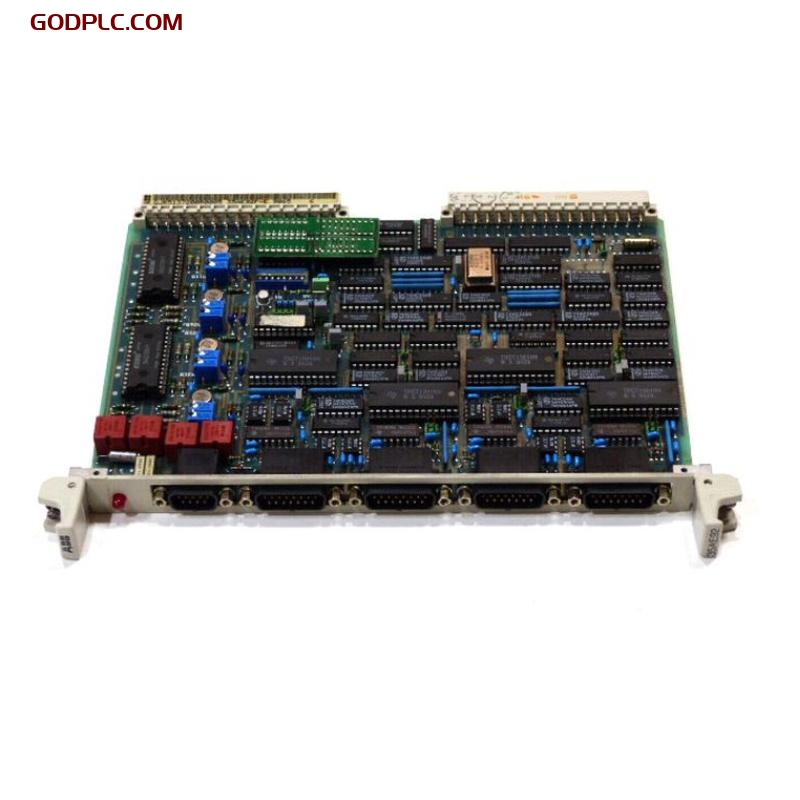

ABB 35AE92F-E GJR5137200R0005 4-channel Axis Module
Product Overview
The ABB 35AE92F-E GJR5137200R0005 is a high-precision 4-channel axis module designed for motion control applications within ABB’s industrial automation systems. This module enables precise positioning and synchronized control of servo motors or stepper motors in multi-axis systems, making it an ideal component in manufacturing environments that demand high-performance motion control.
It is part of ABB’s trusted automation lineup and offers integration into programmable logic controllers (PLCs) or distributed control systems (DCS), delivering reliable real-time control over motion processes. Its modular structure allows for flexible system configuration while maintaining consistent performance.
Key Features
-
4 Independent Motion Channels: Supports control of up to four axes simultaneously
-
High-Speed Processing: Ensures accurate and real-time motion adjustments
-
Flexible Interface Options: Compatible with various encoder types and motion feedback systems
-
Seamless System Integration: Easily connects with ABB PLCs and automation platforms
-
Robust Industrial Design: Built to endure demanding factory environments
-
Comprehensive Diagnostics: Offers built-in monitoring and error reporting functions
-
Compact Modular Form Factor: Saves space in control panels without sacrificing capability
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 60 x 30 mm |
| Weight | 0.35 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model Number | 35AE92F-E |
| Part Number | GJR5137200R0005 |
| Product Type | Axis Control Module |
| Number of Channels | 4 Motion Channels |
| Mounting Method | DIN Rail / Rack Mountable |
| Module Type | Positioning / Motion Controller |
| Compatible Systems | ABB Advant, Freelance, or Symphony systems |
3.3 Electrical and Control Specifications
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC ±10% |
| Power Consumption | Approx. 8 W |
| Signal Interface | Differential/TTL encoder inputs |
| Position Feedback | Encoder / Resolver |
| Control Resolution | Up to 16-bit |
| Communication | Internal backplane or fieldbus enabled |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Industry Applications
-
Robotics and Automation: Coordinates multi-axis robotic arms for precision assembly
-
CNC Machinery: Drives and synchronizes movements in milling and lathe machines
-
Material Handling: Manages conveyor belts, lifters, and packaging equipment
-
Semiconductor Manufacturing: Ensures ultra-precise alignment and motion control
-
Textile Industry: Controls spinning, weaving, and winding processes
-
Printing and Labeling: Supports synchronized multi-axis operations in print machinery
The ABB 35AE92F-E GJR5137200R0005 4-channel Axis Module is a powerful, scalable, and dependable solution for advanced motion control tasks. Its ability to manage multiple motion channels with precision and reliability makes it an essential component in high-performance industrial automation systems.
ABB 35AE92F-E GJR5137200R0005 4-channel Axis Module is in stock. Please contact us for a quick quote and competitive pricing.
