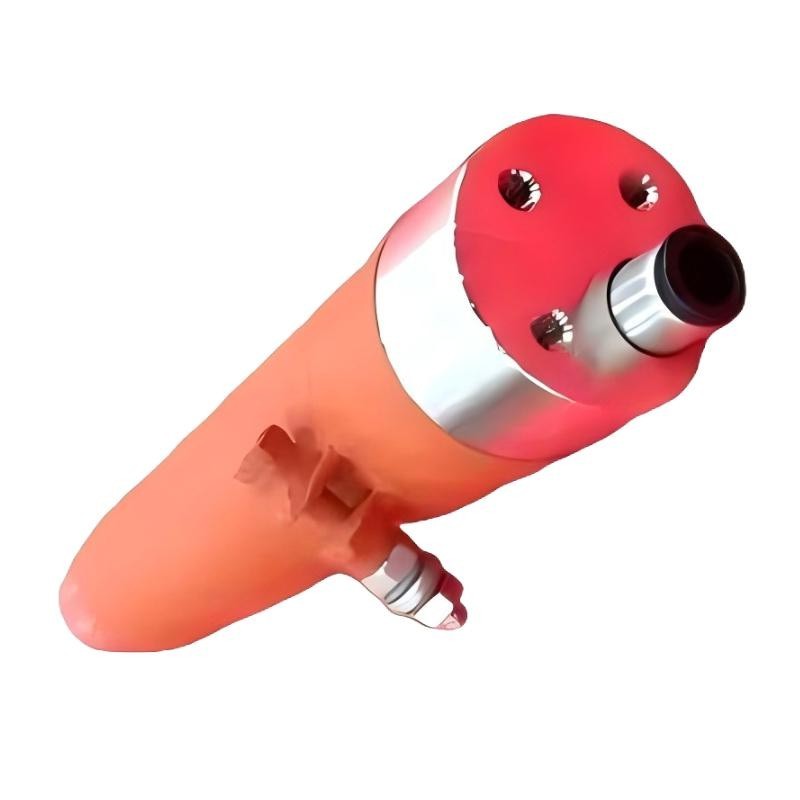

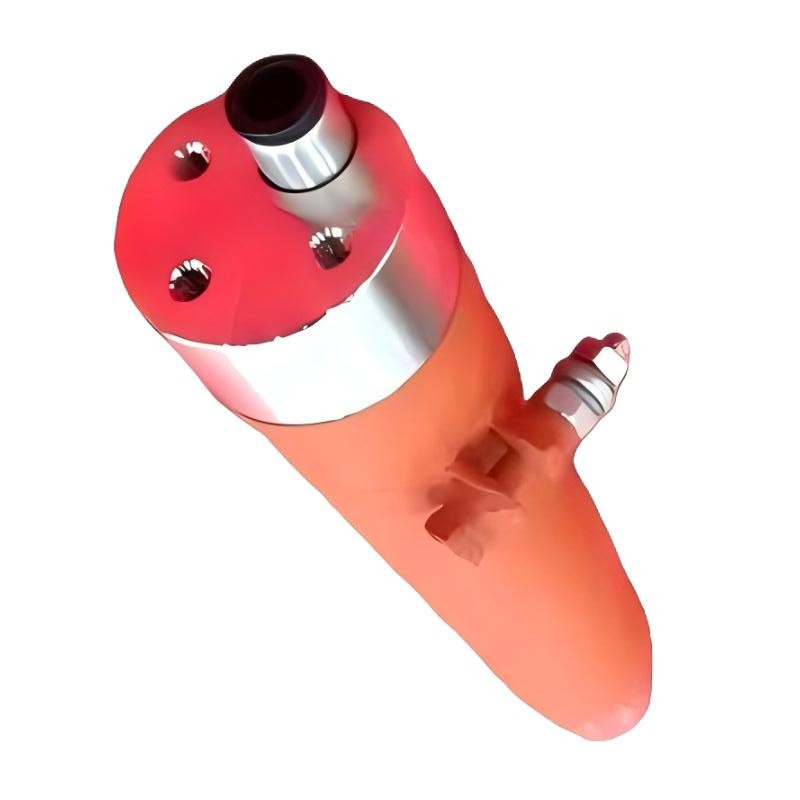

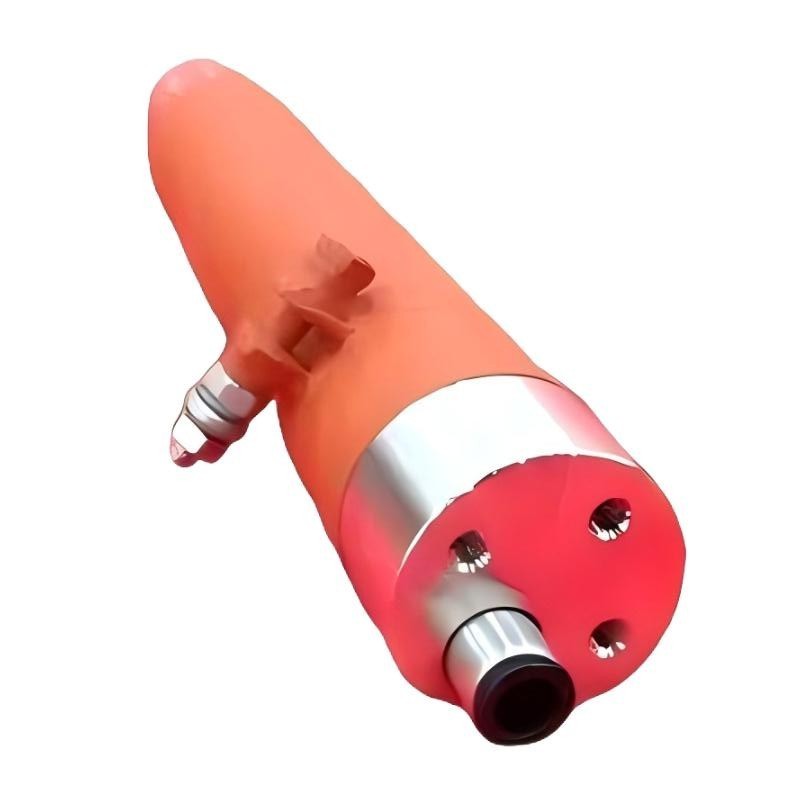

ABB 3BHB010662R0250 Water-Cooled Resistor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Ordering Number | 3BHB010662R0250 |
| Product Type | Water-Cooled Resistor |
| Product Name | RESIS.WATERCOOLED |
| Product Series | ABB ACS6000 |
| Rated Power | 1000 W |
| Resistance Value | 25 kΩ |
| Resistance Tolerance | ±10% |
| Cooling Method | Water Cooling |
| Main Function | Electrical energy dissipation and load protection in power conversion systems |
| Application | ABB ACS6000 medium-voltage drive and power conversion equipment |
| Component Type | Power Resistor |
| Typical Use | Braking, discharge and energy dissipation circuits |
| Cooling Requirement | Water-cooling system with suitable flow and temperature conditions |
| Installation | Installed according to the corresponding ABB drive system configuration |
| Maintenance | Check electrical resistance, connections, insulation and cooling conditions during maintenance |
| Dimensions | 100 × 50 × 20 mm |
| Weight | 0.3 kg |
FAQ
1. What is the ABB 3BHB010662R0250 used for?
The ABB 3BHB010662R0250 is a water-cooled power resistor used for controlled electrical energy dissipation in ABB ACS6000 power conversion and drive systems. Its resistance value is 25 kΩ with a rated power of 1000 W.
2. What are the main electrical specifications of the 3BHB010662R0250?
The key specifications are 1000 W rated power, 25 kΩ resistance and ±10% resistance tolerance. These parameters should be matched with the original system design before replacement.
3. Why does the 3BHB010662R0250 use water cooling?
Water cooling provides an effective way to remove heat generated when the resistor dissipates electrical energy. It is particularly useful in high-power industrial equipment where maintaining stable thermal conditions is important.
4. Which ABB equipment is associated with the 3BHB010662R0250?
The part number is listed as an ABB ACS6000 component and is identified as a water-cooled resistor. It should be used only in applications where the electrical and cooling requirements match the original equipment configuration.
5. What should be checked when replacing the 3BHB010662R0250?
Verify the ordering number, resistance value, power rating, electrical connections and cooling arrangement. The replacement resistor should match the original system specification rather than being selected only by physical appearance.
6. What are common signs of a faulty water-cooled resistor?
Possible symptoms include an abnormal resistance reading, overheating, visible damage, insulation problems, unstable system operation or protective trips during operation. The cooling circuit should also be checked because insufficient cooling can cause excessive temperature.
7. How can the 3BHB010662R0250 be tested?
After isolating the equipment and following the applicable electrical safety procedures, measure the resistor with an appropriate resistance meter and compare the result with the specified 25 kΩ value and tolerance. Connections and insulation should also be inspected.
8. What precautions are important when installing the 3BHB010662R0250?
Ensure the equipment is completely de-energized before installation. Check the electrical connections and water-cooling circuit, confirm that there are no leaks or blocked passages, and make sure the resistor is installed according to the system’s original configuration and operating requirements.
ABB 3BHB010662R0250 Water-Cooled Resistor is in stock. Please contact us for a quick quote and competitive pricing.
