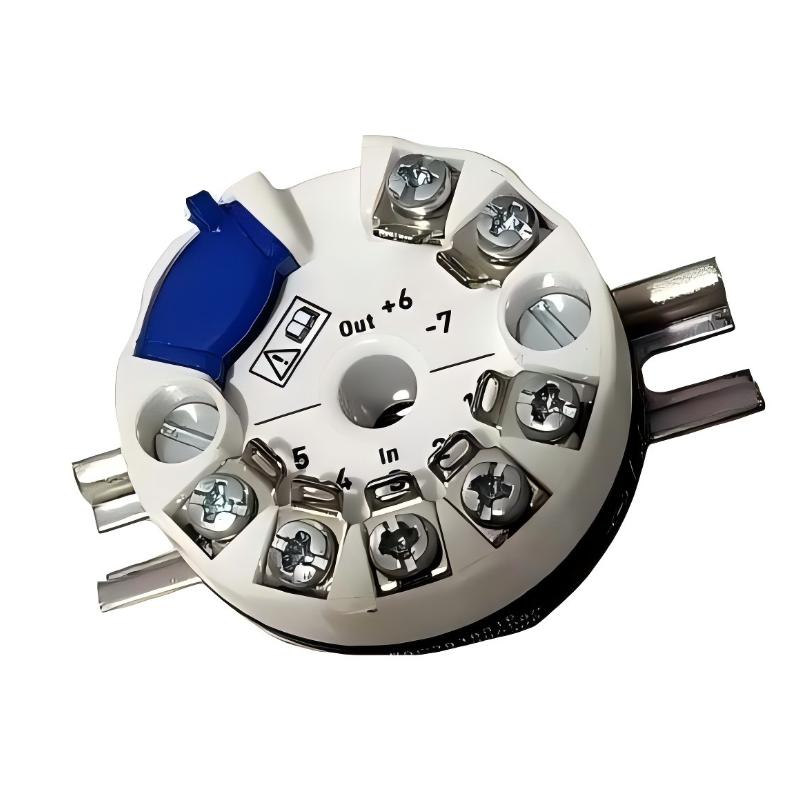

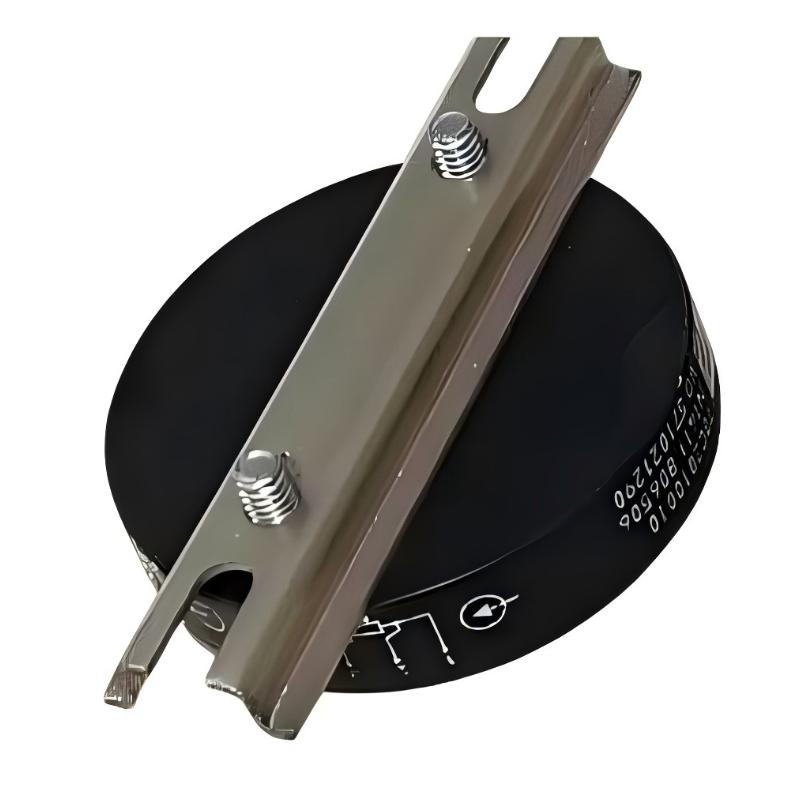

ABB 3BHB015149R1001 Temperature Transmitter/Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Product Type | Temperature Transmitter / Temperature Sensor |
| Order Number | 3BHB015149R1001 |
| Sensor Type | Pt100 RTD |
| Sensor Connection | 2-wire |
| Measurement Principle | Resistance-based temperature measurement |
| Typical Application | Industrial equipment temperature monitoring |
| Temperature Measurement Range | -200 to +850°C |
| Output Signal | Temperature-dependent resistance signal |
| Supply | Passive Pt100 sensing element |
| Installation | Fixed installation |
| Application | Motor, drive, industrial equipment and process temperature monitoring |
| Dimensions | 110 × 35 × 28 mm |
| Weight | 0.2 kg |
FAQ
1. What is the ABB 3BHB015149R1001?

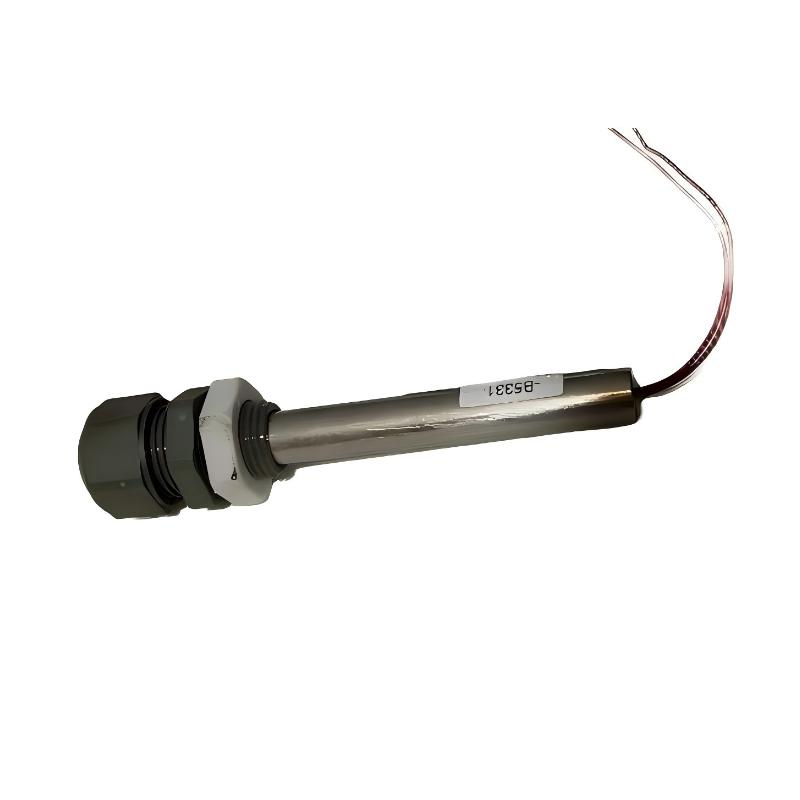

The ABB 3BHB015149R1001 is a Pt100 resistance temperature sensor used for industrial temperature measurement. It is identified by ABB order number 3BHB015149R1001 and is designed to detect temperature by measuring the change in electrical resistance of the platinum sensing element. It is commonly used for monitoring the thermal condition of industrial equipment and electrical machinery.
2. What type of temperature sensor is used in the 3BHB015149R1001?
The 3BHB015149R1001 uses a Pt100 RTD sensing element. Pt100 sensors have a nominal resistance of 100 Ω at 0°C and their resistance changes in a predictable manner as temperature changes. This makes the sensor suitable for continuous temperature measurement rather than simple over-temperature switching.
3. What is the measurement principle of the ABB 3BHB015149R1001?
The sensor operates according to the resistance-temperature relationship of platinum. As the measured temperature increases or decreases, the resistance of the Pt100 element changes accordingly. The connected measurement or control system measures this resistance and converts it into a temperature value for monitoring, alarming, trending, or equipment protection.
4. Is the 3BHB015149R1001 a two-wire Pt100 sensor?
Yes. The 3BHB015149R1001 is specified as a two-wire transmitter/sensor for Pt100 applications. Two-wire connection simplifies field wiring, but the resistance of the connecting wires can introduce additional measurement error, particularly when long cable runs are used or when high measurement accuracy is required.
5. Where is the ABB 3BHB015149R1001 typically used?
The sensor can be used for temperature monitoring in industrial equipment such as motors, drives, generators, and other machinery where thermal condition monitoring is required. The measured temperature can be used by a control or monitoring system to identify abnormal heating and initiate alarms or protective actions when configured appropriately.
6. What should be checked when installing the 3BHB015149R1001?
Before installation, verify the complete order number, Pt100 sensor type, two-wire connection, and compatibility with the temperature input of the connected control or monitoring equipment. The sensing element should have good thermal contact with the monitored component, while the wiring should be protected against mechanical damage, excessive heat, moisture, and electromagnetic interference.
7. How can an abnormal temperature reading from the 3BHB015149R1001 be diagnosed?
Start by checking the two sensor wires and terminal connections for looseness, corrosion, broken conductors, or short circuits. Measure the resistance of the Pt100 circuit and compare it with the expected resistance for the actual temperature. If the resistance changes correctly but the control system displays an incorrect value, check the configured sensor type, input channel settings, cable compensation, and signal-processing parameters. If the measured resistance is unstable or remains open/shorted, inspect the sensor and wiring more closely.
8. What precautions should be taken when replacing the ABB 3BHB015149R1001?
Confirm that the replacement part has the same ABB order number, 3BHB015149R1001, and the same Pt100 two-wire configuration. The replacement should be installed in the same measurement position whenever possible so that the thermal response remains consistent. After installation, verify the wiring and compare the displayed temperature with an independent temperature reference or known process condition before returning the equipment to normal operation.
ABB 3BHB015149R1001 Temperature Transmitter/Controller is in stock. Please contact us for a quick quote and competitive pricing.
