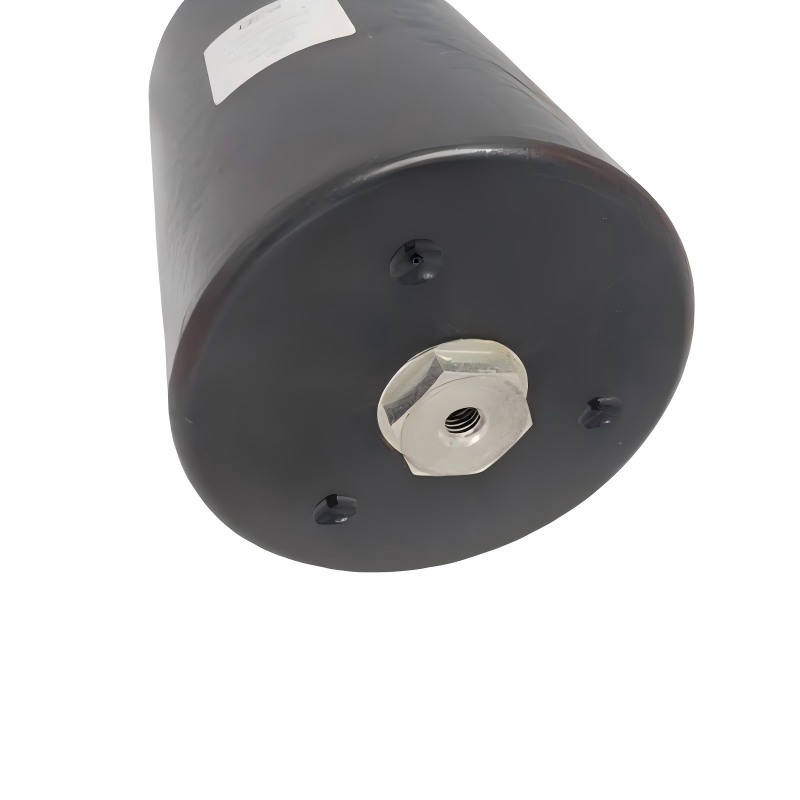

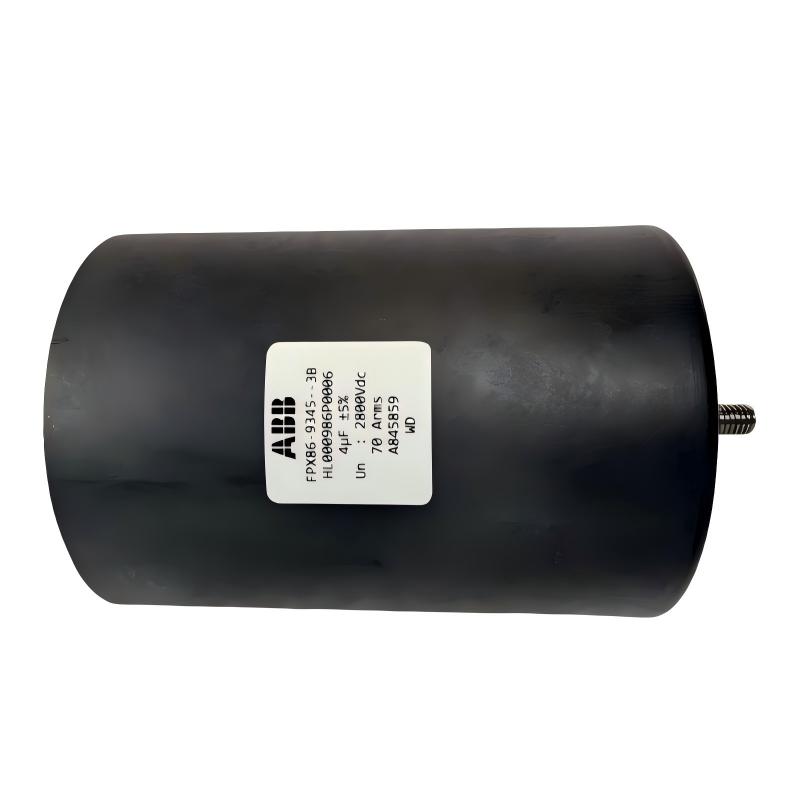

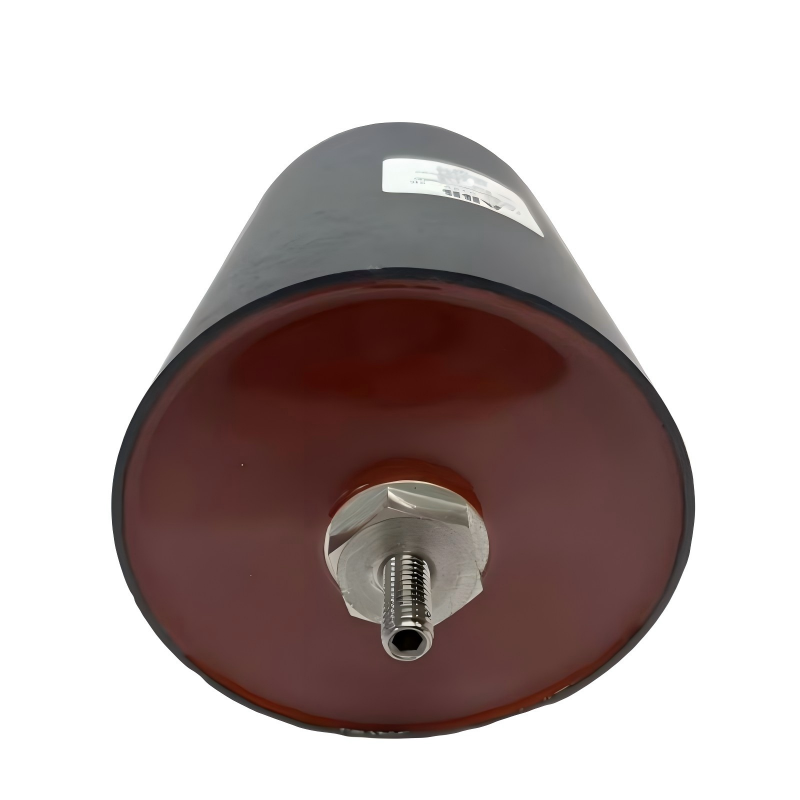

ABB 3BHL000986P0006 High-Voltage Film Capacitors
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Order Number | 3BHL000986P0006 |
| Product Type | High-Voltage Film Capacitor |
| Product Technology | Metallized film capacitor |
| Capacitance | 4 µF |
| Rated DC Voltage | 2800 VDC |
| Maximum Voltage | 4500 V |
| Rated Current | 70 A |
| Polarity | Non-polarized |
| Main Function | Energy storage, DC filtering and voltage stabilization in high-voltage power electronic circuits |
| Typical Applications | ABB high-power drives, power converters, DC-link circuits and high-voltage electrical equipment |
| Dielectric Technology | Film dielectric with low-loss characteristics |
| Self-Healing | Metallized film construction supports self-healing after localized dielectric breakdown |
| Electrical Application | DC-link filtering, energy buffering and power conversion circuits |
| Installation | Installed according to the original equipment design and capacitor mounting requirements |
| Maintenance Focus | Capacitance, terminal connections, operating temperature and signs of physical deterioration |
| Dimensions | 150 × 90 mm |
| Weight | 1.4 kg |
FAQ
1. What is the main function of the ABB 3BHL000986P0006?
The ABB 3BHL000986P0006 is a high-voltage film capacitor designed for energy storage, DC-link filtering and voltage stabilization in power electronic circuits. It can help reduce DC voltage fluctuations and support stable operation of high-power conversion equipment.
2. What are the capacitance and rated voltage of the 3BHL000986P0006?
The capacitor has a capacitance of 4 µF and a rated DC voltage of 2800 VDC. Its specified maximum voltage is 4500 V. The capacitor should be operated within the electrical limits defined for the associated ABB equipment.
3. Why is film capacitor technology suitable for high-voltage power electronics?
Film capacitors provide low losses, good high-frequency characteristics and relatively low parasitic inductance. These properties make them suitable for high-voltage switching circuits, DC-link applications, filtering and other demanding power-electronics environments.
4. Is the ABB 3BHL000986P0006 polarized?
No. The 3BHL000986P0006 is a non-polarized film capacitor. However, when replacing a capacitor in an ABB drive or converter, the original circuit configuration, terminal arrangement and electrical ratings must still be followed carefully.
5. How can deterioration of the 3BHL000986P0006 be identified?
Condition can be evaluated by checking capacitance, insulation performance, terminal condition, operating temperature and any abnormal physical signs. A significant reduction in capacitance or abnormal heating may indicate that the capacitor should be inspected or replaced.
6. What problems can a failed 3BHL000986P0006 cause in a drive system?
A degraded capacitor can increase DC-link voltage ripple and current stress and may affect the stability of the power-conversion circuit. Depending on the system design, capacitor failure can also contribute to DC-bus overvoltage, undervoltage or other protective trips.
7. What precautions are required when replacing the 3BHL000986P0006?
The equipment must be completely isolated from the power source before replacement. The DC circuit should be allowed to discharge, and the remaining voltage must be verified with an appropriate measuring instrument. Connections, insulation clearances and terminal tightness should also be checked before returning the equipment to service.
8. How can the service life of the 3BHL000986P0006 be extended?
Avoid continuous operation above the specified voltage or current limits and maintain suitable temperature, humidity and vibration conditions. During scheduled maintenance, inspect the capacitor and its connections and monitor electrical performance. Replacing capacitors that show significant degradation can help reduce unexpected equipment downtime.
ABB 3BHL000986P0006 High-Voltage Film Capacitors is in stock. Please contact us for a quick quote and competitive pricing.
