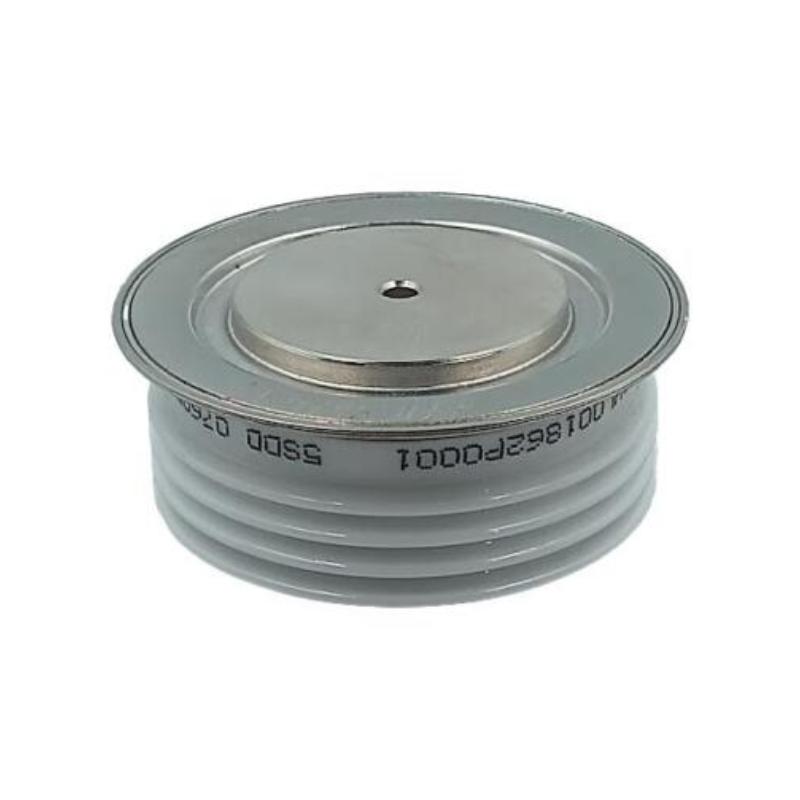

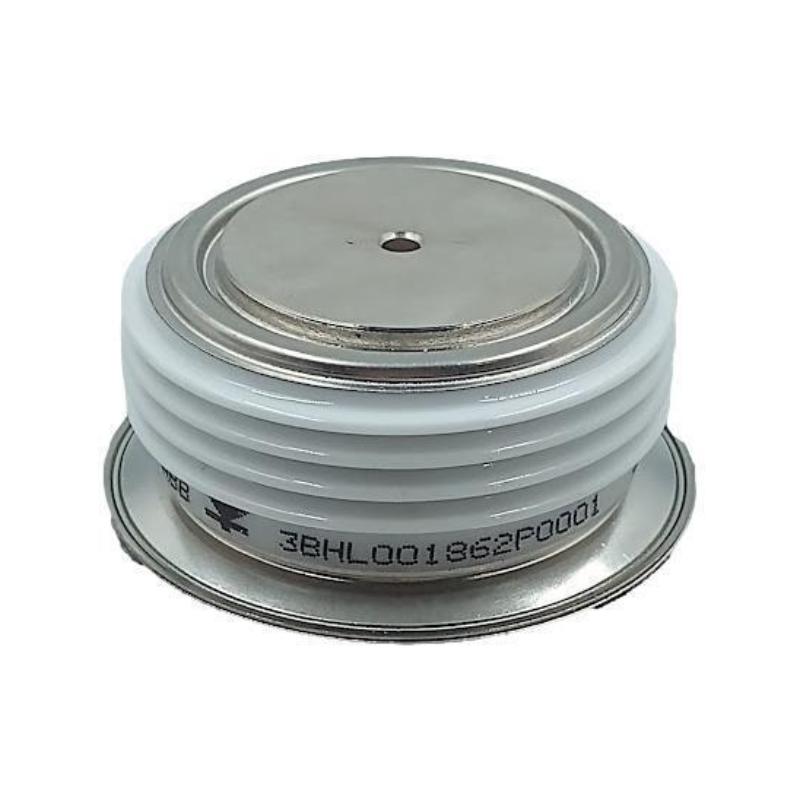

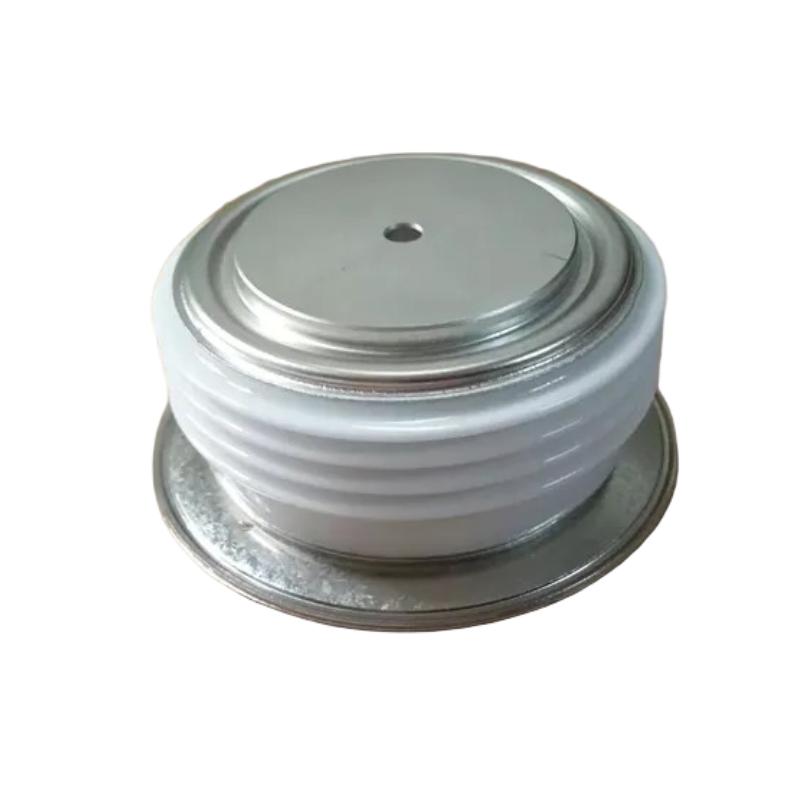

ABB 3BHL001862P0001 Diode
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Order Number | 3BHL001862P0001 |
| Product Type | Diode |
| Component Category | Power Semiconductor |
| Main Function | Rectification and controlled current flow in power electronic circuits |
| Semiconductor Type | Power diode |
| Polarity | Anode / Cathode |
| Application | ABB power converters, rectifier circuits and industrial power electronic equipment |
| Electrical Function | Converts AC-related electrical energy into DC and provides reverse-current blocking |
| Switching Function | High-speed current commutation and rectification depending on circuit design |
| Installation | Installed according to the original power electronic assembly configuration |
| Cooling Requirement | Requires adequate thermal management according to the equipment design and operating load |
| Heat Dissipation | Conducted through the semiconductor mounting structure and associated cooling system |
| Protection | Circuit protection should be provided according to the connected power converter design |
| Maintenance | Check electrical connections, thermal condition, insulation and signs of semiconductor damage |
| Typical Failure Modes | Short circuit, open circuit, excessive leakage current and thermal damage |
| Replacement Requirement | Replacement should use the correct ABB part number and equivalent electrical characteristics |
| Application Environment | Industrial power conversion and automation equipment |
| Dimensions | 110 × 80 × 25 mm |
| Weight | 0.24 kg |
FAQ
1. What is the main function of the ABB 3BHL001862P0001 diode?
The ABB 3BHL001862P0001 is a power semiconductor diode used for rectification and one-way current conduction in power electronic circuits. It can be used as part of rectifier, converter or DC power circuits in industrial equipment.
2. Where is the 3BHL001862P0001 typically used?
The diode is intended for industrial power electronics and can be used in ABB power converters, rectifier assemblies and related high-power electrical equipment. Its actual circuit position depends on the design of the associated equipment.
3. How does a power diode work in a rectifier circuit?
A power diode allows current to flow primarily in the forward direction while blocking reverse current. In a rectifier circuit, this characteristic enables the circuit to convert an AC waveform into a DC voltage or current suitable for the downstream power electronics.
4. What can cause the ABB 3BHL001862P0001 to fail?
Common causes include excessive forward current, reverse-voltage stress, overheating, insufficient cooling, electrical transients and poor connections. Repeated operation outside the designed electrical or thermal limits can significantly shorten semiconductor service life.
5. How can a faulty 3BHL001862P0001 diode be identified?
A diode can be checked with appropriate semiconductor test equipment or a multimeter when the component is safely isolated from the circuit. A short circuit in both directions, an open circuit in both directions or abnormal leakage can indicate a damaged diode. In-circuit measurements should be interpreted carefully because surrounding components can affect the result.
6. What symptoms can a failed diode cause in a power converter?
A failed diode may cause abnormal DC output, excessive current, increased ripple, converter protection trips or complete loss of power conversion. A shorted diode can also cause high current and may trigger upstream fuses or protective devices.
7. What should be checked when replacing the 3BHL001862P0001?
Verify the exact ABB order number and electrical compatibility before installation. The mounting surface, electrical terminals, insulation condition and cooling arrangement should also be inspected. The equipment must be fully isolated and the DC circuit safely discharged before the semiconductor is removed.
8. How can the service life of the 3BHL001862P0001 be improved?
Maintaining proper cooling and keeping operating voltage and current within the equipment design limits are essential. Good electrical connections, adequate protection against transients and regular inspection of the cooling system can reduce thermal and electrical stress on the diode.
ABB 3BHL001862P0001 Diode is in stock. Please contact us for a quick quote and competitive pricing.
