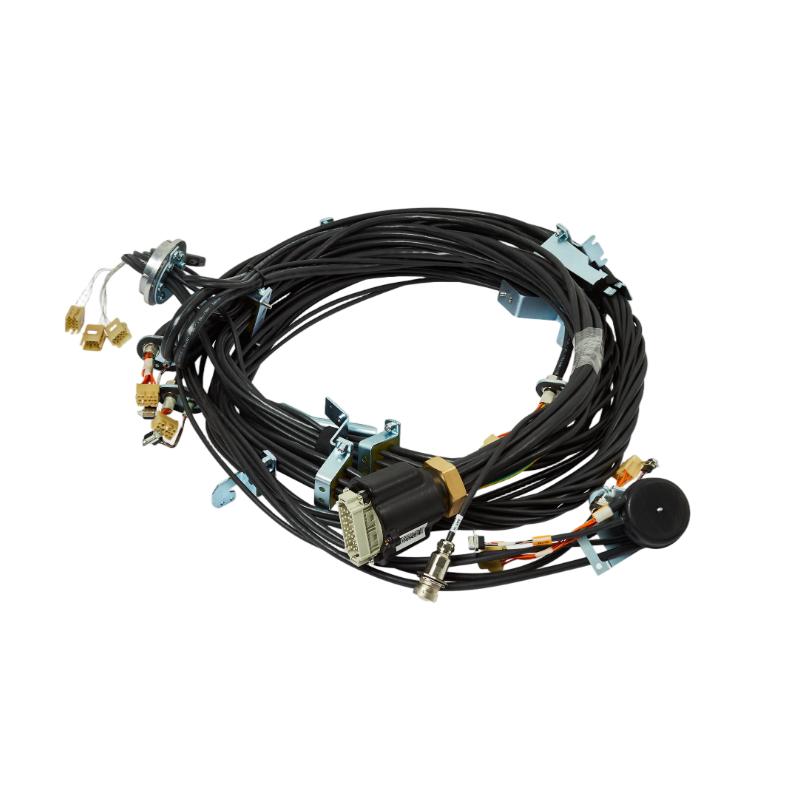

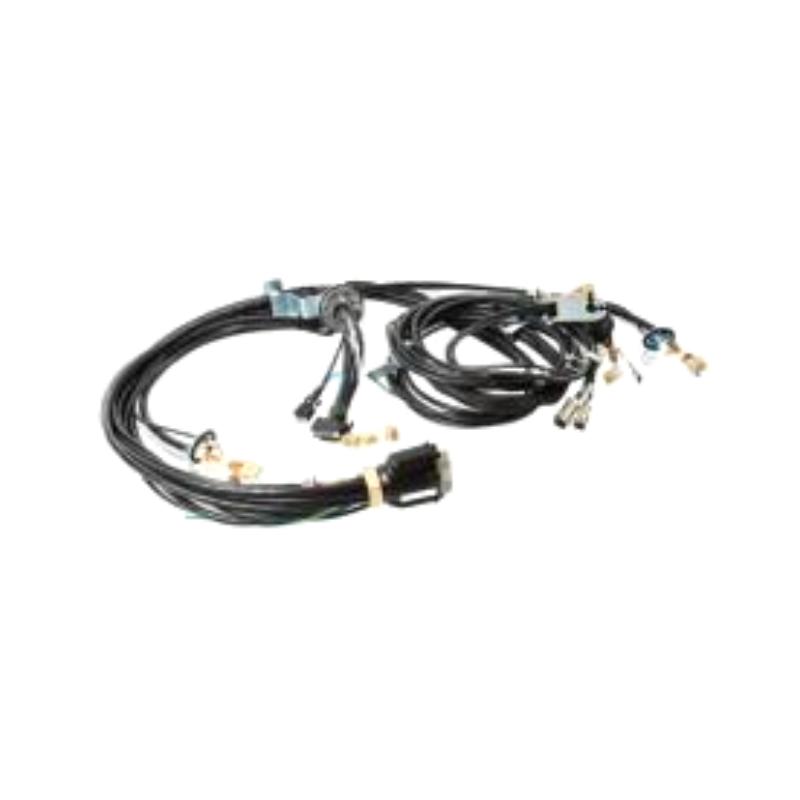

ABB 3HAC058040-001 Robotic Arm Wire Harness
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Ordering Number | 3HAC058040-001 |
| Product Name | Manipulator Harness, Axis 1-6 |
| Product Type | Robotic Arm Wire Harness |
| Application | ABB industrial robot manipulator |
| Applicable Axes | Axis 1 to Axis 6 |
| Main Function | Provides integrated wiring connections for the robot manipulator axes |
| Electrical Function | Power and signal transmission within the robot manipulator |
| Installation Position | Internal robot manipulator wiring system |
| Compatible Robot Family | ABB IRB 6700 and applicable configurations |
| Replacement Part | 3HAC042840-001, 3HAC069607-001 |
| Country of Origin | Romania |
| Length | 7.205 meters |
| Weight | 14.5 kg |
FAQ
1. What is the ABB 3HAC058040-001 Robotic Arm Wire Harness used for?
The ABB 3HAC058040-001 is a manipulator harness designed for axes 1 through 6 of an ABB industrial robot. It provides an integrated wiring assembly inside the robotic arm, supporting the required electrical connections between the robot axes and the control system.
2. Which robot axes are covered by the 3HAC058040-001 harness?
The harness is specified as a complete Axis 1-6 manipulator harness. It is designed to route the required wiring through the robot structure for the first six axes, making it suitable for applications where multiple internal robot connections need to be replaced as one harness assembly.
3. What is the main function of this ABB manipulator harness?
The harness provides internal electrical connections for the robotic arm, carrying the required power and signal circuits associated with the robot axes. Reliable harness routing is important because the wiring is exposed to repeated robot movement, vibration, mechanical stress, and continuous industrial operation.
4. Which ABB robot systems can use 3HAC058040-001?
The 3HAC058040-001 is a manipulator harness for axes 1-6 and is associated with ABB articulated robot applications, including the IRB 6700 family. Exact compatibility should be confirmed against the robot’s specific type, configuration, and existing spare-part number before installation.
5. What are common symptoms of a damaged 3HAC058040-001 harness?
Typical symptoms can include intermittent axis faults, encoder or feedback errors, unexpected signal loss, motor-related alarms, or faults that appear when the robot arm moves through particular positions. If a fault changes with arm movement, the internal harness and its connectors should be inspected for mechanical damage, excessive bending, or broken conductors.
6. Why does the manipulator harness require careful routing?
The harness moves together with the robot’s mechanical structure and can experience repeated bending, twisting, vibration, and tensile forces. Incorrect routing may cause the harness to rub against mechanical components or become excessively stretched during robot movement, increasing the risk of premature cable failure.
7. What should be checked before replacing 3HAC058040-001?
Before replacement, verify the complete ABB robot model, robot configuration, controller system, original harness part number, connector arrangement, and cable routing. The robot should be placed in a safe maintenance condition with power isolated according to the applicable service procedure. Recording the original harness routing before removal can also help ensure correct reinstallation.
8. What should be checked after installing the 3HAC058040-001?
After installation, inspect all connectors and fixing points and confirm that the harness follows the correct routing path without excessive tension, compression, twisting, or interference with moving mechanical components. The robot should then undergo appropriate axis movement and signal checks to verify that all six axes operate correctly throughout their permitted movement range.
ABB 3HAC058040-001 Robotic Arm Wire Harness is in stock. Please contact us for a quick quote and competitive pricing.
