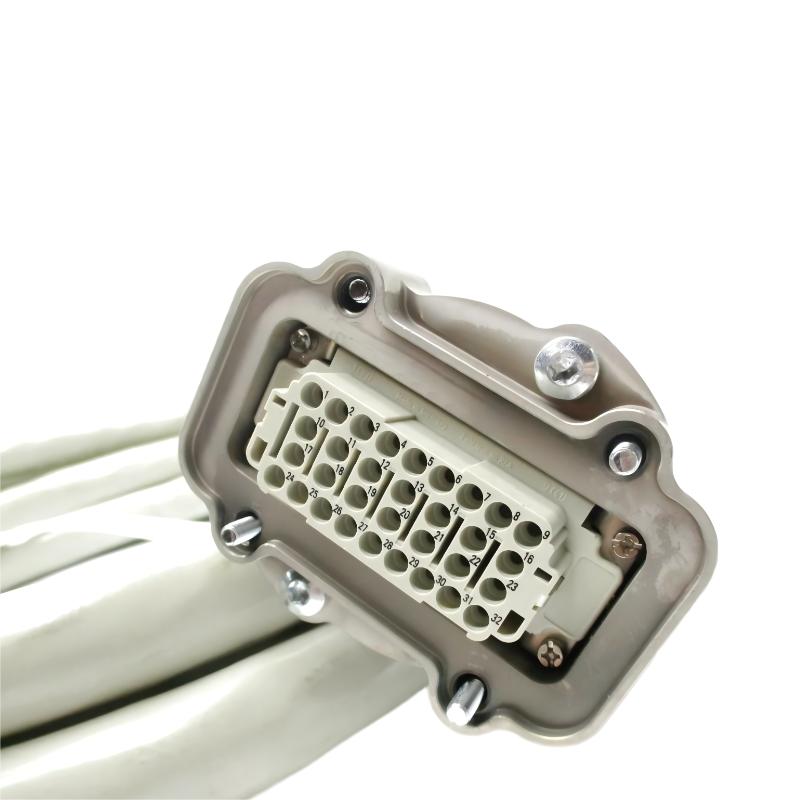

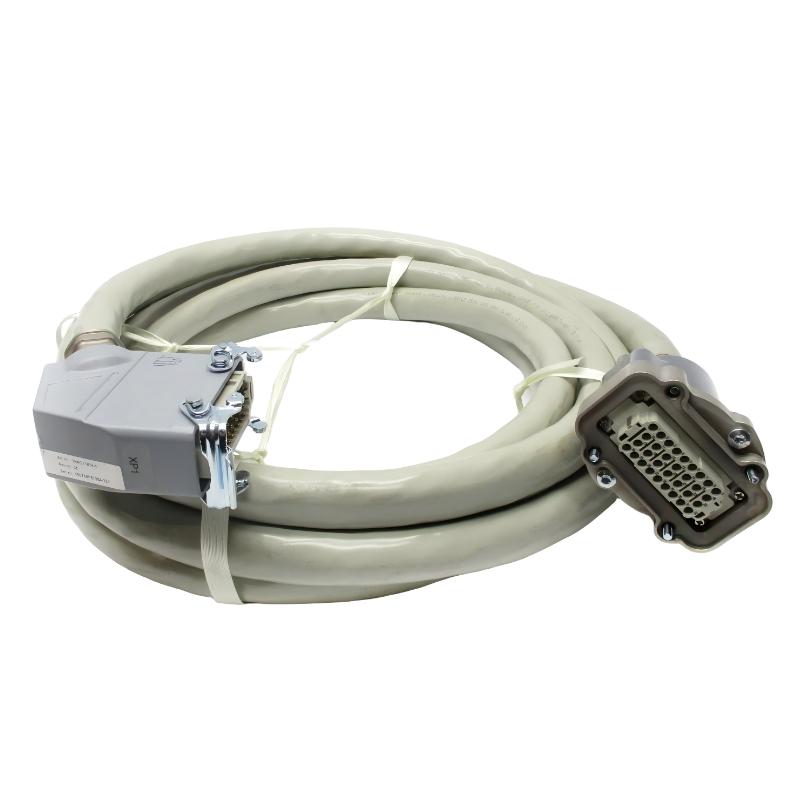

ABB 3HAC11818-1 Control Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | ABB |
| Product Name | Control Cable |

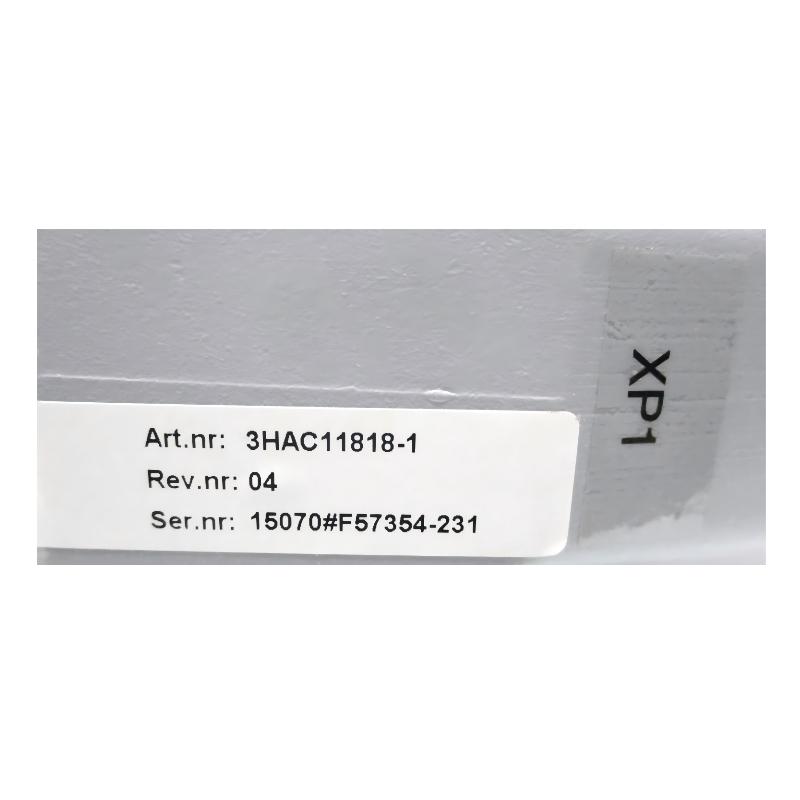

| Ordering Number | 3HAC11818-1 |
| Product Type | Power Control Cable |
| Application | ABB industrial robotic systems |
| Cable Length | 7 meters |
| Cable Configuration | Mixed power and signal conductors; verify the wiring configuration against the equipment documentation |
| Conductor Material | Copper; confirm the exact conductor specification with the manufacturer |
| Insulation Material | Refer to the original product documentation for the exact insulation specification |
| Rated Voltage | Verify according to the applicable ABB technical documentation |
| Operating Temperature | Refer to the manufacturer’s specifications for the intended installation |
| Main Function | Transmits electrical power and control signals between compatible system components |
| Installation Type | Cable harness for compatible ABB equipment |
| Compatibility | Confirm the equipment model, connector type, pin assignment, and cable revision before installation |
| Maintenance | Inspect connectors, insulation, cable routing, and strain relief during scheduled maintenance |
| Shipping Weight | 3 kg |
FAQ
Q1: What is the primary function of the ABB 3HAC11818-1 Control Cable?
The ABB 3HAC11818-1 Control Cable is designed for electrical connection within compatible ABB industrial robotic systems. Depending on the specific equipment configuration, it can support the transmission of power and control signals between connected components. Before installation, confirm the cable’s intended function using the equipment documentation and the original part number.
Q2: Which ABB equipment is compatible with the 3HAC11818-1 Control Cable?
Compatibility depends on the robot or system model, connection points, connector design, pin assignment, and cable revision. Do not assume that a cable is compatible simply because it is manufactured by ABB or has a similar appearance. Verify the complete ordering number against the equipment’s parts list before purchasing or installing a replacement.
Q3: What should be checked before installing this control cable?
Inspect the cable jacket, connectors, contacts, and strain-relief components for visible damage. Confirm that the cable part number matches the required specification and that the connectors fit correctly. Also check the routing path to prevent excessive bending, twisting, crushing, or interference with moving robot components. Follow the applicable ABB installation and electrical safety procedures.
Q4: Can the ABB 3HAC11818-1 be replaced with another cable of the same length?
Not necessarily. Cable length alone does not establish electrical or mechanical compatibility. A replacement must meet the required conductor configuration, electrical ratings, connector type, pin assignment, shielding requirements where applicable, and routing conditions. Use an ABB-approved replacement or confirm technical equivalence with the equipment supplier before substitution.
Q5: What problems can occur if the control cable is damaged?
Cable damage may cause intermittent signals, communication interruptions, unexpected system faults, or loss of electrical connection. In robotic applications, repeated movement, friction, excessive bending, connector strain, and exposure to unsuitable environmental conditions can contribute to deterioration. If faults appear intermittently, inspect the cable and connectors as part of a systematic troubleshooting process.
Q6: How can a technician diagnose a suspected control cable fault?
First, review the controller’s fault messages and determine whether the problem is associated with a specific connection or operating movement. After following the required shutdown and isolation procedures, inspect the cable and connectors for visible damage or loose connections. Qualified personnel can perform appropriate continuity and electrical tests using the equipment manufacturer’s procedures. Avoid testing energized circuits unless the procedure explicitly requires it and suitable precautions are in place.
Q7: What installation practices help improve the service life of the cable?
Route the cable according to the equipment’s cable-management requirements. Avoid sharp edges, excessive tension, tight bends, pinch points, and contact with hot or moving parts. Ensure that connectors are properly secured and that the cable is supported without restricting the robot’s required movement. For moving applications, verify that the cable is suitable for the intended motion and duty cycle.
Q8: How should the ABB 3HAC11818-1 Control Cable be maintained?
Include the cable in routine preventive maintenance inspections. Check the outer jacket for cuts, abrasion, deformation, or discoloration, and examine connectors for damaged contacts, contamination, and insecure connections. Investigate recurring faults rather than repeatedly resetting the system. Replace damaged cables with verified compatible parts and document the replacement to support future maintenance and troubleshooting.
ABB 3HAC11818-1 Control Cable is in stock. Please contact us for a quick quote and competitive pricing.
