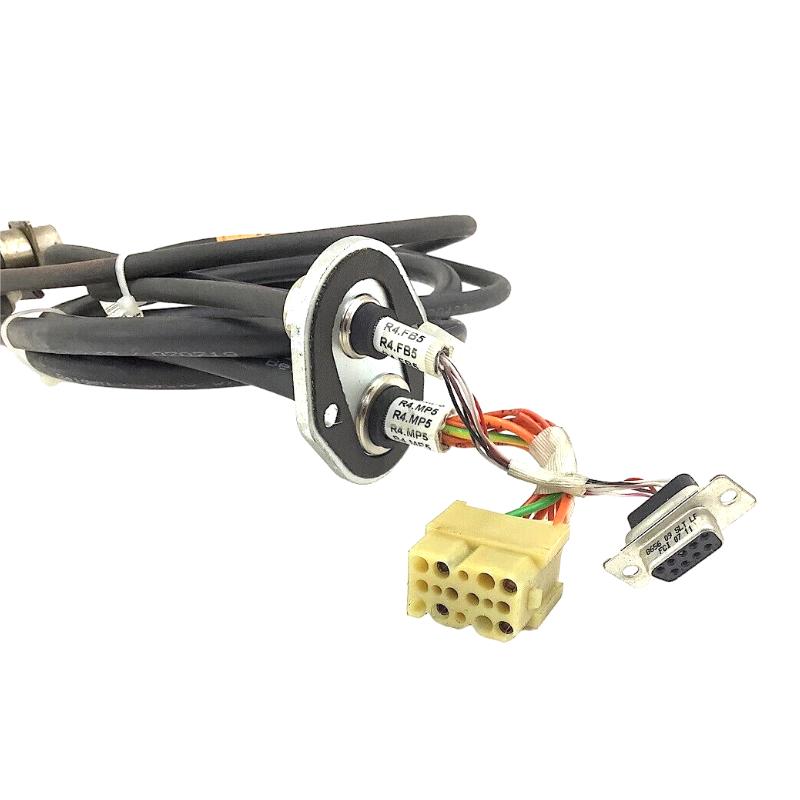

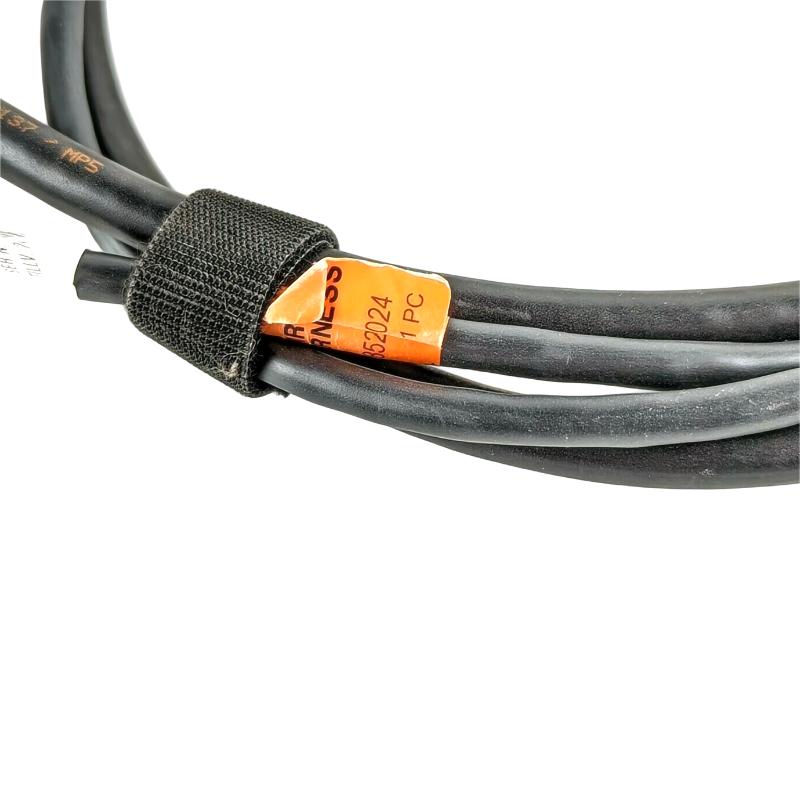

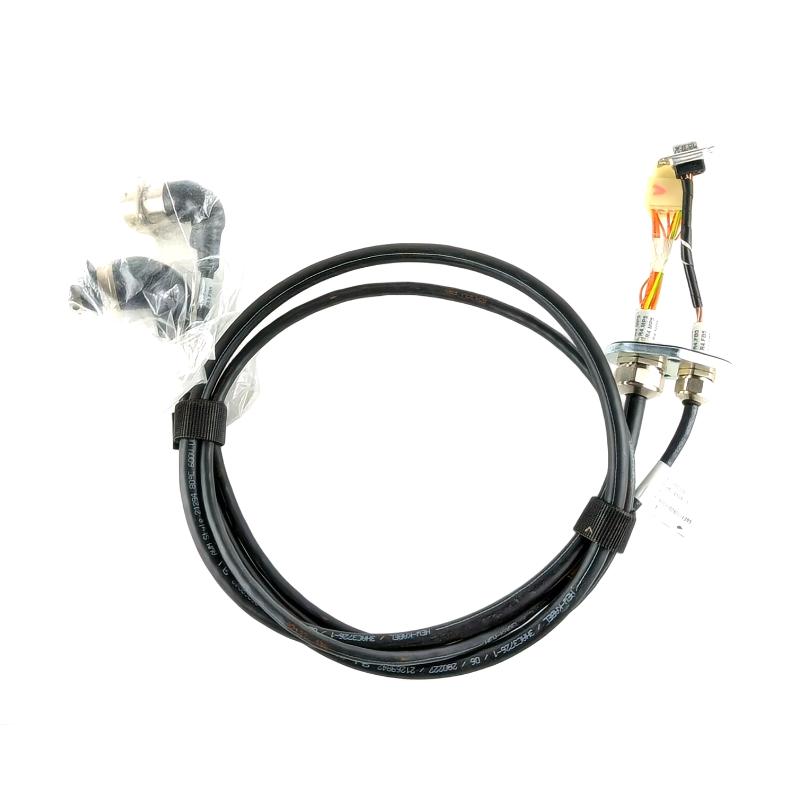

ABB 3HAC14139-1 Robotic Arm Wire Harness Ax 5
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Ordering Number | 3HAC14139-1 |
| Product Name | Manipulator Harness AX 5 |
| Product Type | Robotic Arm Wire Harness |
| Applicable Axis | Axis 5 |
| Application | ABB industrial robot manipulator |
| Compatible Robot Models | ABB IRB 6650S, IRB 6660 and applicable configurations |
| Main Function | Provides electrical wiring and signal connection for Axis 5 of the robot manipulator |
| Harness Type | Manipulator Axis 5 Harness |
| Installation Position | Robot manipulator cable routing system |
| Connection Type | Dedicated ABB robot harness connections |
| Maintenance Application | Robot cable harness replacement and servicing |
| Spare Part Type | ABB Robotic Spare Part |
| Dimensions | 207.01 × 70 × 207.01 mm |
| Weight | 0.54 kg |
FAQ
1. What is ABB 3HAC14139-1 used for?
ABB 3HAC14139-1 is a manipulator harness designed specifically for the Axis 5 wiring of compatible ABB industrial robots. It provides the required electrical connection between the robot’s moving-axis components and the corresponding internal wiring system, supporting reliable signal transmission during robot operation.
2. Which ABB robots are compatible with 3HAC14139-1?
3HAC14139-1 is documented as a Manipulator Harness Axis 5 for ABB robot families including IRB 6650S and IRB 6660 configurations. Compatibility should be checked against the exact robot model, mechanical configuration, connector arrangement and spare-part documentation before replacement.
3. What does “AX 5” mean in the product description?
“AX 5” refers to Robot Axis 5. The harness is designed to serve the electrical wiring associated with the fifth robot axis. Because Axis 5 is part of the robot’s moving wrist assembly, correct cable routing and strain relief are particularly important during installation.
4. What problems can occur if the Axis 5 harness is damaged?
A damaged harness may cause intermittent signal loss, axis-related alarms, feedback errors, communication interruptions or abnormal robot operation. Cable fatigue, repeated bending, mechanical interference, damaged insulation and loose connectors are common areas that should be inspected when diagnosing harness-related faults.
5. What should be checked before replacing 3HAC14139-1?
Before replacement, verify the complete ordering number, robot model, harness identification, connector configuration and existing cable routing. It is also useful to document the original connector positions and clamp locations so that the replacement harness can be installed according to the original robot configuration.
6. Why is correct cable routing important for the AX 5 harness?
The harness is installed within a moving robot mechanism and is exposed to repeated movement during normal operation. Incorrect routing can introduce excessive bending, twisting, stretching or mechanical contact. Proper routing and fastening help reduce cable fatigue and improve long-term electrical reliability.
7. How can a technician troubleshoot a suspected 3HAC14139-1 cable fault?
Start by isolating the robot according to the applicable service procedure, then inspect the harness, connectors and routing points for visible damage. Electrical continuity and insulation checks can be performed where appropriate. If the fault changes when the robot moves, the harness and its moving sections should receive particular attention.
8. What should be verified after installing a replacement 3HAC14139-1?
After installation, verify connector seating, cable routing, fastening points and clearance around moving components. Perform the required electrical checks and then operate the robot through a controlled range of Axis 5 movement while monitoring alarms, feedback and other relevant signals before returning the robot to normal production.
