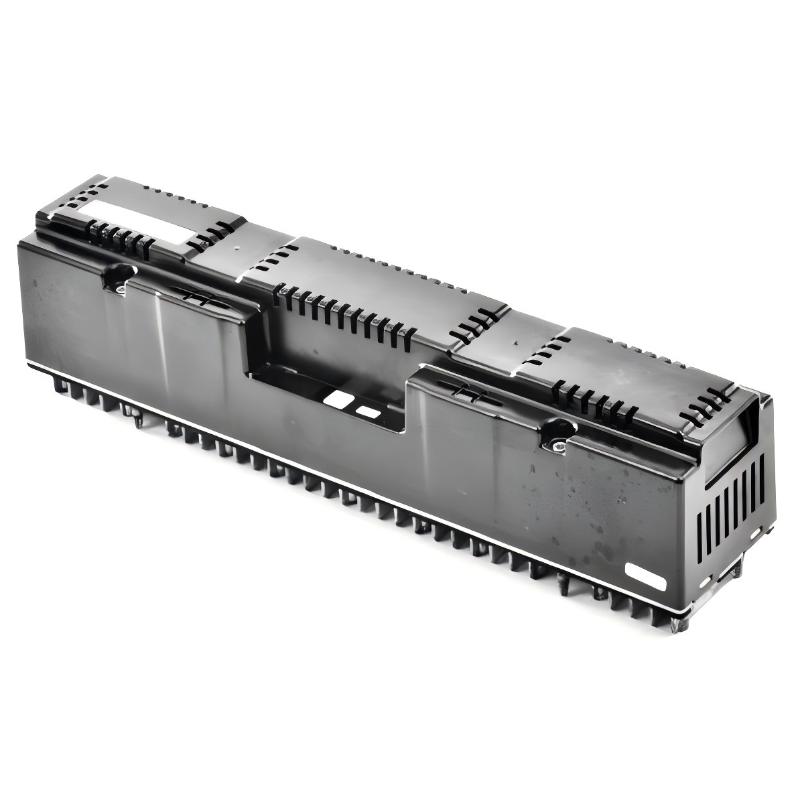

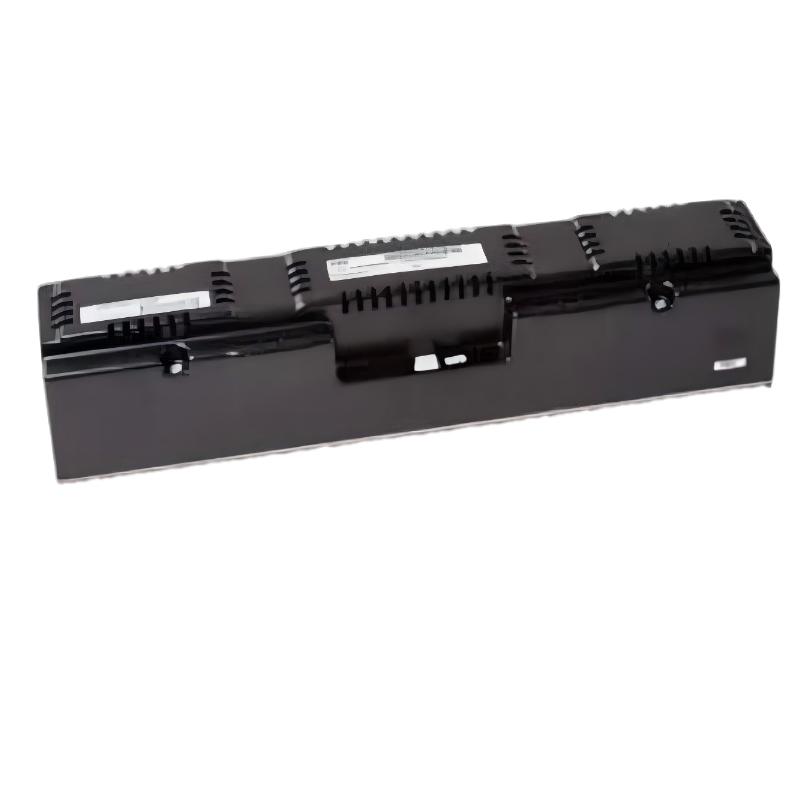

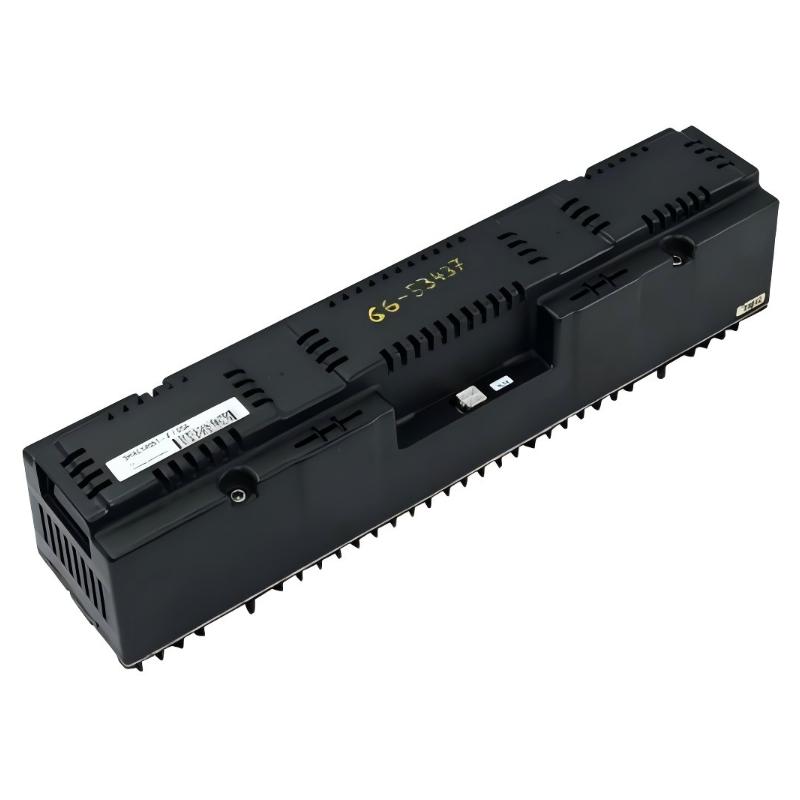

ABB 3HAC14551-2 Capacitor Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Product Type | Capacitor Unit |
| Product Name | Capacitor Unit, C3 |
| Ordering Number | 3HAC14551-2 |
| Product Category | ABB Industrial Robot Spare Part |
| Compatible System | ABB IRC5 Robot Controller |
| Controller Version | IRC5 M2004 |
| System Component | Drive Module |
| Main Function | DC bus energy storage and filtering for the robot drive system |
| Electrical Function | DC bus voltage stabilization and ripple reduction |
| Typical Application | ABB industrial robot servo drive and control cabinets |
| Related System | ABB IRC5 Single |
| Installation Position | Inside the IRC5 drive unit |
| Application | Servo drive power circuit and DC bus |
| Maintenance | Replacement component for ABB robot drive systems |
| Product Unit | Piece |
| Dimensions | 355 × 93 × 75 mm |
| Weight | 2.48 kg |
FAQ
1. What is the main function of the ABB 3HAC14551-2 Capacitor Unit?
The ABB 3HAC14551-2 is a C3 capacitor unit used in the IRC5 drive system. It stores electrical energy and filters the DC bus, helping reduce voltage ripple and maintain stable power for the drive circuit.
2. Which ABB robot system is the 3HAC14551-2 designed for?
The 3HAC14551-2 is primarily associated with ABB IRC5 robot controllers and the IRC5 M2004 drive system. Compatibility should be confirmed against the specific robot controller and drive configuration before replacement.
3. What symptoms may indicate a defective capacitor unit?
Typical symptoms can include unstable DC bus voltage, drive overvoltage or undervoltage alarms, unexpected robot stops, servo drive faults, or failure of the drive system to establish the correct DC bus voltage during startup.
4. How can the condition of the 3HAC14551-2 be evaluated?
Diagnosis should include checking controller alarms, DC bus voltage, drive status, electrical connections, and the physical condition of the capacitor unit. Signs such as leakage, swelling, abnormal heating, or degraded electrical performance may indicate that replacement is required.
5. What safety precautions are required before replacing the capacitor unit?
The robot system must be powered down according to the ABB IRC5 maintenance procedure. The DC bus must be allowed to discharge fully and the absence of hazardous voltage must be verified before the capacitor unit is handled.
6. How does the 3HAC14551-2 affect the robot servo drive system?
The capacitor unit is part of the DC bus power circuit. It provides energy storage and filtering for the power electronics, so a degraded capacitor can contribute to DC bus instability and servo drive faults.
7. What should be checked if an overvoltage alarm remains after replacing the capacitor unit?
Check the rectifier section, DC bus connections, power modules, braking circuit, voltage sensing circuit, and incoming power supply. Regenerative energy generated during robot deceleration should also be considered if the fault occurs mainly during rapid stopping or braking.
8. Should the capacitor unit be tested separately from the rest of the drive system?
The capacitor should not be evaluated in isolation. Rectifier components, power modules, braking circuits, DC bus wiring, and voltage monitoring circuits can produce similar fault symptoms. The controller alarm history and electrical measurements should be used to identify the actual source of the problem.
