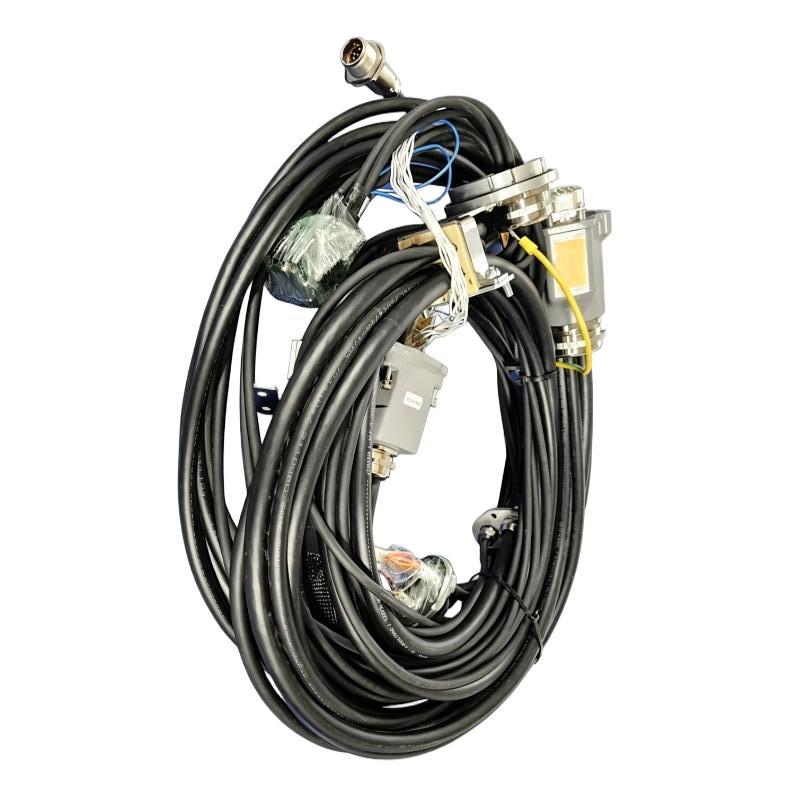

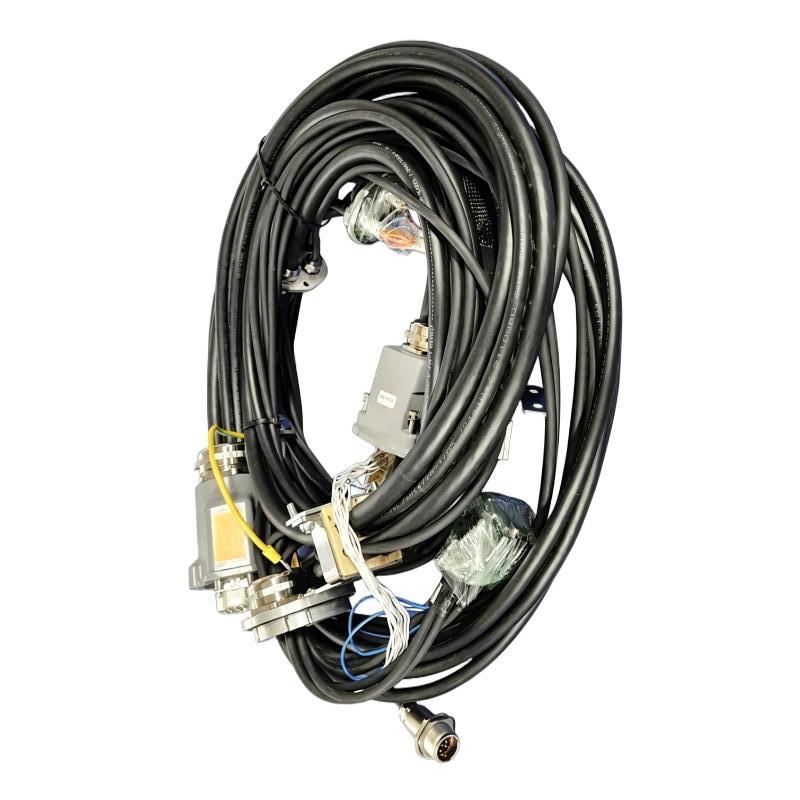

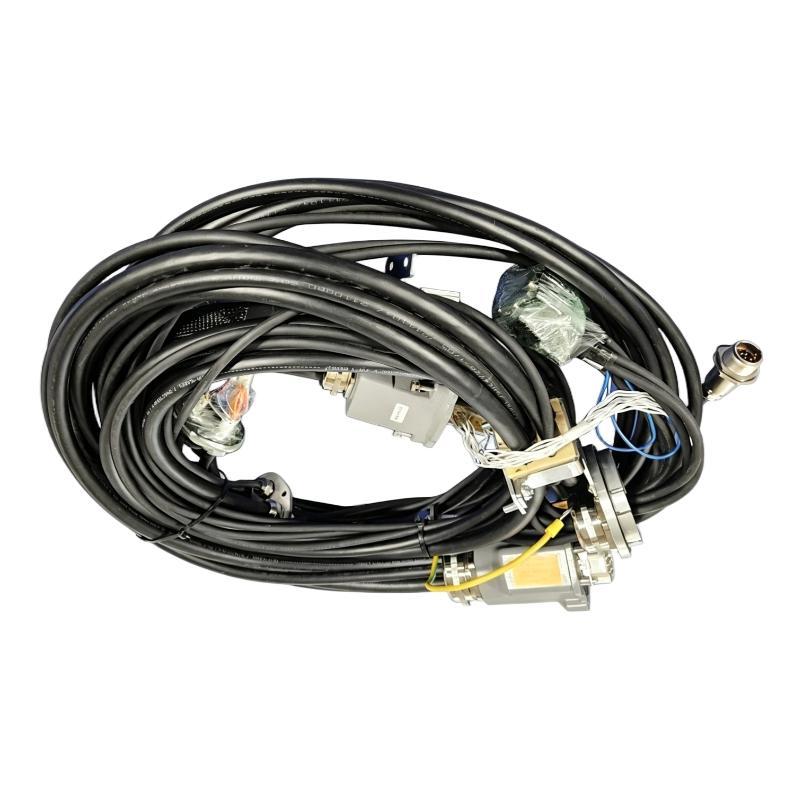

ABB 3HAC14940-1 Robotic Arm Wire Harness
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | ABB |
| Product Name | Robotic Arm Wire Harness |
| Ordering Number | 3HAC14940-1 |
| ABB Type Designation | 38 × 54 × 19 |
| Product Type | Manipulator Cable Harness |
| Application | Industrial robotic arm electrical connections |
| Compatible Robot Series | ABB IRB 6600, IRB 6650 and IRB 7600 series; verify the exact robot configuration |
| Applicable Axes | Axes 1–4 |
| Cable Length | Optional |
| Main Function | Provides organized electrical connections between robot arm components and associated systems |
| Signal and Power Transmission | Depends on the harness wiring configuration and robot application |
| Installation Type | Internal robot manipulator cable assembly |
| Replacement Requirements | Confirm part number, robot model, harness revision, connector arrangement and cable routing |
| Shipping Weight | 3 kg |
| Typical Applications | Robot maintenance, cable harness replacement, system refurbishment and industrial automation servicing |
FAQ
Q1: What is the main function of the ABB 3HAC14940-1 Robotic Arm Wire Harness?
The ABB 3HAC14940-1 is a manipulator cable harness designed for compatible ABB industrial robots. It organizes electrical connections associated with robot axes 1–4, supporting the transmission of electrical power and signals required by the robotic system. Correct installation helps maintain reliable electrical connections during robot movement and reduces the risk of faults caused by damaged or incorrectly routed cables.
Q2: Which ABB robot models are compatible with the 3HAC14940-1 harness?
This harness is associated with ABB IRB 6600, IRB 6650 and IRB 7600 robot applications. Compatibility depends on the specific robot model, mechanical configuration and harness revision. Some robot configurations may require different cable assemblies. Always compare the complete ordering number with the robot’s spare-parts list before ordering.
Q3: What should be checked before replacing the robotic arm wire harness?
Confirm the robot model, existing harness part number, revision, connector types and cable routing arrangement. Inspect the old harness for abrasion, damaged insulation, loose connectors, crushed sections and signs of repeated mechanical stress. Also check whether the replacement requires specific cable protection components or installation hardware. These checks help prevent incorrect installation and unnecessary downtime.
Q4: Can the cable length be customized for the ABB 3HAC14940-1?
Cable length is listed as optional, so the available configuration should be confirmed with the supplier before purchase. The harness should not be modified or replaced with an arbitrary cable length without checking the original routing requirements. Excessive length can create interference or entanglement risks, while insufficient length can put tension on connectors during robot movement. Verify the required configuration for the intended robot model.
Q5: What symptoms may indicate a damaged robot harness?
Typical symptoms include intermittent electrical faults, encoder or feedback errors, communication interruptions, unexpected robot stops and faults that occur only when the arm moves through certain positions. Visible insulation damage or loose connectors can also indicate harness deterioration. Since similar symptoms may originate from sensors, drives or controller components, troubleshoot the complete circuit before concluding that the harness is defective.
Q6: How should technicians diagnose a wire harness fault?
Begin by reviewing the controller’s fault history and identifying the affected axis or electrical circuit. Follow the applicable lockout and electrical isolation procedures before inspecting the harness. Check connectors, cable protection, clamps and routing points for damage or looseness. Qualified personnel can perform continuity and other appropriate electrical tests according to ABB service documentation. Avoid testing energized circuits unless specifically required by an approved procedure.
Q7: What installation precautions are important for this harness?
Disconnect and isolate the robot according to the manufacturer’s safety procedures, and secure moving axes against unexpected movement. Document the original cable routing and connector positions before removal. Install the correct cable protection components, clamps and fasteners, ensuring that the harness is not twisted, pinched or stretched. Verify that the cables remain clear of moving mechanical parts throughout the robot’s permitted range of motion.
Q8: How can preventive maintenance extend the service life of the 3HAC14940-1 harness?
Inspect the harness during scheduled robot maintenance, paying particular attention to moving joints, cable clamps, protective covers and connector interfaces. Look for abrasion, cracking, deformation, contamination and loose fastening points. Investigate recurring motion-related faults promptly, as repeated flexing or friction may indicate an underlying routing problem. Replace damaged assemblies with a verified compatible harness and follow the applicable ABB installation procedures.
ABB 3HAC14940-1 Robotic Arm Wire Harness is in stock. Please contact us for a quick quote and competitive pricing.
