1. What is the main function of the ABB 3x85uF 3BHL000250P0001 capacitor?

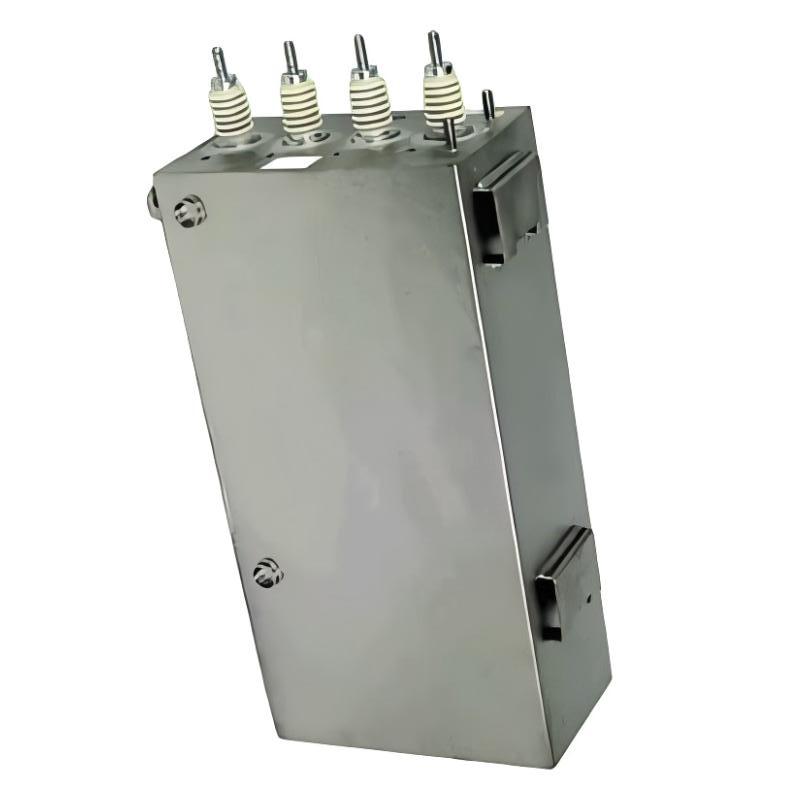

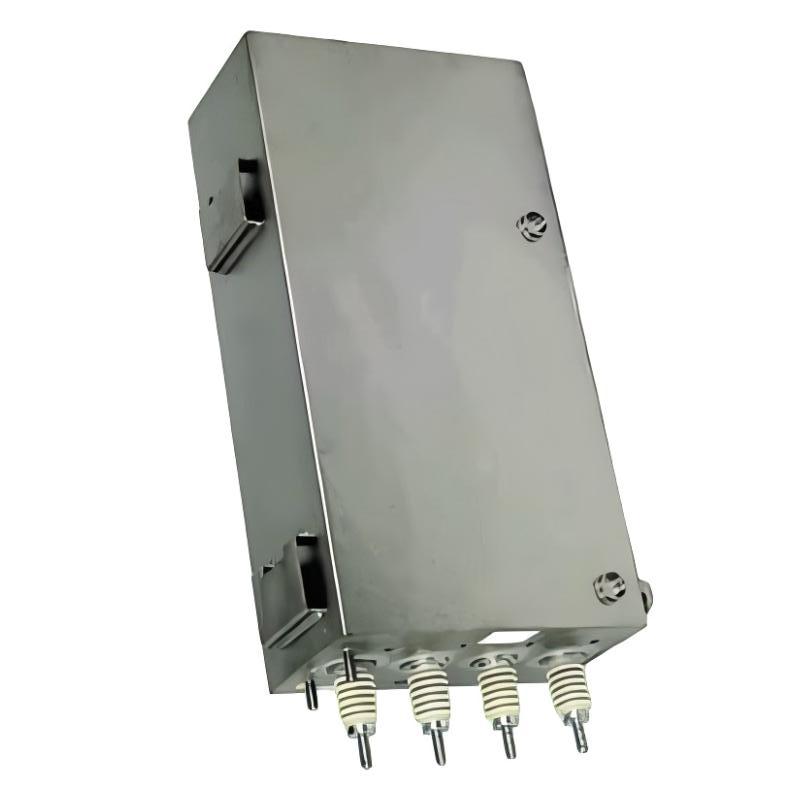

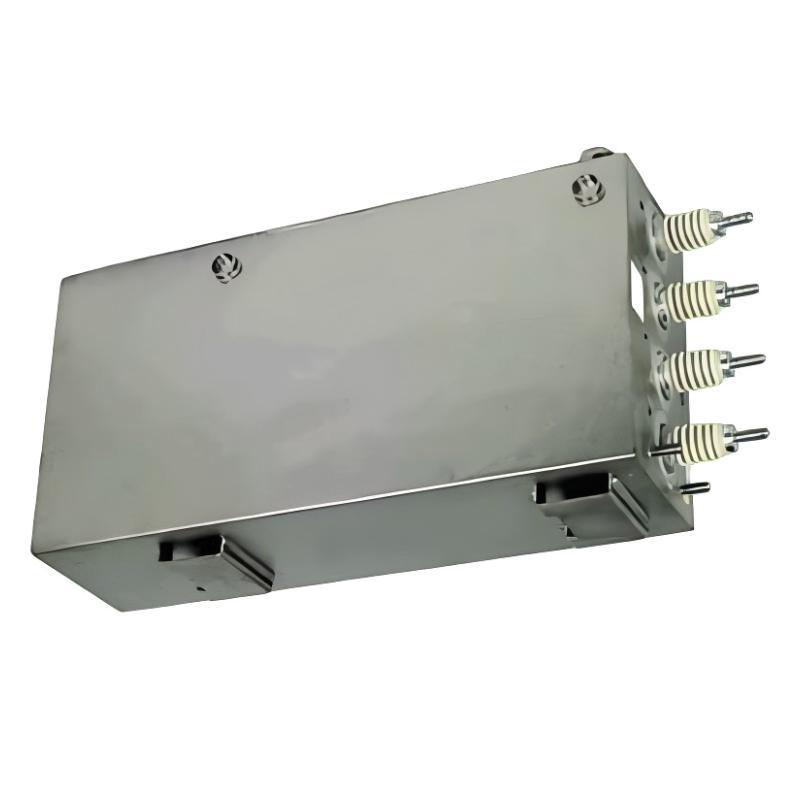

The ABB 3x85uF 3BHL000250P0001 is a high-voltage filter capacitor designed for power conversion applications. Its primary function is to provide filtering within the converter circuit, helping reduce unwanted electrical disturbances and voltage ripple while supporting stable operation of the power conversion system. The capacitor has a three-unit configuration of 3 × 85 µF and is associated with a 3350 V rating and 4000 V phase-to-phase electrical specification. It is particularly suited to demanding medium-voltage drive applications where the capacitor must withstand significant electrical stress while maintaining stable filtering performance. The product is identified as a filter capacitor for ABB ACS1000 systems.

2. What are the main electrical specifications of 3BHL000250P0001?

The 3BHL000250P0001 is specified as a 3 × 85 µF filter capacitor with a 3350 V designation. Its technical information also identifies a 4000 V phase-to-phase electrical rating, with the product designation shown as “(3×85 uF)/4.0 kVrms/B.” These parameters are important because the capacitor is designed for a high-voltage power conversion environment rather than ordinary low-voltage electrical applications. When selecting a replacement, the capacitance configuration, voltage rating, phase-to-phase rating, insulation characteristics, and filtering requirements should all correspond to the original system design.

3. Where is the ABB 3BHL000250P0001 typically used?

The 3BHL000250P0001 is associated with ABB ACS1000 medium-voltage drive systems and is identified as a filter capacitor spare part. In a medium-voltage converter, a filter capacitor can form part of the electrical filtering network used to control unwanted voltage and current components generated during power conversion. Its role is important for maintaining the required electrical characteristics of the converter and supporting stable operation of connected equipment. Because this is a system-specific high-voltage component, it should only be installed where the corresponding drive or converter design specifies the same capacitor characteristics.

4. Why is the 3BHL000250P0001 classified as a filter capacitor?

The capacitor is designed to operate as part of a filtering network rather than simply serving as a general energy-storage component. In power electronic equipment, filtering components help manage unwanted electrical ripple and high-frequency disturbances produced by switching and power conversion processes. The 3BHL000250P0001 uses a three-capacitor configuration and is designed for a high-voltage AC electrical environment, making its electrical characteristics important to the overall converter design. Using the correct capacitance and voltage characteristics helps ensure that the filter network operates as intended. Replacing it with a conventional capacitor that has the same nominal capacitance but different electrical characteristics may alter the behavior of the filter and can negatively affect converter performance.

5. What symptoms may indicate a problem with the 3BHL000250P0001 capacitor?

A capacitor problem can potentially appear as abnormal voltage ripple, converter alarms, unstable electrical measurements, unexpected drive trips, increased operating temperature, or changes in converter behavior. Physical signs such as discoloration, damaged insulation, abnormal heating, leakage, or deterioration around the terminals can also indicate a problem. However, capacitor degradation does not always produce an obvious external symptom. Electrical performance can deteriorate gradually while the equipment continues to operate under light loads. For this reason, troubleshooting should include review of converter diagnostic information, filter performance, operating conditions, temperature, terminal connections, and associated power components. A capacitor should not be identified as the root cause solely from one alarm without checking the surrounding circuit.

6. How should the 3BHL000250P0001 be inspected during maintenance?

Before maintenance, the associated power conversion equipment must be placed in the correct safe and de-energized condition. Because the 3BHL000250P0001 is designed for high-voltage operation, technicians must follow the equipment isolation procedure, allow the relevant circuit to discharge, and verify that hazardous voltage is no longer present before touching the capacitor or its connections. The inspection should include the terminals, insulation, mounting arrangement, surrounding wiring or bus connections, and signs of abnormal heating or physical deterioration. Electrical testing should only be performed using suitable high-voltage test equipment and according to the applicable maintenance procedure. If abnormal electrical readings are found, the capacitor and the associated filter circuit should be evaluated together to determine whether the capacitor is actually the source of the problem.

7. Can another 85 µF capacitor be used to replace the 3BHL000250P0001?

A replacement should not be selected based only on the 85 µF capacitance value. The original 3BHL000250P0001 is a three-phase filter capacitor configuration specified as 3 × 85 µF, with a 3350 V designation and 4000 V phase-to-phase electrical specification. A replacement must also provide appropriate voltage withstand capability, insulation performance, ripple-current capability, frequency characteristics, thermal performance, and suitable mechanical and terminal configuration. Even when the nominal capacitance is identical, differences in these characteristics can change the behavior of the filter network or cause premature component failure. For this reason, the replacement should match the original ABB specification and the requirements of the particular ACS1000 or compatible power conversion system.

8. What should be considered when replacing ABB 3BHL000250P0001?

Before replacement, verify the model 3x85uF and order number 3BHL000250P0001 and confirm that the capacitor is specified for the particular ABB drive or converter. The system must be fully isolated and the relevant high-voltage circuit must be verified as safe before maintenance begins. During removal, inspect the capacitor terminals, insulation, connections, mounting points, and nearby power components for evidence of overheating, electrical arcing, contamination, or mechanical damage. The replacement capacitor should be installed in the correct electrical configuration, with all connections properly secured according to the equipment maintenance requirements. After installation, perform the required pre-energization checks before restarting the equipment. During controlled startup, monitor the converter for abnormal voltage, current, temperature, alarms, and other indications of filter malfunction. A complete functional check is recommended before returning the drive to normal operating conditions.
