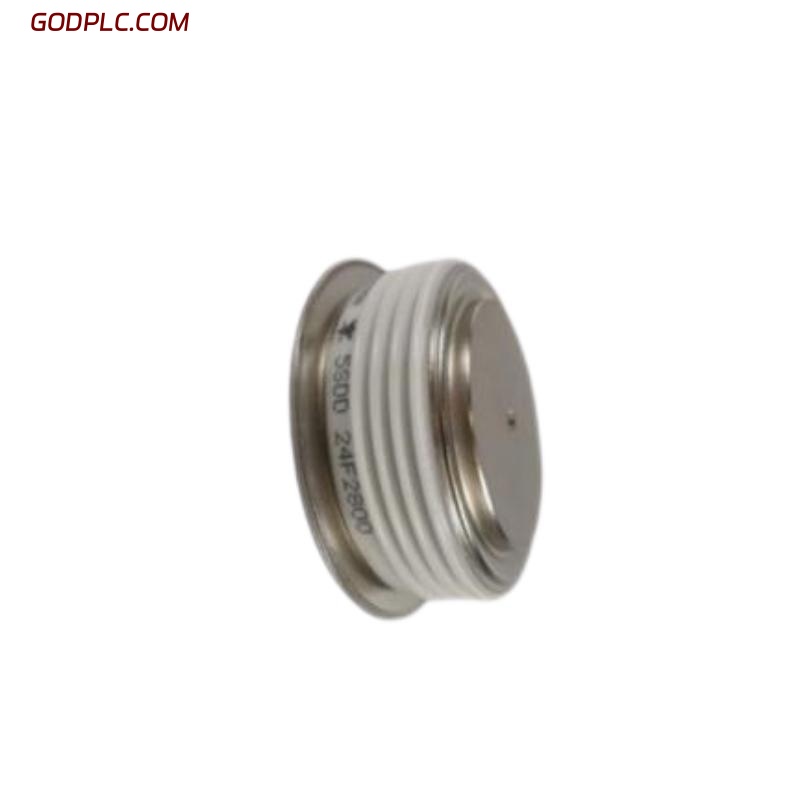

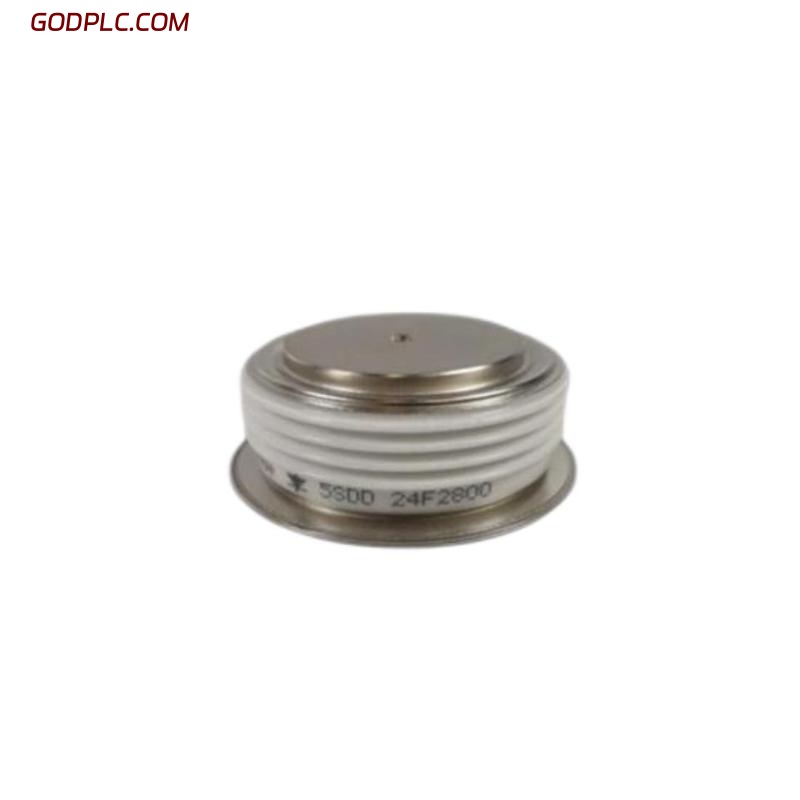

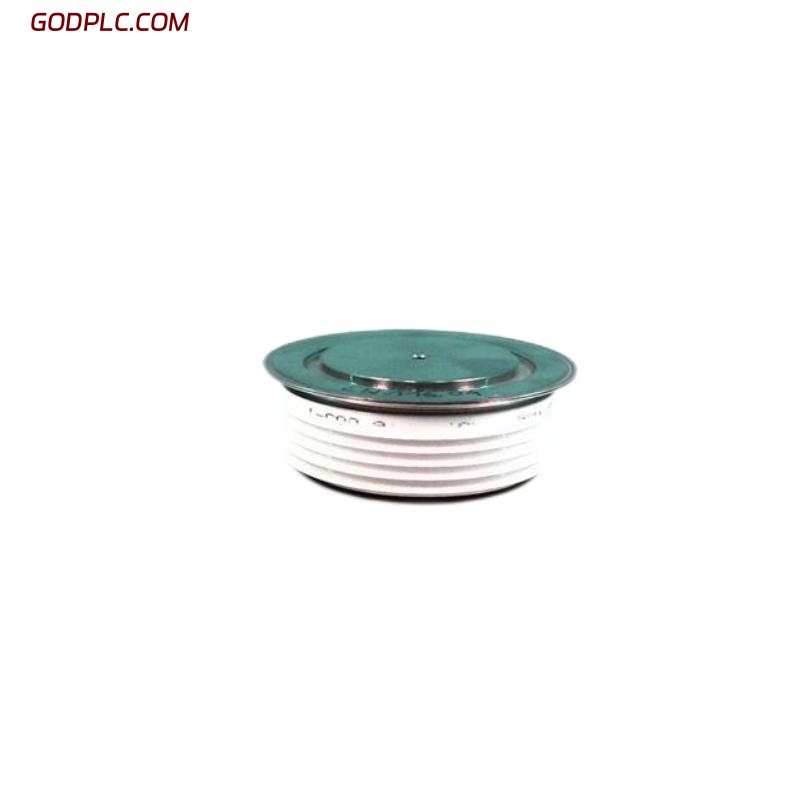

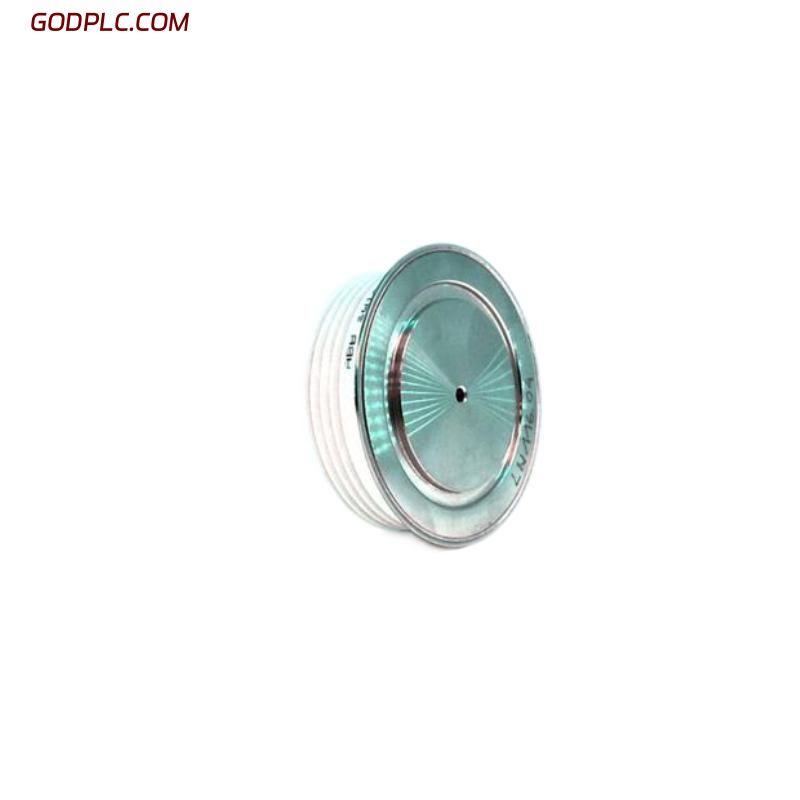

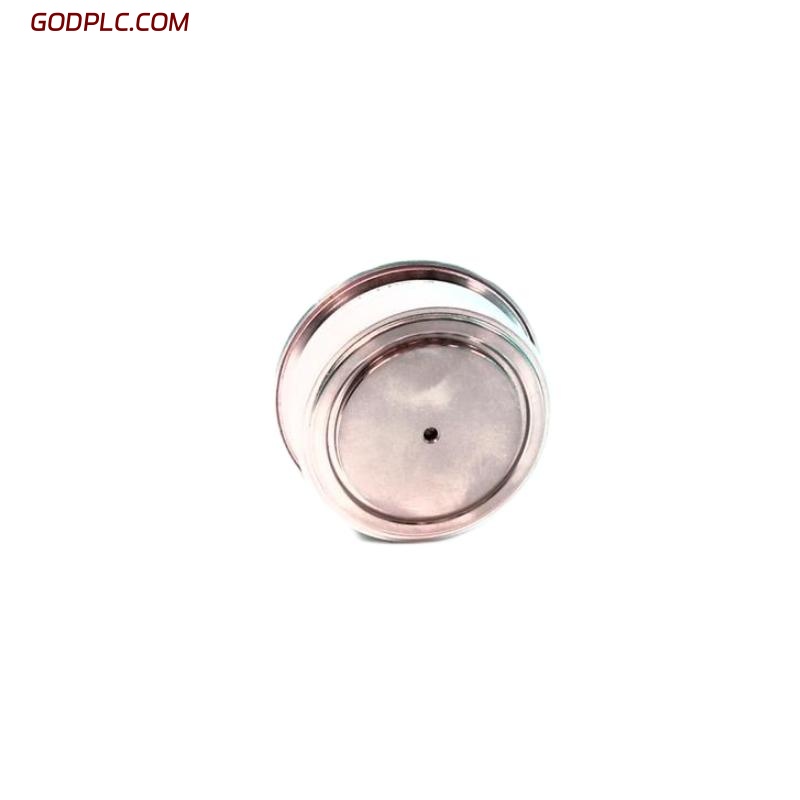

ABB 5SDF0460F0001 3BHL000396P0001 Diode
Product Overview
The ABB 5SDF0460F0001 3BHL000396P0001 is a high-power fast recovery diode designed for use in demanding industrial and power electronic applications. Engineered for high efficiency and fast switching, this component ensures reliable performance in environments such as high-voltage converters, inverters, and rectifier circuits. Its robust construction and optimized thermal performance make it suitable for heavy-duty electrical systems requiring consistent and durable semiconductor components.
Key Features
-
High Current Handling – Capable of supporting high forward currents, suitable for industrial-scale power systems
-
Fast Recovery Time – Reduces switching losses and improves efficiency in high-frequency applications
-
Low Forward Voltage Drop – Enhances power efficiency and minimizes energy losses
-
Rugged Design – Built for long-term reliability in harsh operating environments
-
Optimized Thermal Management – Excellent heat dissipation characteristics to ensure stable operation
-
Fully Isolated Package – Ensures electrical safety and simplifies mounting in assemblies
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Diameter 51mm |
| Weight | 0.51 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 2,800 V |
| Average Forward Current (IF(av)) | 460 A |
| Surge Forward Current (IFSM) | 6,000 A (10 ms, half sine) |
| Forward Voltage Drop (VF) | ~1.2 V at rated current |
| Reverse Recovery Time (trr) | Typically ≤ 3 µs |
3.3 Thermal and Mechanical Characteristics
| Item | Specification |
|---|---|
| Junction Temperature (Tj max) | 180°C |
| Operating Case Temperature | -40°C to +125°C |
| Thermal Resistance (RthJC) | ≤ 0.07 K/W |
| Mounting Type | Disc-type with clamp pressure |
| Package Type | Standard disc diode housing |
3.4 Compliance and Standards
| Item | Specification |
|---|---|
| RoHS Compliance | Yes |
| Quality Certification | ISO 9001, IEC compliant |
| Manufacturer | ABB |
Industry Applications
-
High-Voltage Converters – Reliable and efficient diode for HVDC and AC-DC power conversion
-
Traction Systems – Suitable for use in railway and transportation propulsion systems
-
Power Grids and Utilities – Used in rectifier stations and grid stabilization systems
-
Industrial Drives – Supports large motor drive applications in heavy industry
-
Renewable Energy Systems – Effective in inverter systems for wind and solar power conversion
The ABB 5SDF0460F0001 3BHL000396P0001 Diode is a trusted component for high-performance power electronic applications. Its combination of fast recovery, high current capability, and thermal stability ensures long-lasting and efficient operation in mission-critical systems.
ABB 5SDF0460F0001 3BHL000396P0001 Diode is in stock. Please contact us for a quick quote and competitive pricing.
