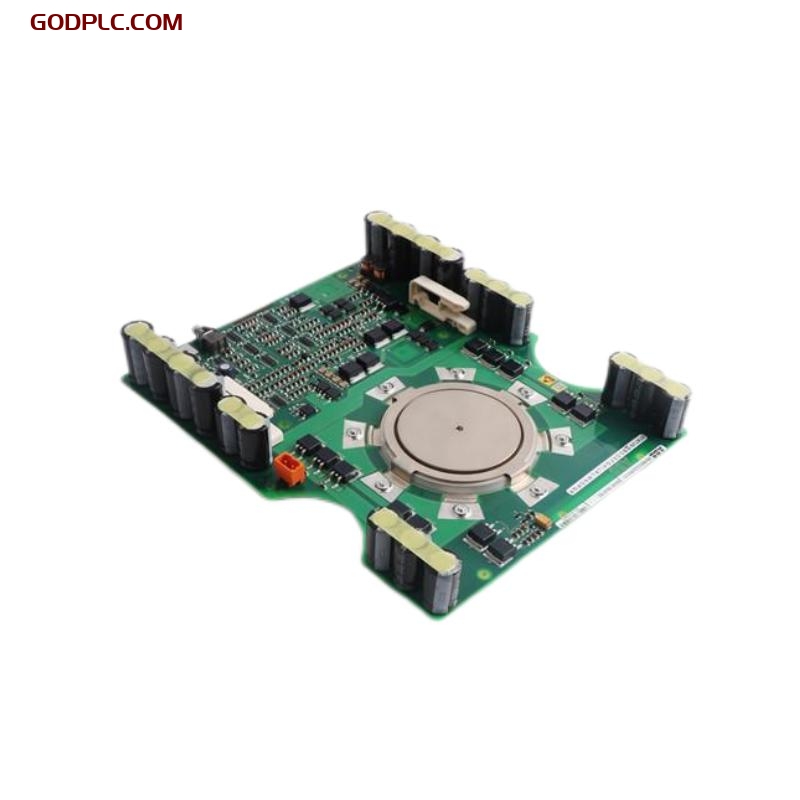

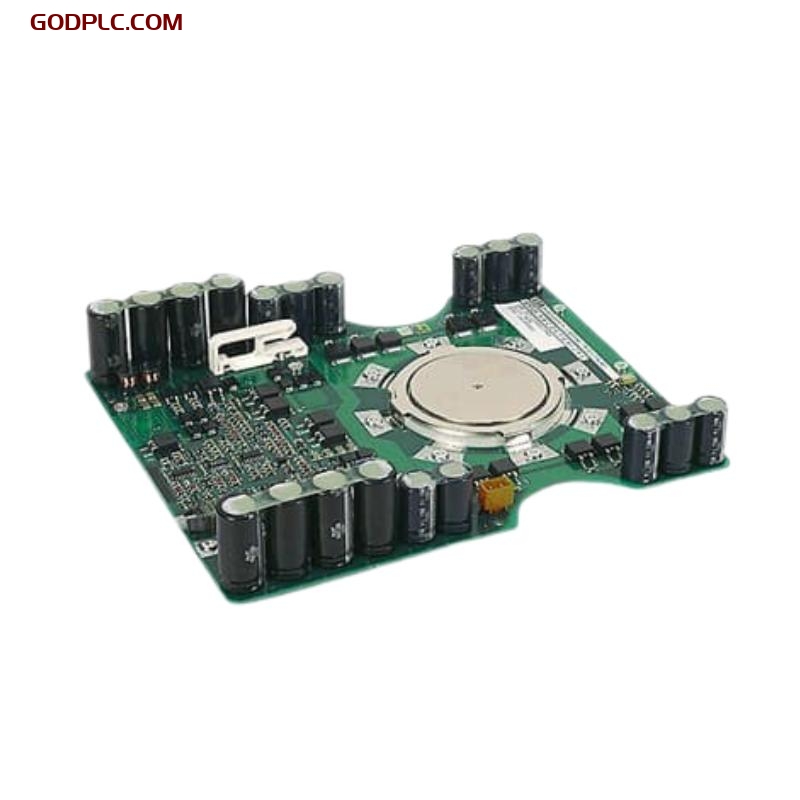

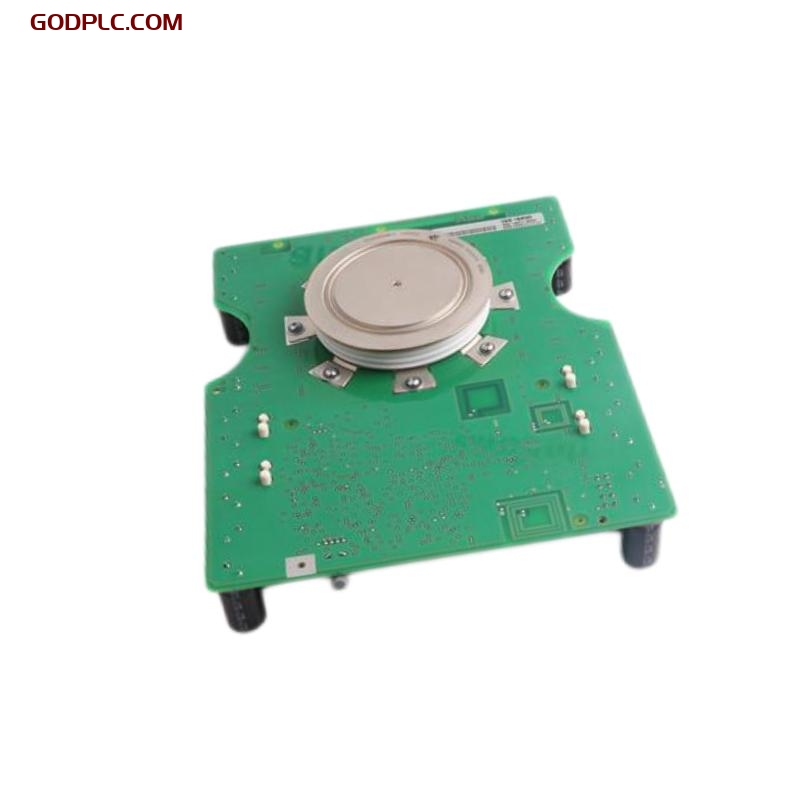

ABB 5SHX1060H0001 3BHL000392P0101 IGCT Modules
1. Product Overview
The ABB 5SHX1060H0001 3BHL000392P0101 IGCT (Integrated Gate-Commutated Thyristor) module is an advanced power electronic switching device designed for high-current, high-power applications. It is widely used in high-voltage direct current (HVDC) transmission, medium-voltage drives (MV Drives), flexible AC transmission systems (FACTS), and high-efficiency motor drive systems. This module combines the advantages of thyristors and gate-turn-off thyristors (GTOs), providing high current capacity, low conduction losses, and fast turn-off capabilities, significantly improving system efficiency and response time.
As one of ABB’s leading IGCT technologies, the 5SHX1060H0001 3BHL000392P0101 module employs advanced semiconductor manufacturing processes and packaging designs, ensuring exceptional electrical performance and high reliability, especially in large power systems where stability and long service life are critical.
2. Key Features
-
High Voltage Endurance: Suitable for high-voltage, high-power applications, ensuring reliable and safe system operation.
-
Low Conduction Loss: Optimized design reduces conduction losses, enhancing overall system energy efficiency.
-
Fast Switching Performance: The IGCT module offers quick turn-off times, making it ideal for high-speed, high-frequency control applications.
-
High Current Handling: Capable of handling currents up to several thousand amperes, making it suitable for high-power density systems.
-
Integrated Gate Drive: The built-in gate drive circuit simplifies peripheral circuit design, improving system reliability.
-
Efficient Heat Dissipation: Advanced thermal management design ensures stable operation by keeping temperatures low.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Value |
|---|---|
| Diameter | 190 mm x 140 mm x 38 mm |
| Weight | 1.2 kg |
3.2 General Information
| Item | Value |
|---|---|
| Model | 5SHX1060H0001 3BHL000392P0101 |
| Manufacturer | ABB |
| Component Type | IGCT (Integrated Gate-Commutated Thyristor) |
| Applications | HVDC, MV Drives, FACTS, Motor Drives |
| Insulation Voltage | Up to 6500V |
3.3 Electrical Performance
| Item | Value |
|---|---|
| Rated Voltage | 4500V |
| Rated Current | 3000A |
| On-State Voltage Drop | ≤ 2.8V |
| Turn-Off Time | ≤ 20 μs |
| Gate Trigger Current | 25A |
| Turn-Off Loss | Low-loss design for enhanced efficiency |
| Overload Protection | Yes |
4. Industry Applications
The ABB 5SHX1060H0001 3BHL000392P0101 IGCT module is widely used in the following applications:
-
High-Voltage Direct Current (HVDC) Transmission: Used in HVDC converter valves to enhance the efficiency of long-distance power transmission.
-
Medium-Voltage Drives (MV Drives): Provides efficient motor power control, widely used in industrial automation and electrical drives.
-
Flexible AC Transmission Systems (FACTS): Enhances grid stability and reliability, improving the flexibility of power systems.
-
Railway Traction: Applied in train traction systems, improving the power density and stability of traction converters.
-
Renewable Energy: Used in wind and solar power systems to convert power efficiently, optimizing renewable energy systems’ performance.
The ABB 5SHX1060H0001 3BHL000392P0101 IGCT module is a key component in modern high-power electrical systems, providing superior electrical characteristics and high reliability in demanding applications.
ABB 5SHX1060H0001 3BHL000392P0101 IGCT Modules is in stock. Please contact us for a quick quote and competitive pricing.
