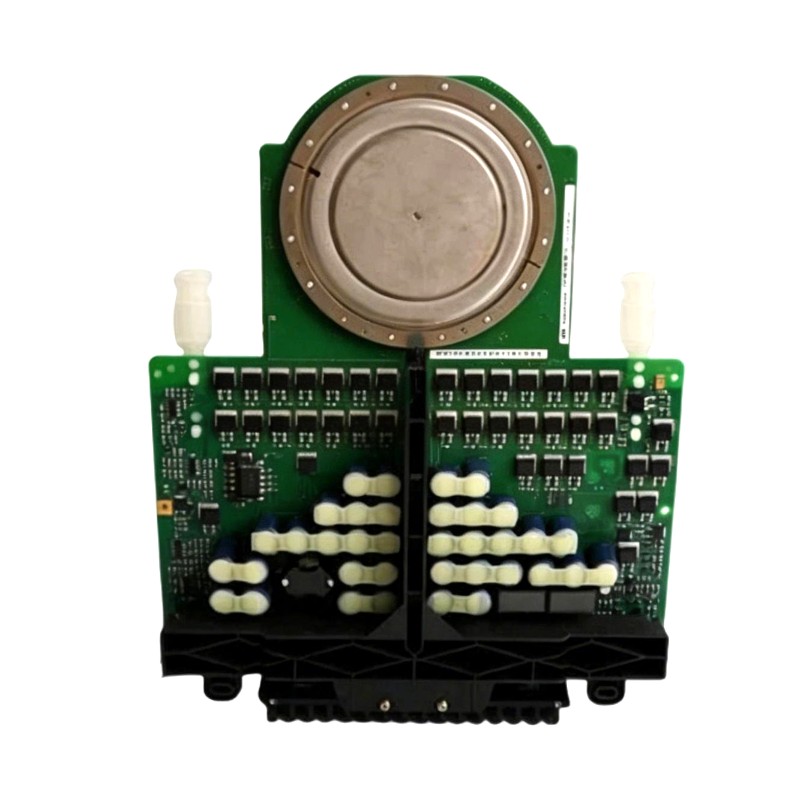

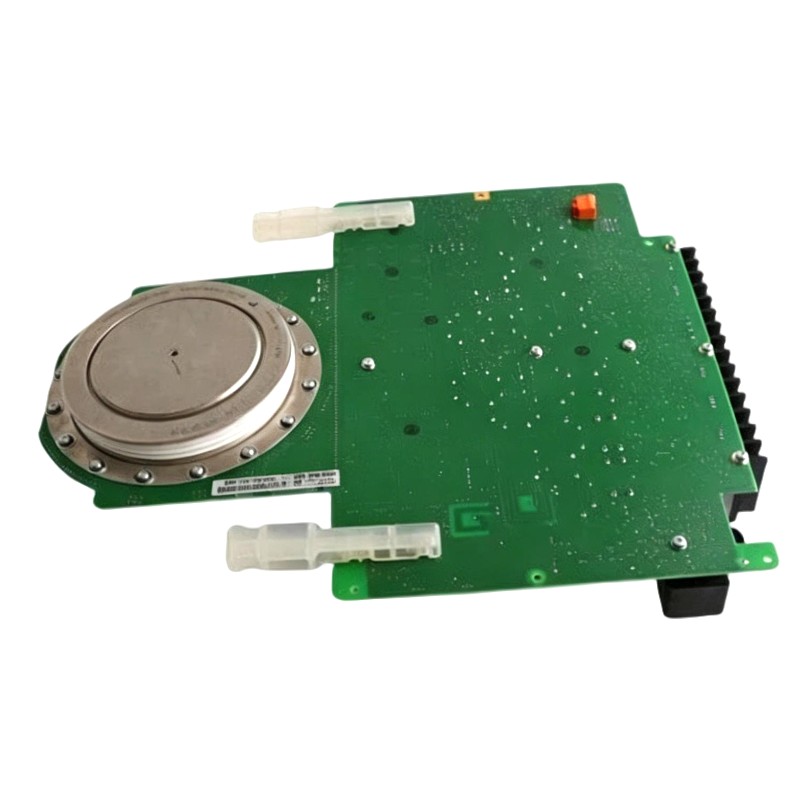

1. What is the main function of the ABB 5SHX1445H0002 3BHL000387P0101 IGCT Module?

The ABB 5SHX1445H0002 IGCT Module is designed for high-power switching and energy conversion applications in industrial power systems. It combines the high current capability of a thyristor with the fast switching performance of a transistor, making it suitable for high-voltage drives, industrial motor control systems, and large-scale power conversion equipment requiring efficient and reliable operation.

2. What advantages does IGCT technology offer compared to traditional thyristors?

IGCT technology provides significantly faster turn-off capability, lower conduction losses, and improved switching efficiency compared to conventional thyristors. These characteristics allow industrial systems to operate at higher switching frequencies with reduced energy loss and improved thermal performance. As a result, IGCT modules are widely used in modern high-power industrial drive applications.

3. In which industrial applications is this IGCT module commonly used?

This module is commonly installed in high-voltage variable frequency drives, large motor drive systems, traction equipment, power compensation systems, and industrial energy conversion applications. Industries such as mining, metallurgy, power generation, cement production, transportation, and petrochemical processing frequently rely on IGCT technology for heavy-duty power control.

4. Why is thermal management important for IGCT modules?

IGCT modules generate substantial heat during high-current and high-frequency switching operations. Insufficient cooling may cause excessive junction temperatures, which can reduce switching performance and shorten semiconductor lifespan. Long-term overheating may also lead to thermal fatigue and device failure. Proper heatsink installation and efficient cooling systems are therefore essential for stable operation.

5. What are common signs of an IGCT module failure?

Typical failure symptoms include abnormal drive operation, unstable output current, overheating alarms, startup failure, and unexpected shutdowns. Maintenance personnel often inspect gate drive signals, insulation conditions, and switching performance during troubleshooting. Short circuits, leakage current issues, or inability to turn off properly may indicate that the module has been damaged.

6. What installation precautions should be followed for this module?

The mounting surface and heatsink should be clean, flat, and properly aligned to ensure efficient thermal transfer. Correct mounting pressure is critical for maintaining reliable electrical and thermal contact. Technicians should also verify proper polarity orientation and gate drive connections to prevent operational faults or semiconductor damage during startup.

7. Can electromagnetic interference affect the performance of the IGCT module?

Yes. High-power switching environments can generate strong electromagnetic interference that may affect gate drive stability and system communication. Improper grounding or cable routing may increase the risk of false triggering or unstable switching behavior. Industrial systems commonly use shielded cables, grounding protection, and filtering circuits to improve EMC performance.

8. How can the service life of the ABB IGCT module be extended?

To maximize service life, the module should operate within its specified electrical and thermal limits. Regular maintenance should include inspection of heatsinks, cooling fans, drive circuits, and electrical terminals. Maintaining clean cooling paths and monitoring operating temperatures can help reduce thermal stress and electrical overload, improving long-term reliability in demanding industrial applications.
