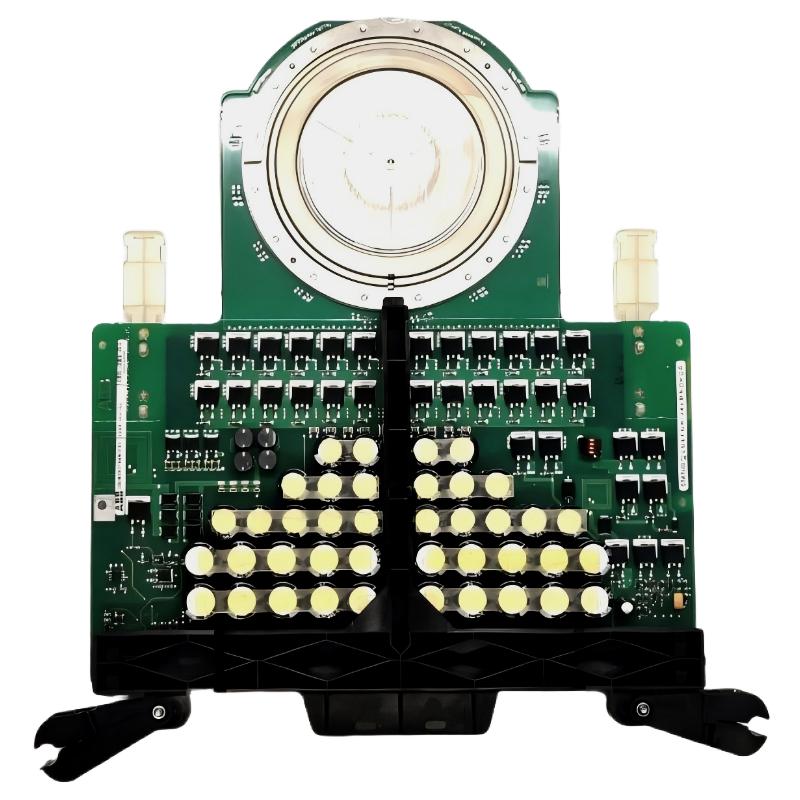

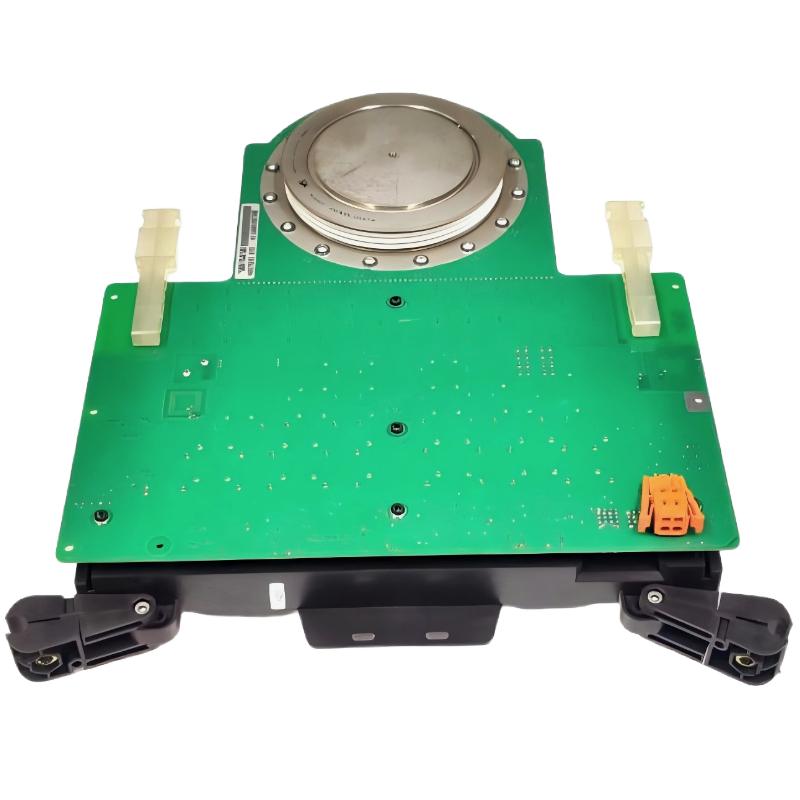

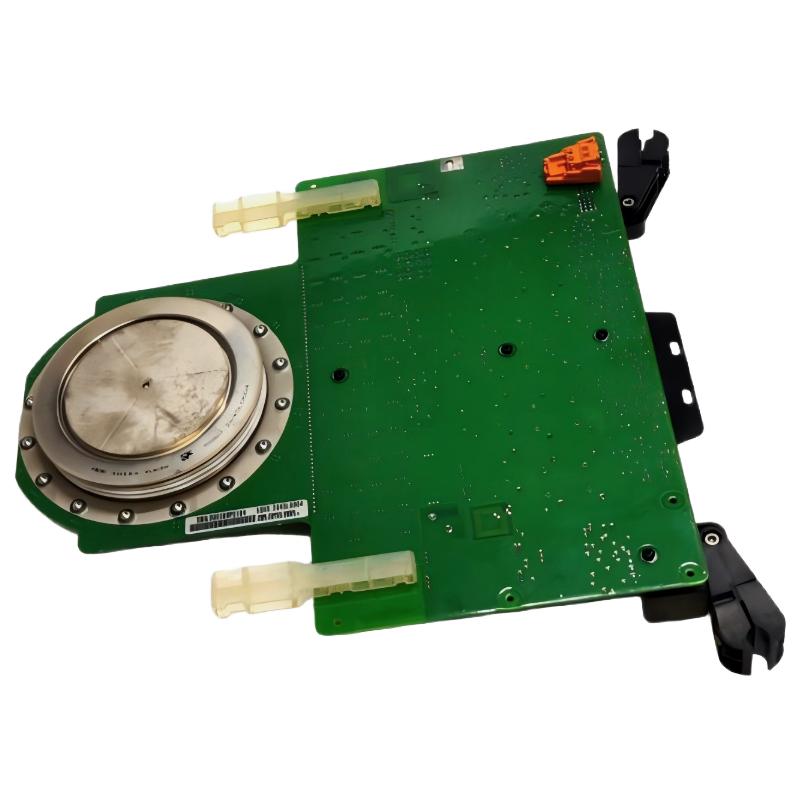

ABB 5SHX2645L0004 3BHL000389R0104 IGCT Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IGCT Power Module |
| Manufacturer | ABB |
| Model | 5SHX2645L0004 |
| Order Number | 3BHL000389R0104 |
| Product Type | Integrated Gate Commutated Thyristor (IGCT) Module |
| Semiconductor Type | IGCT |
| Application | Industrial drive systems, high-power converters, power control equipment |
| Rated Voltage | High-voltage class (application dependent) |
| Rated Current | Designed for high-power industrial applications |
| Switching Characteristics | Fast switching, low conduction losses |
| Gate Drive | Requires dedicated IGCT gate driver |
| Cooling Method | Heatsink cooling / forced air or liquid cooling |
| Mounting Type | Modular installation |
| Operating Temperature | -40°C to +125°C (junction dependent) |
| Storage Temperature | -40°C to +150°C |
| Package Type | Industrial-grade high-reliability package |
| Dimensions | 140 × 62 × 30 mm |
| Weight | 0.4 kg |
FAQ
1. What is the primary function of the ABB 5SHX2645L0004 IGCT module?
This module is used in high-power power electronics systems for fast and reliable switching and energy conversion.
2. In which applications is this IGCT module commonly used?
It is commonly applied in industrial drive systems, high-power converters, and power control equipment.
3. What advantages does an IGCT module have over conventional thyristors?
IGCTs offer fast turn-off, low conduction losses, high current capacity, and improved system efficiency.
4. What are the gate drive requirements for this module?
A dedicated IGCT gate driver is required to ensure reliable and fast turn-on and turn-off operation.
5. How is cooling achieved during operation?
Cooling is managed through mounting on efficient heatsinks, combined with forced air or liquid cooling to maintain safe junction temperatures.
6. Which key parameters should be monitored during operation?
Important parameters include junction temperature, current, voltage, switching performance, and gate drive signals.
7. What are common signs of module failure?
Signs include overheating, abnormal switching, system alarms, or frequent protective trips.
8. What precautions should be taken during installation and operation?
Ensure proper gate drive matching, effective cooling, secure electrical connections, and protection against overvoltage, overcurrent, and harsh environments.
ABB 5SHX2645L0004 3BHL000389R0104 IGCT Module is in stock. Please contact us for a quick quote and competitive pricing.
