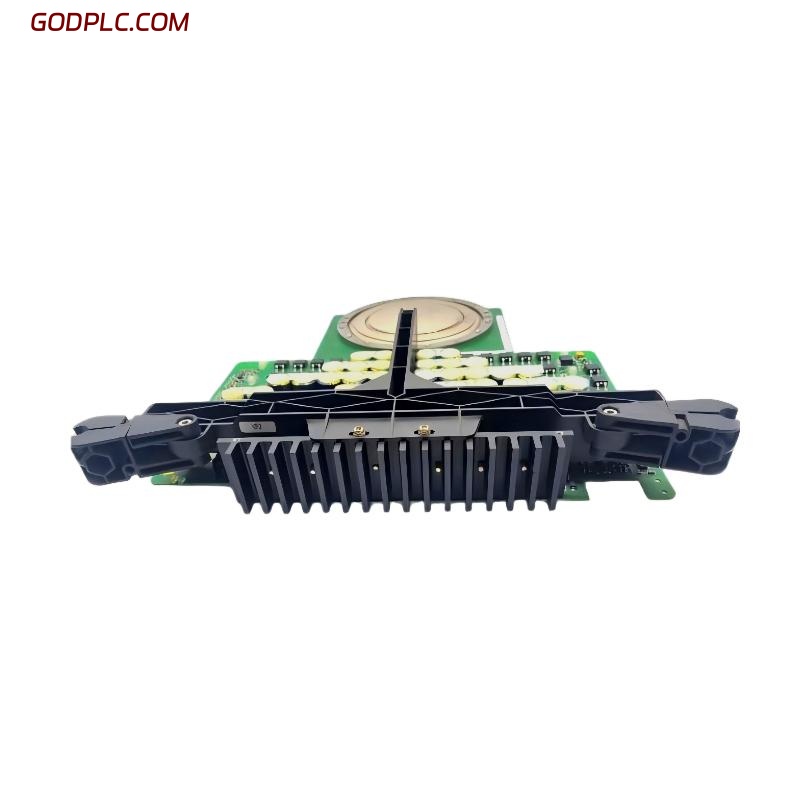

ABB 5SHY 3545L0010 3BHB013088R0001 IGCT Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Name | IGCT Module |
| Model Number | 5SHY 3545L0010 |
| Ordering Code | 3BHB013088R0001 |
| Device Type | Integrated Gate-Commutated Thyristor (IGCT) |
| Maximum Blocking Voltage | 4.5 kV |
| Rated On-State Current | 3500 A |
| Maximum Surge Current | ≥ 40 kA |
| Gate Drive Method | Dedicated high-current IGCT gate drive unit |
| Conduction Characteristics | Low on-state voltage, low power loss |
| Turn-Off Characteristics | Fast and fully controllable turn-off |
| Junction Temperature Range | -40 °C to +125 °C |
| Insulation Structure | Ceramic insulated housing |
| Cooling Method | Forced-air or liquid cooling (system dependent) |
| Mounting Type | Press-Pack |
| Dimensions | 120 × 26 × 120 mm |
| Weight | 1.32 kg |
FAQ
Q1: What are the typical application areas for this IGCT module?
A1: The module is used in medium- and high-voltage drives, high-power motor control systems, grid-related equipment, industrial power supplies, and other applications requiring high voltage and high current capability.
Q2: How does this IGCT differ from other devices in the same product family?
A2: Selection differences are mainly based on voltage rating, current capability, thermal performance, and mechanical integration requirements within the target system.
Q3: What are the key application-level differences between IGCTs and IGBTs?
A3: IGCTs are better suited for high-voltage, high-current, and low switching frequency applications, while IGBTs are preferred for lower voltage and higher switching frequency use cases.
Q4: What are the requirements for the gate drive unit?
A4: A matched, dedicated IGCT gate drive unit is required to deliver high gate current and precise timing to ensure reliable turn-on and turn-off behavior.
Q5: What are the most critical design factors for high-power operation?
A5: Stable clamping force, effective thermal management, and optimized busbar and current loop layout are critical to minimizing thermal stress and parasitic inductance.
Q6: Is parallel operation of this IGCT module feasible?
A6: Parallel operation is possible but requires careful current sharing design, typically achieved through symmetric layout and system-level matching.
Q7: What failure behavior can be expected from this IGCT module?
A7: IGCT devices exhibit predictable failure characteristics, which helps protection systems detect faults quickly and isolate affected circuits.
Q8: What key checks should be performed during system commissioning?
A8: Key checks include verification of gate drive parameters, confirmation of cooling system performance, validation of electrical connections, and proper operation of protection and monitoring functions.
ABB 5SHY 3545L0010 3BHB013088R0001 IGCT Module is in stock. Please contact us for a quick quote and competitive pricing.
