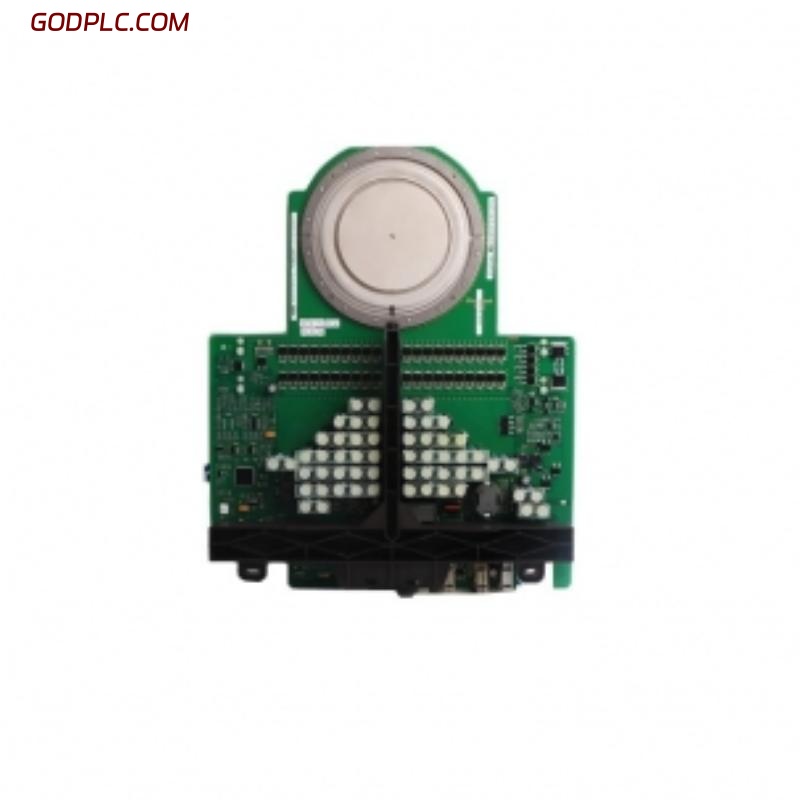

ABB 5SHY3545L0009 (3BHB013085R0001) IGCT Module
Product Overview
The ABB 5SHY3545L0009 (model 3BHB013085R0001) is a high-power Integrated Gate-Commutated Thyristor (IGCT) module, developed for advanced industrial power electronics applications. It combines the efficiency of a thyristor with the fast switching capability of an IGBT, enabling high current handling, low conduction loss, and reliable operation in demanding environments. With its compact and rugged design, it is ideal for use in converters, inverters, and medium-voltage drives.
_
Main Features
• High current capability for heavy-duty power electronics
• Low switching and conduction losses for improved efficiency
• Compact and robust housing with high mechanical stability
• Fast turn-off characteristics for reliable protection in high-voltage circuits
• Excellent thermal performance with optimized heat transfer design
• Long service life supported by ABB’s proven semiconductor technology
_
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 150 mm × 100 mm × 38 mm |
| Weight | 1.5 kg |
_
General Information
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | 5SHY3545L0009 / 3BHB013085R0001 |
| Product Type | IGCT Semiconductor Module |
| Device Type | Integrated Gate-Commutated Thyristor |
| Mounting | Baseplate, screw-mounted |
| Cooling Method | Conduction cooling with heat sink |
_
Electrical Characteristics
| Item | Specification |
|---|---|
| Repetitive Peak Voltage (V_RRM) | 4500 V |
| RMS On-State Current (I_T(RMS)) | 3545 A |
| Peak Surge Current (I_TSM) | 40 kA (10 ms) |
| On-State Voltage Drop (V_T) | 2.1 V at rated current |
| Gate Trigger Current (I_GT) | 1.5 A |
| Turn-Off Time (t_q) | < 20 μs |
_
Thermal and Environmental Specifications
| Item | Specification |
|---|---|
| Junction Temperature Range | -40 °C to +125 °C |
| Storage Temperature | -40 °C to +125 °C |
| Thermal Resistance (junction to case) | 0.015 K/W |
| Isolation Voltage (RMS, 1 min) | 3.6 kV |
| Protection Class | IP20 |
_
Industry Applications
The ABB 5SHY3545L0009 (3BHB013085R0001) is widely used in industrial and energy sectors, including:
• Medium Voltage Drives – variable-speed drive systems for heavy industry
• Power Generation – excitation and control systems in turbines and generators
• Renewable Energy – wind power and solar inverter systems
• HVDC Transmission – high-voltage direct current systems for long-distance power transfer
• Steel and Metallurgy – rectifiers and converters for furnaces and rolling mills
• Traction Systems – electric railway propulsion and braking systems
ABB 5SHY3545L0009 3BHB013085R0001 IGCT Module is in stock. Please contact us for a quick quote and competitive pricing.
