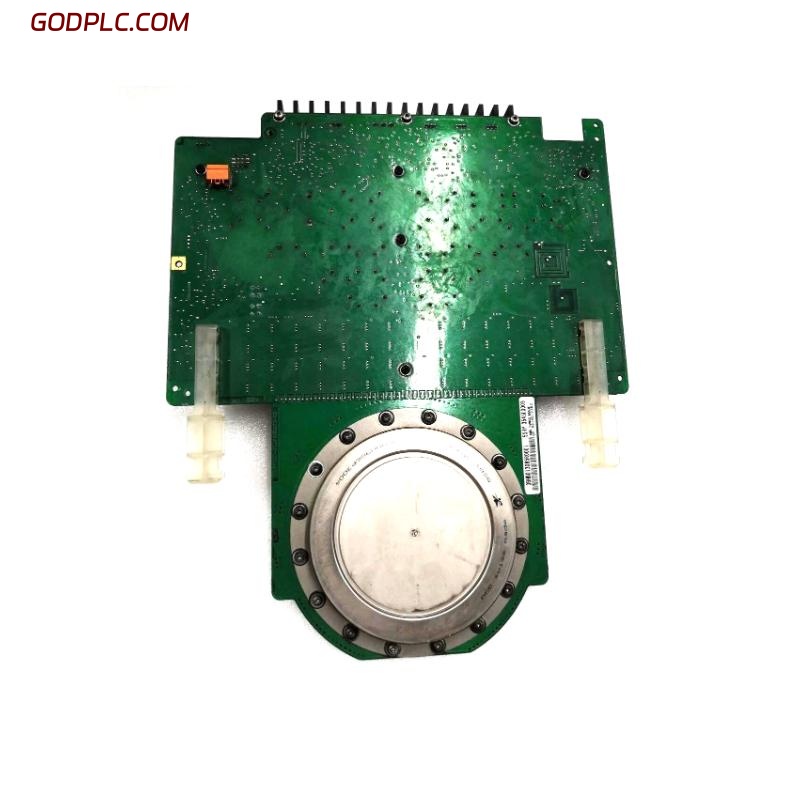

ABB 5SHY3545L0016 (3BHB020720R0002) IGCT Module
Product Overview
The ABB 5SHY3545L0016 (model 3BHB020720R0002) is a high-power Integrated Gate-Commutated Thyristor (IGCT) module designed for advanced industrial power electronics. It combines the rugged current-handling capability of a traditional thyristor with the high-speed switching characteristics of an IGBT. This design provides low conduction losses, excellent thermal management, and long-term operational reliability, making it suitable for medium-voltage drives, high-power converters, and demanding energy applications.
_
Main Features
• High current and voltage handling capacity for heavy-duty power conversion
• Fast switching characteristics ensuring safe and reliable circuit operation
• Low conduction and switching losses for improved efficiency
• Durable construction with strong mechanical design for industrial environments
• Efficient thermal dissipation through optimized module housing and baseplate
• Proven ABB semiconductor technology ensuring long service life and reduced downtime
_
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 150 mm × 100 mm × 38 mm |
| Weight | 1.6 kg |
_
General Information
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | 5SHY3545L0016 / 3BHB020720R0002 |
| Product Type | IGCT Semiconductor Module |
| Device Type | Integrated Gate-Commutated Thyristor |
| Mounting | Baseplate, screw-mounted |
| Cooling Method | Conduction cooling with heat sink |
_
Electrical Characteristics
| Item | Specification |
|---|---|
| Repetitive Peak Voltage (V_RRM) | 4500 V |
| RMS On-State Current (I_T(RMS)) | 3545 A |
| Surge Current (I_TSM) | 40 kA (10 ms) |
| On-State Voltage Drop (V_T) | 2.1 V at rated current |
| Gate Trigger Current (I_GT) | 1.5 A |
| Turn-Off Time (t_q) | < 20 μs |
_
Thermal and Environmental Specifications
| Item | Specification |
|---|---|
| Junction Temperature Range | -40 °C to +125 °C |
| Storage Temperature | -40 °C to +125 °C |
| Thermal Resistance (junction to case) | 0.015 K/W |
| Isolation Voltage (RMS, 1 min) | 3.6 kV |
| Protection Class | IP20 |
_
Industry Applications
The ABB 5SHY3545L0016 (3BHB020720R0002) is widely applied in industrial and energy conversion systems, including:
• Medium Voltage Drives – motor control in mining, cement, and steel production
• Power Generation – generator excitation and turbine control systems
• HVDC Transmission – high-voltage direct current systems for efficient long-distance power transfer
• Renewable Energy – wind and solar inverter applications
• Metallurgy and Smelting – high-current rectifiers and converters for furnaces and rolling mills
• Traction Systems – propulsion and braking systems in electric railways
ABB 5SHY3545L0016 3BHB020720R0002 IGCT Module is in stock. Please contact us for a quick quote and competitive pricing.
