1. What is the ABB 5SHY4045L0001 used for?

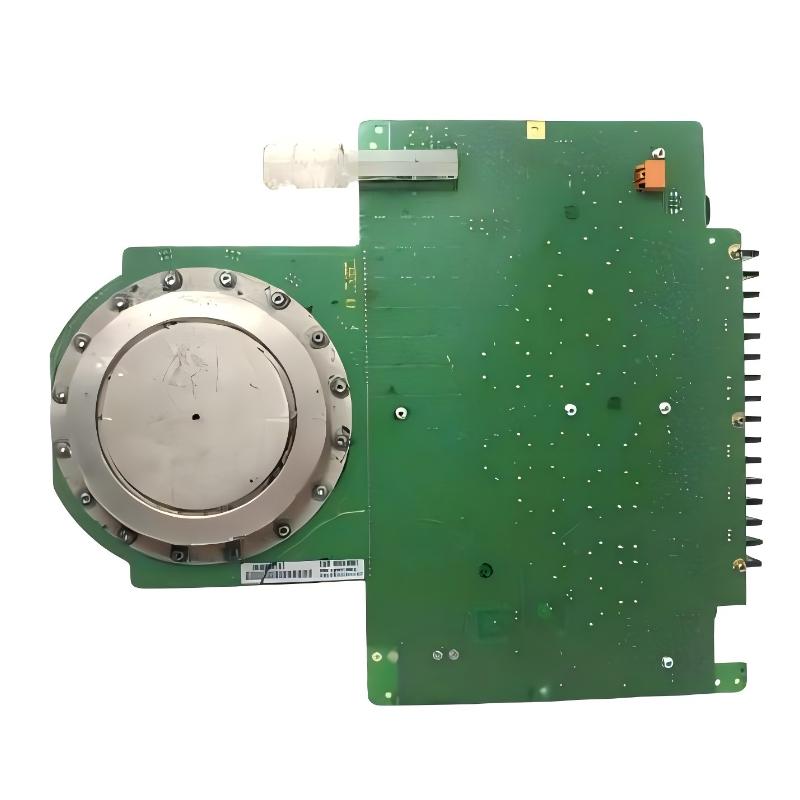

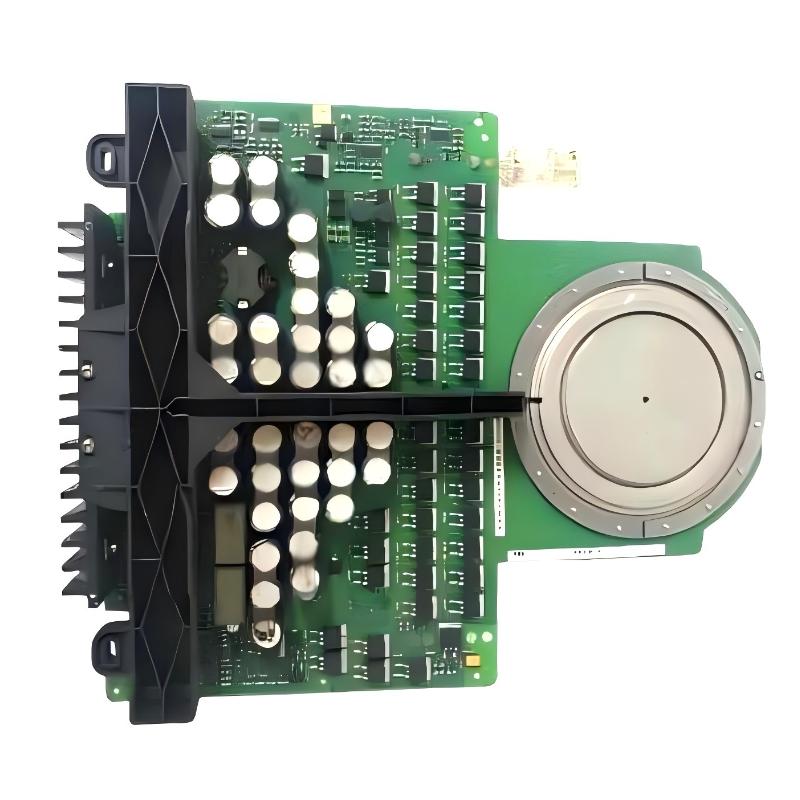

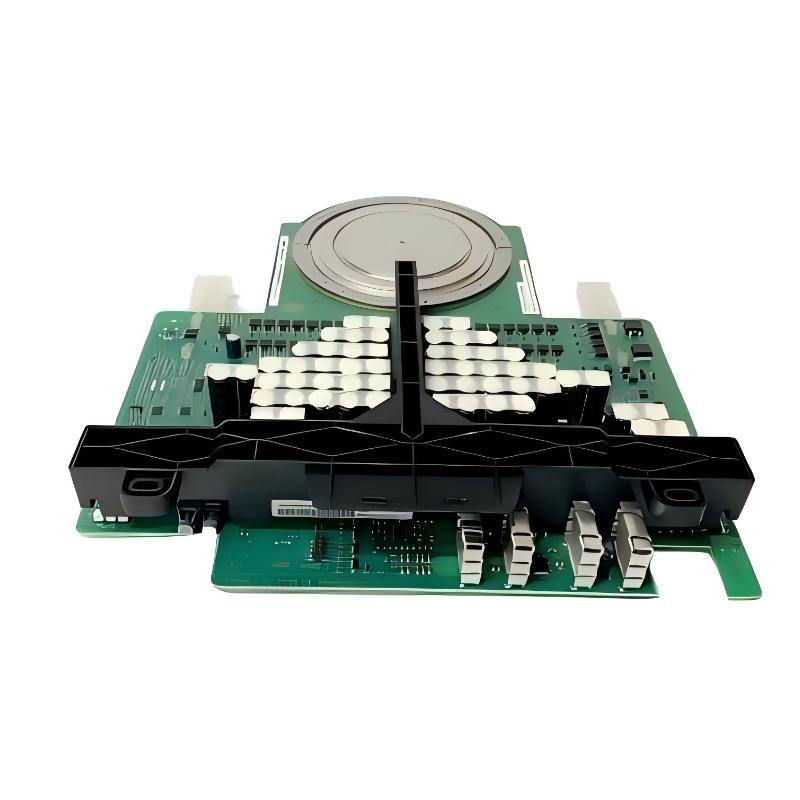

The ABB 5SHY4045L0001 is a high-power Integrated Gate-Commutated Thyristor (IGCT) module used in industrial power conversion equipment. It is designed for applications that require controlled switching of high voltage and high current, including medium-voltage drives and high-power converter systems. Within a converter power stack, the IGCT operates as a controlled semiconductor switching device and works together with the associated gate-drive and protection circuitry.

2. What type of semiconductor device is the 5SHY4045L0001?
The 5SHY4045L0001 is an IGCT, or Integrated Gate-Commutated Thyristor. IGCT technology combines the high-power conduction capability of thyristor technology with a gate-control structure capable of controlled turn-off. This makes the device suitable for high-power switching applications where both electrical performance and controlled switching behavior are important.

3. What are the main electrical characteristics of the 5SHY4045L0001?
The device is associated with a 4500 V voltage class and a maximum turn-off current of up to 4000 A under the applicable operating conditions. These ratings make it suitable for demanding high-power converter applications. The actual allowable operating voltage and current in a particular system depend on the converter topology, cooling arrangement, switching conditions, protection settings and the complete power-stack design.

4. Does the 5SHY4045L0001 require a dedicated gate-drive system?
Yes. An IGCT cannot be operated correctly without a suitable gate-drive arrangement. The gate-drive system provides the required control energy and switching signals while also supporting protection and status monitoring functions. The 5SHY4045L0001 is associated with the GVC750BE101 gate unit in applicable ABB configurations. The exact gate unit and configuration should always be matched to the original converter design.

5. What equipment commonly uses the ABB 5SHY4045L0001?
The 5SHY4045L0001 is intended for high-power industrial converter applications, particularly medium-voltage drives and power conversion equipment using ABB IGCT technology. It can be found in systems where high-power semiconductor switching is required for motor control, power conversion or other industrial electrical processes. Compatibility should be confirmed against the exact converter model and power-stack configuration before replacement.

6. What symptoms may indicate a faulty 5SHY4045L0001?
A faulty IGCT can cause converter overcurrent protection, abnormal phase current, DC-link faults, repeated power-stage trips, failure to start or unexpected shutdown during operation. A semiconductor short circuit may cause the converter protection system to operate immediately after energization. However, similar symptoms can also originate from the gate-drive unit, snubber or protection circuit, cooling system, busbar connections or other power semiconductor components, so the entire power stage should be inspected before identifying the IGCT as the failed component.

7. What should be checked before replacing the 5SHY4045L0001?
The complete ordering number should first be verified against the original component. The technician should then check the converter model, IGCT configuration, associated gate unit, electrical connections, mounting arrangement and cooling system. The gate-drive interface must be compatible with the replacement device, and the power-contact surfaces should be clean and free from damage. Mechanical installation and contact pressure are also important because improper installation can increase electrical and thermal resistance and affect the reliability of the power stack.

8. What precautions are required when servicing the 5SHY4045L0001?
The converter must be fully isolated from all power sources before the IGCT module is removed or tested. High-power converter systems can retain dangerous energy in DC-link capacitors and other energy-storage components after the main supply has been disconnected. The equipment should therefore be discharged according to the manufacturer’s service procedure and verified with suitable measuring equipment before work begins. The gate-drive circuit should also be handled carefully, and uncontrolled test voltages should not be applied to the semiconductor or gate terminals.
