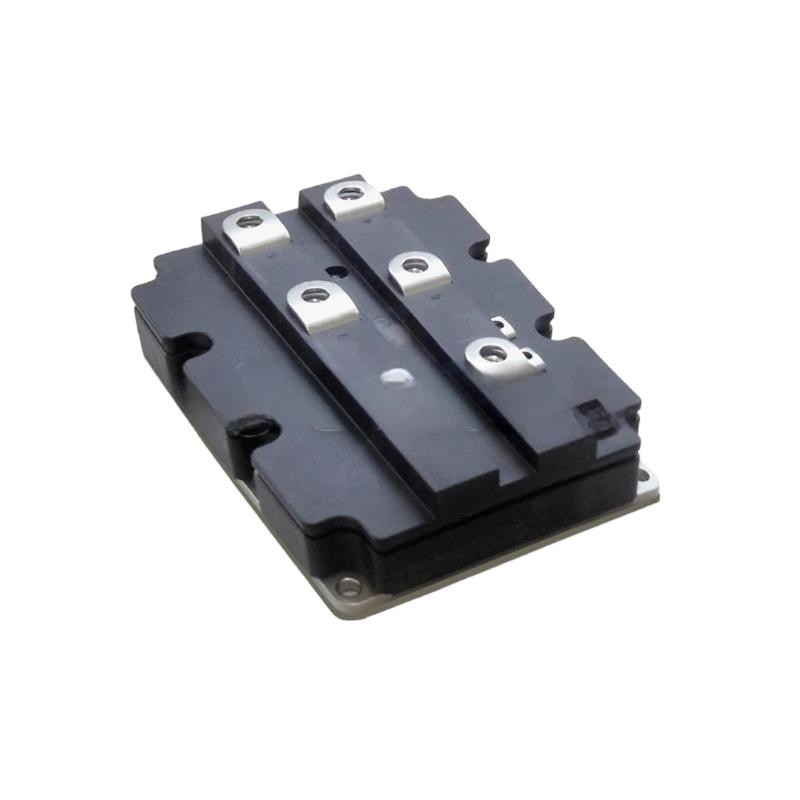

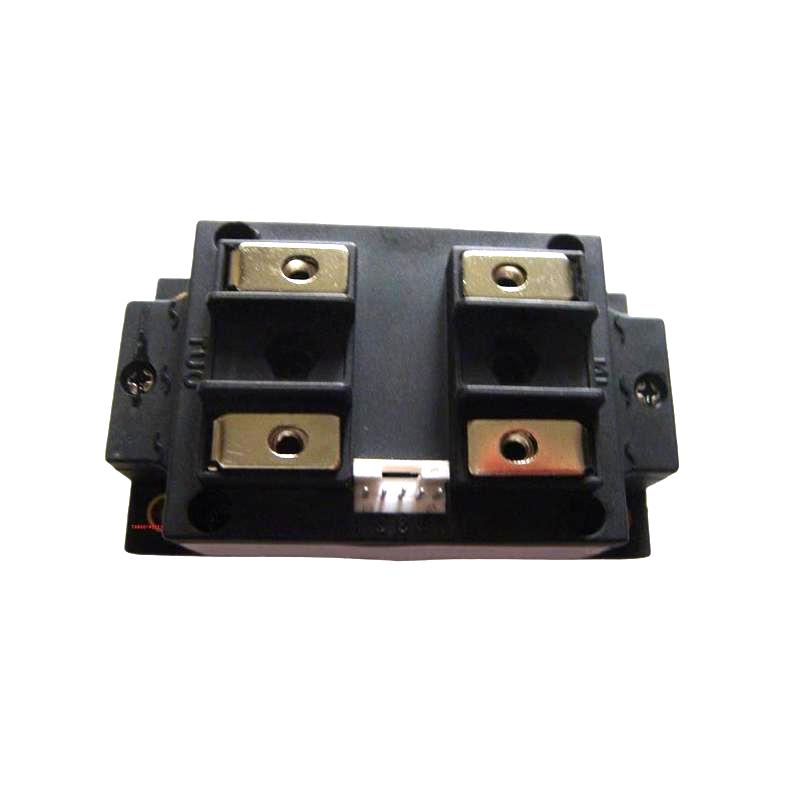

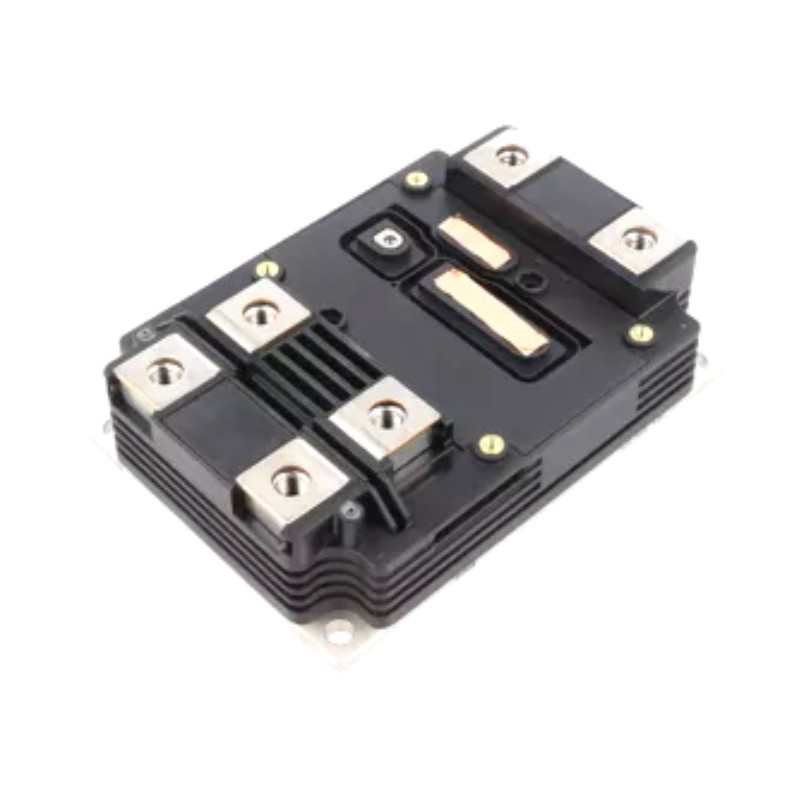

ABB 5SNA1000G650300 IGBT Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Ordering Number | 5SNA1000G650300 |
| Product Name | HiPak Single IGBT Module |
| Product Type | IGBT Module |
| ABB Type Designation | 6500 V / 1000 A |
| Collector-Emitter Voltage | 6500 V |
| Collector Current | 1000 A |
| Peak Collector Current | 2000 A |
| Topology | IGBT Half-Bridge ×3 |
| Gate-Emitter Voltage | ±20 V |
| Module Housing | HiPak |
| Mounting Type | Screw mounting |
| Electrical Connection | Screw terminals |
| Application | High-power converters, industrial drives, traction and power electronics |
| Main Features | Ultra-low switching losses, high current capability, high insulation performance |
| Cooling Interface | AlSiC base plate |
| Dimensions | 190 × 48 × 140 mm |
| Weight | 1.33 kg |
FAQ
1. What is the ABB 5SNA1000G650300 IGBT Module used for?
The 5SNA1000G650300 is a high-power ABB HiPak IGBT module designed for demanding power conversion applications. It is suitable for high-voltage and high-current switching systems such as industrial drives, power converters, traction equipment, renewable-energy converters, and other high-power electronic systems.
2. What are the main electrical ratings of the 5SNA1000G650300?
The module has a 6500 V collector-emitter voltage rating and a 1000 A collector current rating. Its specified pulsed collector current can reach 2000 A under applicable operating conditions. These ratings make the module suitable for high-power switching applications where both high voltage withstand capability and high current handling are required.
3. What topology does the 5SNA1000G650300 use?
The module uses an IGBT half-bridge topology with three IGBT sections. The internal configuration allows the device to be integrated into high-power converter designs and provides a practical switching building block for different power-electronics topologies.
4. What gate-emitter voltage should be considered when driving this IGBT module?
The specified gate-emitter voltage range is ±20 V. The actual gate-drive voltage should be selected according to the module’s approved drive requirements and the characteristics of the selected gate-driver circuit. A dedicated high-power IGBT driver should provide controlled switching, appropriate protection, and stable gate voltage.
5. What type of gate driver can be used with 5SNA1000G650300?
Dedicated gate-driver solutions are available for the 5SNA1000G650300. The Power Integrations SCALE-2 driver family includes driver variants specifically designed for this ABB IGBT module. The appropriate driver should be selected based on the converter topology, switching requirements, protection functions, and whether individual or parallel-connected IGBT modules are used.
6. What are common causes of 5SNA1000G650300 IGBT module failure?
Common failure conditions in high-power IGBT applications can include excessive collector current, overvoltage during switching, inadequate thermal management, short-circuit events, incorrect gate-drive signals, excessive switching losses, and improper installation. Electrical and thermal operating limits should be verified during commissioning and troubleshooting.
7. What should be checked when installing the 5SNA1000G650300?
The heatsink mounting surface should be clean, flat, and properly prepared, and the module should be installed according to the specified mechanical mounting procedure. Terminal connections must use the appropriate hardware and tightening torque. The gate-driver connections, insulation system, cooling arrangement, and electrical clearances should also be checked before energizing the converter.
8. How can the 5SNA1000G650300 be tested during troubleshooting?
Troubleshooting should begin with a visual inspection for cracks, overheating, damaged terminals, contamination, or signs of electrical arcing. The gate-emitter circuit and main power terminals can then be checked with suitable test equipment. Abnormal leakage, unexpected short-circuit behavior, or inconsistent semiconductor measurements may indicate internal damage. Testing should always be performed with the power system fully isolated and discharged, using procedures appropriate for high-voltage semiconductor equipment.
ABB 5SNA1000G650300 IGBT Module is in stock. Please contact us for a quick quote and competitive pricing.
