ABB 5SXE03-0141 3BHB003154R0101 IGCT Modules
1. Product Overview

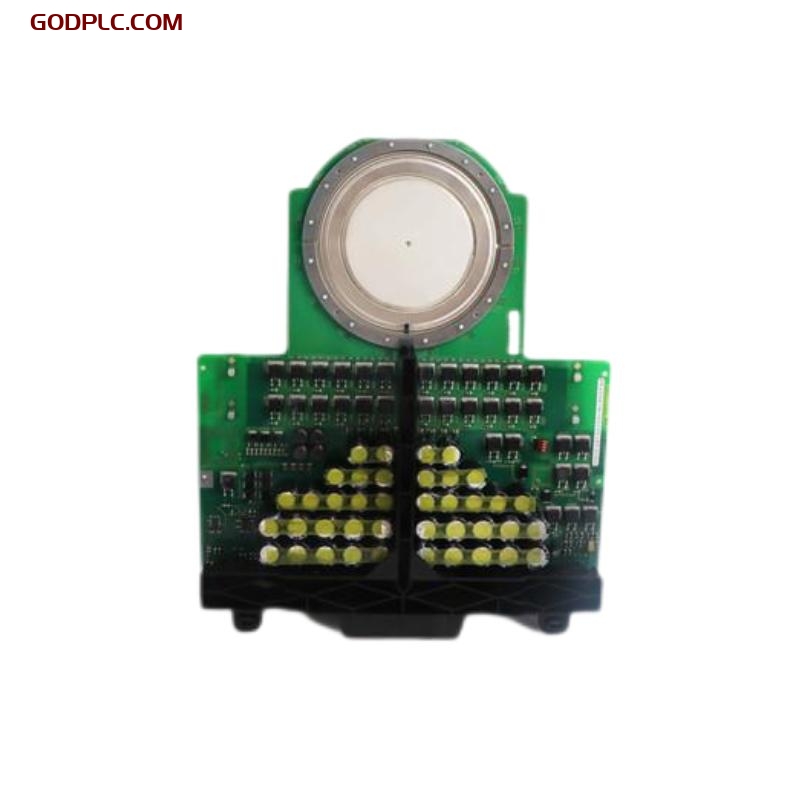

The ABB 5SXE03-0141 3BHB003154R0101 IGCT (Integrated Gate-Commutated Thyristor) module is an advanced power electronic switch designed for high-current, high-power conversion applications. Combining the advantages of both thyristors and gate turn-off thyristors (GTOs), this module offers low conduction losses, fast turn-off, and high reliability. It is widely used in high-voltage direct current (HVDC) transmission, medium-voltage drives (MV Drives), flexible AC transmission systems (FACTS), and other power transmission and distribution systems.
The IGCT module is built with ABB’s advanced semiconductor technology and optimized packaging design, enabling it to handle higher power and current loads while maintaining stability in high voltage environments. With its outstanding electrical performance and thermal management capabilities, the module ensures excellent stability and efficiency under high-power operating conditions, making it a crucial component for modern power electronics systems.
2. Key Features
-
High Voltage Endurance: The module supports high-voltage operations, ensuring stable performance under heavy loads.
-
Low Conduction Loss: The optimized design reduces conduction losses, improving overall system efficiency.
-
Fast Turn-Off Characteristics: Features fast turn-off time, making it suitable for high-frequency switching and fast control applications.
-
High Current Handling: The module is capable of handling high current loads, meeting the demands of high-power power conversion systems.
-
Integrated Gate Drive: Built-in gate drive circuitry simplifies peripheral circuit design and increases system reliability.
-
Efficient Heat Dissipation: Equipped with a high-efficiency heat dissipation system, the module ensures stability during extended high-power operation.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Value |
|---|---|
| Diameter | 120mm x 80mm x 40mm |
| Weight | 0.5 kg |
3.2 General Information
| Item | Value |
|---|---|
| Model | 5SXE03-0141 3BHB003154R0101 |
| Manufacturer | ABB |
| Component Type | IGCT (Integrated Gate-Commutated Thyristor) |
| Applications | HVDC, MV Drives, FACTS, Motor Drives |
| Insulation Voltage | Up to 7500V |
3.3 Electrical Performance
| Item | Value |
|---|---|
| Rated Voltage | 6000V |
| Rated Current | 4000A |
| On-State Voltage Drop | ≤ 2.3V |
| Turn-Off Time | ≤ 25 μs |
| Gate Trigger Current | 35A |
| Turn-Off Loss | Low-loss design for enhanced efficiency |
| Overload Protection | Yes |
4. Industry Applications
The ABB 5SXE03-0141 3BHB003154R0101 IGCT module is widely used in high-current and high-power conversion power systems, particularly in the following applications:
-
High-Voltage Direct Current (HVDC) Transmission: Used for efficient power transmission, optimizing stability and efficiency for long-distance power transmission.
-
Medium-Voltage Drives (MV Drives): Applied in medium-voltage motor drive systems, improving the efficiency and reliability of industrial automation control systems.
-
Flexible AC Transmission Systems (FACTS): Enhances system stability and flexibility, optimizing power grid operation and control.
-
Railway Traction: Used in railway power drive systems, providing high-efficiency power conversion to support frequent operation.
-
Wind and Solar Power: Optimizes power conversion in renewable energy systems such as wind and solar power, improving overall energy efficiency.
The ABB 5SXE03-0141 3BHB003154R0101 IGCT module is an essential component for modern high-power electrical systems, offering exceptional electrical performance, high reliability, and stability in demanding applications.
