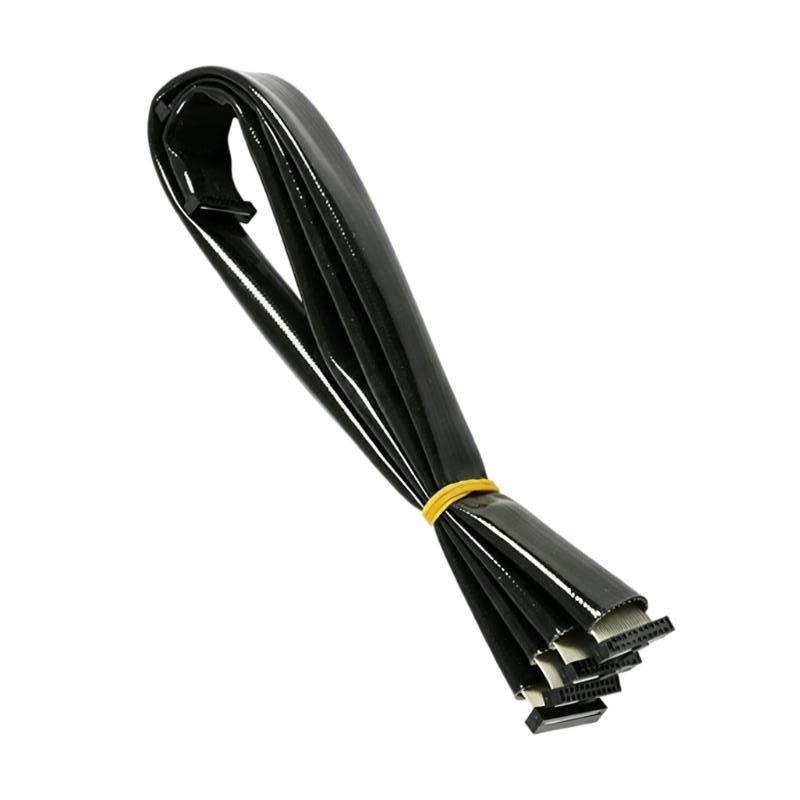

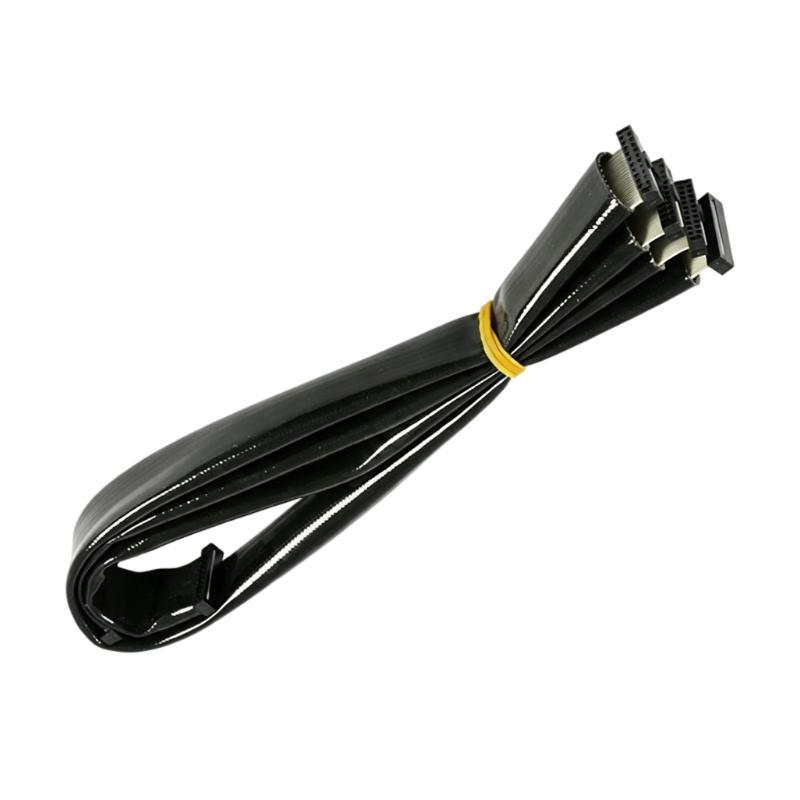

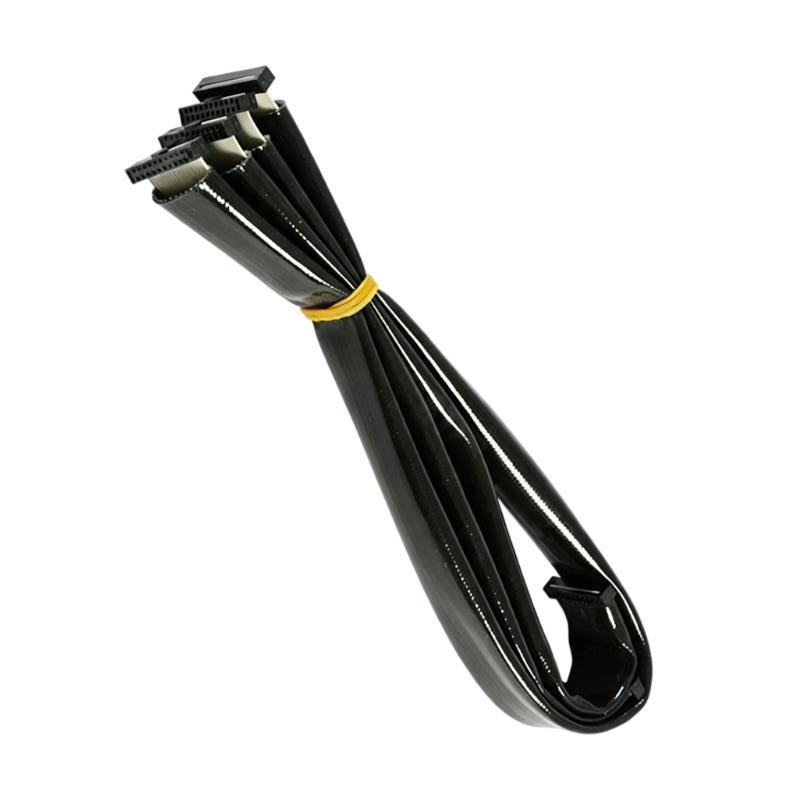

ABB 68692172 Flat Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Order Number | 68692172 |
| Brand | ABB |
| Product Type | Flat Cable |
| ABB Type Designation | ACS800-104-XXXX-3/5/7 |
| Cable Type | Flat Ribbon Cable |
| Compatible Equipment | ABB ACS800-104-XXXX-3/5/7 |
| Application | Internal wiring and interconnection within compatible ACS800 drive configurations |
| Cable Application | 6R8i 400–690 V, 3 × IGBT drive connection |
| Cable Length | Optional |
| Installation | Internal connection between AINT and AGDR within compatible ACS800-104 air-cooled R8i drive assemblies |
| Operating System | ABB ACS800 Drive System |
| Weight | 0.13 kg |
FAQ
1. What is the main function of the ABB 68692172 Flat Cable?
The ABB 68692172 is a dedicated flat ribbon cable used for electrical interconnection within compatible ACS800-104 drive configurations. It is designed to maintain the required internal connection between designated drive assemblies and is associated with R8i IGBT-based configurations.
2. Which ABB drive equipment is compatible with the 68692172?
The 68692172 is identified for use with ABB ACS800-104-XXXX-3/5/7 configurations. Before replacement, the exact drive type, hardware configuration, and existing cable arrangement should be checked to ensure compatibility.
3. What type of connection does the 68692172 provide?
This component is a flat ribbon cable intended for internal electrical interconnection. It is used between the AINT and AGDR assemblies in compatible ACS800-104 air-cooled R8i drive configurations.
4. Is the cable length of ABB 68692172 fixed?
The cable length is listed as optional rather than as one universal fixed length. The required length should be confirmed according to the specific ACS800 drive configuration and the original cable installed in the equipment.
5. Can ABB 68692172 be used as a replacement cable during drive maintenance?
Yes. The 68692172 can be used for replacement and maintenance when the installed ACS800 configuration requires the corresponding flat cable. The original part number, cable routing, connector arrangement, and connection points should be verified before installation.
6. What should be checked before installing the 68692172?
Check the complete part number, compatible ACS800 drive configuration, cable length, connector orientation, and connection points. The drive must be completely isolated from the power supply before internal wiring work, and the manufacturer’s safety and discharge procedures should be followed.
7. What problems can occur if the wrong flat cable is installed?
An incompatible cable may cause incorrect signal or control connections, unreliable drive operation, communication or gate-control faults, and other equipment errors. The cable type, connector arrangement, routing, and electrical compatibility should match the original installation.
8. What is the typical application of the ABB 68692172 Flat Cable?
The 68692172 is typically used as an internal wiring component in compatible ABB ACS800-104 air-cooled R8i drive assemblies, particularly configurations using 400–690 V three-phase IGBT technology. It is mainly used for drive assembly, maintenance, and replacement applications.
ABB 68692172 Flat Cable is in stock. Please contact us for a quick quote and competitive pricing.
