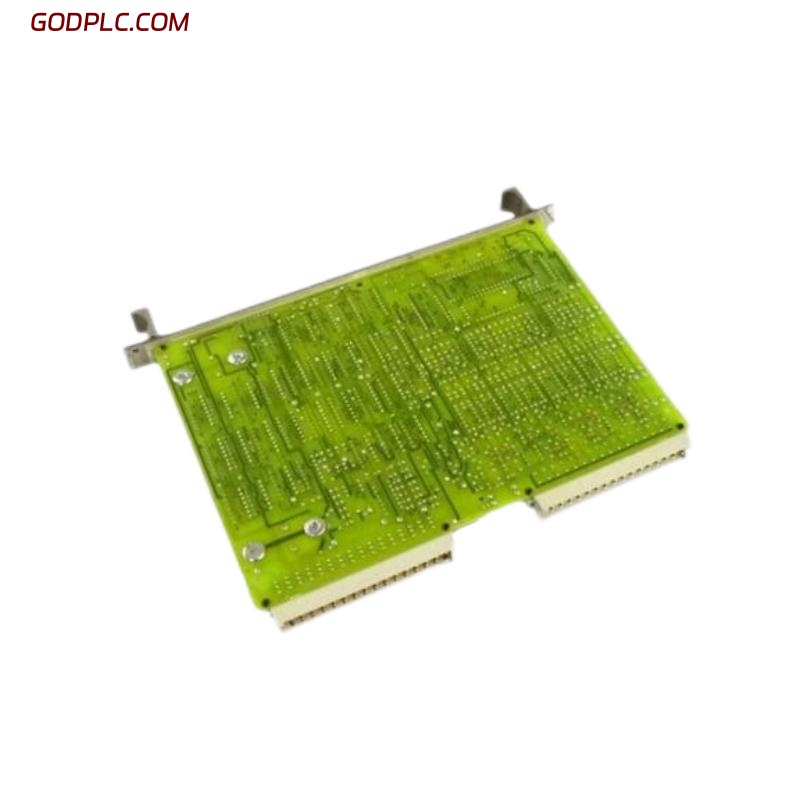

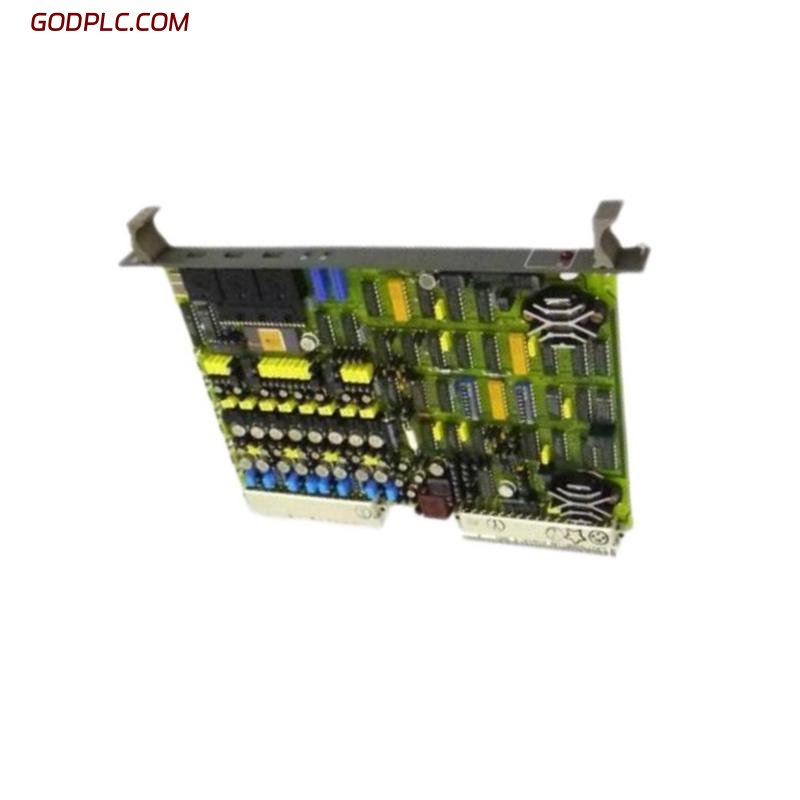

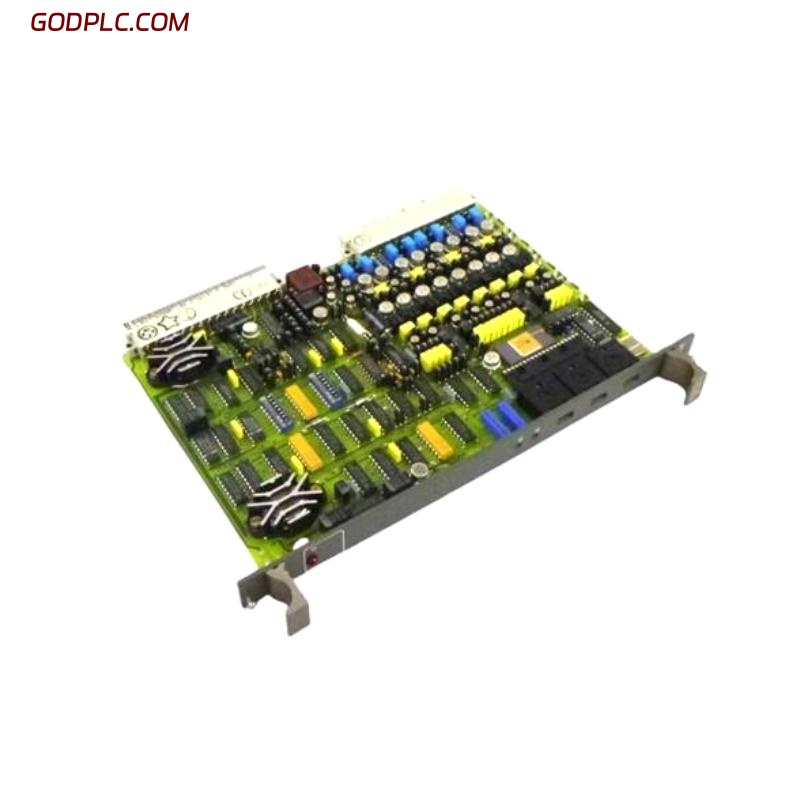

ABB 81AA10E GJR2370200R1100 Output Module
Product Overview
The ABB 81AA10E GJR2370200R1100 is a digital output module designed for use in ABB’s Advant Master distributed control systems (DCS). It provides a robust interface between the control system and field actuators by converting digital control signals into binary outputs. With 16 individually isolated channels, high output capacity, and reliable switching performance, this module is ideal for demanding industrial applications requiring secure and consistent output control, such as power generation, oil & gas, and chemical processing.
Key Features
-
16 Digital Output Channels – Offers high-density output for efficient signal distribution
-
Individually Isolated Channels – Ensures signal integrity and safety across field connections
-
High Output Drive Capability – Supports various loads including solenoids, relays, and lamps
-
Field-Proven Reliability – Designed for continuous operation in harsh industrial environments
-
Status Indication LEDs – Provides visual status for each channel to assist in diagnostics
-
Integrated Protection – Includes output protection circuitry for safe operation under fault conditions
-
Seamless System Integration – Fully compatible with ABB Advant Controller 400 series
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 198 x 261 x 20 mm |
| Weight | 0.55 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Channels | 16 (individually isolated) |
| Output Type | Digital (binary) |
| Rated Voltage | 24 V DC |
| Output Current | Max. 0.5 A per channel |
| Isolation Voltage | 500 V (channel-to-channel and to logic) |
| Status Indicators | LED per channel |
| Output Protection | Short-circuit and overload protection |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when mounted) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | ABB Advant Master DCS |
| Controller Support | Advant Controller 410, 450, etc. |
| Module Type | Digital Output |
Industry Applications
-
Power Generation – Controls field relays and breakers in generation systems
-
Oil & Gas – Handles high-density output needs for safety and process interlocks
-
Chemical Processing – Interfaces with field devices in batch and continuous process control
-
Water Treatment – Drives actuators and solenoids in purification and distribution systems
-
Industrial Manufacturing – Provides reliable output control for automation equipment and alarms
The ABB 81AA10E GJR2370200R1100 Output Module offers high-reliability digital output functionality in a compact and robust form factor. Its individually isolated channels, integrated protections, and seamless integration with Advant Master DCS make it a dependable choice for mission-critical industrial applications requiring consistent and protected digital control.
