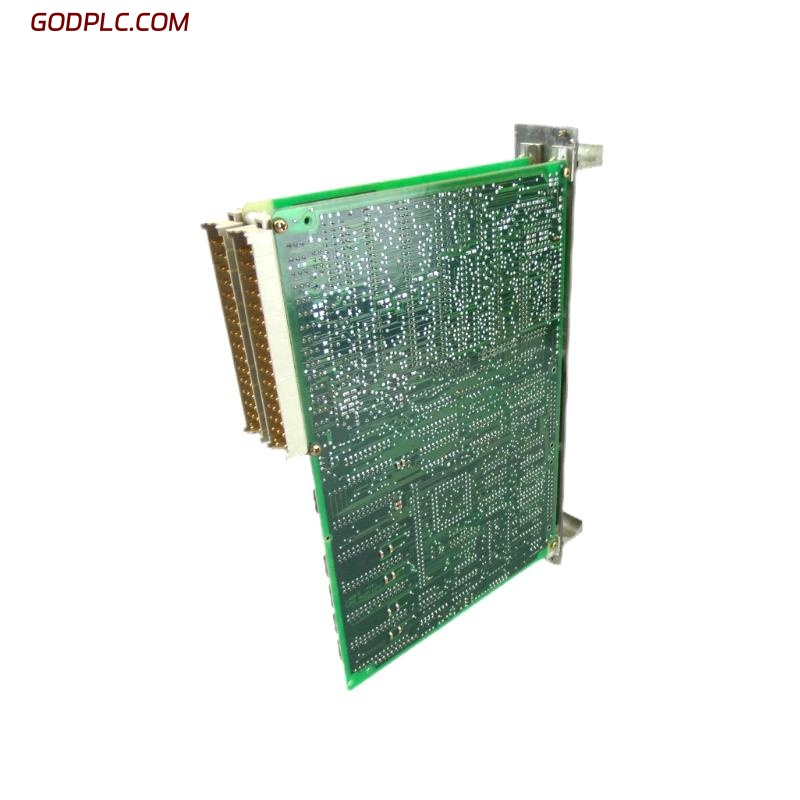

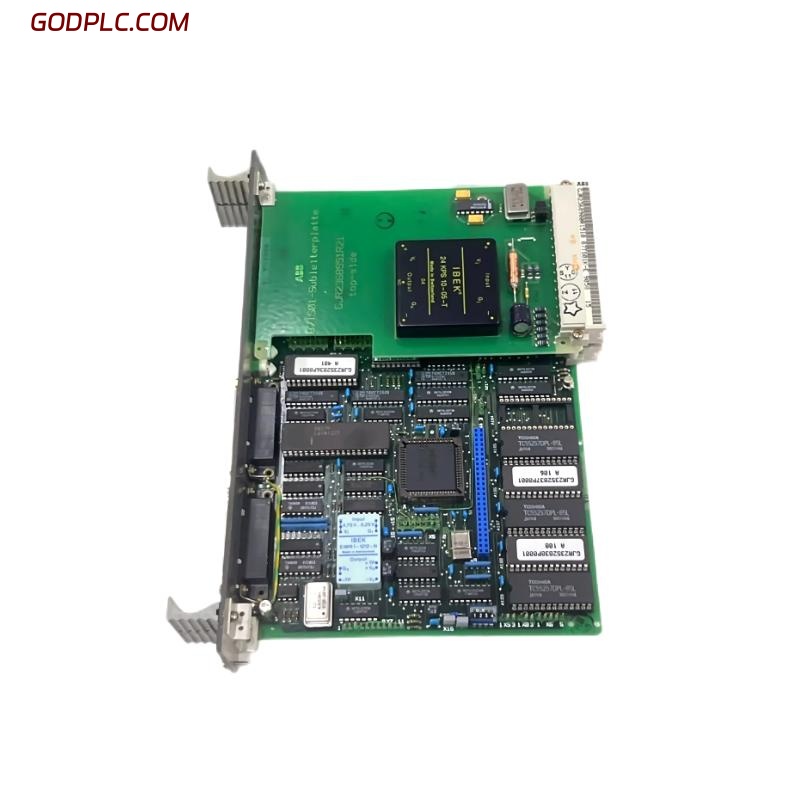

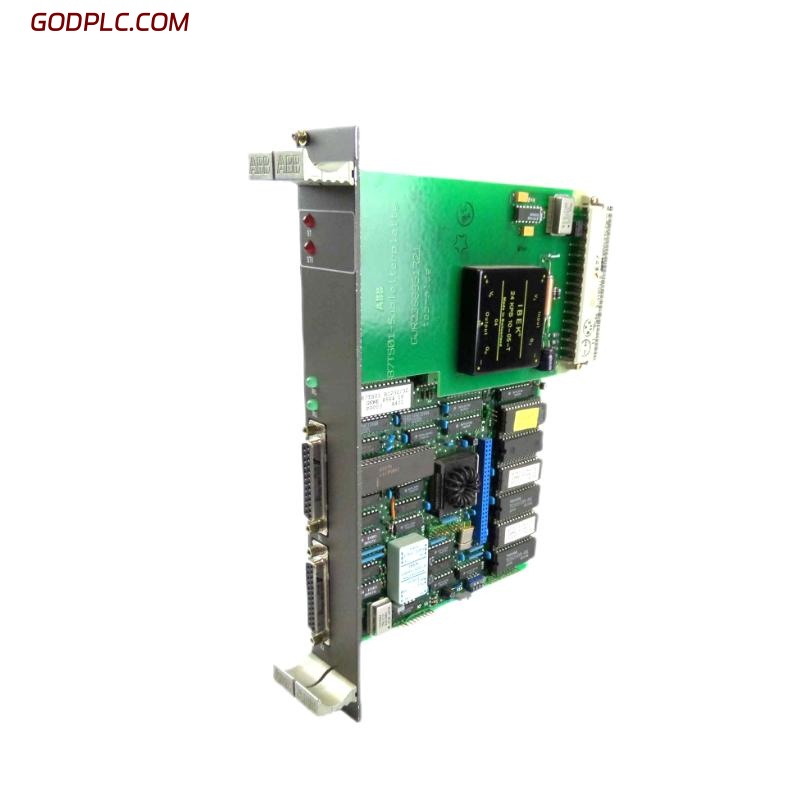

ABB 87TS01K-E GJR2368900R1231 Coupling Module
Product Overview
The ABB 87TS01K-E GJR2368900R1231 Coupling Module is designed to ensure safe and efficient signal coupling between different sections of ABB control systems. As part of the Symphony™ and Advant™ automation families, this module provides galvanic isolation, signal level adjustment, and interface functionality between field devices and central processing units. It plays a vital role in ensuring system stability and electrical safety across complex industrial environments.
Key Features
-
Signal Coupling and Isolation – Ensures secure and interference-free data transfer
-
Galvanic Isolation – Prevents ground loops and enhances electrical safety
-
Compact and Modular Design – Easily integrable into control cabinets
-
ABB System Compatibility – Seamlessly interfaces with ABB Symphony/Advant systems
-
Industrial Grade Durability – Built to withstand harsh environments
-
Low Power Consumption – Efficient operation with minimal energy use
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 198 x 261 x 40 mm |
| Weight | 0.55 kg |
3.2 General Specifications
| Item | Specification |
|---|---|
| Module Type | Coupling Module |
| Part Number | 87TS01K-E GJR2368900R1231 |
| Function | Signal coupling and electrical isolation |
| Mounting Type | Standard rack or chassis installation |
| Compatibility | Symphony, Advant OCS systems |
3.3 Electrical Specifications
| Item | Specification |
|---|---|
| Supply Voltage | 24 V DC (typical) |
| Input/Output Isolation | Optical or transformer isolation |
| Signal Type Supported | Digital or analog (model dependent) |
| Current Consumption | < 100 mA |
3.4 Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5%–95% RH, non-condensing |
| Protection Class | IP20 (when installed in enclosure) |
Industry Applications
-
Power Generation – Coupling of critical protection and monitoring signals
-
Oil & Gas – Isolated interface between hazardous and safe zones
-
Chemical Processing – Signal routing and grounding isolation
-
Pulp & Paper – Integration of machine-level signals with control systems
-
Manufacturing – Secure signal transfer across segmented automation networks
The ABB 87TS01K-E GJR2368900R1231 Coupling Module offers a reliable solution for signal interfacing and isolation, essential for maintaining system integrity and safety in industrial control environments.
ABB 87TS01K-E GJR2368900R1231 Coupling Modules is in stock. Please contact us for a quick quote and competitive pricing.
