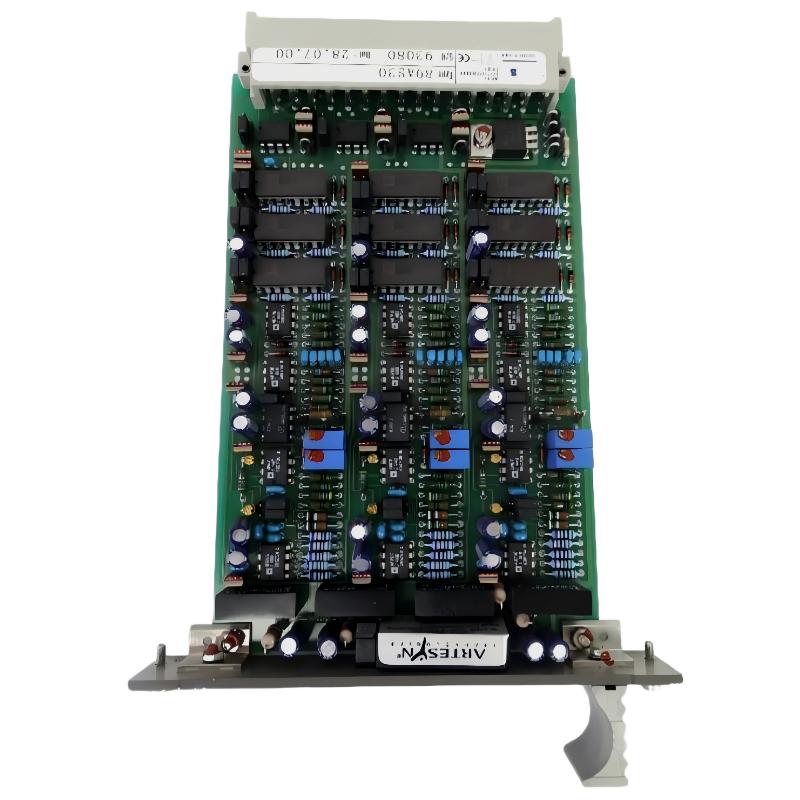

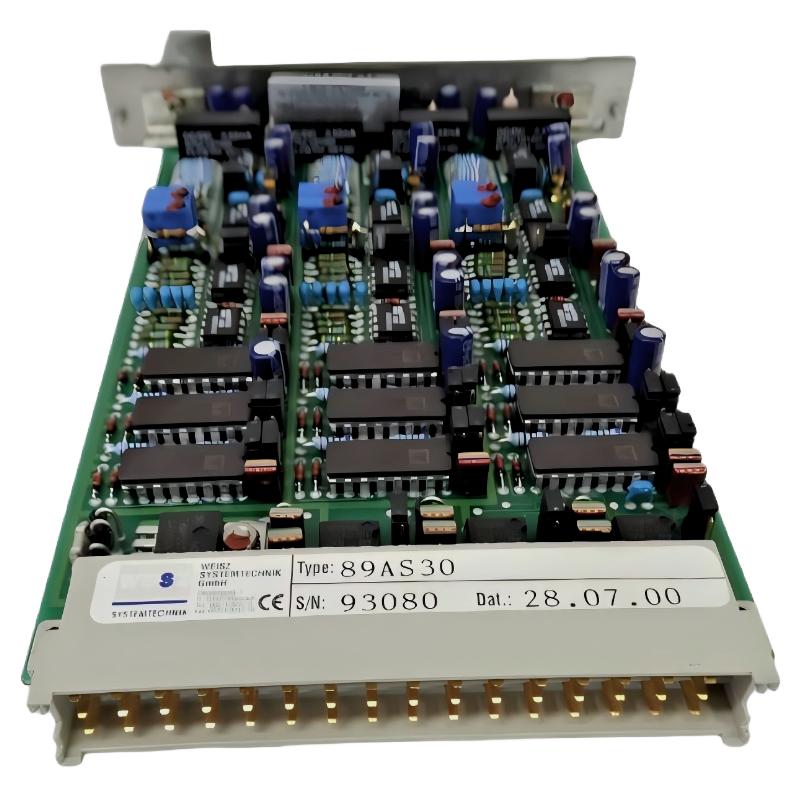

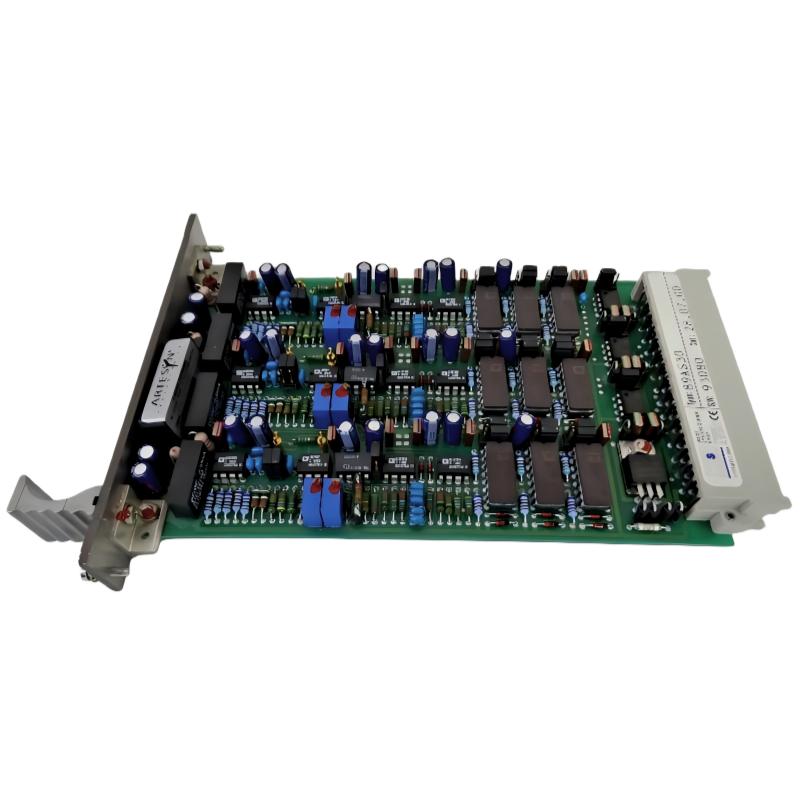

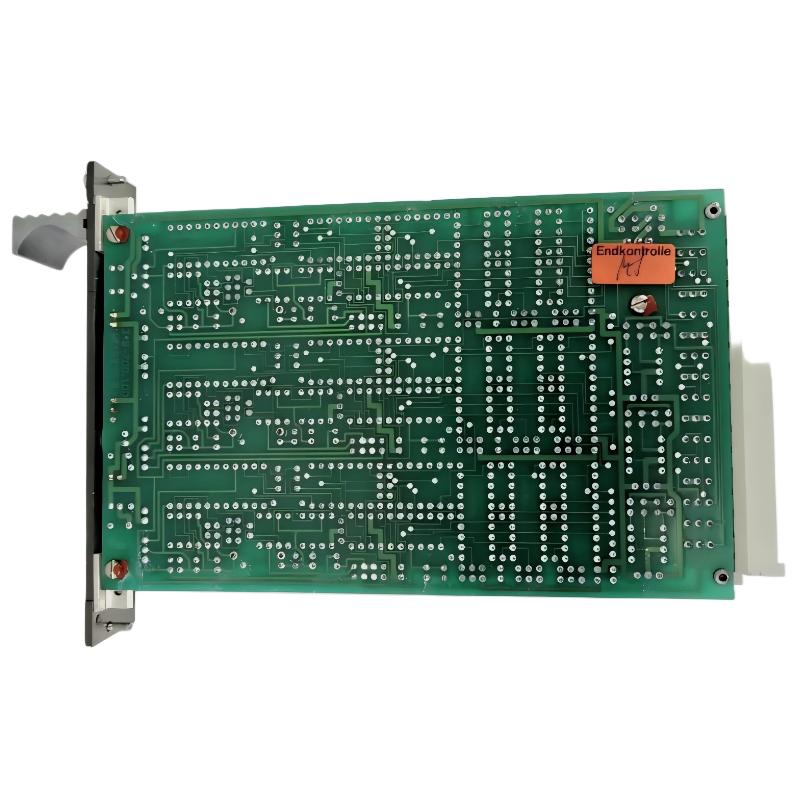

ABB 89AS30 GKWN000317R0100 Analog Signal Multiplier
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 89AS30 |
| Order Number | GKWN000317R0100 |
| Manufacturer | ABB |
| Product Type | Analog Signal Multiplier |
| Application | Industrial automation and process control systems |
| Function | Signal scaling, duplication, and distribution of analog signals |
| Input Signal Type | Standard analog signals (e.g., 0–10 V / 4–20 mA depending on configuration) |
| Output Signal Type | Analog signal output |
| Signal Processing | Gain adjustment, signal isolation, signal splitting |
| Power Supply | Typically 24 V DC (depending on system configuration) |
| Mounting Type | Cabinet installation / DIN rail mounting |
| Protection Class | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Dimensions | 180 × 100 × 45 mm |
| Weight | 0.6 kg |
FAQ
1. What is the main function of the 89AS30 analog signal multiplier?
The module is designed to scale, duplicate, or distribute analog signals within industrial automation systems. It allows a single input signal to be used across multiple control loops or devices while maintaining signal consistency.
2. What types of analog signals does it support?
It typically supports standard industrial signals such as 0–10 V voltage and 4–20 mA current loops, depending on system configuration and wiring setup.
3. Does signal multiplication affect accuracy?
The module is designed for high-precision signal processing, maintaining strong linearity and stability under normal operating conditions to minimize distortion and deviation.
4. Does the module provide signal isolation?
Yes, it includes electrical isolation between input and output channels, helping reduce interference and improving overall system reliability.
5. How is the module integrated into a control system?
It is installed in a control cabinet or DIN rail system and connected to analog input/output channels. Configuration is completed within the control system to define signal routing and scaling parameters.
6. Is software configuration required before operation?
Yes, configuration is typically required, including input type selection, gain settings, and channel mapping to ensure correct system behavior.
7. How can signal issues be diagnosed?
Troubleshooting involves checking input sources, wiring integrity, configuration parameters, and system diagnostics. Common issues include incorrect scaling settings or loose connections.
8. What maintenance practices are recommended?
Regular maintenance includes ensuring secure wiring connections, keeping terminals clean, avoiding strong electromagnetic interference, and performing periodic calibration to maintain signal accuracy and stability.
ABB 89AS30 GKWN000317R0100 Analog Signal Multiplier is in stock. Please contact us for a quick quote and competitive pricing.
