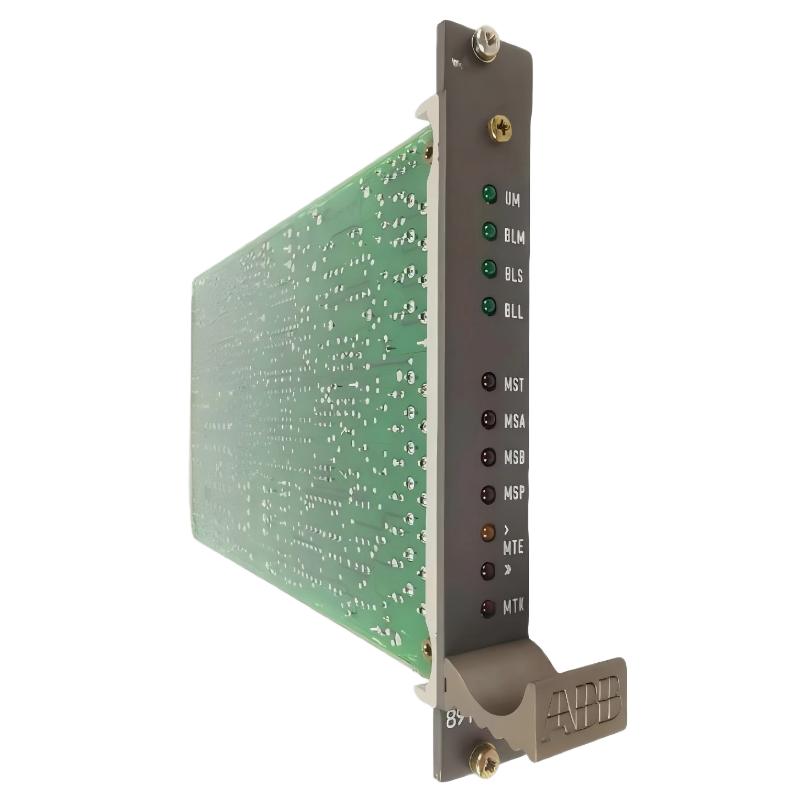

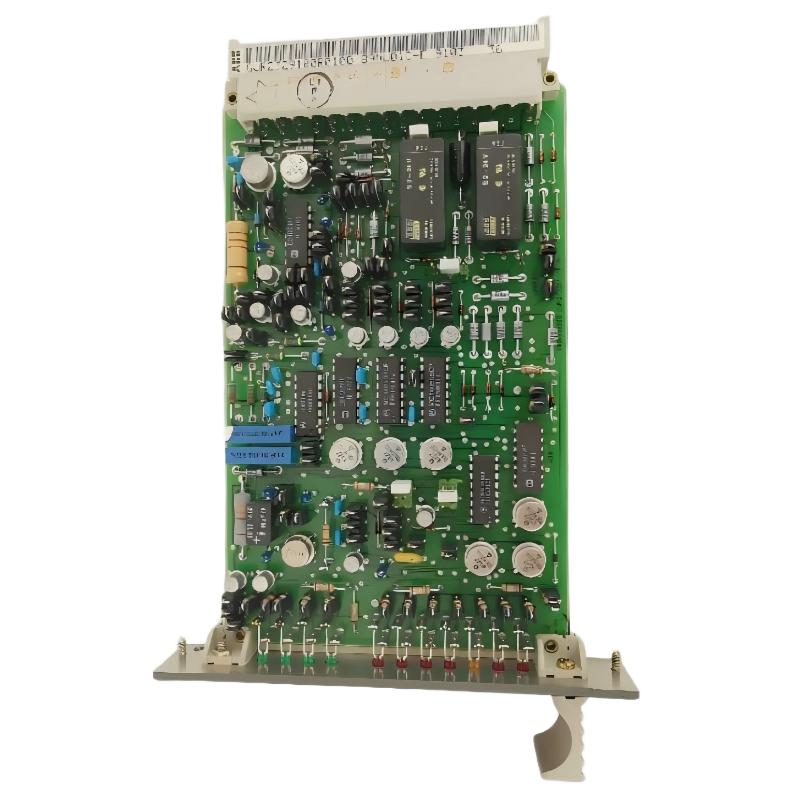

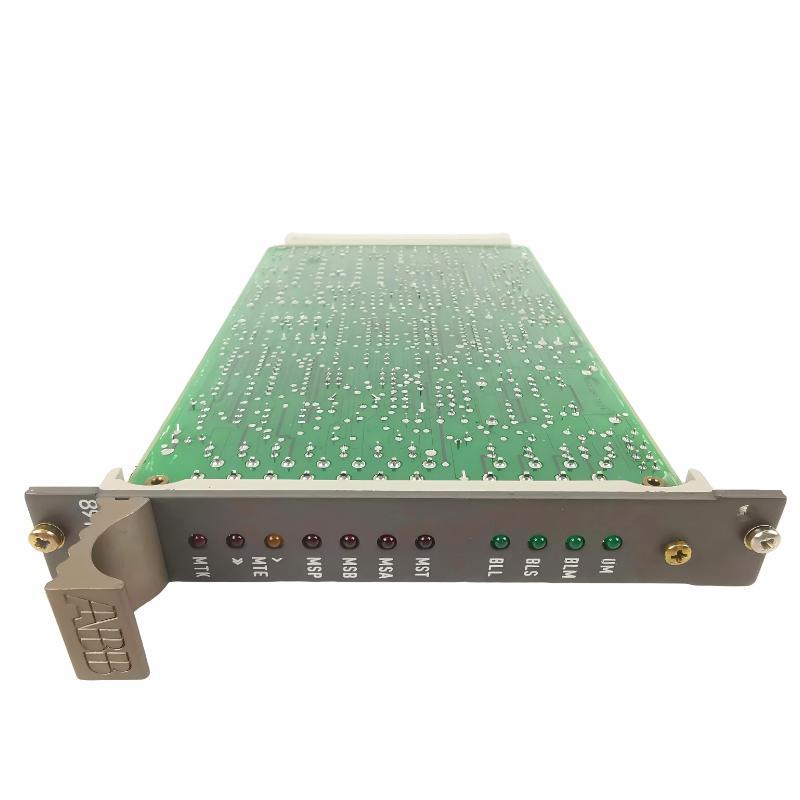

ABB 89NU01D-E GJR2329100R0100 Alarm Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 89NU01D-E |
| Order Number | GJR2329100R0100 |
| Product Type | Alarm Module |
| Manufacturer | ABB |
| Rated Input Voltage | 24 V DC |
| Operating Voltage Range | 20.4 – 28.8 V DC |
| Power Consumption | ≤ 5 W |
| Alarm Channels | Multiple, configurable |
| Signal Type | Digital Input |
| Response Time | < 10 ms |
| Communication Interface | System bus interface |
| Mounting Type | DIN Rail |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Dimensions | 120 x 80 x 40 mm |
| Weight | 0.5 kg |
FAQ
1. What is the primary function of this alarm module?
The 89NU01D-E alarm module is designed to continuously monitor digital input signals within an industrial automation system. When predefined alarm conditions are met, it triggers alerts and communicates them to the control system. It is commonly used for fault detection, status monitoring, and safety interlocking, helping improve operational safety and system reliability.
2. How is the module integrated into an automation system?
The module is connected via a system bus interface and typically mounted on a DIN rail inside a control cabinet. Integration requires configuration through engineering software, where users define input channels, alarm logic, and signal mapping. This allows seamless operation within PLC or DCS environments.
3. What types of input signals are supported?
This module is designed to process digital input signals such as dry contacts, relay outputs, and switch status signals. It detects changes in signal states (e.g., ON/OFF or fault/normal) and evaluates them according to configured alarm logic.
4. Can alarm logic and conditions be customized?
Yes, the alarm conditions are fully configurable. Users can define thresholds, delays, priorities, and interlocking logic through the control system software. This flexibility allows the module to adapt to various industrial processes and application requirements.
5. How fast does the module respond to signal changes?
The module features a fast response time of less than 10 milliseconds. This ensures that any abnormal condition is detected and reported almost instantly, which is critical in time-sensitive industrial applications.
6. Is the module suitable for harsh industrial environments?
Yes, it is built to industrial standards and can operate reliably across a wide temperature range and in high-humidity environments, provided there is no condensation. It also offers good resistance to electrical noise, making it suitable for complex industrial settings.
7. Does the module support diagnostics and fault reporting?
The module provides diagnostic information via the system interface, including channel status, communication health, and internal operation status. This enables quick fault identification and efficient troubleshooting, minimizing system downtime.
8. What are the key technical considerations during installation and operation?
It is important to ensure a stable power supply within the specified voltage range and proper wiring to avoid interference or false alarms. During configuration, alarm logic and delay parameters should be carefully set to match process requirements. Regular inspection of connections and use of system diagnostics are recommended to maintain long-term reliability.
ABB 89NU01D-E GJR2329100R0100 Alarm Module is in stock. Please contact us for a quick quote and competitive pricing.
