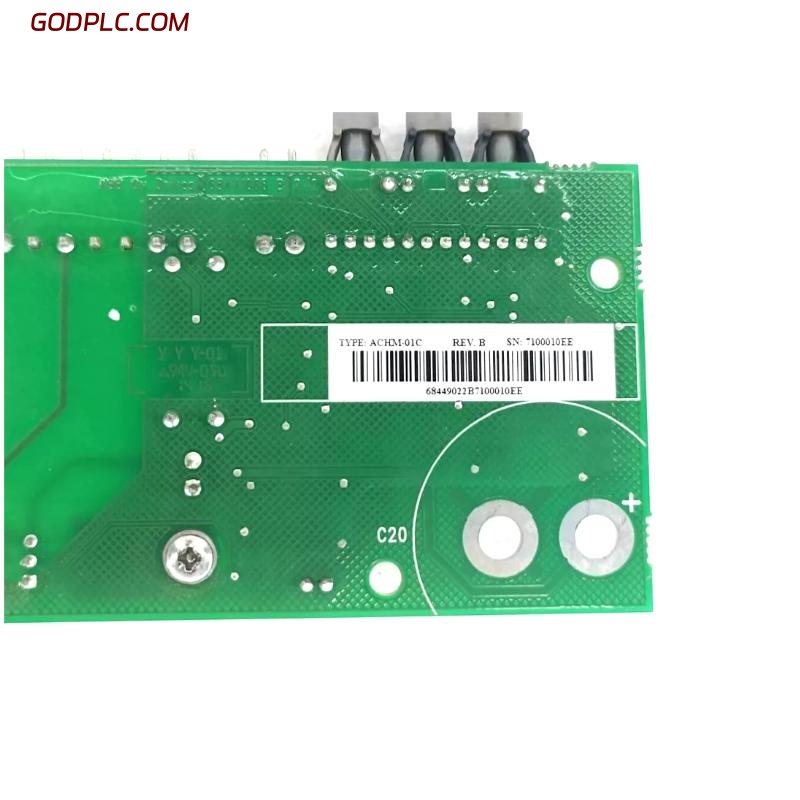

ABB ACHM-01C 68449022 Inverter Accessories
Product Overview
The ABB ACHM-01C 68449022 is a handheld control module designed as an accessory for ABB inverter drives. It enables local control, parameter adjustment, and status monitoring directly from the inverter without needing external tools or a PC. Featuring a user-friendly interface and robust construction, the ACHM-01C enhances usability and simplifies commissioning, troubleshooting, and maintenance tasks for various motor control applications.
Key Features
-
Handheld control panel for ABB inverters
-
Enables local operation, monitoring, and parameter configuration
-
LCD screen with intuitive menu navigation
-
Supports multilingual display for global use
-
Plug-and-play connection with ABB drives
-
Lightweight and portable with rugged housing
-
Ideal for commissioning, maintenance, and diagnostics
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 60 x 140mm |
| Weight | 0.14 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | Powered directly from the inverter drive |
| Display Type | LCD alphanumeric display |
| Communication Interface | RS-485 / Control panel interface port |
| Keypad | 7–10 function keys + navigation arrows |
| Language Support | Multi-language (including English, Chinese, etc.) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +50°C |
| Storage Temp | -20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 (for indoor use) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Drives | ABB inverter drives (e.g., ACS series) |
| Connection Method | Direct plug-in or via extension cable |
| Application Type | Motor control setup, diagnostics, parameter tuning |
Industry Applications
-
HVAC Systems – Local motor control for fans, pumps, and compressors
-
Water and Wastewater – On-site configuration and monitoring of drive systems
-
Industrial Automation – Easy access for technicians during drive commissioning
-
Building Management – Drive tuning in distributed control environments
-
Manufacturing – Diagnostic interface for plant floor maintenance teams
The ABB ACHM-01C 68449022 handheld module provides a practical and efficient interface for managing ABB inverter drives locally. Its portability and intuitive operation make it indispensable for field technicians and maintenance engineers working in diverse industrial sectors.
ABB ACHM-01C 68449022 Inverter Accessories is in stock. Please contact us for a quick quote and competitive pricing.
