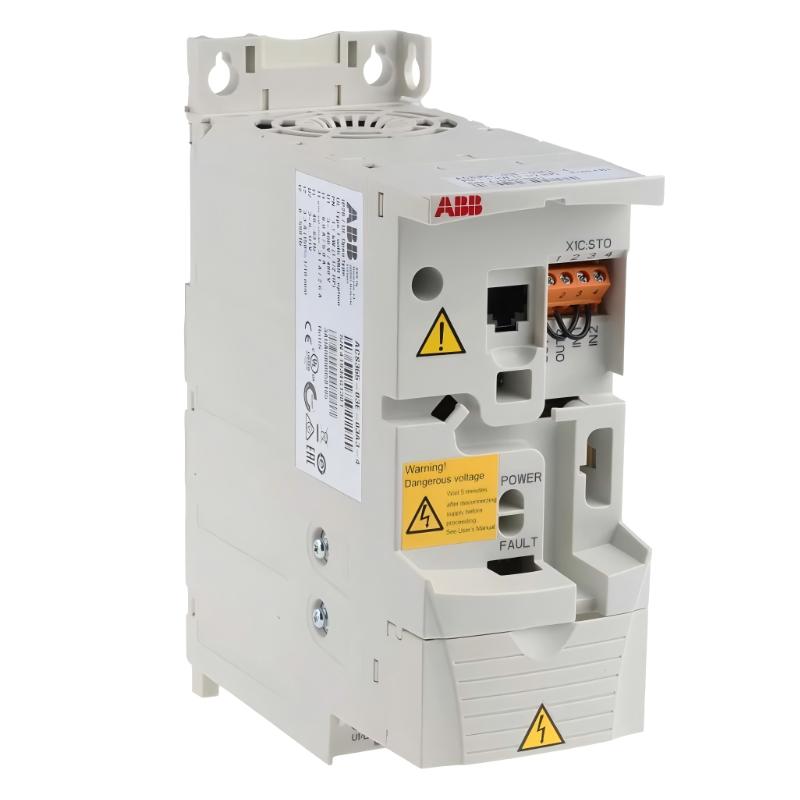

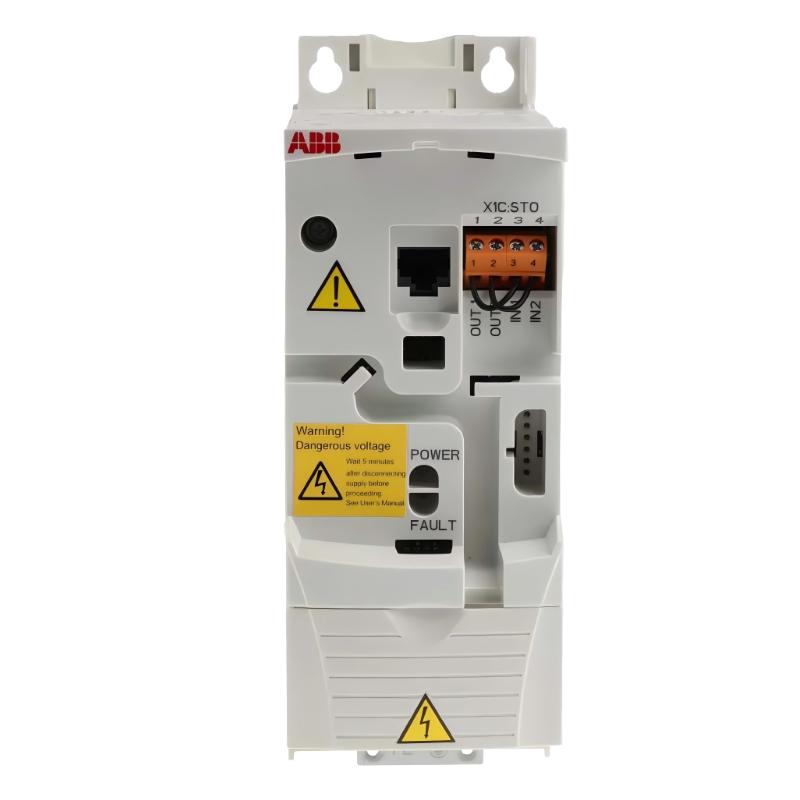

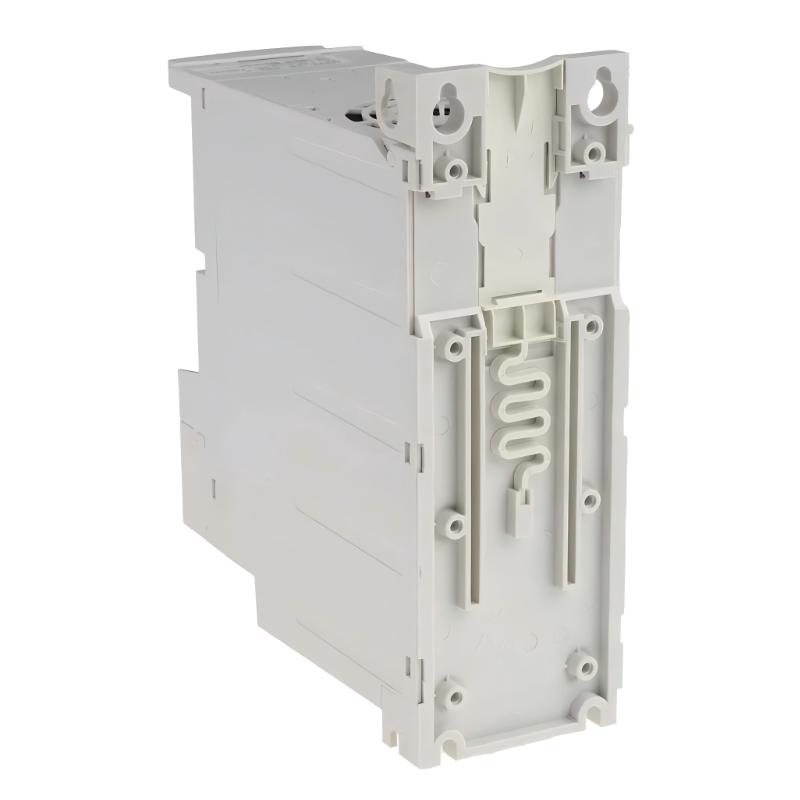

Q1: What applications is the ACS355-03E-03A3-4 designed for?

A: The ACS355-03E-03A3-4 is designed for OEM machinery and general industrial automation applications requiring compact size, reliable motor control, and flexible integration. It is widely used in conveyors, packaging machines, labeling systems, food processing equipment, textile machines, woodworking machines, printing systems, plastic machinery, and light material handling equipment. The drive is particularly suitable for applications involving variable speed requirements, frequent start-stop cycles, and stable torque demand. Its fast response characteristics and stable motor control performance make it ideal for improving production consistency and reducing mechanical stress in automated systems.

Q2: What communication options are available?

A: The drive includes a built-in RS-485 interface with Modbus RTU support, enabling direct communication with PLCs, HMIs, SCADA systems, and industrial PCs. This allows real-time monitoring, parameter configuration, remote control, and fault diagnostics. In addition, the ACS355 series supports optional plug-in communication modules such as PROFIBUS DP, PROFINET IO, CANopen, DeviceNet, and EtherNet/IP. These communication options make it highly adaptable to different automation architectures, from traditional relay-based systems to modern Ethernet-based industrial networks, supporting seamless integration into both legacy and Industry 4.0 environments.

Q3: What motor control technologies does this model use?

A: The ACS355-03E-03A3-4 uses both V/F control and ABB’s sensorless vector control technology. Sensorless vector control improves torque accuracy and speed stability without requiring a physical encoder. It continuously estimates motor flux and torque in real time, allowing the drive to respond quickly to load changes and maintain stable operation even at low speeds. Compared to standard scalar control, this method provides better dynamic response, higher efficiency, and smoother acceleration and deceleration. It also reduces mechanical stress on couplings, belts, and gear systems, improving the overall lifespan and reliability of the driven equipment.

Q4: What protection functions are built into this drive?

A: The drive includes a comprehensive set of protection features such as overcurrent protection, overvoltage and undervoltage protection, output short-circuit protection, motor thermal overload protection, inverter overtemperature protection, phase loss detection, ground fault protection, motor stall protection, and current limiting. When abnormal conditions occur, the drive reacts immediately by limiting output or shutting down safely to prevent damage. It also stores detailed fault codes and operational history, helping maintenance personnel quickly diagnose issues. These built-in protections significantly improve system reliability, reduce downtime, and ensure safe operation in demanding industrial environments.

Q5: Does the ACS355 support PID control for process applications?

A: Yes, it includes a built-in PID controller that allows closed-loop process control without requiring an external PLC in many applications. Sensors such as pressure transmitters, flow meters, temperature sensors, or level sensors can be connected directly to the analog inputs. The drive continuously compares the measured value with the setpoint and automatically adjusts motor speed to maintain stable process conditions. This is especially useful in applications like constant pressure water supply, HVAC systems, pump control, and ventilation systems. It improves control accuracy, reduces energy consumption, and simplifies system architecture by eliminating the need for additional control hardware.

Q6: What installation practices are recommended for stable operation?

A: Proper installation is essential for reliable long-term performance. The drive should be installed vertically inside a well-ventilated control cabinet with sufficient clearance to ensure proper airflow and cooling. Motor nameplate data must be entered accurately during commissioning to optimize control performance. Power cables and control cables should be routed separately to reduce electromagnetic interference, and proper grounding must be ensured according to industrial standards. In environments with long motor cables, unstable power supply, or high electrical noise, additional components such as EMC filters, input reactors, output reactors, or braking resistors may be required to enhance stability and protect the system.

Q7: What are the energy-saving benefits of this drive?

A: The ACS355 improves energy efficiency by adjusting motor speed according to actual load demand instead of running at constant full speed. In applications like pumps, fans, and conveyors, this can significantly reduce power consumption, especially under partial load conditions. The drive’s smooth acceleration and deceleration also reduce mechanical and electrical stress, lowering maintenance requirements and extending equipment life. Combined with PID control, it ensures the system operates only at the required performance level, avoiding unnecessary energy use and improving overall operational efficiency. This makes it a cost-effective solution for long-term industrial energy savings.

Q8: What maintenance is recommended for long-term reliability?

A: Regular preventive maintenance is important to ensure stable operation over time. Cooling fans, heat sinks, and ventilation channels should be cleaned periodically to prevent dust buildup and maintain proper heat dissipation. Electrical terminals should be checked for tightness and signs of overheating or corrosion. Operating logs and fault histories should be reviewed regularly to detect early signs of abnormal behavior. In harsh environments such as high temperature, humidity, or dust exposure, maintenance intervals should be shortened. Over long-term use, components such as cooling fans and electrolytic capacitors may degrade and should be replaced proactively. A structured maintenance program helps reduce unexpected downtime and ensures consistent performance throughout the drive’s lifecycle.
