1. What are the main applications of the ABB ACS580-01-062A-4?

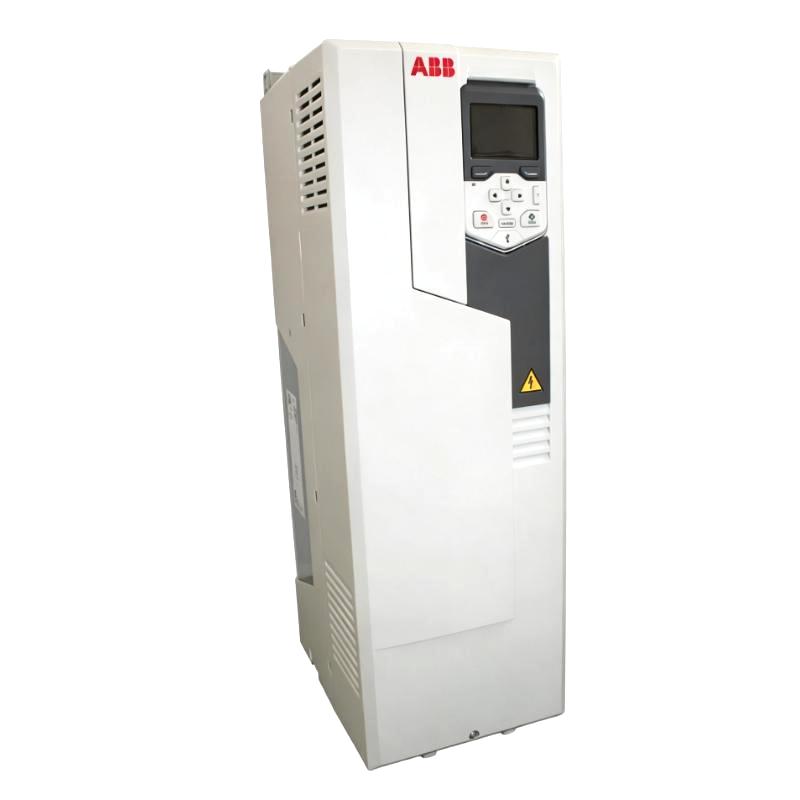

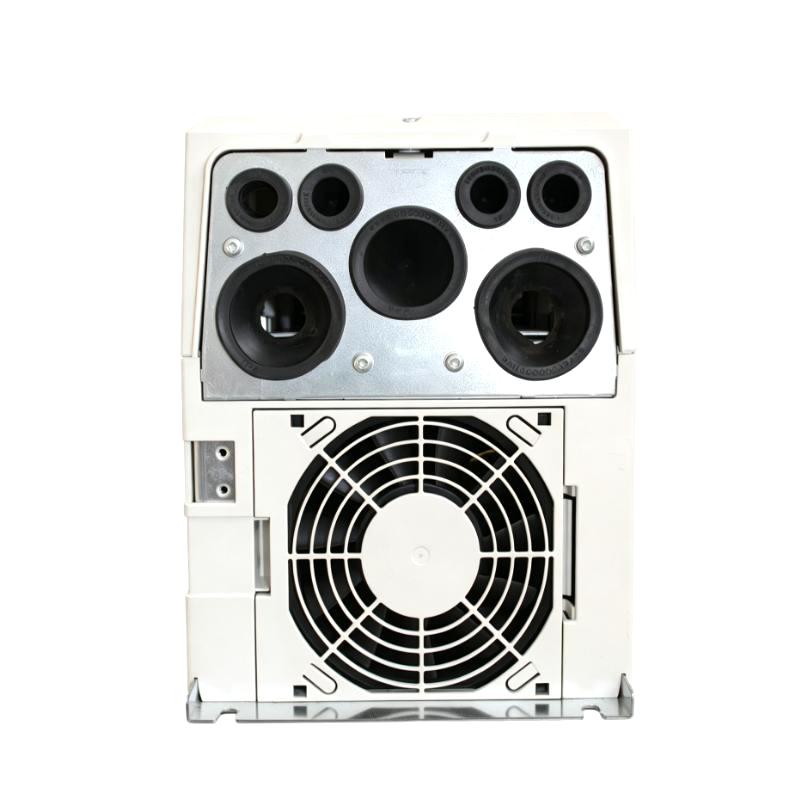

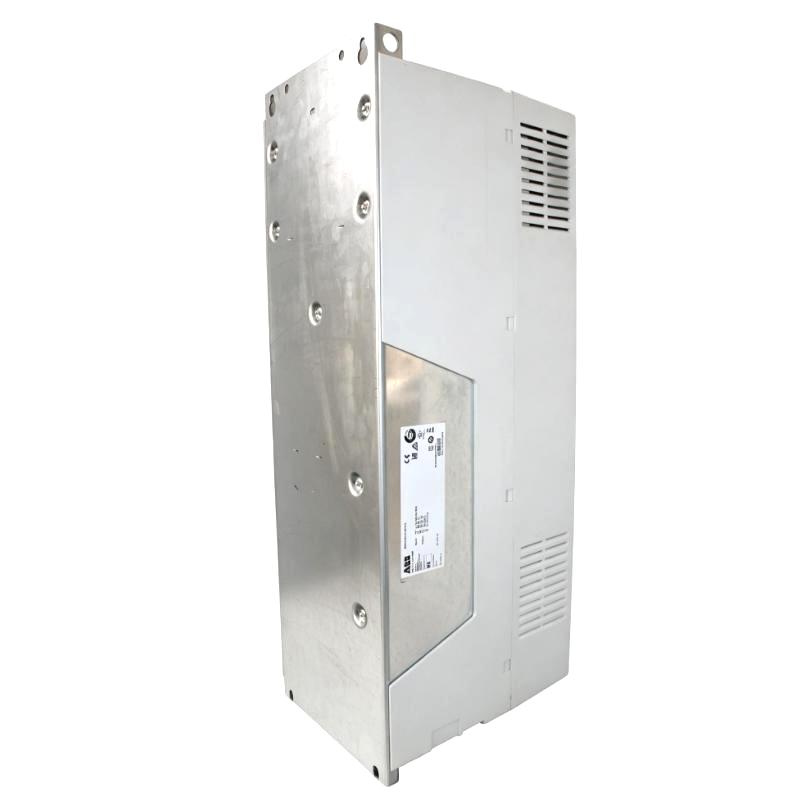

The ABB ACS580-01-062A-4 is a general-purpose variable frequency drive designed for controlling the speed, torque and operating performance of three-phase AC motors in industrial environments. With a rated output current of 62 A, this model is suitable for medium-power motor applications, including pumps, fans, conveyors, compressors, mixers and various automated production equipment. By adjusting the output frequency and voltage supplied to the motor, the drive allows the motor speed to be matched with actual process requirements instead of operating continuously at a fixed speed. This improves operational flexibility, provides smoother acceleration and deceleration, and helps optimize energy usage in applications where variable-speed operation is required. The ACS580 series is also commonly integrated into industrial automation systems where reliable motor control and monitoring are necessary.

2. What are the main electrical specifications of the ACS580-01-062A-4?

The ACS580-01-062A-4 is designed for three-phase 380–480 V AC power systems with a 50/60 Hz input frequency. It provides a rated output current of 62 A and supports adjustable output frequency up to 500 Hz depending on application requirements and parameter settings. When selecting this variable frequency drive, engineers should consider more than only the motor power rating. The motor rated current, load characteristics, starting torque requirements, acceleration time, operating cycle and possible overload conditions should also be evaluated. For constant torque applications such as conveyors and mixers, sufficient starting torque capability is important. For variable torque applications such as pumps and fans, correct parameter configuration helps achieve efficient operation. Proper selection ensures stable performance and reduces the possibility of overcurrent or overload faults.

3. Which motor control modes are supported by the ACS580-01-062A-4?

The ACS580-01-062A-4 supports both scalar V/f control and vector control modes. V/f control provides a simple and reliable method for applications where basic speed adjustment is sufficient, such as certain fan and pump applications. Vector control provides improved speed accuracy, torque response and dynamic performance, making it suitable for applications requiring more precise motor control, such as conveyors and industrial machinery. The appropriate control mode should be selected according to the motor type, mechanical load characteristics and required control performance. During commissioning, accurate motor nameplate data should be entered, including rated voltage, rated current, rated frequency, rated power and rated speed. Correct parameter configuration enables the drive to establish a suitable motor control model and improves operating stability.

4. How should the ACS580-01-062A-4 be commissioned after installation?

After installation, the input power supply, motor wiring, grounding connections and control circuits should be inspected carefully before startup. The motor nameplate parameters, including rated voltage, rated current, rated frequency, rated power and rated speed, should be entered into the drive configuration. Application-related settings such as minimum frequency, maximum frequency, acceleration time and deceleration time should then be adjusted according to the mechanical characteristics of the equipment. If the drive is connected to a PLC or DCS system, communication settings, control source selection and speed-reference configuration should also be verified. Initial testing should be performed at low speed to check motor rotation direction, current behavior, speed response and mechanical operation. After confirming stable operation, the drive can gradually be increased to normal operating conditions. A structured commissioning process helps identify wiring errors, incorrect parameters or mechanical problems before full production operation.

5. How should an overcurrent fault on the ACS580-01-062A-4 be diagnosed?

When an overcurrent fault occurs on the ACS580-01-062A-4, the first step is to check the displayed fault code and operating history to determine the condition under which the fault occurred. If the fault appears during startup, possible causes include incorrect motor parameters, incorrect motor wiring or excessive starting resistance from the mechanical system. If the fault occurs during acceleration, the acceleration time may be too short or the connected load inertia may exceed the drive capability. If the fault occurs during normal operation, the mechanical system should be inspected for increased load, blocked components, bearing problems or abnormal friction. The motor cable, terminals and insulation condition should also be checked for short circuits, grounding problems or loose connections. After completing these inspections, the control mode and drive parameters should be reviewed and adjusted according to the actual application requirements instead of simply increasing protection limits.

6. Can the ABB ACS580-01-062A-4 be integrated with PLC or DCS systems?

Yes. The ACS580-01-062A-4 can be integrated into industrial automation systems including PLCs, DCS controllers and other supervisory control platforms. Through the built-in RS-485 interface and Modbus RTU communication, the drive can exchange control commands and operating data with external control systems. A PLC or DCS can send start, stop and speed-reference commands while receiving information such as output frequency, motor current, operating status, warnings and fault records. For projects requiring other industrial communication networks, optional fieldbus communication modules can be used. During system integration, communication addresses, baud rates, control sources and data mapping must be configured correctly. If communication problems occur, the communication wiring, parameter settings and PLC/DCS configuration should be checked to ensure both systems use compatible communication settings.

7. What is the purpose of the STO safety function in the ACS580-01-062A-4?

The STO (Safe Torque Off) function is a safety feature designed to prevent the motor from producing torque when the safety circuit is activated. It is commonly used in industrial safety applications such as emergency-stop systems, safety doors, protective guards and machine safety circuits. When STO is triggered, the drive prevents the motor from generating mechanical torque, reducing the risk of unexpected machine movement. However, STO does not mean that the drive is completely disconnected from the power supply. Hazardous voltage may still exist inside the drive and power connections. Therefore, maintenance operations must still follow proper electrical safety procedures, including power isolation, lockout/tagout and verification of a safe working condition. STO should be considered part of the overall machine safety system and not a replacement for electrical isolation procedures.

8. What should be considered when replacing an existing VFD with the ACS580-01-062A-4?

When replacing an existing variable frequency drive with the ACS580-01-062A-4, the motor specifications, power supply conditions and load characteristics should first be verified. The motor rated voltage, current, power, frequency and operating requirements should match the capabilities of the new drive. The incoming power supply, motor cables, grounding system and control wiring should also be inspected. Special attention should be given to control signals because digital inputs, analog references, relay outputs and communication configurations may differ between different drive models. If the original system uses PLC or DCS control, the start/stop commands, speed references, fault feedback signals and communication data mapping should be reviewed. After installation, motor parameters should be configured correctly, and system testing should include motor direction, acceleration, deceleration, remote control, automatic operation, alarm handling and fault recovery. Proper commissioning ensures reliable integration between the ACS580-01-062A-4, the motor and the existing automation system.
