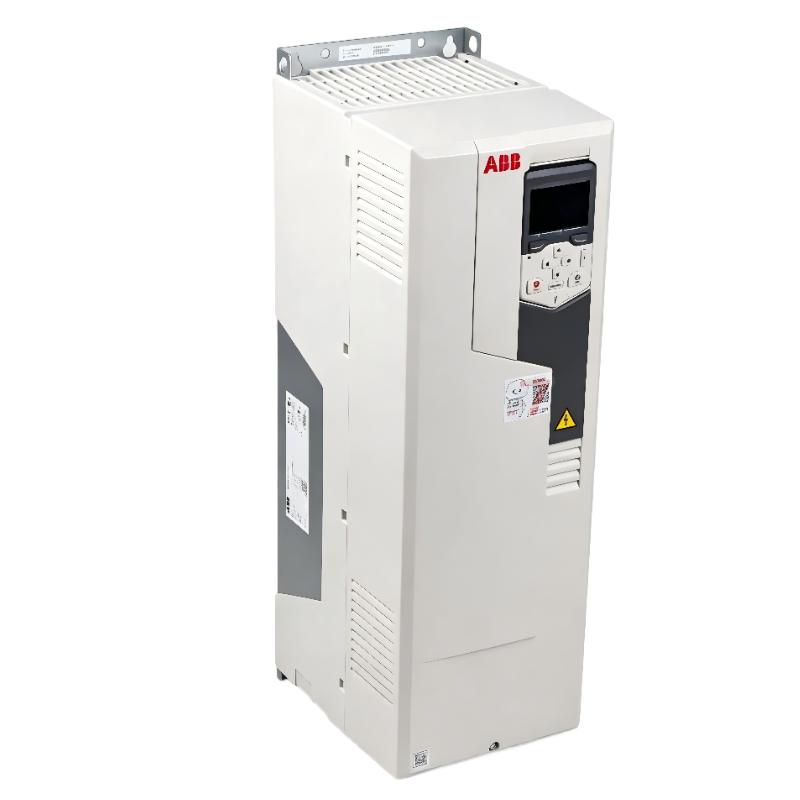

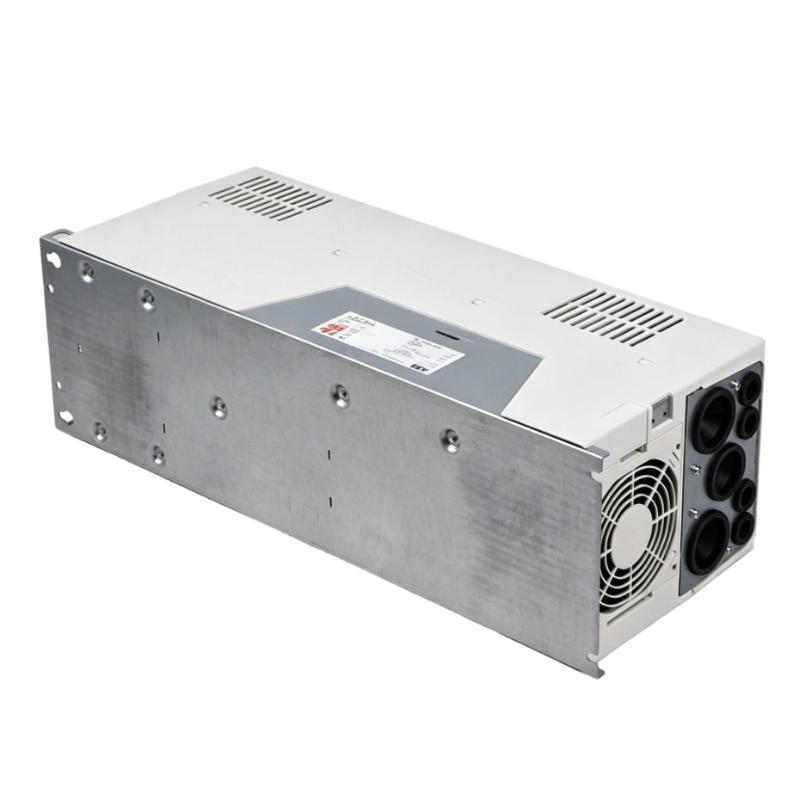

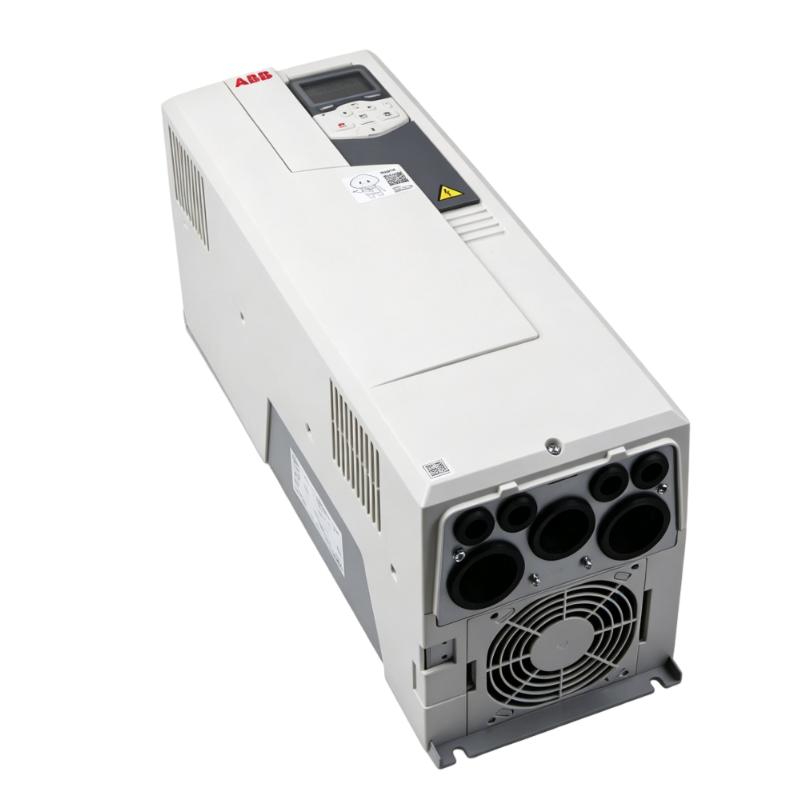

1. What are the main applications of the ABB ACS580-01-073A-4 Variable Frequency Drive?

The ABB ACS580-01-073A-4 Variable Frequency Drive is a general-purpose industrial drive designed for reliable and efficient control of AC motors in various automation applications. It is widely used in industrial equipment such as pumps, fans, compressors, conveyors, mixers, HVAC systems, and manufacturing machinery where accurate speed control and energy optimization are required.

By adjusting the motor speed according to the actual process requirements, the ACS580-01-073A-4 can reduce unnecessary energy consumption and improve overall system efficiency. For applications such as pumps and fans, reducing motor speed during low-demand periods can significantly decrease power usage. In mechanical systems, smooth acceleration and deceleration functions help reduce mechanical stress, minimize equipment wear, and improve operational stability.

The drive is suitable for industries including water treatment, manufacturing, material handling, food processing, and building automation. Its simple commissioning process and flexible control features make it an effective solution for both new installations and equipment upgrades.

2. What should be considered when installing and wiring the ABB ACS580-01-073A-4?

Proper installation and wiring are essential for ensuring the reliable operation of the ABB ACS580-01-073A-4. Before installation, users should confirm that the power supply voltage, motor specifications, and environmental conditions meet the requirements of the drive. The installation location should provide sufficient ventilation and protection from excessive dust, moisture, vibration, and corrosive substances.

During electrical wiring, the incoming power terminals, motor output terminals, control signal terminals, and grounding connections must be correctly connected according to industrial electrical standards. Incorrect wiring may result in abnormal operation, communication failures, or damage to internal components.

Before starting the drive, engineers should verify all connections, check motor rotation direction, confirm parameter settings, and test protective functions. It is also important to ensure that motor cables and control cables are properly separated to reduce electromagnetic interference.

A correct installation process not only improves system safety but also helps maximize the service life and performance of the ACS580-01-073A-4 in long-term industrial operation.

3. How should motor parameters be configured in the ABB ACS580-01-073A-4?

The ABB ACS580-01-073A-4 requires accurate motor parameter configuration to achieve stable and efficient motor control. During commissioning, users should enter key motor information based on the motor nameplate, including rated voltage, rated current, rated frequency, rated power, and rated speed.

These parameters allow the drive to calculate the correct control characteristics and provide suitable output voltage and frequency for the connected motor. Accurate parameter settings are especially important for applications requiring stable torque control, precise speed regulation, and smooth operation under changing loads.

If incorrect motor data is entered, the system may experience problems such as unstable speed, excessive current, poor acceleration performance, or unnecessary protection trips. For demanding applications, users can perform motor identification procedures to optimize the control algorithm and improve dynamic response.

Proper configuration ensures that the ACS580-01-073A-4 operates efficiently while reducing energy consumption and minimizing stress on both the motor and mechanical system.

4. What are the common causes of overcurrent faults in the ABB ACS580-01-073A-4 and how can they be solved?

Overcurrent faults in the ABB ACS580-01-073A-4 usually occur when the output current exceeds the allowable limit of the drive. Common causes include excessive mechanical load, motor cable short circuits, incorrect motor parameter settings, sudden load changes, or acceleration and deceleration times that are too short.

When troubleshooting an overcurrent fault, the first step is to inspect the mechanical equipment connected to the motor. Problems such as blocked pumps, overloaded conveyors, damaged bearings, or mechanical resistance can increase motor current demand. The motor cables should also be checked for insulation damage, short circuits, or incorrect connections.

If the mechanical system and wiring are normal, users should verify the motor parameters stored in the drive. Incorrect motor current or power settings can cause the drive to calculate improper control values. Adjusting acceleration time, checking load conditions, and optimizing control parameters can often resolve repeated overcurrent problems.

A complete analysis of both electrical and mechanical factors is necessary to prevent the fault from occurring again and maintain stable operation.

5. How can communication faults between the ABB ACS580-01-073A-4 and PLC or DCS systems be diagnosed?

The ABB ACS580-01-073A-4 can be integrated into industrial automation systems through communication interfaces such as Modbus RTU and optional fieldbus modules. When communication problems occur, the issue is usually related to wiring, parameter mismatch, network configuration, or controller settings.

The troubleshooting process should begin by checking the communication cable connections, especially RS-485 polarity, shielding, grounding, and termination resistance. Incorrect wiring can cause unstable communication or complete loss of data exchange.

Next, users should verify that the communication parameters of the drive and PLC/DCS system are identical, including device address, baud rate, parity, stop bits, and communication protocol settings. If an optional communication module is used, its installation status and configuration should also be checked.

Monitoring communication diagnostic information from both the drive and the control system can help identify the source of the problem. Correct communication configuration allows the ACS580-01-073A-4 to provide reliable remote control, monitoring, and fault feedback within automation networks.

6. Why does the ABB ACS580-01-073A-4 generate overheating alarms during operation?

Overheating alarms on the ABB ACS580-01-073A-4 are generally caused by insufficient cooling, high ambient temperature, blocked ventilation channels, cooling fan problems, or continuous operation under heavy load conditions.

During operation, the drive generates heat through power conversion components. If the heat cannot be effectively removed, the internal temperature may rise beyond the safe operating range, triggering the thermal protection function.

To solve overheating issues, users should first inspect the installation environment and ensure that airflow around the drive is sufficient. Dust and contamination on cooling surfaces should be cleaned regularly because they can reduce heat dissipation efficiency. The cooling fan should also be checked to confirm that it is operating correctly.

In cases where overheating occurs frequently, users should evaluate whether the drive capacity matches the actual application requirements. Reducing excessive load, improving ventilation, and maintaining proper operating conditions can significantly improve system reliability.

7. How can the reliability and service life of the ABB ACS580-01-073A-4 be improved?

To improve the reliability and service life of the ABB ACS580-01-073A-4, users should focus on correct installation, regular maintenance, and optimized operating parameters. A properly configured drive can reduce electrical stress, improve motor efficiency, and prevent unnecessary shutdowns.

Regular inspections should include checking electrical terminals, motor connections, cooling components, communication cables, and fault history records. Early detection of abnormal conditions can help prevent major failures and reduce production downtime.

Parameter optimization is also important for long-term operation. Appropriate acceleration and deceleration times, correct motor settings, and suitable operating frequencies can reduce mechanical impact and electrical load on the system.

For industrial environments with dust, humidity, or vibration, additional protective measures and preventive maintenance schedules should be implemented. These practices help maintain stable performance and extend the operational life of the ACS580-01-073A-4.

8. What protection functions are available in the ABB ACS580-01-073A-4 and why are they important?

The ABB ACS580-01-073A-4 includes multiple built-in protection functions designed to protect both the drive and connected motor from abnormal operating conditions. These functions include overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, motor short circuit protection, and motor phase loss protection.

Overcurrent protection prevents excessive current from damaging power components when abnormal loads or electrical faults occur. Overvoltage and undervoltage protection help protect internal circuits from unstable power supply conditions. Thermal protection monitors temperature levels and prevents damage caused by overheating.

Motor protection functions improve system safety by detecting issues such as phase loss or short circuits before they cause serious equipment failures. These integrated protection features reduce maintenance requirements, improve operational reliability, and help ensure continuous production in industrial automation applications.

With proper configuration and regular maintenance, the ACS580-01-073A-4 can provide stable and efficient motor control performance for a wide range of industrial systems.
