1. What are the main applications of the ABB ACS580-01-07A3-4 Variable Frequency Drive?

The ABB ACS580-01-07A3-4 Variable Frequency Drive is a general-purpose AC drive designed for controlling small and medium power motors in industrial automation applications. It is commonly used in equipment such as pumps, fans, conveyors, packaging machines, processing equipment, and automated production systems where reliable speed control and energy efficiency are required.

By adjusting the output frequency and voltage supplied to the motor, the ACS580-01-07A3-4 can regulate motor speed according to actual process requirements. This helps reduce unnecessary energy consumption, especially in variable torque applications such as pumps and fans. The drive also provides smooth acceleration and deceleration, reducing mechanical stress and improving the service life of connected equipment.

With simple commissioning, reliable operation, and flexible control functions, the ACS580-01-07A3-4 is suitable for various industrial environments requiring stable motor control and efficient operation.

2. What should be considered when installing the ABB ACS580-01-07A3-4 Variable Frequency Drive?

Proper installation is important to ensure reliable performance of the ABB ACS580-01-07A3-4. Before installation, users should confirm that the power supply, motor specifications, and operating environment meet the requirements of the drive. The installation area should provide sufficient ventilation and protection from excessive dust, moisture, vibration, and corrosive substances.

During wiring, the incoming power supply terminals, motor output terminals, control terminals, and grounding connections must be connected correctly. Incorrect wiring may cause abnormal operation, communication failures, or damage to internal components.

Before commissioning, the motor parameters should be configured according to the motor nameplate information, including rated voltage, current, frequency, and speed. Engineers should also verify motor rotation direction, control signals, and protection settings.

A correct installation and commissioning process can improve system reliability, reduce unexpected downtime, and ensure long-term stable operation of the ACS580-01-07A3-4.

3. How does the ABB ACS580-01-07A3-4 control motor speed?

The ABB ACS580-01-07A3-4 controls motor speed by adjusting the output frequency and voltage delivered to the motor. Users can provide speed references through the control panel, analog inputs, digital inputs, or industrial communication networks.

The drive supports both scalar control (U/F) and sensorless vector control. Scalar control is suitable for simple applications such as fans and pumps, where basic speed regulation is required. Sensorless vector control provides improved torque performance, better low-speed stability, and faster response under changing load conditions.

With proper parameter configuration, the ACS580-01-07A3-4 can provide smooth motor acceleration, stable speed regulation, and efficient operation. This helps reduce energy consumption and improves the overall performance of industrial equipment.

4. What are the common causes of overcurrent faults in the ABB ACS580-01-07A3-4?

Overcurrent faults in the ABB ACS580-01-07A3-4 occur when the output current exceeds the allowable operating limit. Common causes include excessive mechanical load, incorrect motor parameter settings, short circuits in motor cables, motor insulation problems, blocked machinery, or acceleration times that are too short.

When troubleshooting an overcurrent fault, users should first inspect the mechanical system connected to the motor. Problems such as overloaded equipment, blocked pumps, damaged bearings, or excessive friction can increase motor current requirements.

The motor wiring should also be checked carefully for short circuits, grounding problems, or loose connections. If the electrical system is normal, the configured motor parameters should be reviewed to ensure they match the actual motor specifications.

Adjusting acceleration and deceleration times, correcting parameter settings, and eliminating abnormal mechanical loads can help prevent repeated overcurrent alarms and improve system reliability.

5. How can the ABB ACS580-01-07A3-4 communicate with PLC or DCS systems?

The ABB ACS580-01-07A3-4 supports industrial communication through the Modbus RTU (RS-485) interface and can be integrated with PLC, DCS, and SCADA systems for centralized monitoring and control.

During communication setup, the drive and control system must use matching communication parameters, including device address, baud rate, parity, stop bits, and communication protocol settings. Incorrect configuration may result in communication interruption or incorrect data exchange.

When communication problems occur, users should check the RS-485 wiring, including signal polarity, cable shielding, grounding, and termination resistance. The communication status and diagnostic information of the drive should also be reviewed to identify the source of the problem.

After proper configuration, the ACS580-01-07A3-4 can support remote start/stop control, speed adjustment, operating status monitoring, and fault feedback, improving the efficiency of industrial automation systems.

6. Why does the ABB ACS580-01-07A3-4 experience overheating during operation?

Overheating problems in the ABB ACS580-01-07A3-4 are usually caused by insufficient ventilation, blocked cooling paths, high ambient temperature, cooling fan failure, or continuous operation under excessive load conditions.

During operation, the power components inside the drive generate heat during energy conversion. If the heat cannot be removed effectively, the internal temperature may increase and activate the thermal protection function.

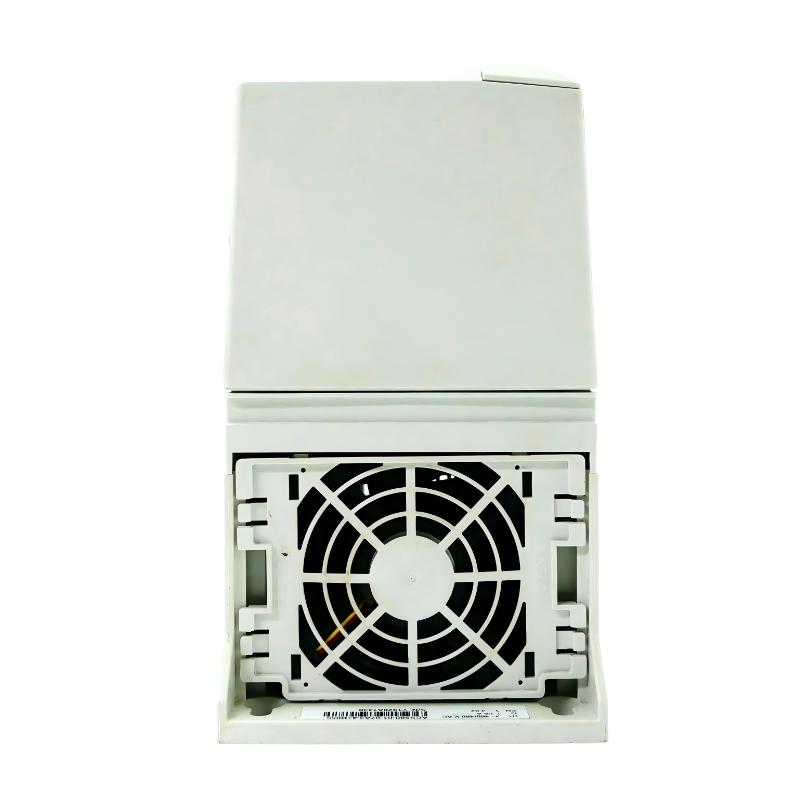

To solve overheating problems, users should check whether the installation environment provides adequate airflow and remove dust or contamination from ventilation areas. The cooling fan should also be inspected to ensure it is operating properly.

If overheating occurs frequently, the actual load conditions should be evaluated to confirm whether the drive capacity is suitable for the application. Maintaining proper cooling conditions and avoiding continuous overload operation can improve reliability and extend service life.

7. How can the reliability and service life of the ABB ACS580-01-07A3-4 be improved?

Improving the reliability of the ABB ACS580-01-07A3-4 requires proper installation, regular maintenance, and optimized parameter settings. Routine inspections should include checking power connections, motor cables, control terminals, communication wiring, and cooling components.

In industrial environments, dust, humidity, and vibration may affect the performance of the drive. Regular cleaning and preventive inspections can help identify potential problems before they lead to equipment failure.

Parameter optimization is also important for long-term operation. Correct acceleration time, deceleration time, motor data configuration, and operating frequency settings can reduce electrical stress and mechanical impact.

By following proper maintenance procedures and keeping the drive operating within recommended conditions, users can reduce downtime, improve system stability, and extend the operational life of the ACS580-01-07A3-4.

8. What protection functions are included in the ABB ACS580-01-07A3-4 Variable Frequency Drive?

The ABB ACS580-01-07A3-4 includes multiple built-in protection functions designed to protect the drive, motor, and connected equipment from abnormal operating conditions. These functions include overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, motor short circuit protection, and motor phase loss protection.

Overcurrent protection prevents damage caused by excessive current resulting from overload conditions or electrical faults. Overvoltage and undervoltage protection help protect internal electronic components from unstable power supply conditions.

The thermal protection function monitors the internal temperature of the drive and prevents damage caused by overheating. Motor protection functions detect abnormal motor conditions and help avoid equipment damage.

These integrated protection features improve operational safety, reduce maintenance requirements, and allow the ACS580-01-07A3-4 to provide reliable performance in industrial automation applications.
