1. What applications is the ABB ACS580-01-293A-4 suitable for?

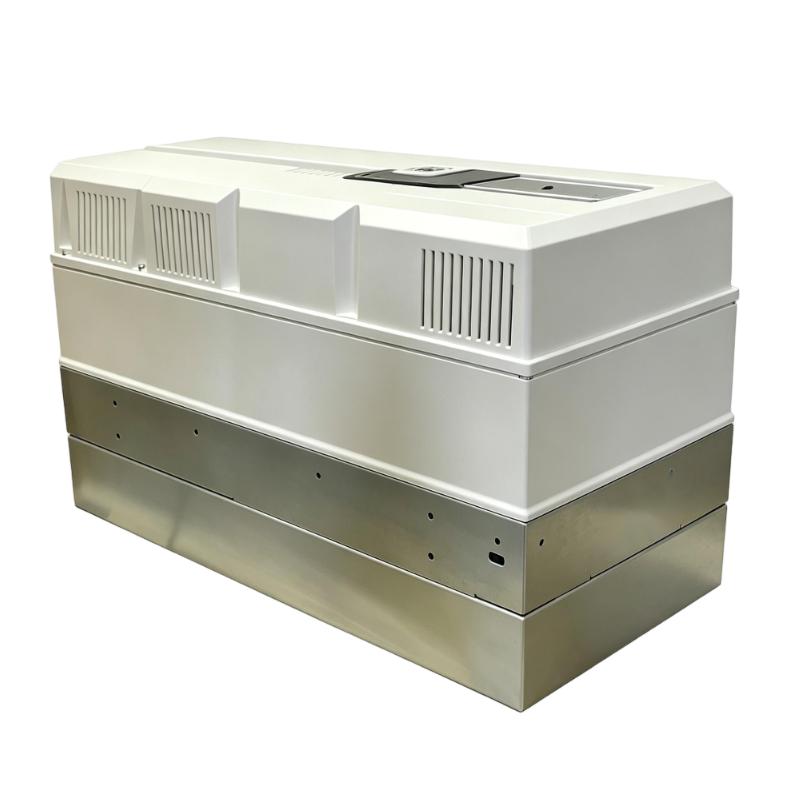

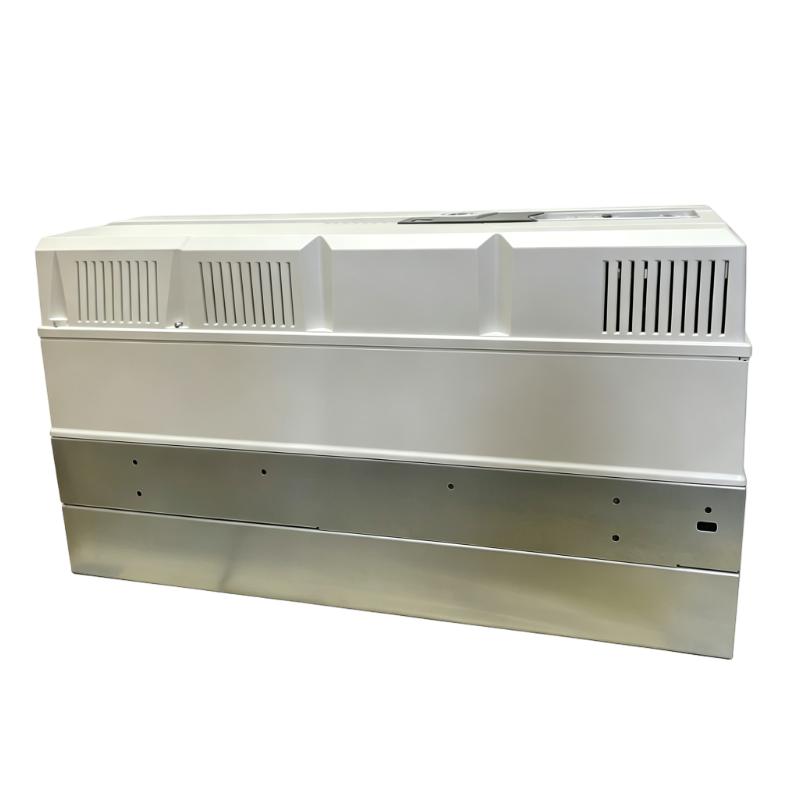

The ABB ACS580-01-293A-4 is a high-power general-purpose variable frequency drive designed for controlling large three-phase AC motors in industrial environments. With a rated power of 160 kW and a rated output current of 293 A, it is suitable for heavy-duty applications requiring stable speed control, reliable torque performance and efficient motor operation.

This drive is widely used in industrial equipment such as large pumps, fans, compressors, conveyors, extruders, centrifuges, mixers and water treatment systems. It supports both variable torque and constant torque applications, allowing users to adjust motor speed according to actual process requirements.

By controlling motor frequency and voltage, the ACS580-01-293A-4 helps reduce mechanical stress during startup, improve process stability and optimize energy consumption. It is especially suitable for industries where continuous operation, high reliability and accurate motor control are required.

2. What are the rated power and output current specifications of the ACS580-01-293A-4?

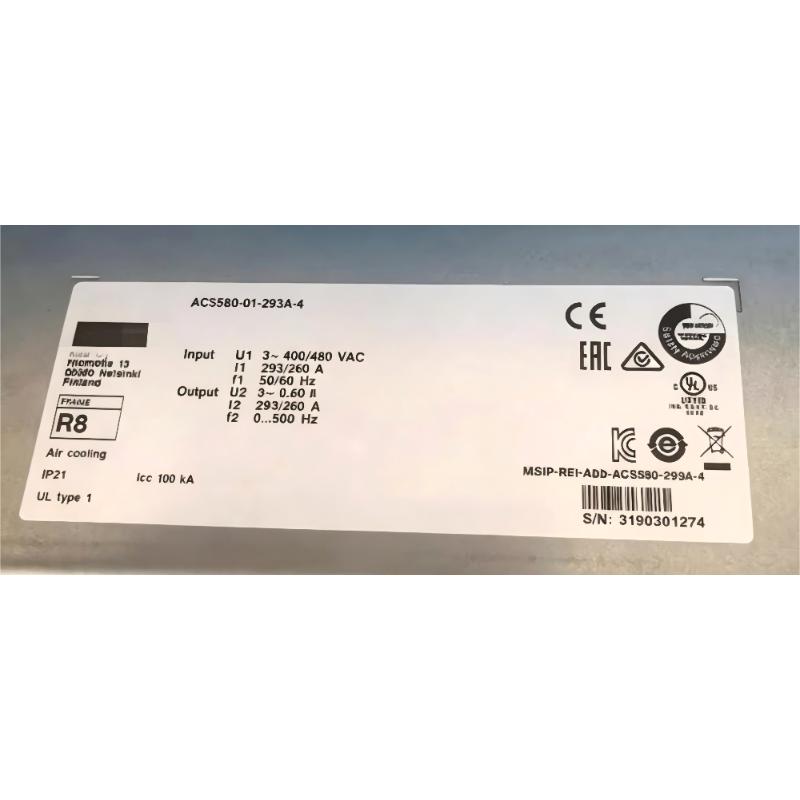

The ABB ACS580-01-293A-4 has a rated power of 160 kW and a rated output current of 293 A. It is designed for three-phase 380–480 V AC power systems and can drive large industrial motors in demanding operating environments.

When selecting a compatible motor, engineers should consider more than just the motor power rating. Factors such as motor rated current, starting torque, load characteristics, operating cycle and overload requirements should also be evaluated. For applications involving high inertia loads, frequent acceleration and deceleration, or continuous heavy operation, proper capacity selection is important.

During commissioning, accurate motor nameplate data should be entered into the drive parameters, including motor voltage, current, frequency and speed. Correct configuration improves motor control accuracy, enhances protection performance and ensures stable operation.

3. What are the input power requirements for the ABB ACS580-01-293A-4?

The ACS580-01-293A-4 requires a three-phase AC input voltage of 380–480 V with a frequency range of 50/60 Hz. Before installation, the power supply system should be checked to ensure compatibility with the drive specifications.

Due to its high output current capability, the incoming power system must use properly selected protection devices, suitable power cables and reliable grounding connections. Cable selection should consider current capacity, installation environment, operating temperature, cable length and electrical safety requirements.

Before commissioning, all power terminals, motor connections and grounding points should be inspected carefully. Correct electrical installation helps prevent startup problems, protection trips and unexpected equipment failures.

4. How should the ABB ACS580-01-293A-4 be commissioned for a new motor system?

During initial commissioning, the ACS580-01-293A-4 should first be checked for correct installation of the power supply, motor wiring and grounding connections. After confirming the electrical setup, the motor parameters should be configured according to the motor nameplate information.

Important parameters include motor rated voltage, rated current, rated frequency and rated speed. The control method, start command source and speed reference source should also be configured according to the application requirements.

After parameter setup, a low-speed test run should be performed to check motor rotation direction, current level, acceleration performance and mechanical response. Once stable operation is confirmed, acceleration time, deceleration time, frequency limits and torque control parameters can be optimized.

Proper commissioning ensures reliable motor operation, reduces unnecessary faults and improves the overall performance of the industrial system.

5. How can an overcurrent fault on the ACS580-01-293A-4 be diagnosed?

When an overcurrent fault occurs, the first step is to identify the operating condition when the fault appears. If the fault happens immediately during startup, the motor cable, motor terminals and insulation condition should be inspected for short circuits, grounding faults or incorrect wiring.

If the fault occurs during acceleration, the acceleration time may be too short for the mechanical load. Large machines with high inertia require sufficient acceleration time to avoid excessive current demand.

If the fault occurs during normal operation, the mechanical system should be checked for overload conditions, blocked components, bearing problems, transmission issues or sudden increases in process load. The motor parameters should also be verified to ensure they match the actual motor specifications.

Reviewing fault history, output current, operating frequency and machine conditions together can help identify the actual cause and prevent repeated failures.

6. Why does the motor controlled by the ACS580-01-293A-4 fail to reach the required speed?

If the motor cannot reach the target speed, the speed reference signal and drive settings should be checked first. For analog control systems, verify that the input signal range, scaling parameters and reference settings are correctly configured.

If the speed command is provided by a PLC, DCS or another automation controller, communication signals and control commands should be checked to ensure the correct speed reference is transmitted.

The minimum and maximum frequency limits should also be reviewed because incorrect parameter settings may restrict motor operation. If the drive output frequency reaches the target value but the motor speed remains low, the mechanical load should be inspected.

Excessive load, mechanical resistance, incorrect motor selection or transmission problems may prevent the motor from achieving the expected speed. Monitoring output frequency, motor current, feedback signals and load conditions can help determine whether the issue is related to the drive, motor or mechanical system.

7. Can the ABB ACS580-01-293A-4 be integrated with PLC and DCS systems?

Yes. The ACS580-01-293A-4 can be integrated with PLC, DCS and industrial automation systems for advanced motor control, monitoring and process management.

The drive can receive start commands, stop commands and speed references from automation controllers while providing feedback information such as output frequency, motor current, operating status, alarms and fault conditions.

For simple applications, digital and analog I/O can be used for basic control functions. For advanced automation systems, communication networks can provide more flexible data exchange and centralized monitoring.

During integration, communication parameters, control logic, data mapping and signal scaling must be configured correctly. Proper configuration ensures reliable communication between the drive and the automation system and helps improve overall system efficiency.

8. How can the ACS580-01-293A-4 improve energy efficiency in industrial applications?

The ACS580-01-293A-4 improves energy efficiency by adjusting motor speed according to actual process requirements instead of operating motors continuously at fixed speed.

This is especially beneficial in applications such as pumps and fans, where load demand changes frequently. Traditional systems often control output through mechanical methods while keeping the motor running at full speed, which can waste energy. Variable frequency control allows the motor speed to be reduced when lower output is required.

For industrial systems operating continuously for long periods, optimized speed control can significantly reduce unnecessary power consumption. When combined with PLC, DCS or process feedback systems, the drive can automatically adjust motor speed according to pressure, flow or temperature signals.

This improves process stability, reduces operating costs and helps achieve more efficient and reliable industrial equipment operation.
