1. What industrial applications is the ABB ACS800-01-0025-3 suitable for?

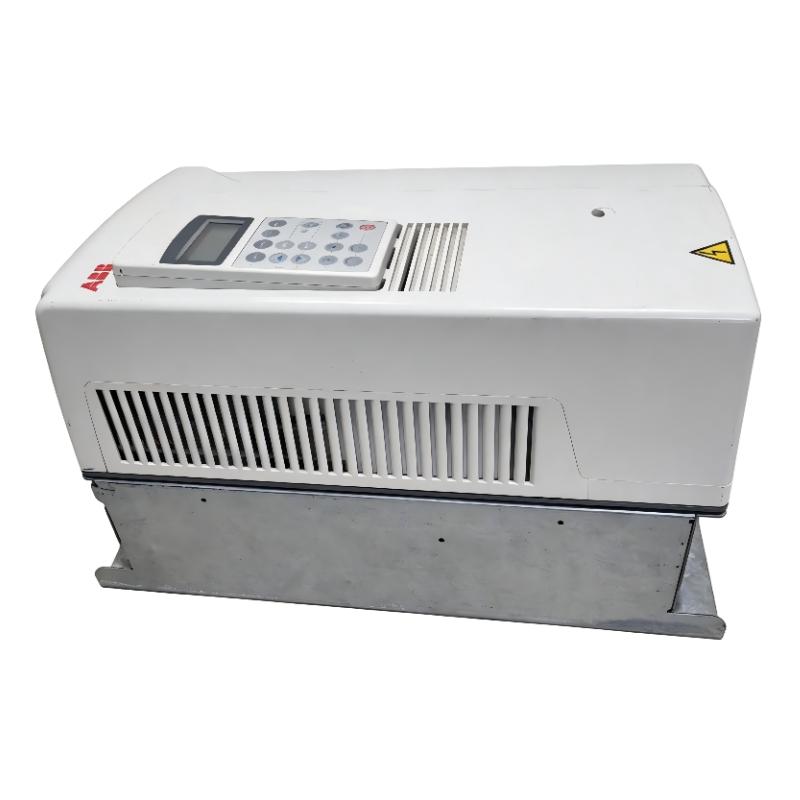

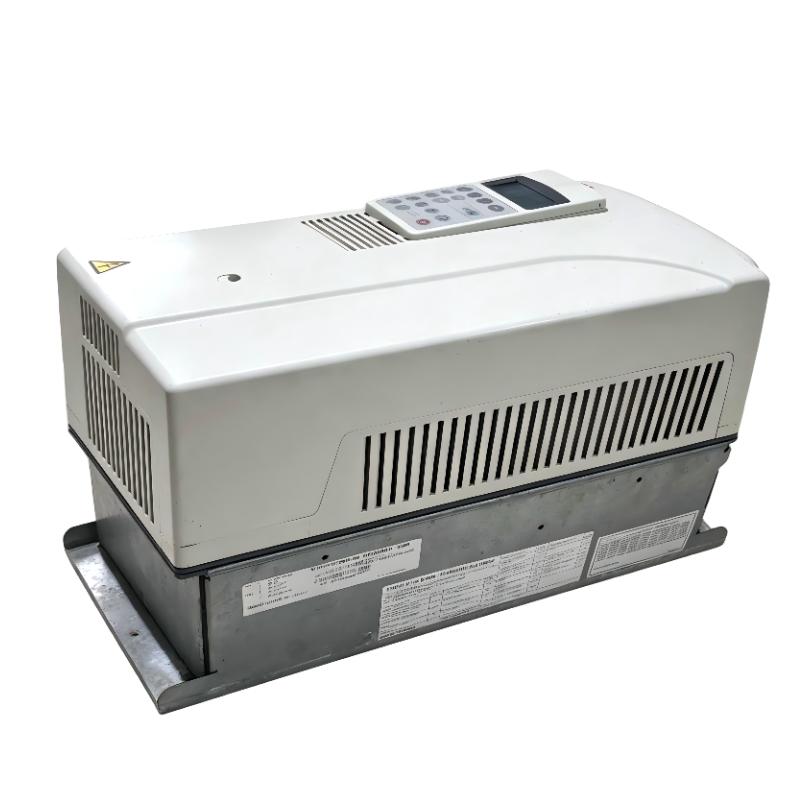

The ABB ACS800-01-0025-3 is an industrial AC variable frequency drive designed for controlling the speed, torque, and operation of three-phase AC motors in demanding automation environments. With a rated output power of 22 kW and advanced motor control performance, it is widely used in applications such as pumps, fans, conveyors, compressors, mixers, packaging machines, textile equipment, and production line drive systems. The drive is especially suitable for industrial processes that require stable speed regulation, reliable operation, and accurate motor control. Based on ABB’s proven ACS800 platform, this model provides excellent dynamic response through Direct Torque Control (DTC) technology, allowing motors to operate smoothly even under changing load conditions. It is commonly installed in manufacturing plants, process industries, and automated production systems where high reliability and continuous operation are required.

2. What parameters should be configured during ACS800-01-0025-3 commissioning?

During initial commissioning, the ACS800-01-0025-3 must be configured according to the actual motor and application requirements. The most important settings include motor rated voltage, motor rated current, motor frequency, motor power, and motor speed, which should match the information on the motor nameplate. Users should also configure acceleration time, deceleration time, maximum frequency, minimum frequency, start and stop modes, and control commands according to the operating conditions of the equipment. For process applications such as pumps and fans, additional control parameters may be adjusted to optimize energy efficiency and process performance. After completing parameter configuration, a motor identification or optimization procedure should be performed to allow the drive to accurately understand motor characteristics. Proper commissioning ensures stable startup, improves torque control accuracy, and reduces the possibility of operating faults during long-term operation.

3. What are the common causes of overcurrent faults in the ACS800-01-0025-3?

Overcurrent faults occur when the output current exceeds the allowable protection limit of the drive. Common causes include excessive mechanical load, motor shaft blockage, damaged bearings, transmission problems, motor winding faults, output cable short circuits, poor electrical connections, or incorrect parameter settings. In applications with high starting inertia, the motor may require excessive torque during acceleration, causing a temporary current increase that triggers protection. Troubleshooting should begin by checking whether the mechanical system operates normally without abnormal resistance or blockage. The motor insulation condition and cable connections should also be inspected carefully. In addition, users should verify that the motor parameters entered into the drive match the actual motor specifications. If the motor or mechanical system has been replaced or modified, parameter optimization should be performed again to ensure proper current control and prevent repeated overcurrent alarms.

4. Why does the ACS800-01-0025-3 generate overvoltage faults during operation?

Overvoltage faults usually occur when the motor decelerates and returns regenerative energy to the drive’s DC bus. When a motor drives a high-inertia load, the mechanical energy stored in the rotating system is converted into electrical energy during braking. If this energy cannot be absorbed quickly enough, the DC bus voltage rises and activates the overvoltage protection function. This situation commonly occurs in applications such as large fans, centrifuges, conveyors, lifting equipment, and other systems with significant inertia. To solve this issue, users can increase the deceleration time, adjust braking parameters, install a suitable braking resistor, or optimize the stopping method according to the application requirements. Proper braking system design helps prevent unexpected shutdowns, protects internal power components, and improves the overall reliability of the drive system.

5. What control technology does the ACS800-01-0025-3 use, and what are its advantages?

The ABB ACS800-01-0025-3 uses Direct Torque Control (DTC), one of ABB’s advanced motor control technologies. Unlike traditional scalar V/F control, DTC directly manages motor torque and magnetic flux, providing fast dynamic response and accurate torque regulation without requiring a traditional encoder in many applications. This technology enables stable operation at low speeds, improved starting torque, and excellent performance under rapidly changing load conditions. These advantages make the drive suitable for applications requiring precise motor control, such as conveyors, compressors, lifting equipment, and industrial production machinery. In addition, the ACS800 platform provides comprehensive motor protection, advanced diagnostics, and flexible parameter adjustment capabilities, helping users improve equipment efficiency, reduce downtime, and extend the service life of motors and mechanical systems.

6. How can the ACS800-01-0025-3 communicate with PLC or DCS systems?

The ACS800-01-0025-3 can be integrated into industrial automation systems through optional fieldbus communication modules. These communication options allow the drive to connect with PLCs, DCS systems, SCADA platforms, and other industrial controllers for centralized monitoring and control. Through communication networks, users can remotely control start and stop commands, adjust speed references, read operating parameters, and monitor fault information. Real-time data such as output current, frequency, motor speed, operating status, and alarms can be transferred to the control system for process optimization and maintenance management. This communication capability allows the ACS800-01-0025-3 to become part of a complete automated production system, improving operational efficiency and simplifying system management.

7. What maintenance practices are recommended for the ACS800-01-0025-3?

Regular preventive maintenance is important to ensure reliable long-term operation of the ACS800-01-0025-3. The cooling system should be inspected periodically, including ventilation paths, cooling fans, and internal air circulation conditions. Dust accumulation should be removed regularly, especially when the drive operates in environments with high levels of dust or industrial contaminants. Electrical terminals should be checked to ensure secure connections and prevent overheating caused by loose wiring. Users should also review fault history records regularly to identify possible operating problems before they become serious failures. For equipment operating continuously, preventive inspection of key components such as cooling fans, capacitors, and power connections is recommended according to operating hours and environmental conditions. A structured maintenance program reduces unexpected downtime and improves overall system reliability.

8. What advantages does the ABB ACS800-01-0025-3 offer compared with standard variable frequency drives?

The ABB ACS800-01-0025-3 provides higher control performance, faster dynamic response, and stronger reliability compared with conventional variable frequency drives. Its main advantage is the implementation of Direct Torque Control (DTC), which enables accurate torque and speed control even under demanding operating conditions. The drive also offers comprehensive motor protection functions, advanced fault diagnostics, flexible communication options, and precise parameter management capabilities. The ACS800 series has been widely used in industrial environments because of its proven reliability and long service life. With stable performance, strong overload capability, and excellent adaptability to different industrial applications, the ACS800-01-0025-3 is a reliable drive solution for manufacturing equipment, process automation systems, and industrial motor control applications requiring efficient and continuous operation.
