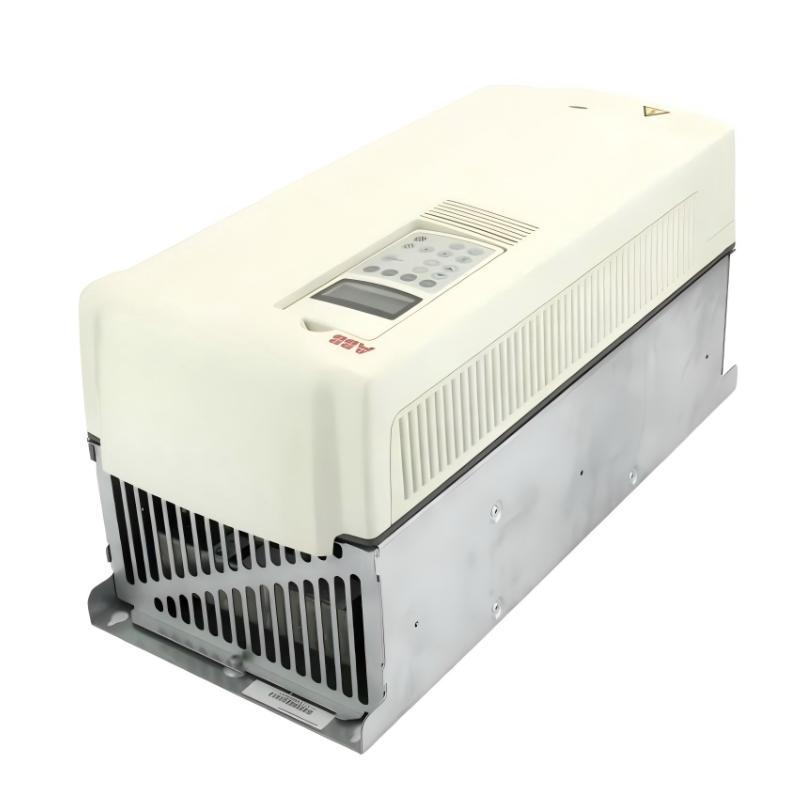

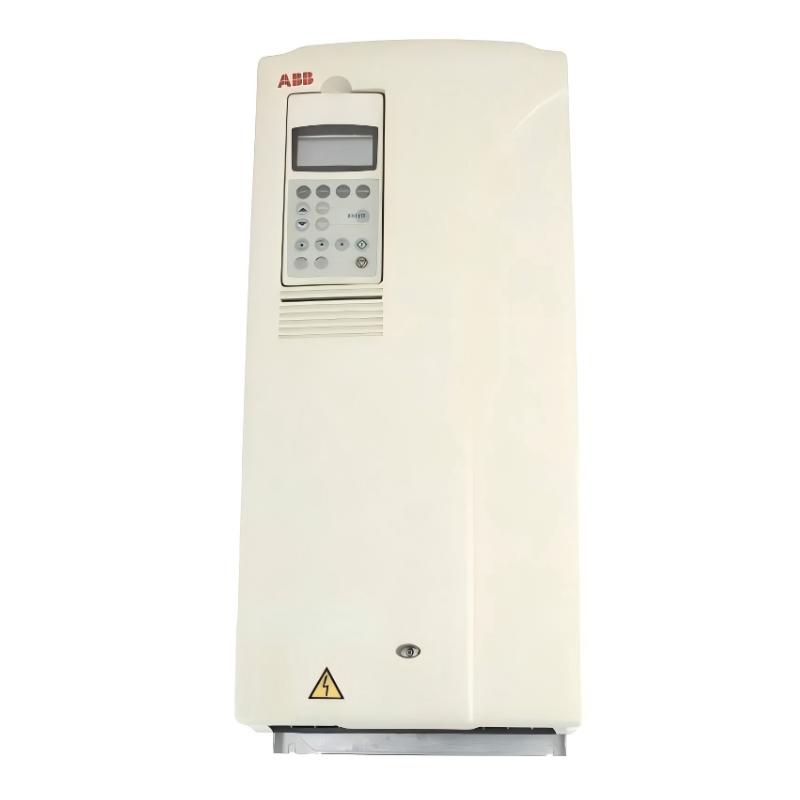

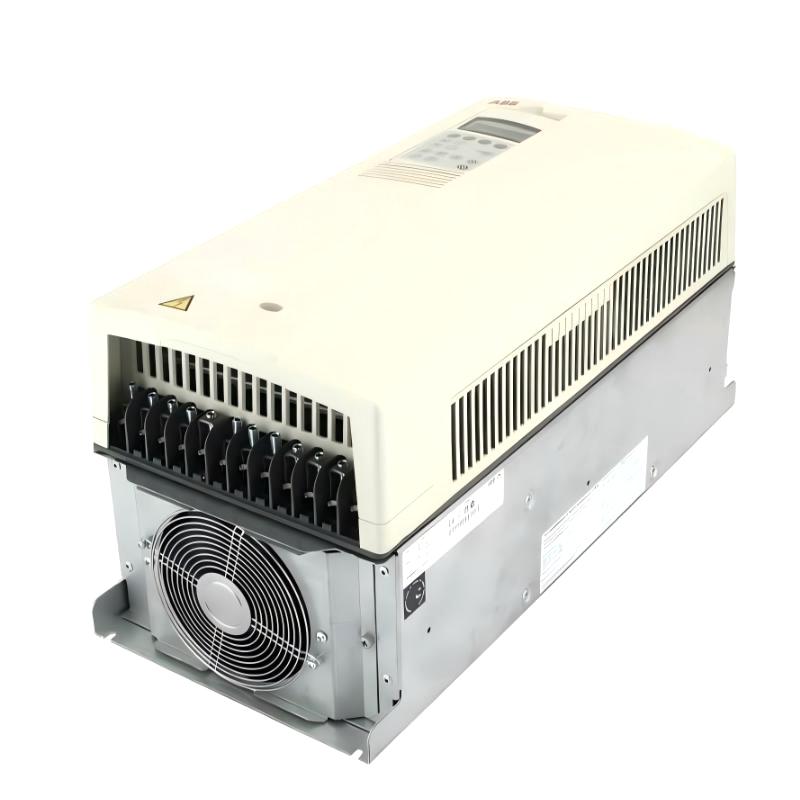

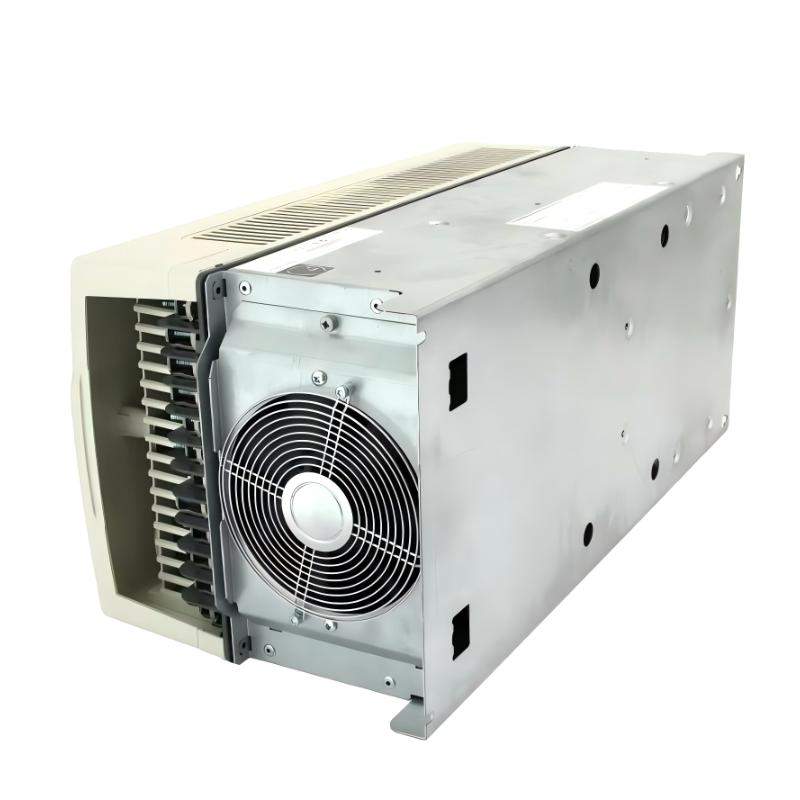

1. What are the key features and advantages of the ABB ACS800-01-0100-3 Variable Frequency Drive?

The ABB ACS800-01-0100-3 is a high-performance industrial variable frequency drive specifically designed for demanding motor control applications requiring excellent reliability, fast dynamic response, and long service life. It incorporates ABB’s renowned Direct Torque Control (DTC) technology, which provides exceptionally fast torque response without requiring an encoder in most applications. Compared with conventional vector-controlled drives, DTC offers superior low-speed torque, outstanding speed accuracy, smooth acceleration, and highly stable operation even when the load changes rapidly. The drive also includes comprehensive motor protection functions, flexible communication options, built-in diagnostics, and advanced parameter configuration, making it an excellent solution for continuous industrial production processes where downtime must be minimized and productivity maximized.

2. Which motor types can be controlled by the ACS800-01-0100-3, and why is the Identification Run important?

The ACS800-01-0100-3 supports both standard three-phase squirrel cage induction motors and permanent magnet synchronous motors (PMSM). During commissioning, ABB recommends performing an Identification Run (ID Run), which allows the drive to automatically identify the electrical characteristics of the connected motor and build an accurate mathematical model. This optimized model enables the DTC algorithm to provide highly accurate torque and speed control while minimizing current fluctuations and improving energy efficiency. Performing the Identification Run is particularly beneficial for demanding applications such as cranes, extruders, conveyors, compressors, and heavy-duty process machinery, where rapid load changes and precise motor control are essential for stable operation.

3. What should be checked if the drive reports an overcurrent fault during startup or acceleration?

An overcurrent fault generally indicates excessive output current caused by electrical or mechanical conditions rather than a failure of the drive itself. The first troubleshooting step is to disconnect the motor and verify whether the drive powers up correctly without load. If the drive operates normally, inspect the motor cables for damaged insulation, loose terminals, incorrect phase wiring, or short circuits. Measure the motor winding resistance and insulation resistance to confirm the motor is in good condition. All motor nameplate data—including rated voltage, current, frequency, speed, and power—should be verified within the drive parameters. If the driven machine has high inertia, extending the acceleration time or modifying the acceleration ramp can significantly reduce startup current. In addition, mechanical components such as bearings, couplings, gearboxes, and driven equipment should be inspected for excessive resistance or mechanical binding that could increase motor load during startup.

4. How can the long-term reliability and service life of the ACS800-01-0100-3 be maximized?

Long-term reliability depends on proper installation, preventive maintenance, and maintaining appropriate environmental conditions. The drive should always be mounted vertically with sufficient clearance around the cooling fins to ensure unrestricted airflow. Power cables and control cables should be routed separately to minimize electromagnetic interference, while protective grounding must comply with ABB installation guidelines. Cooling fans, heatsinks, ventilation openings, and cabinet filters should be inspected and cleaned regularly to prevent dust accumulation that could reduce cooling efficiency. Electrical terminals should be checked periodically for looseness or oxidation, and parameter backups should be maintained whenever configuration changes are made. For installations with unstable power quality or significant harmonic distortion, line reactors, EMC filters, or harmonic mitigation equipment are recommended to improve system reliability and extend the operational life of internal power components.

5. Which industrial communication protocols are supported by the ACS800-01-0100-3, and how do they benefit automation systems?

The ACS800-01-0100-3 offers excellent integration capabilities for modern industrial automation systems. Besides the standard RS-485 interface, optional communication modules enable support for PROFIBUS DP, PROFINET, Modbus RTU, CANopen, DeviceNet, EtherNet/IP, and several additional industrial communication protocols. These interfaces allow seamless communication with PLCs, DCS platforms, SCADA systems, HMIs, and industrial computers. Through these communication networks, operators can remotely start and stop the drive, monitor operating parameters, modify configuration settings, receive diagnostic information, record historical operating data, and implement predictive maintenance strategies. This high level of connectivity helps improve production efficiency, reduce maintenance costs, and support Industry 4.0 digital manufacturing initiatives.

6. Why does the connected motor overheat during operation, and what corrective actions are recommended?

Motor overheating is commonly caused by continuous overload operation, inadequate cooling, elevated ambient temperatures, incorrect motor parameter settings, frequent start-stop cycles, excessive mechanical loading, or prolonged low-speed operation under high torque conditions. Users should first compare the actual operating current with the motor’s rated current to determine whether overload conditions exist. The cooling fan, ventilation passages, and heatsinks should be inspected to ensure sufficient airflow, and accumulated dust should be removed regularly. Running the Identification Run again after replacing or rewinding a motor helps optimize the drive’s control algorithm and improve operating efficiency. If the application requires continuous low-speed heavy-load operation, installing an independently powered motor cooling fan is recommended to maintain proper motor temperature. Additionally, inspecting bearings, alignment, couplings, and driven machinery can identify mechanical issues that increase motor load and contribute to overheating.

7. What is the recommended procedure for backing up and restoring drive parameters?

ABB provides several reliable methods for parameter management. Complete parameter sets can be copied directly through the operator control panel or saved to a computer using ABB DriveWindow software. Creating parameter backups immediately after commissioning and after every significant configuration change is considered best practice. If maintenance, controller replacement, or drive replacement becomes necessary, the saved parameter file can be restored quickly, allowing the equipment to resume operation with minimal downtime and virtually eliminating manual programming errors. Maintaining organized parameter archives for each drive also simplifies troubleshooting, supports preventive maintenance programs, and ensures configuration consistency across multiple production lines using identical equipment.

8. What industrial applications is the ABB ACS800-01-0100-3 best suited for?

The ACS800-01-0100-3 is specifically designed for medium- and heavy-duty industrial applications that require dependable motor control, high overload capability, and continuous operation. It is widely deployed in water and wastewater treatment facilities, HVAC systems, mining operations, oil and gas processing plants, chemical manufacturing, pulp and paper mills, metal processing industries, food and beverage production lines, cement plants, power generation facilities, and material handling systems. Typical applications include centrifugal pumps, cooling towers, ventilation fans, air compressors, conveyors, mixers, crushers, hoists, cranes, extruders, and other process equipment requiring precise speed regulation and reliable torque control. Thanks to ABB’s advanced DTC technology, comprehensive protection features, flexible communication architecture, and robust industrial design, the ACS800-01-0100-3 delivers excellent operational efficiency, reduced energy consumption, improved equipment reliability, and lower total cost of ownership throughout its service life.
